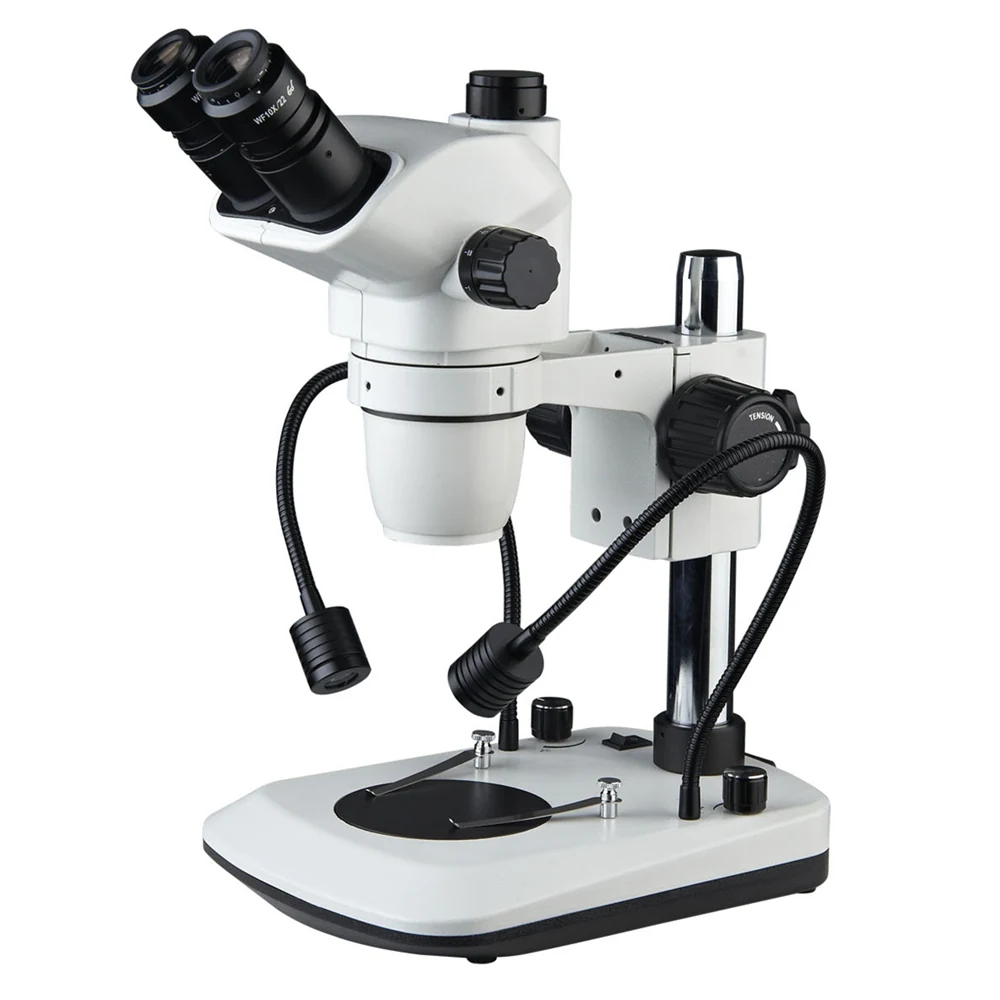

XSZ6745-B8LS 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B8LS 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B8LS 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B8LS 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B8LS 6.7X-45X Stereo Zoom Microscope for Electronic Inspection

XSZ6745-B8LS 6.7X-45X Stereo Zoom Microscope for Electronic Inspection

XSZ6745-B8LS is a stereo zoom microscope from Nanjing AMADA Instrument for electronics inspection, PCB assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1:6.7 zoom ratio, 105 mm working distance on the standard 1X objective path, binocular or trinocular head, and optional auxiliary objectives and eyepieces. It supports multiple illumination sources and is designed for use in production and quality control environments.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for detailed inspection across varying scales
  • 105 mm working distance on standard 1X path for handling components and tools under the lens
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing
  • Interpupillary adjustment 54–75 mm and ±5 diopter correction for users wearing glasses
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF10X–WF30X) to extend magnification and field of view
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X on standard 1X objective
  • Working distance 105 mm with 1X objective; 30–165 mm with auxiliary objectives
  • Field of view 23.8–4.9 mm with standard WF10X/22mm eyepiece
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepieces: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Field of view with auxiliary objectives: 1.1–57.1 mm

Who it is for

  • Electronics manufacturers specifying stereo microscopes for production lines
  • Importers sourcing inspection tools for electronics and precision assembly
  • Distributors building a catalog of bench-top optical inspection systems

Specifications

ModelXSZ6745-B8LS
Zoom Ratio1:6.7
Magnification Range6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Eyepiece TypeWF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Interpupillary Distance54–75 mm
Diopter Adjustment±5 diopters
Head TypeBinocular / Trinocular, 45° inclined, 360° rotatable

Use guide

  • Select binocular or trinocular head based on whether camera documentation is required
  • Use 0.5X or 0.3X objectives when greater working distance (up to 165 mm) is needed
  • Combine 2X objective with WF10X eyepiece for high magnification (up to 45X) and reduced field of view
  • Adjust interpupillary distance and diopter to match individual observer needs

FAQ

What is the working distance on the standard 1X objective?
105 mm. With 0.5X objective it is 165 mm; with 2X it is 30 mm.
Can I add a camera?
Yes. The trinocular version supports camera integration via the 50:50 or 100% light split path.
What eyepieces are available?
WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm.
What auxiliary objectives are offered?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
