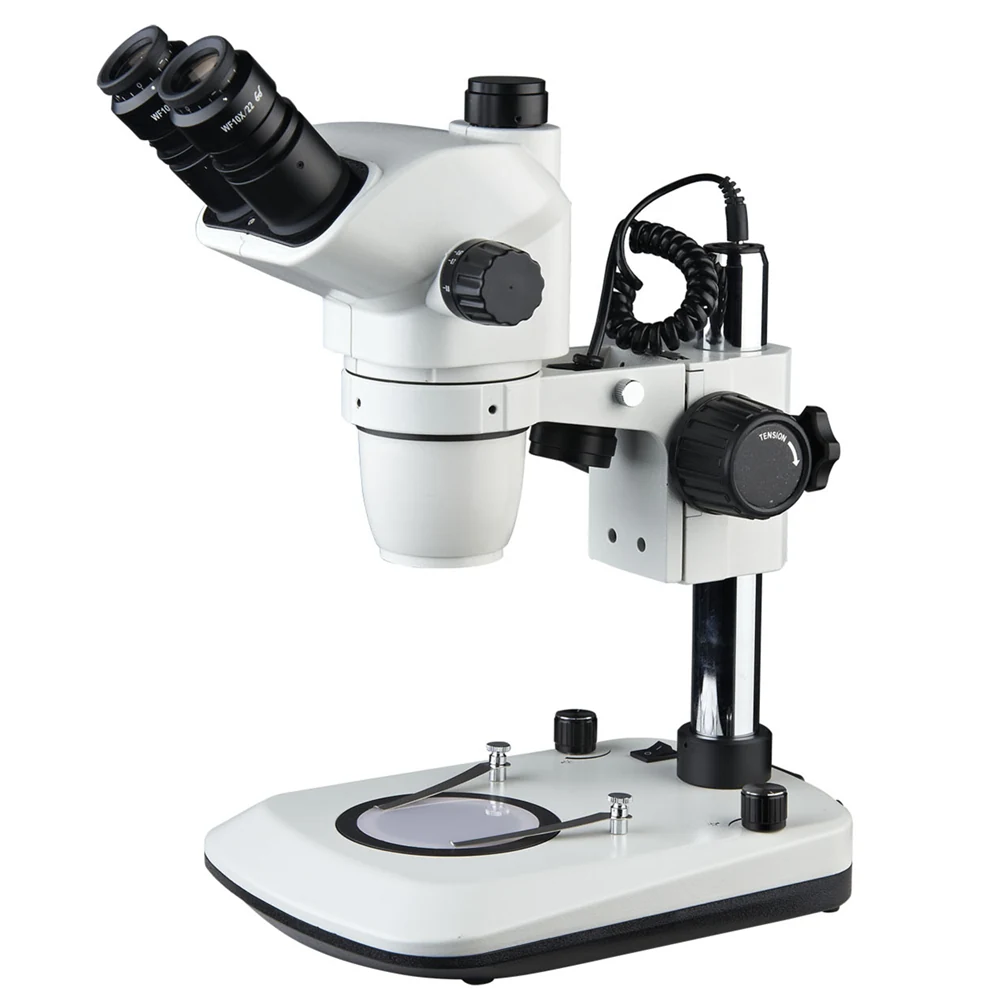

XSZ6745-B8L 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B8L 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B8L 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B8L 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B8L 6.7X-45X Stereo Zoom Microscope for Electronic Inspection

XSZ6745-B8L 6.7X-45X Stereo Zoom Microscope for Electronic Inspection

XSZ6745-B8L is a stereo zoom microscope from Nanjing AMADA Instrument for electronic inspection, PCB assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1:6.7 zoom ratio, 105 mm working distance on the standard 1X objective path, binocular or trinocular head, and optional auxiliary objectives and eyepieces for extended magnification and field of view.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for consistent detail across inspection tasks
  • 105 mm working distance on 1X path allows space for tools and components under the lens
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing
  • Adjustable interpupillary distance (54–75 mm) and ±5 diopter correction for users wearing glasses
  • Optional auxiliary objectives and eyepieces extend magnification to 3.4X–270X and field of view to 57.1 mm
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X with 1X objective
  • Working distance 105 mm (1X); varies with auxiliary objectives (30–165 mm)
  • Field of view 23.8–4.9 mm (1X); extends to 57.1 mm with 0.3X objective and WF10X eyepiece
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepiece options: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Standard optical system: Greenough design for stereo depth perception

Who it is for

  • Electronics manufacturers and repair labs sourcing inspection tools
  • Importers specifying stereo zoom microscopes for production or quality control lines
  • Distributors building a catalog of bench-top optical inspection systems

Specifications

ModelXSZ6745-B8L
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Interpupillary Distance54–75 mm
Diopter Adjustment±5 diopters
Head TypeBinocular / Trinocular, 45° inclined, 360° rotatable
Eyepiece OptionsWF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

Use guide

  • Select binocular or trinocular head based on whether camera documentation is required
  • Choose auxiliary objectives to extend working distance or magnification as needed
  • Match eyepieces to desired field of view and magnification (e.g., WF10X for wider view, WF30X for high detail)
  • Use 0.3X objective to increase working distance and field of view for large components

FAQ

What is the working distance on the standard 1X configuration?
105 mm with the built-in 1X objective path.
Can I use this microscope with a camera?
Yes. The trinocular version supports camera attachment via the video output path.
What eyepieces are available?
WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm.
What auxiliary objectives are offered?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
Is the head adjustable for users with glasses?
Yes. The eyepieces have ±5 diopter adjustment and the interpupillary distance is adjustable from 54–75 mm.
