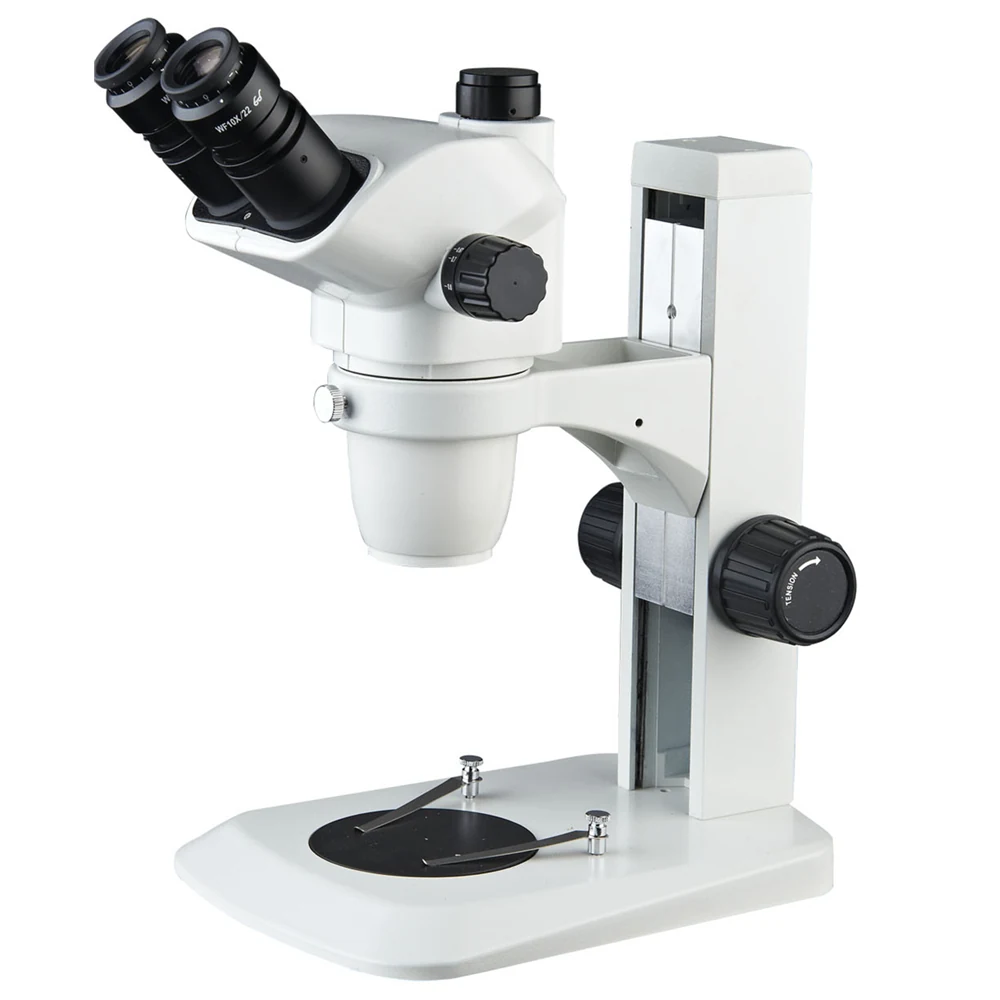

XSZ6745-B7 is a stereo zoom microscope from Nanjing AMADA Instrument for LED PCB inspection, electronics assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1:6.7 zoom ratio, 105 mm working distance on the standard 1X objective path, binocular or trinocular head, and optional auxiliary objectives and eyepieces for extended reach and field of view.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for detailed inspection of small components
  • 105 mm working distance on standard 1X path for handling PCBs and soldering tools
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing
  • Adjustable interpupillary distance (54–75 mm) and ±5 diopter correction for observers wearing glasses
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF10X–WF30X) to extend magnification and field of view
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X (standard), 3.4X–270X with optional eyepieces and objectives
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment: 54–75 mm; diopter adjustment: ±5 diopters
  • Standard objective: 1X; working distance: 105 mm
  • Field of view: 23.8–4.9 mm (standard); 1.1–57.1 mm with optional accessories
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Eyepieces: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Working distance range: 30–165 mm with optional objectives

Who it is for

  • Electronics manufacturers specifying microscopes for PCB and LED inspection
  • Importers sourcing stereo zoom microscopes for production line integration
  • Distributors building a catalog for industrial inspection equipment

Specifications

ModelXSZ6745-B7
Zoom Ratio1:6.7
Magnification Range6.7X–45X (standard), 3.4X–270X (with optional accessories)
Working Distance (1X)105 mm
Field of View (Standard)23.8–4.9 mm
Interpupillary Distance54–75 mm
Diopter Adjustment±5 diopters
Head TypeBinocular / Trinocular, 45° inclined, 360° rotatable
Objective1X (standard), optional 0.3X–2X auxiliary objectives
EyepiecesWF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm

Use guide

  • Select binocular or trinocular head based on whether camera integration is required
  • Use 1X objective for standard 105 mm working distance and 6.7X–45X magnification
  • Add 0.5X or 0.75X auxiliary objective when more working distance (up to 165 mm) is needed
  • Use higher magnification eyepieces (WF25X/9mm, WF30X/8mm) when inspecting fine features
  • Combine 2X objective with WF10X eyepiece to achieve 45X magnification at 30 mm working distance

FAQ

What is the working distance on the standard 1X objective?
105 mm with the built-in 1X objective path.
Can I use a camera with this microscope?
Yes. The trinocular version supports camera integration via the 50:50 or 100% light split options.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, and 2X are available as optional accessories.
Are eyepieces included?
The WF10X/22mm eyepiece is standard; others are optional and must be ordered separately.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
