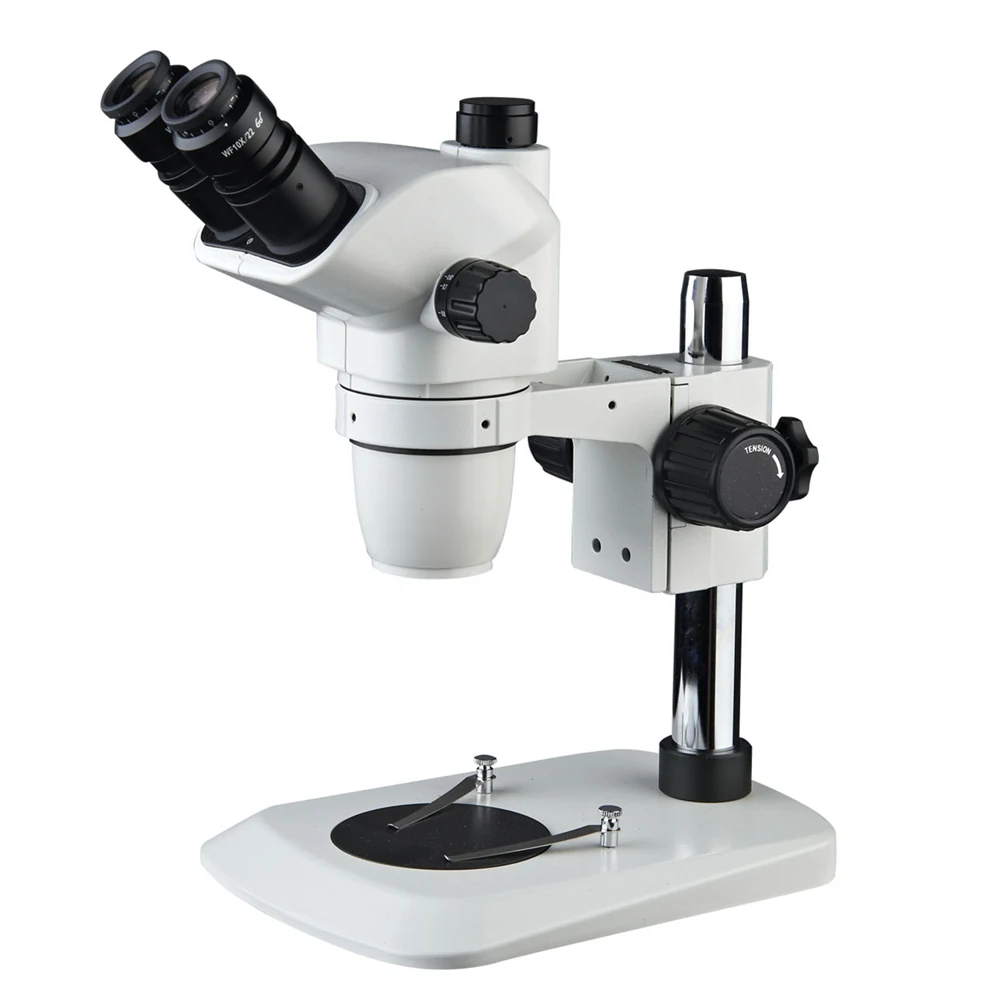

XSZ6745-B6 6.7X-45X Stereo Zoom Microscope for Phone Repairing

Technical features

• Zoom ratio 1:6.7; magnification range 6.7X–45X (standard configuration)
• Working distance 105 mm with 1X objective; 30–165 mm with optional objectives
• Field of view 23.8–4.9 mm (standard); 1.1–57.1 mm with optional eyepieces and objectives
• Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
• Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
• Eyepieces: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
• Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
• Microscope body sold separately; optional for integration with existing stands

Who it is for

• Phone repair shops and mobile device service centers
• Electronics manufacturers and contract repair labs
• Importers sourcing microscopes for small component inspection
• Distributors building a product line for precision bench work

Specifications

Use guide

• Select binocular or trinocular head based on whether camera documentation is required
• Use 1X objective for standard 105 mm working distance and 6.7X–45X magnification
• Add auxiliary objectives (e.g., 2X) to increase magnification to 270X, but reduce working distance to 30 mm
• Choose eyepieces (e.g., WF30X) for higher magnification and smaller field of view
• Combine objectives and eyepieces to match specific inspection needs (e.g., 1.1 mm field for tiny components)
