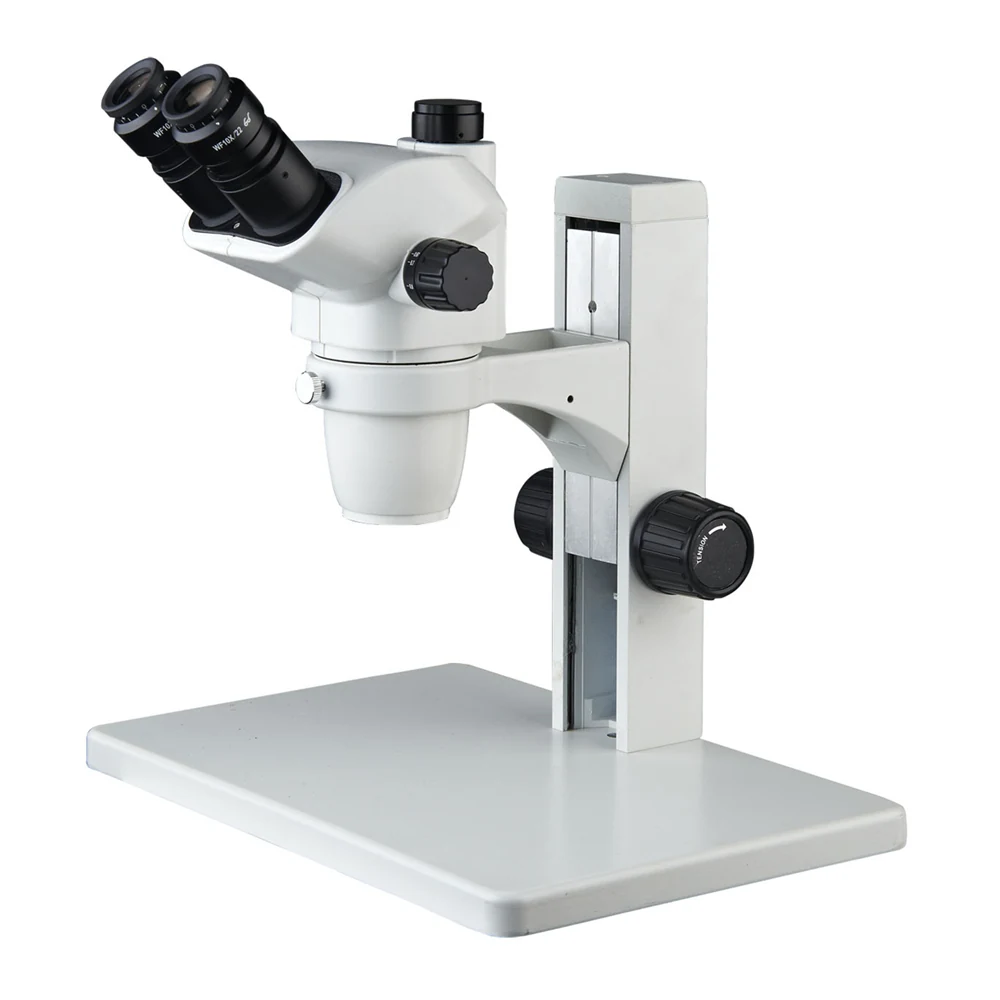

XSZ6745-B5 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B5 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B5 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B5 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B5 6.7X-45X Stereo Zoom Microscope for Electronic Inspection

XSZ6745-B5 6.7X-45X Stereo Zoom Microscope for Electronic Inspection

XSZ6745-B5 is a stereo zoom microscope from Nanjing AMADA Instrument Co., Ltd. designed for electronic inspection, PCB assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1:6.7 zoom ratio, binocular or trinocular head, 45° inclined and 360° rotatable design, and a 105 mm working distance on the standard 1X objective path. Optional eyepieces and auxiliary objectives extend the range to 3.4X–270X and adjust working distance from 30 mm to 165 mm.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for detailed electronic component inspection
  • 105 mm working distance on standard 1X objective path for handling soldering tools and small parts
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing
  • Interpupillary adjustment 54–75 mm and ±5 diopter correction for users wearing glasses
  • Optional eyepieces and auxiliary objectives expand magnification and working distance range
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X on standard 1X objective path
  • Working distance 105 mm with 1X objective; adjustable from 30 mm to 165 mm with auxiliary objectives
  • Field of view 23.8 mm to 4.9 mm on standard configuration; 57.1 mm to 1.1 mm with optional optics
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepiece options: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Magnification range extended to 3.4X–270X with optional eyepieces and objectives

Who it is for

  • Electronics manufacturers and quality control labs
  • Importers sourcing stereo microscopes for production line inspection
  • Distributors building a catalog of bench-top optical inspection tools

Specifications

ModelXSZ6745-B5
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Head TypeBinocular / Trinocular
Head Inclination45°
Rotation360° rotatable
Interpupillary Adjustment54–75 mm
Diopter Adjustment±5 diopters
Eyepiece StandardWF10X/22mm high-eyepoint
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Extended Magnification Range3.4X–270X

Use guide

  • Select binocular or trinocular head based on need for camera integration
  • Use WF10X/22mm eyepiece for standard viewing; switch to higher magnification eyepieces for fine detail
  • Add auxiliary objectives to adjust working distance: 0.5X for longer reach, 2X for higher magnification
  • Confirm that the final magnification and working distance meet the inspection task requirements

FAQ

What is the working distance on the standard 1X objective?
105 mm with the built-in 1X objective path.
Can I use this microscope with eyeglasses?
Yes. The eyepieces are high-eyepoint and include ±5 diopter adjustment for users wearing glasses.
What magnification range is possible with optional optics?
With optional eyepieces and auxiliary objectives, the magnification range extends to 3.4X–270X.
Is the head adjustable for different users?
Yes. The 45° inclined head rotates 360° and can be locked in any position. Interpupillary distance is adjustable from 54–75 mm.
Can I add a camera?
Yes. The trinocular version supports camera attachment via the 50:50 or 100% light split paths.
