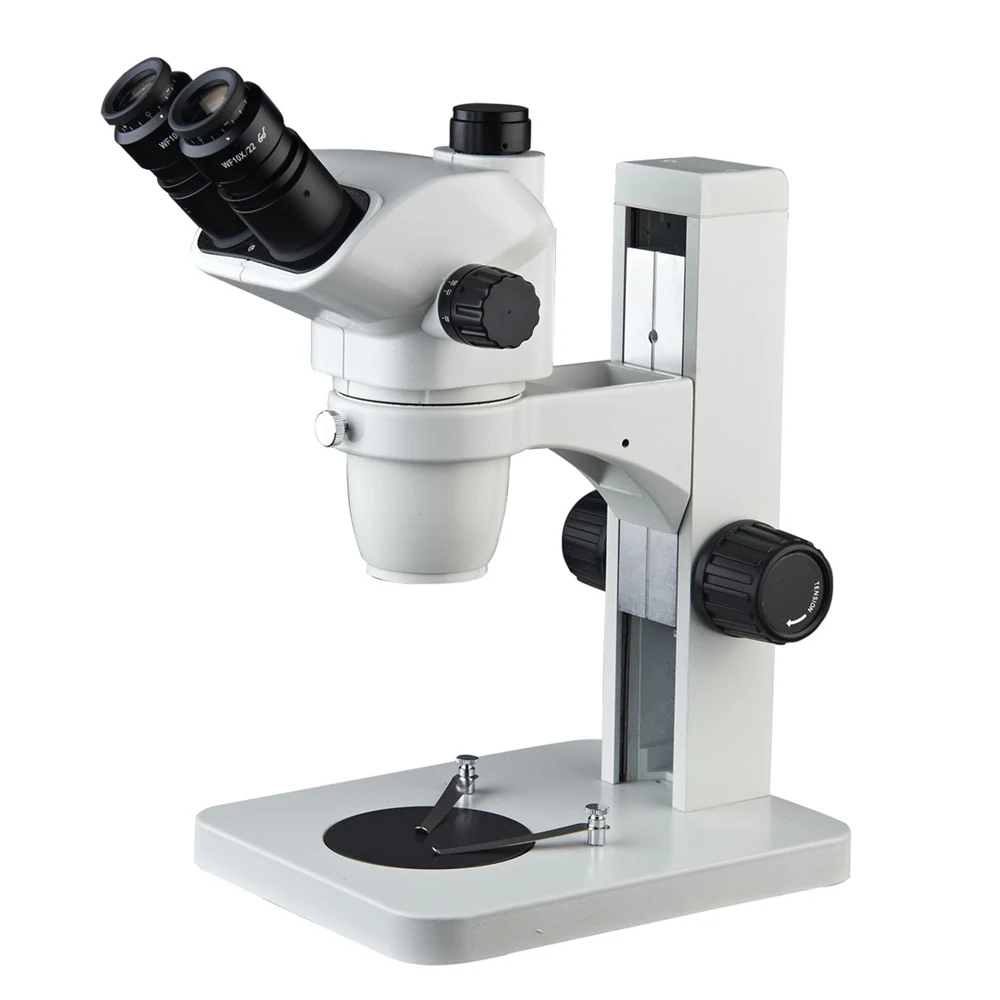

XSZ6745-B4 is a stereo zoom microscope from Nanjing AMADA Instrument designed for precision phone repairing, small component inspection, and electronics rework. The model offers a magnification range of 6.7X–45X with a 1:6.7 zoom ratio, 105 mm working distance on the standard 1X objective path, and a binocular or trinocular head with 45° inclination and 360° rotation. It supports optional auxiliary objectives and eyepieces to extend magnification to 3.4X–270X and field of view to 1.1–57.1 mm.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for detailed inspection of small electronic components
  • 105 mm working distance on standard 1X path for access to soldering tools and tight spaces
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing and camera integration
  • Interpupillary adjustment 54–75 mm and ±5 diopter correction for users wearing glasses
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF10X–WF30X) to extend magnification and field of view
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X on standard 1X objective path
  • Working distance 105 mm (1X); with 0.3X objective W.D. 165 mm; with 2X objective W.D. 30 mm
  • Field of view 23.8–4.9 mm (1X); with 0.3X objective FOV 57.1 mm; with 2X objective FOV 1.1 mm
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepieces: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Optional video output path for trinocular configuration

Who it is for

  • Phone repair technicians and small electronics repair shops
  • Importers sourcing microscopes for mobile device repair lines
  • Distributors building a product line for precision electronics inspection

Specifications

ModelXSZ6745-B4
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Interpupillary Distance54–75 mm
Diopter Adjustment±5 diopters
Eyepiece TypeWF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Head TypeBinocular / Trinocular, 45° inclined, 360° rotatable

Use guide

  • Select binocular or trinocular head based on whether camera documentation is required
  • Use 1X objective for standard 105 mm working distance and 6.7X–45X magnification
  • Add auxiliary objectives (e.g. 0.5X) to increase working distance or 2X to increase magnification at the cost of working distance
  • Choose eyepiece based on desired magnification and field of view (e.g. WF30X for high mag, WF10X for wide FOV)

FAQ

What is the working distance on the standard 1X objective?
105 mm. With 0.3X objective it increases to 165 mm; with 2X objective it reduces to 30 mm.
Can I use this microscope with a camera?
Yes. The trinocular version supports video output for camera integration.
Are eyepieces and objectives included?
The microscope body is sold separately. Eyepieces and objectives are optional and must be purchased additionally.
Can I adjust the head for users wearing glasses?
Yes. The eyepieces have ±5 diopter adjustment and interpupillary distance is adjustable from 54–75 mm.
What magnification can I achieve with optional components?
With 2X objective and WF30X eyepiece, magnification reaches 270X. Minimum is 3.4X with 0.3X objective and WF10X eyepiece.
