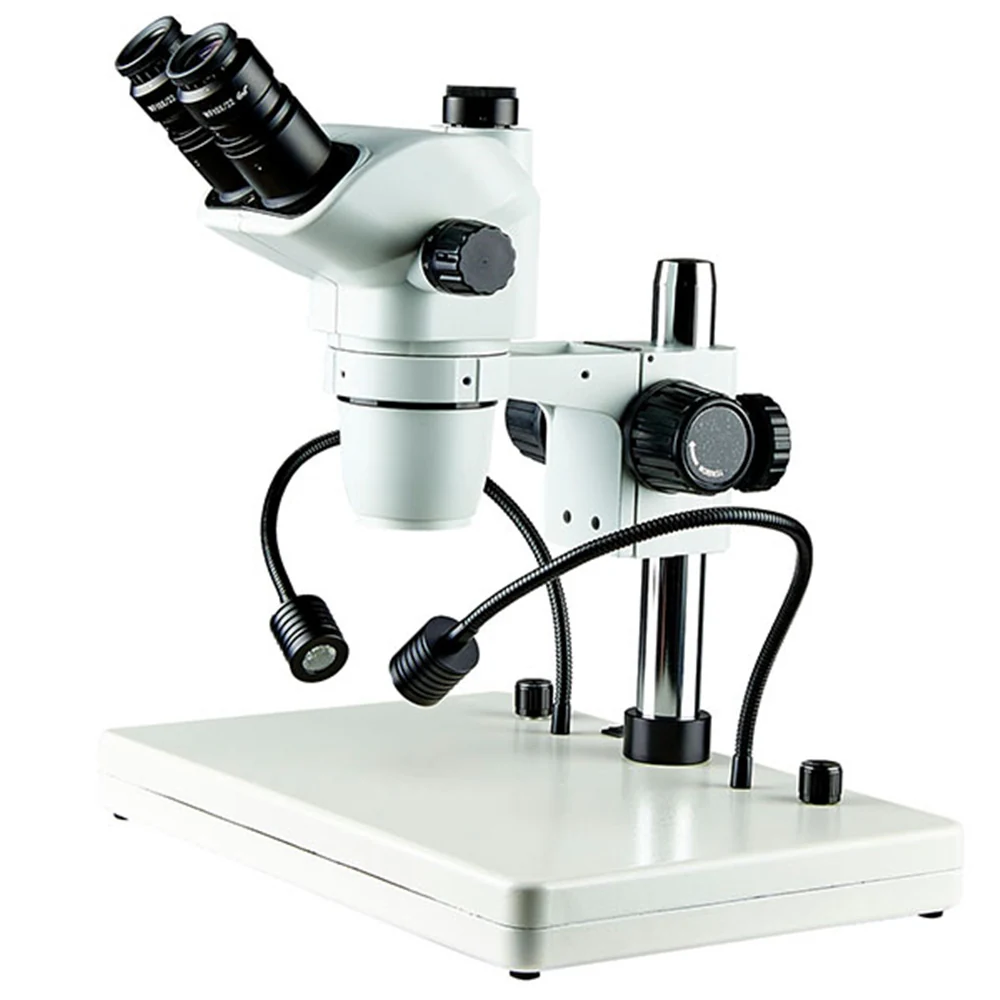

XSZ6745-B3LS 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B3LS 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B3LS 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B3LS 6.7X-45X Stereo Zoom Microscope for Electronic Inspection
XSZ6745-B3LS 6.7X-45X Stereo Zoom Microscope for Electronic Inspection

XSZ6745-B3LS 6.7X-45X Stereo Zoom Microscope for Electronic Inspection

XSZ6745-B3LS is a stereo zoom microscope from Nanjing AMADA Instrument for electronic inspection, PCB assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1:6.7 zoom ratio, 105 mm working distance on the standard 1X objective path, binocular or trinocular head, and optional auxiliary objectives and eyepieces for extended range and field of view.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for detailed electronic component inspection
  • 105 mm working distance on the standard 1X path for handling small parts and soldering tools
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing
  • Interpupillary adjustment 54–75 mm and ±5 diopter correction for users wearing glasses
  • Optional auxiliary objectives and eyepieces to extend magnification to 3.4X–270X and field of view to 57.1 mm
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X with standard 1X objective
  • Working distance 105 mm (1X); adjustable to 30–165 mm with auxiliary objectives
  • Field of view 23.8–4.9 mm (1X); extends to 1.1–57.1 mm with optional eyepieces and objectives
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepiece options: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Microscope body sold separately; can be paired with optional illumination and stands

Who it is for

  • Electronics manufacturers and repair labs sourcing inspection tools
  • Importers specifying stereo microscopes for production line integration
  • Distributors building optical inspection product catalogs

Specifications

ModelXSZ6745-B3LS
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Eyepiece TypeWF10X/22mm high-eyepoint
Interpupillary Adjustment54–75 mm
Diopter Adjustment±5 diopters
Head TypeBinocular / Trinocular, 45° inclined, 360° rotatable
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

Use guide

  • Select binocular or trinocular head based on whether camera documentation is required
  • Use 0.5X or 0.3X objectives when greater working distance (up to 165 mm) is needed
  • Use 2X or 1.5X objectives when higher magnification (up to 270X) is required for fine detail
  • Choose eyepieces based on desired field of view and magnification trade-off

FAQ

What is the working distance on the standard 1X configuration?
105 mm. With 0.5X objective it is 165 mm; with 2X it is 30 mm.
Can I add a camera?
Yes. The trinocular head supports camera attachment via standard C-mount or video output connectors.
Are eyepieces included in the standard package?
The WF10X/22mm eyepiece is standard; other eyepieces and objectives are optional.
Can I adjust for glasses wearers?
Yes. The eyepieces have ±5 diopter adjustment and high-eyepoint design for comfortable use with glasses.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
