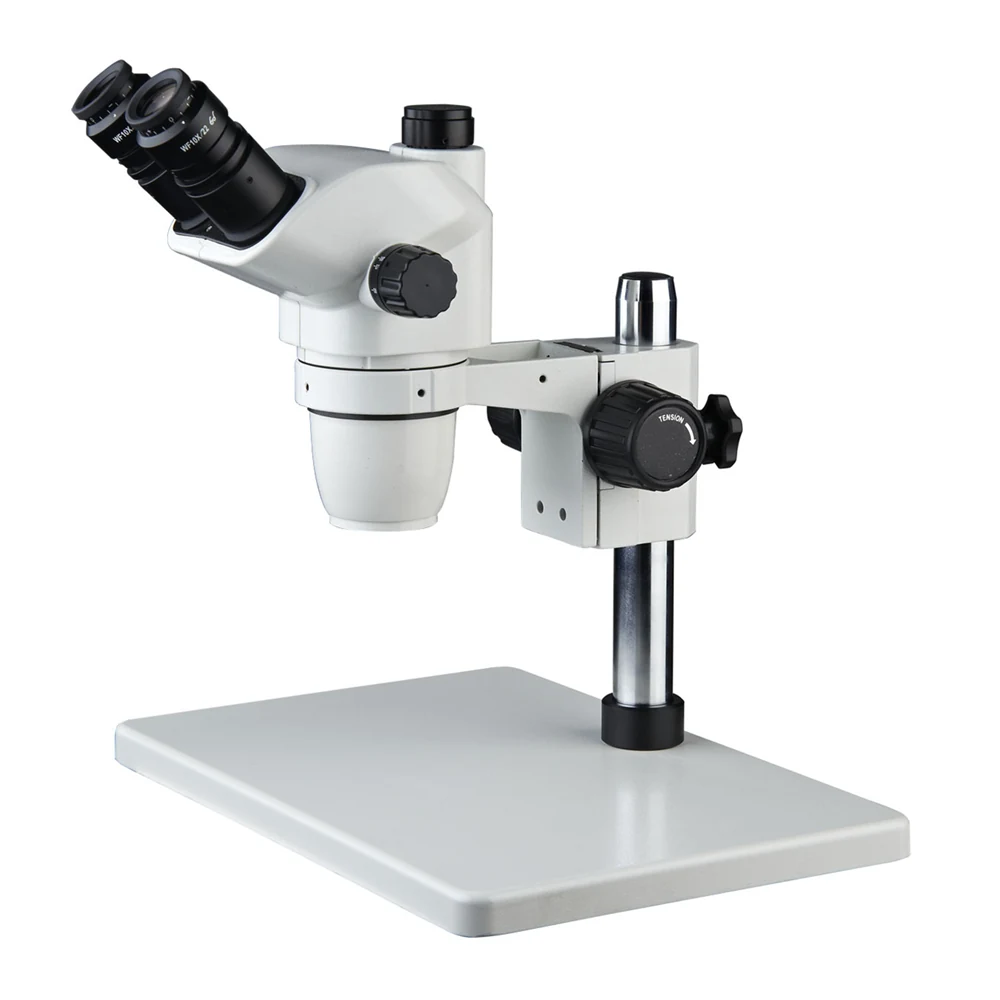

XSZ6745-B3 6.7X-45X Stereo Zoom Microscope for Phone Repairing
XSZ6745-B3 6.7X-45X Stereo Zoom Microscope for Phone Repairing
XSZ6745-B3 6.7X-45X Stereo Zoom Microscope for Phone Repairing
XSZ6745-B3 6.7X-45X Stereo Zoom Microscope for Phone Repairing
XSZ6745-B3 6.7X-45X Stereo Zoom Microscope for Phone Repairing

XSZ6745-B3 6.7X-45X Stereo Zoom Microscope for Phone Repairing

XSZ6745-B3 is a stereo zoom microscope from Nanjing AMADA Instrument designed for precision phone repairing, small component inspection, and electronics bench work. The model offers a magnification range of 6.7X–45X with a 1X objective, 105 mm working distance, and a binocular or trinocular head with 45° inclination and 360° rotation. It supports optional auxiliary objectives and eyepieces for extended magnification and field of view.

  • 6.7X–45X magnification range with 1X objective for detailed inspection of small electronic components
  • 105 mm working distance on standard 1X configuration allows space for tools and soldering under the lens
  • 45° inclined, 360° rotatable binocular or trinocular head with lockable position for ergonomic viewing
  • Interpupillary adjustment 54–75 mm and ±5 diopter compensation for users wearing glasses
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF10X–WF30X) to extend magnification and field of view
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X with 1X objective
  • Working distance 105 mm (1X); 30–165 mm with auxiliary objectives
  • Field of view 23.8–4.9 mm (1X); 1.1–57.1 mm with auxiliary objectives
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepieces: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Microscope body sold separately; can be paired with optional accessories

Who it is for

  • Phone repair shops and mobile device service centers
  • Electronics repair labs and small-scale manufacturing QA teams
  • Distributors sourcing microscopes for technical repair and inspection applications
  • Importers specifying bench-top microscopes for consumer electronics repair

Specifications

ModelXSZ6745-B3
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Head TypeBinocular / Trinocular
Head Angle45° inclined
Rotation360° rotatable, lockable
Interpupillary Adjustment54–75 mm
Diopter Adjustment±5 diopters
EyepiecesWF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Working Distance (with objectives)30–165 mm
Field of View (with objectives)1.1–57.1 mm

Use guide

  • Select binocular or trinocular head based on whether camera documentation is required
  • Choose eyepiece and auxiliary objective to match required magnification and field of view
  • Set interpupillary distance and diopter before use to ensure clear focus for all observers
  • Use 0.5X or 0.3X objectives when more working distance is needed for large fixtures

FAQ

What is the working distance on the standard 1X configuration?
105 mm with the 1X objective. With auxiliary objectives, working distance ranges from 30 mm to 165 mm.
Can I use this with a camera?
Yes. The trinocular version supports camera attachment via the 0.5X or 1X video output path.
Are eyepieces included?
No. Eyepieces are sold separately and can be selected from WF10X/22mm to WF30X/8mm.
What auxiliary objectives are available?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, and 2X for extending magnification and working distance.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
