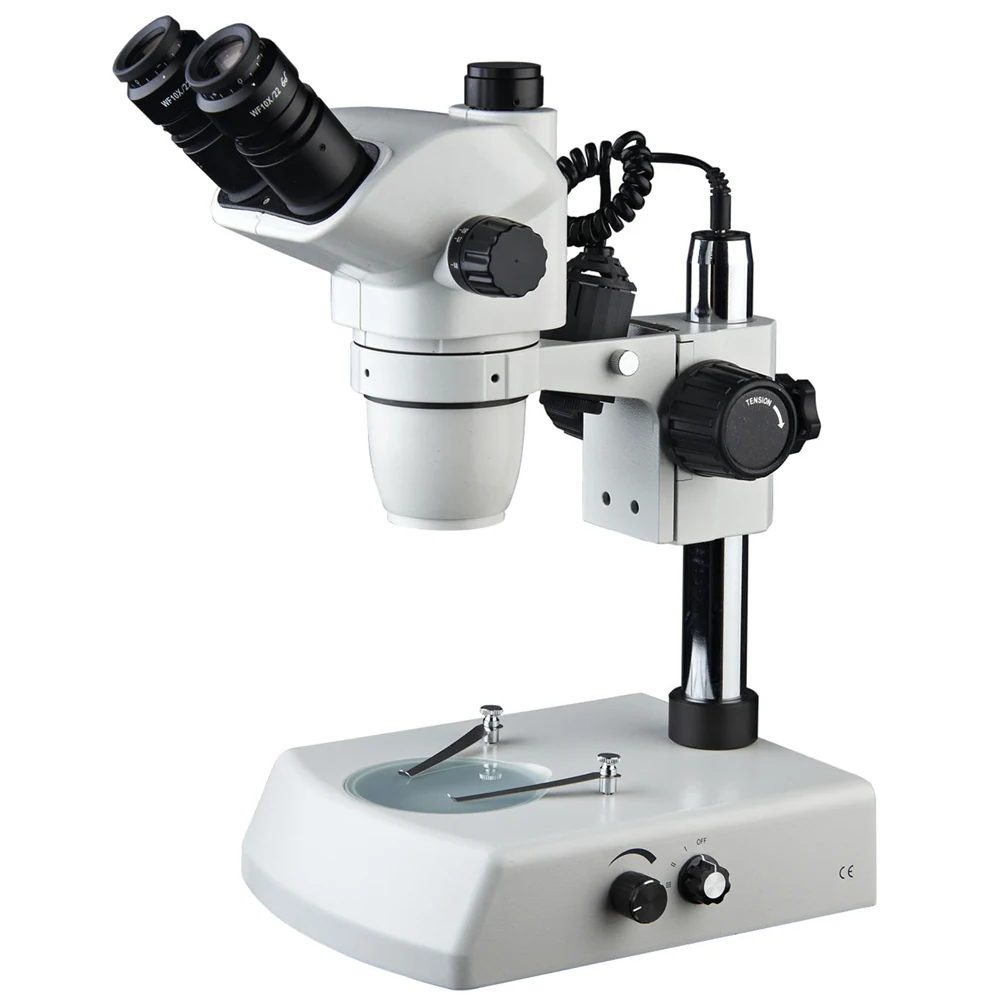

XSZ6745-B2 is a stereo zoom microscope from Nanjing AMADA Instrument designed for LED PCB inspection and precision electronics work. The model offers a magnification range of 6.7X–45X with a 1:6.7 zoom ratio, a 105 mm working distance on the standard 1X objective path, and a binocular or trinocular head with 45° inclination and 360° rotation. It supports optional auxiliary objectives and eyepieces to extend magnification to 3.4X–270X and field of view to 1.1–57.1 mm.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for consistent detail across inspection tasks
  • 105 mm working distance on standard 1X path for handling PCBs and soldering tools

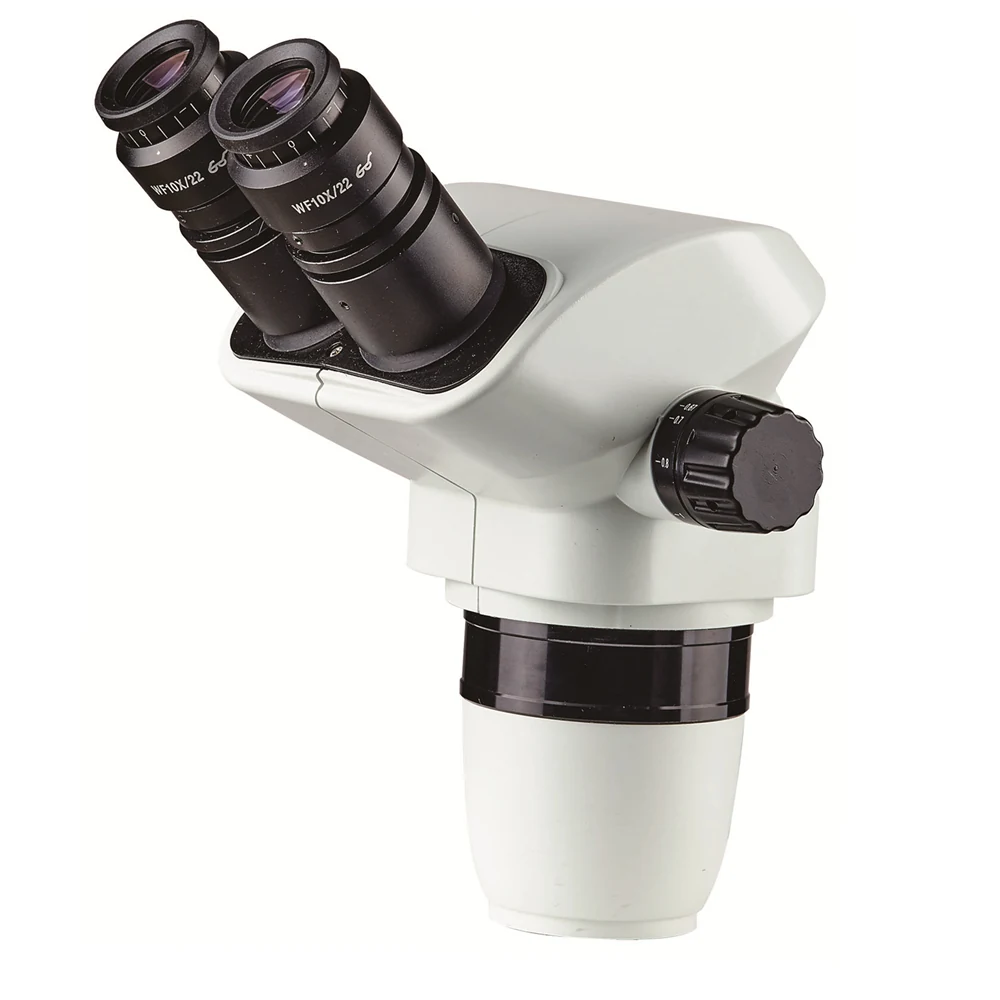

  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing
  • Interpupillary adjustment 54–75 mm and ±5 diopter correction for users wearing glasses
  • Optional auxiliary objectives and eyepieces to extend magnification and field of view
  • Support for video output via trinocular configuration when camera documentation is needed
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X on standard 1X objective
  • Working distance 105 mm with 1X objective; varies with auxiliary objectives (30–165 mm)
  • Field of view 23.8–4.9 mm with standard WF10X/22mm eyepiece
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Optional auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Optional eyepieces: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Extended magnification range 3.4X–270X with optional eyepieces and objectives

Who it is for

  • Electronics manufacturers inspecting LED PCBs and SMT components
  • Procurement engineers specifying microscopes for production line integration
  • Distributors sourcing stereo zoom microscopes for industrial inspection catalogs

Specifications

ModelXSZ6745-B2
Zoom Ratio1:6.7
Magnification Range (Standard)6.7X–45X
Working Distance (1X)105 mm
Field of View (Standard)23.8–4.9 mm
Eyepiece TypeWF10X/22mm high-eyepoint
Interpupillary Adjustment54–75 mm
Diopter Adjustment±5 diopters
Head TypeBinocular / Trinocular, 45° inclined, 360° rotatable
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Extended Magnification Range3.4X–270X
Extended Field of View1.1–57.1 mm

Use guide

  • Select binocular or trinocular head based on need for camera documentation
  • Use 1X objective for standard 105 mm working distance and 6.7X–45X magnification
  • Add auxiliary objectives (e.g., 0.5X or 2X) to adjust working distance and magnification range
  • Choose eyepieces (e.g., WF20X/12mm or WF30X/8mm) to match required field of view and magnification

FAQ

What is the working distance on the standard 1X configuration?
105 mm with the built-in 1X objective path.
Can I extend the magnification beyond 45X?
Yes. With optional auxiliary objectives and eyepieces, the magnification range extends to 3.4X–270X.
What eyepieces are available?
WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm.
Is a trinocular head available?

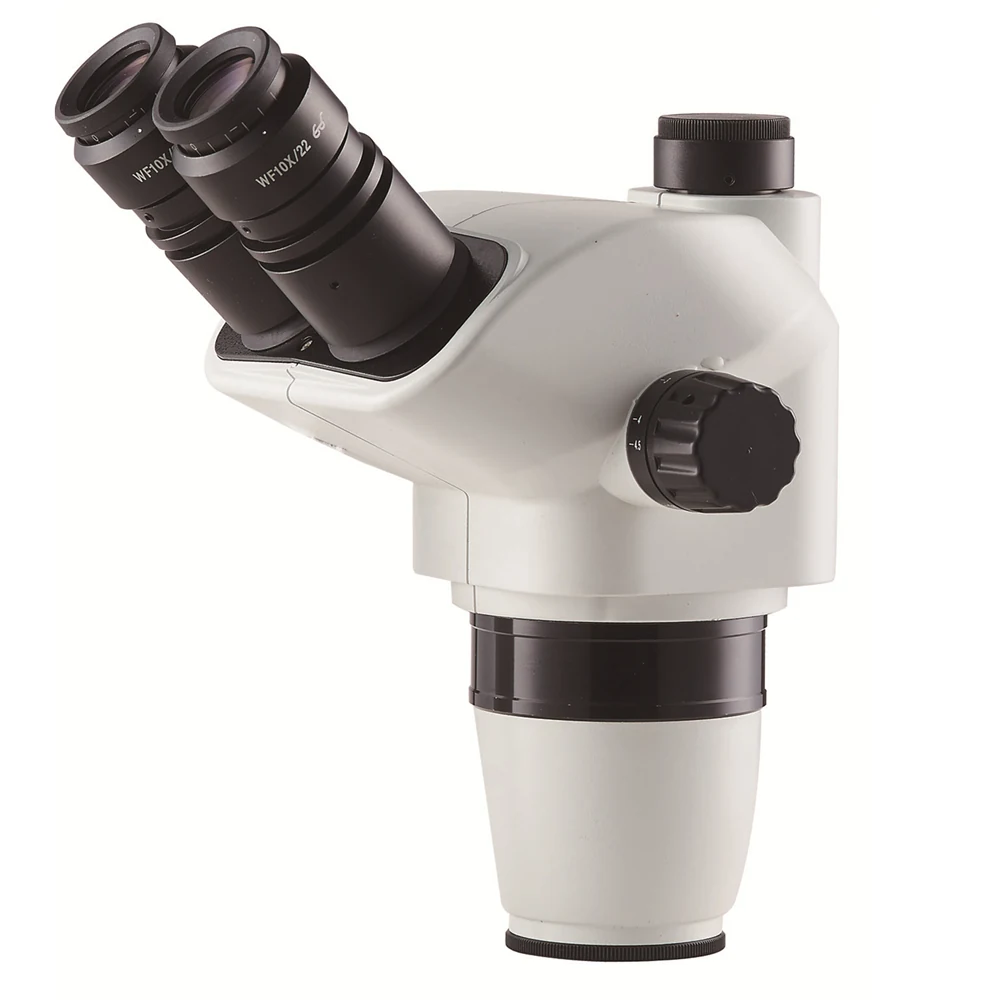

Yes. The trinocular version supports video output and camera integration.
Can I adjust for glasses wearers?
Yes. The microscope includes interpupillary adjustment (54–75 mm) and ±5 diopter correction.
