XSZ6745-B1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-B1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-B1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-B1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-B1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking
XSZ6745-B1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking

XSZ6745-B1 6.7X-45X Stereo Zoom Microscope for LED PCB Checking

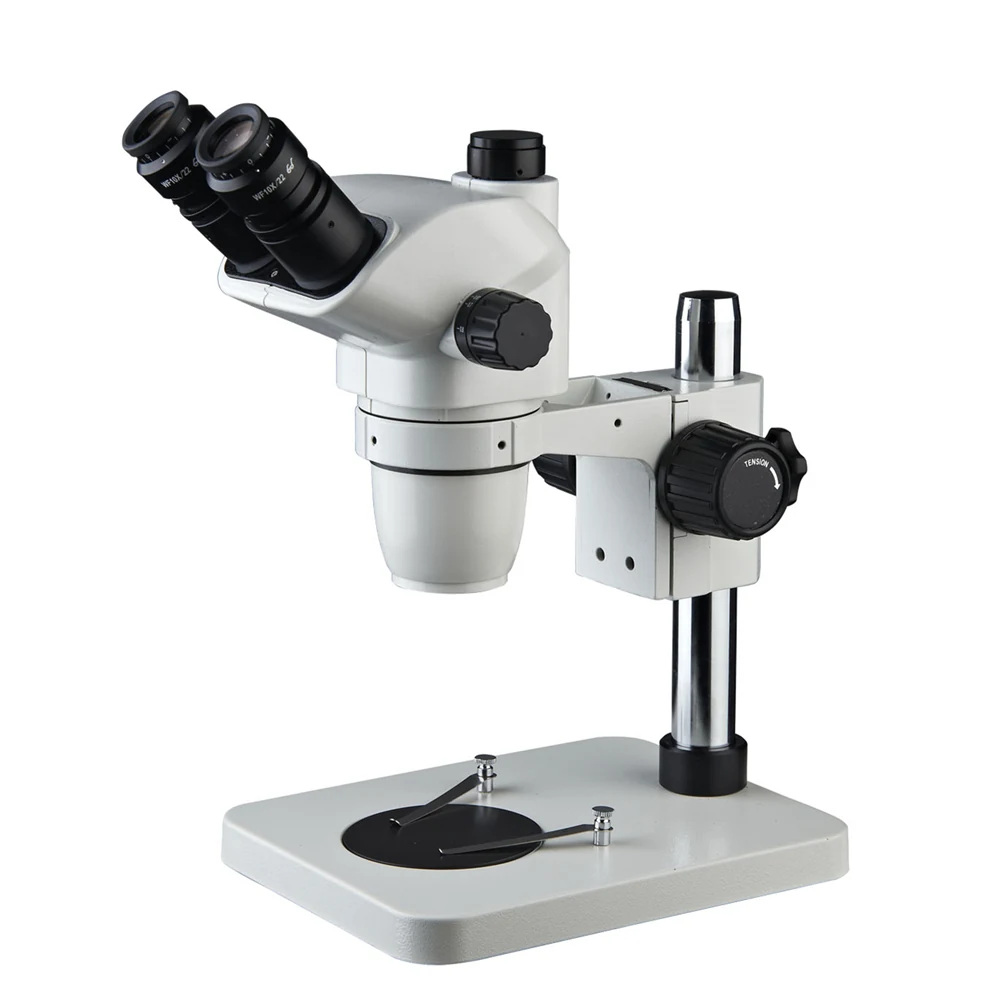

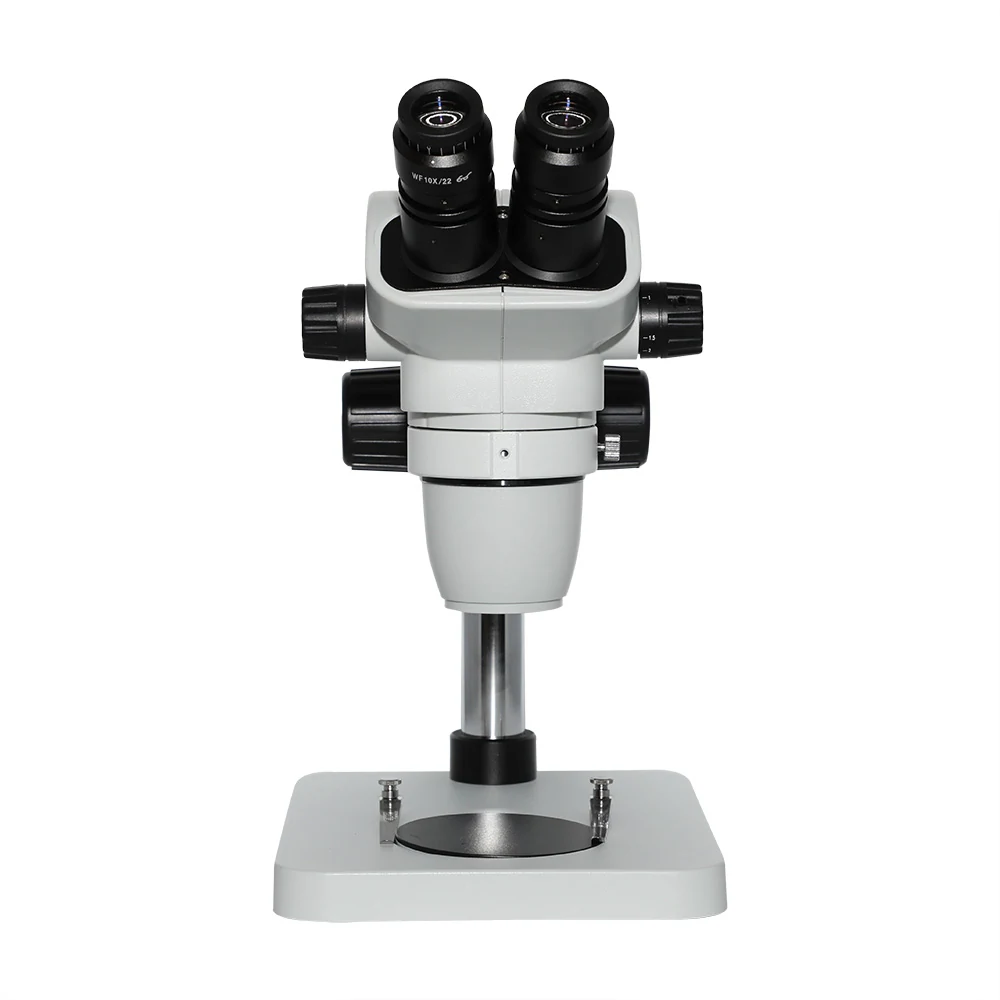

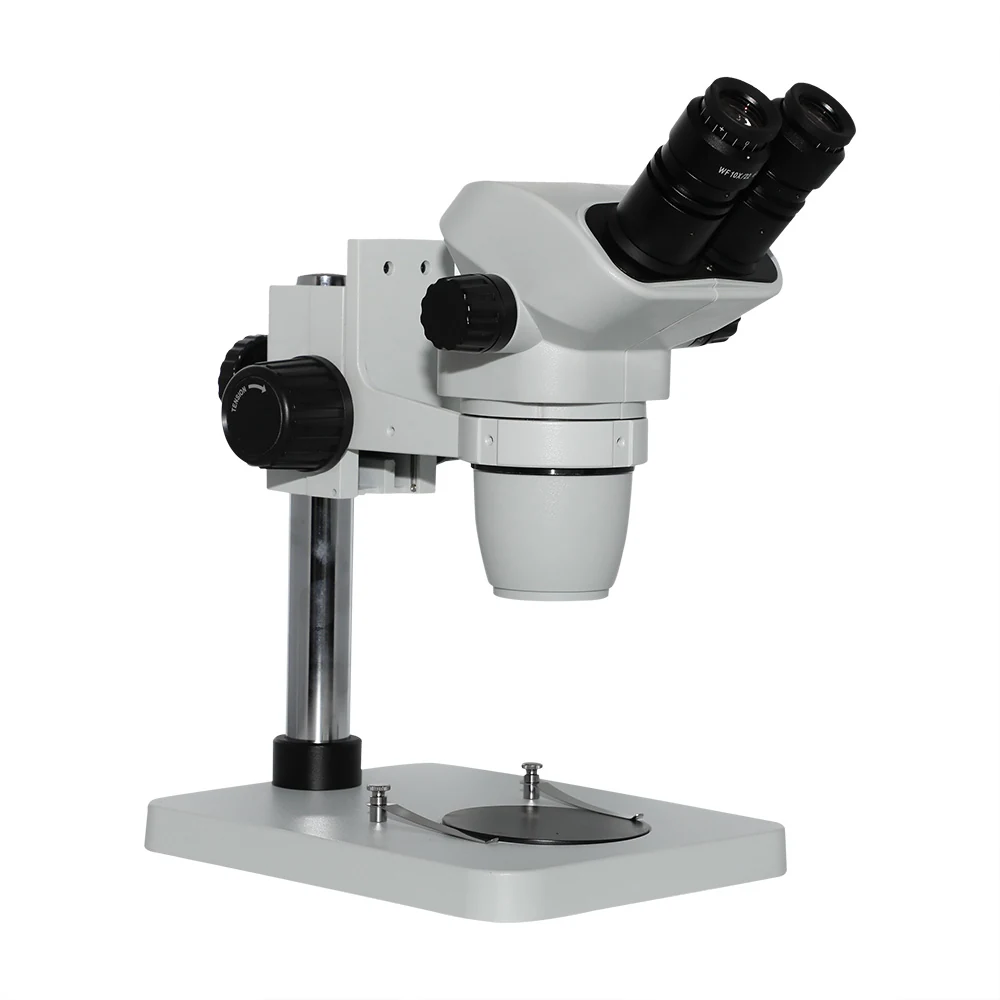

XSZ6745-B1 is a stereo zoom microscope from Nanjing AMADA Instrument for LED PCB inspection, electronics assembly, and precision bench work. The model offers a magnification range of 6.7X–45X with a 1X objective and 1:6.7 zoom ratio. It features a binocular or trinocular head, 45° inclined and 360° rotatable, with interpupillary adjustment and diopter compensation. Optional auxiliary objectives and eyepieces extend the range to 3.4X–270X. Illumination options include LED ring light and other sources.

  • 6.7X–45X magnification range with 1:6.7 zoom ratio for detailed inspection of small LED PCB components
  • 105 mm working distance on standard 1X objective path for handling soldering tools and fixtures
  • Binocular or trinocular head with 45° inclination and 360° rotation for ergonomic viewing
  • Interpupillary adjustment 54–75 mm and ±5 diopter compensation for users wearing glasses
  • Optional auxiliary objectives (0.3X–2X) and eyepieces (WF10X–WF30X) to extend magnification and field of view
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.7; magnification range 6.7X–45X with 1X objective
  • Working distance 105 mm (1X); 30–165 mm with auxiliary objectives
  • Field of view 23.8–4.9 mm (1X); 1.1–57.1 mm with optional accessories
  • Binocular or trinocular head, 45° inclined, 360° rotatable, lockable in any position
  • Interpupillary distance adjustment 54–75 mm; diopter adjustment ±5 diopters
  • Eyepieces: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
  • Auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

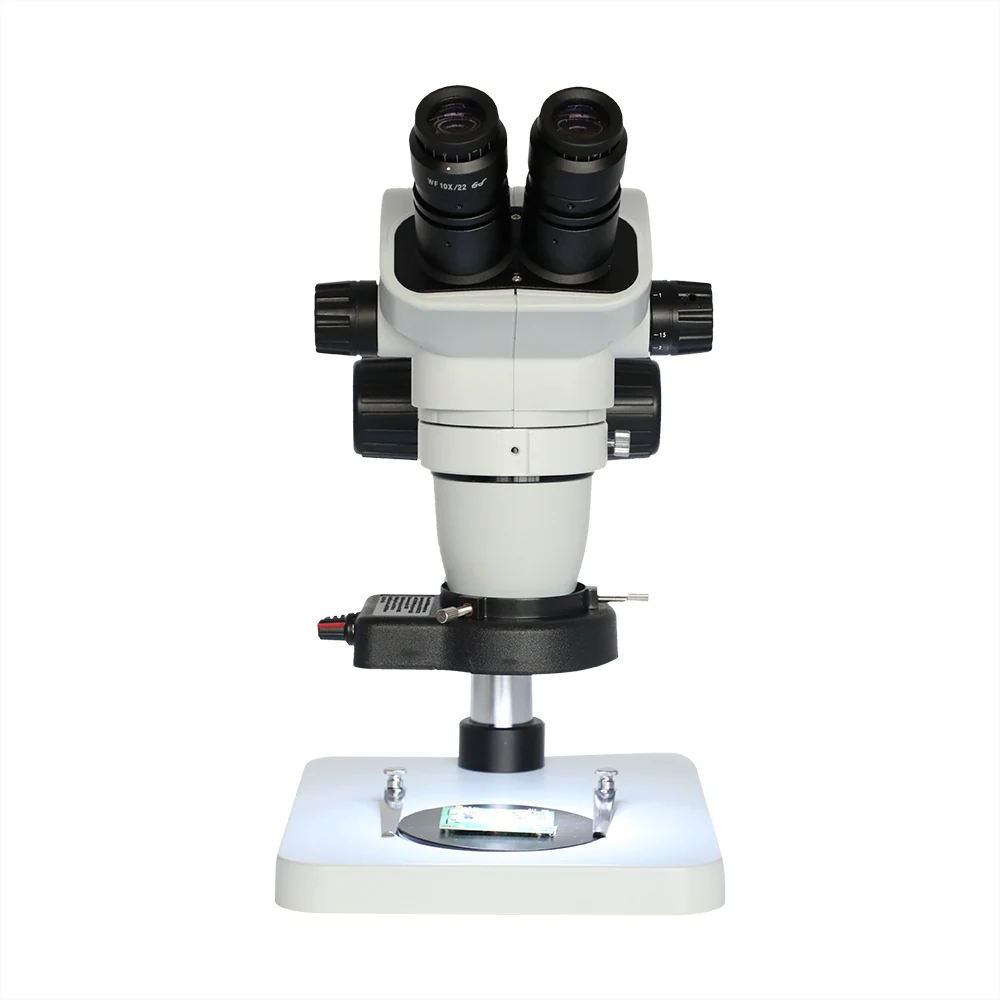

  • Optional LED ring light and other illumination sources available

Who it is for

  • Electronics manufacturers inspecting LED PCBs and SMT components
  • Procurement engineers sourcing stereo microscopes for production or R&D labs
  • Distributors building inspection equipment catalogs for industrial buyers

Specifications

ModelXSZ6745-B1
Zoom Ratio1:6.7
Magnification Range (1X)6.7X–45X
Working Distance (1X)105 mm
Field of View (1X)23.8–4.9 mm
Interpupillary Distance54–75 mm
Diopter Adjustment±5 diopters
Eyepiece TypeWF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Head TypeBinocular / Trinocular, 45° inclined, 360° rotatable

Use guide

  • Select binocular or trinocular head based on need for camera integration
  • Use 1X objective for standard 105 mm working distance and 6.7X–45X magnification
  • Add auxiliary objectives (e.g., 0.5X) to increase working distance up to 165 mm
  • Choose eyepieces (e.g., WF30X) to extend magnification beyond 45X when needed

FAQ

What is the working distance with the 1X objective?
105 mm with the standard 1X objective.
Can I use a camera with this model?
Yes. The trinocular version supports camera integration via the video output port.
What eyepieces are available?
WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm.
What auxiliary objectives are offered?
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X.
Is the head adjustable?
Yes. The 45° inclined head is 360° rotatable and lockable in any position.
