Home / Products / Inverted Metallurgical Microscope / XIM500 Inverted Metallurgical Microscope

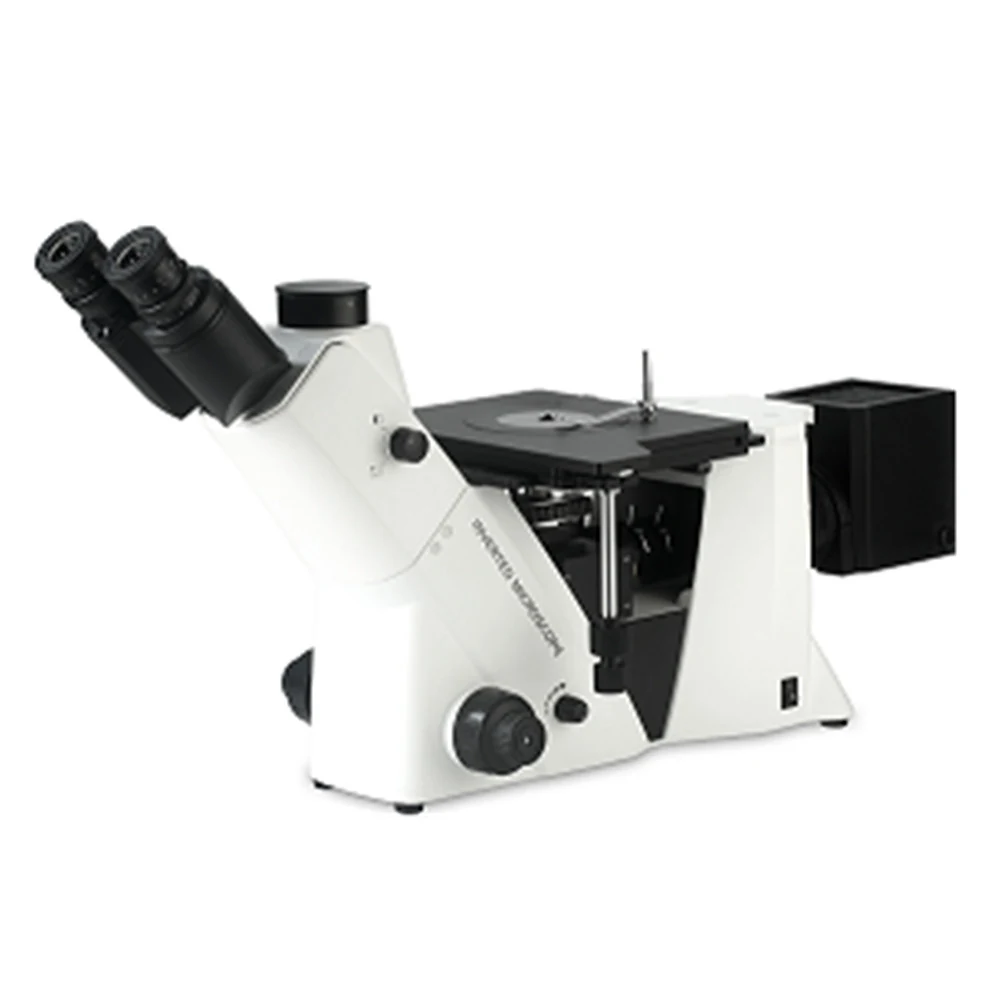

XIM500 Inverted Metallurgical Microscope for Opaque Specimens

  • New research and new development
  • Combination with bight field, dark field, polarizing observation etc. Widely used in metal, mineral, electronic field
  • Dark field objective，Make observation in dark & bright field.
  • Oversize view field eyepiece, view field up to 22mm for comfortable observation.
  • Oversized three-layer working stage, more choice for samples.
  • Light distribution (both): 100 : 0 (100% for eyepiece) ; 80 : 20 (80% for trinocular head and 20% for eyepiece)
Send Inquiry
Item Specification XIM500 XIM500BD
Eyepiece WF10×／22mm（adjustable） ● ●
WF10×／22mm（adjustable，reticule 0.1mm） ● ●
Metallurgical LWD Infinity

Plan Objectives

 LMPlan FL 5×/0.15

(Semi Apochromatic Objective)

 W.D=21.00mm ● ○
LMPlan FL 10× /0.30

(Semi Apochromatic Objective)

 W.D.= 20.00mm ● ○
LMPlan FL 20× /0.40

(Semi Apochromatic Objective)

 W.D.= 15.00mm ● ○
LMPlan FL 50× /0.55

(Semi Apochromatic Objective)

 W.D.= 10.00mm ● ○
LPL 80×／0.80 W.D.= 0.85mm ○ ○
LMPlan FL 100×0.85 (Dry)

(Semi Apochromatic Objective)

 W.D.= 3.00mm ○ ○
Metallurgical LWD Infinity

Plan Objectives for  Bright & Dark Field

 M PLAN  5×／0.13 BD W.D=7.30mm ●
M PLAN 10×／0.25 BD W.D.= 11.5mm ●
M PLAN 20×／0.40 BD W.D.= 5.60mm ●
M PLAN 50×／0.70 BD W.D.= 1.60mm ●
Seidentopf Trinocular Head Inclined 30°, interpupilary distance: 48-76mm

Light distribution (both):100: 0（100% for eyepiece）

80:20（80% for trinocular head,and 20% for eyepiece）

 ● ●
Nosepiece Quintuple ●
Quadplex （specially for bright /dark field objectives） ●
Mechanical Stage Stage size: 210 mm×180mm, Moving range:50×50mm , Scale : 0.1mm ● ●
Coaxial Coarse and Fine Focusing unit Coarse stroke: 10mm,

Fine stroke per rotation: 0.2mm, fine division 2 μm.

 ● ●
Polarizing Unit Polarizer /Analyzer ● ●
llumination 12V/50W Halogen（Input voltage：100V～240V） ● ●
5WLED lamp (Input voltage：100V～240V) ○ ○
Filter Blue ● ●
Green/ Amber/ Grey ○ ○
C-mount 1×/0.75×/0.5×C-Mount  (focus adjustable) ○ ○
Adaptor for Digital Photograph    Use for CANON／NIKON／OLYMPUS etc. ○ ○

Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

Packing Size: 660mm×590mm×325mm     Gross Weight: 17 kgs     Net Weight: 12.5 kgs
