XIM200 Inverted Metallurgical Microscope for Metal Structures
XIM200 Inverted Metallurgical Microscope for Metal Structures
XIM200 Inverted Metallurgical Microscope for Metal Structures
XIM200 Inverted Metallurgical Microscope for Metal Structures

XIM200 Inverted Metallurgical Microscope for Metal Structures

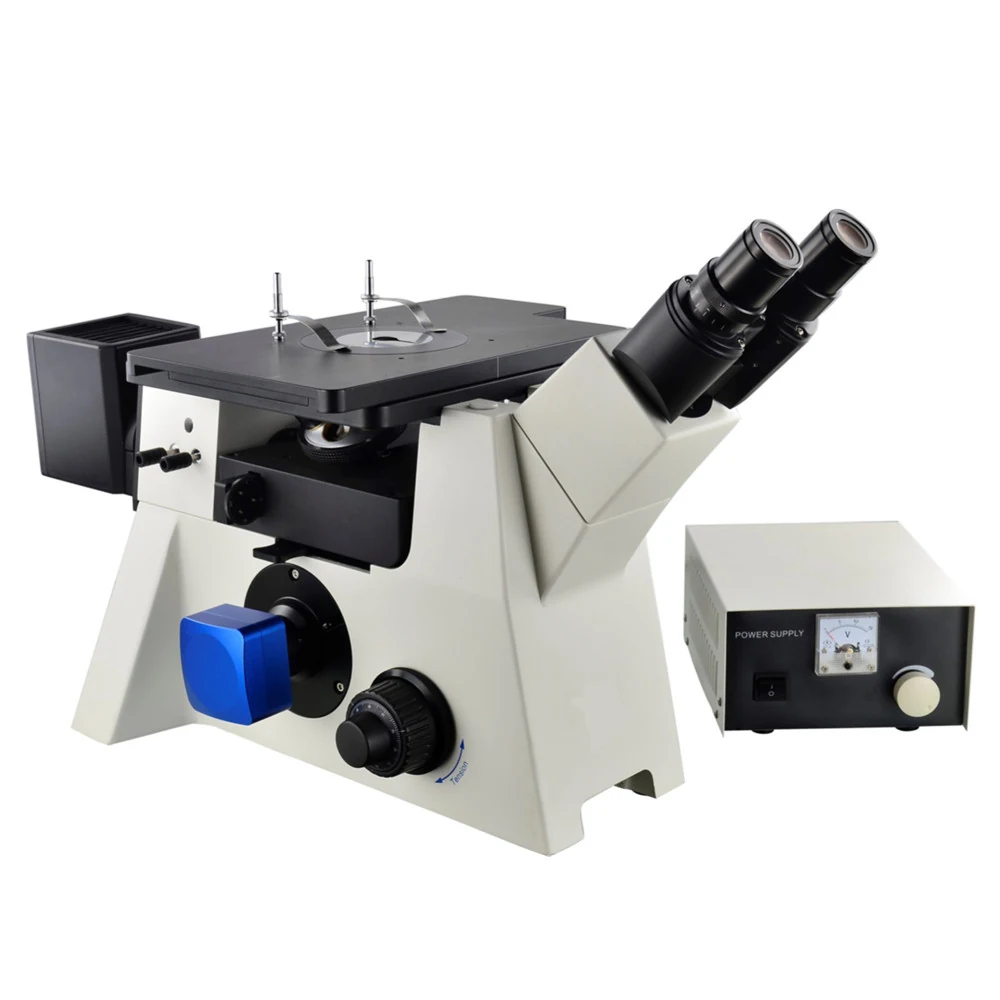

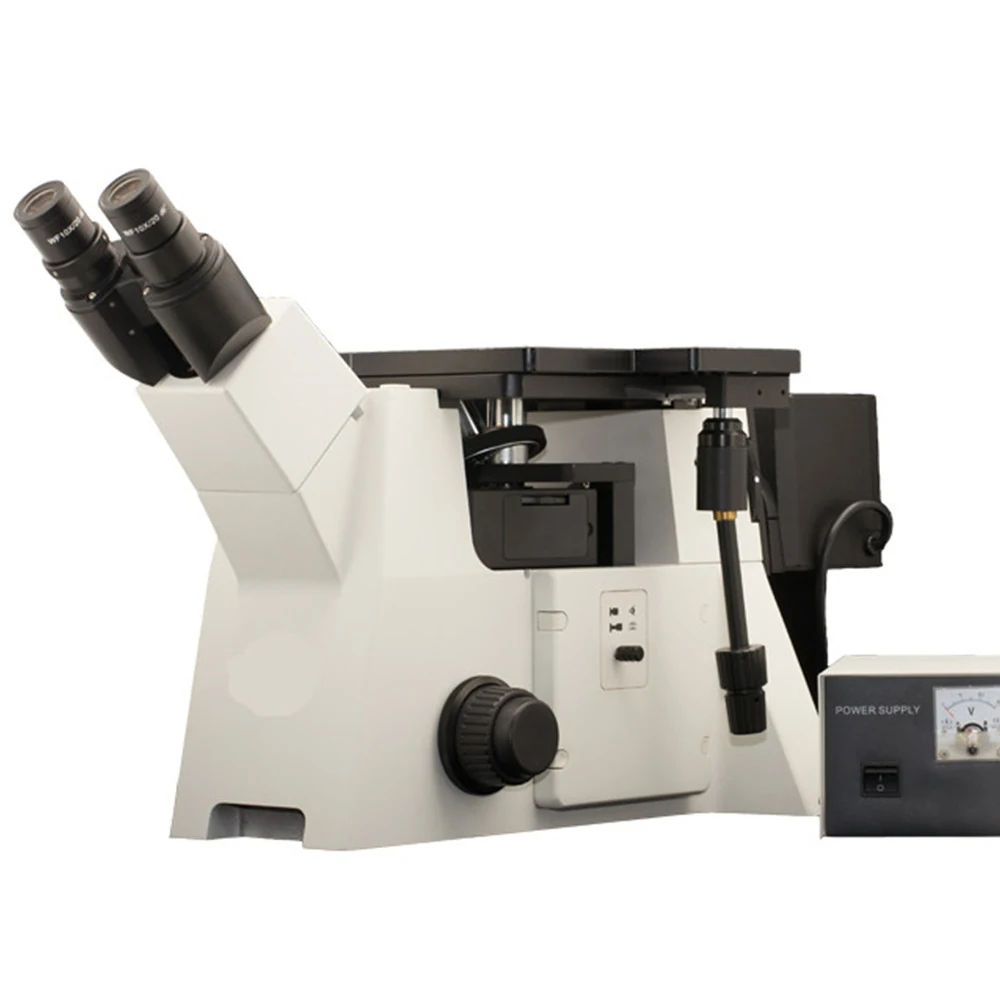

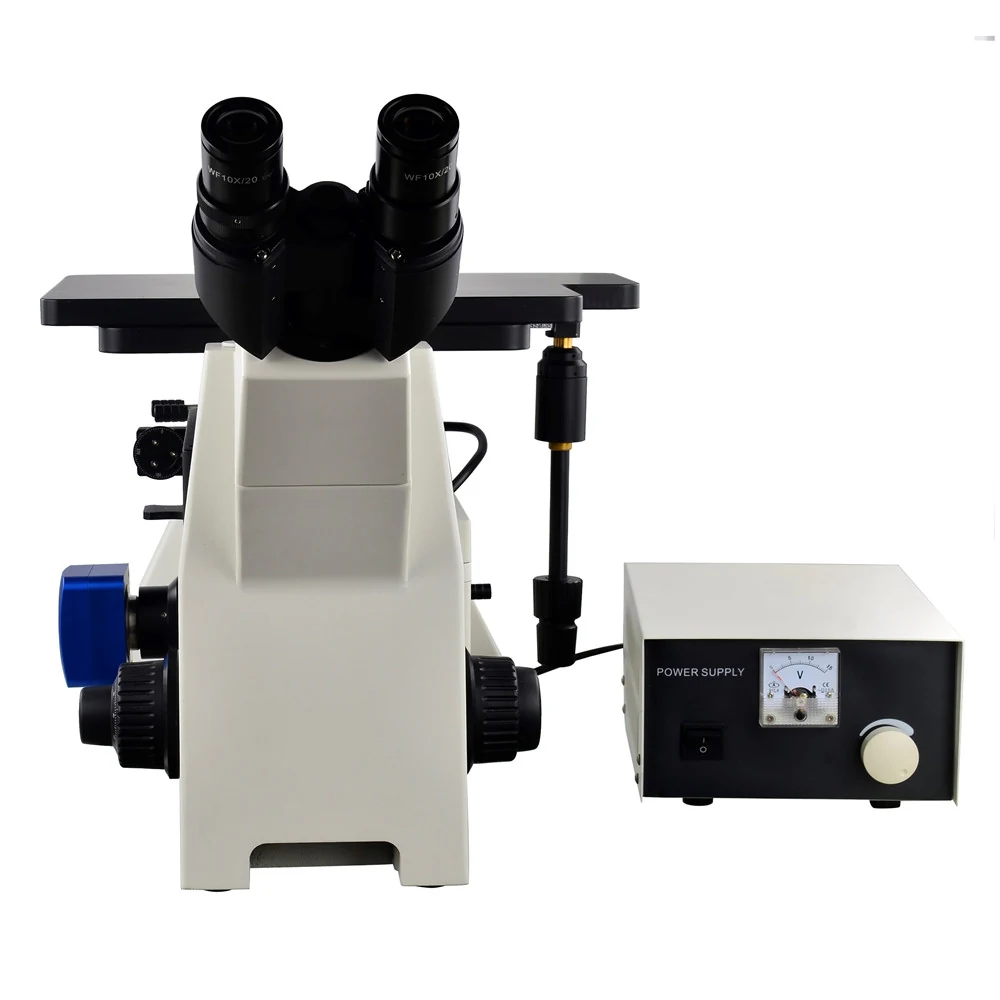

The XIM200 is an inverted metallurgical microscope from Nanjing AMADA Instrument for inspecting metal surfaces, thin sections, and polished samples in industrial and research settings. It features an infinity-corrected optical system, a stable human-centered frame, and a range of objectives from 5X to 100X with long working distance. Illumination includes halogen lamp house and multiple filters, with optional C-mount for camera integration.

  • Infinity-corrected UCIS optical design ensures consistent image quality across magnifications
  • Long working distance objectives (5X to 100X) allow inspection of thick or irregular metal samples
  • Adjustable binocular tube with 45° inclination and diopter compensation for ergonomic viewing
  • Multiple illumination options including halogen lamp house, filters, and polarization kits
  • Mechanical stage with X/Y coaxial knobs enables precise sample positioning
  • C-mount options support integration with digital cameras for documentation and analysis
Request A Quote +86-15195807515

Technical features

  • Frame: Humanity design, stable and reliable construction
  • Optical system: UCIS Infinity Independent Achromatic design
  • Supply voltage: 110–240V, 50/60Hz wide input
  • Observation tube: Binocular, 45° inclined, interpupillary distance 48–75 mm (adjustable diopter)
  • Eyepieces: Plan WF10X/20 (●), WF10X/22 (●●), WF16X/13 (○○), reticule CROSSWF10X/20 (●)
  • Objectives: 5X (○), 10X (●), 20X (●), 50X (●), 80X (●), 100X (●, oil immersion)
  • Illumination: 12V100W halogen lamp house (●), 12V50W halogen power box (○), 12V50W Osram halogen bulb (●●●)
  • Stage: Fixed stage (240mm×260mm, movement 135mm×85mm), mechanical stage (350mm×208mm, movement 50mm×50mm)

Who it is for

  • Metal manufacturing and processing plants
  • Materials testing labs and quality assurance teams
  • Research institutions conducting metallurgical studies
  • Importers sourcing inverted metallurgical microscopes for industrial clients

Specifications

ModelXIM200
Optical SystemUCIS Infinity Independent Achromatic
Supply Voltage110–240V, 50/60Hz
Observation TubeBinocular, 45° inclined, interpupillary 48–75 mm
Eyepiece TypePlan WF10X/20, WF10X/22, WF16X/13, reticule CROSSWF10X/20
Objective Range5X to 100X (oil immersion for 100X)
Working DistanceLong distance objectives for thick samples
Stage TypeFixed and mechanical stage with X/Y coaxial knobs
Stage SizeFixed: 240mm×260mm, Mechanical: 350mm×208mm
Illumination Source12V100W halogen lamp house, 12V50W power box
C-Mount Options0.5X, 0.25X (fit 1/3’ CCD)

Use guide

  • Select objective set based on required magnification and sample thickness
  • Use 100X objective with immersion oil for high-resolution surface analysis
  • Apply polarization kit when analyzing anisotropic materials like crystals or stressed metals
  • Attach C-mount adapter to connect a digital camera for image capture and documentation
  • Adjust diaphragm and filters to optimize contrast and reduce glare on reflective surfaces

FAQ

What is the working distance of the objectives?
The objectives are long working distance types, designed for thick or irregular metal samples; exact values depend on the objective (5X to 100X).
Can I use immersion oil?
Yes, the 100X objective is designed for oil immersion (S/Oil).
What power supply does it require?
110–240V, 50/60Hz wide voltage input, compatible with global standards.
Is a camera compatible?
Yes, the microscope has C-mount options (0.5X and 0.25X) for attaching digital cameras.
What type of stage is included?
Both fixed stage (240mm×260mm) and mechanical stage (350mm×208mm) are available; choose based on sample handling needs.
