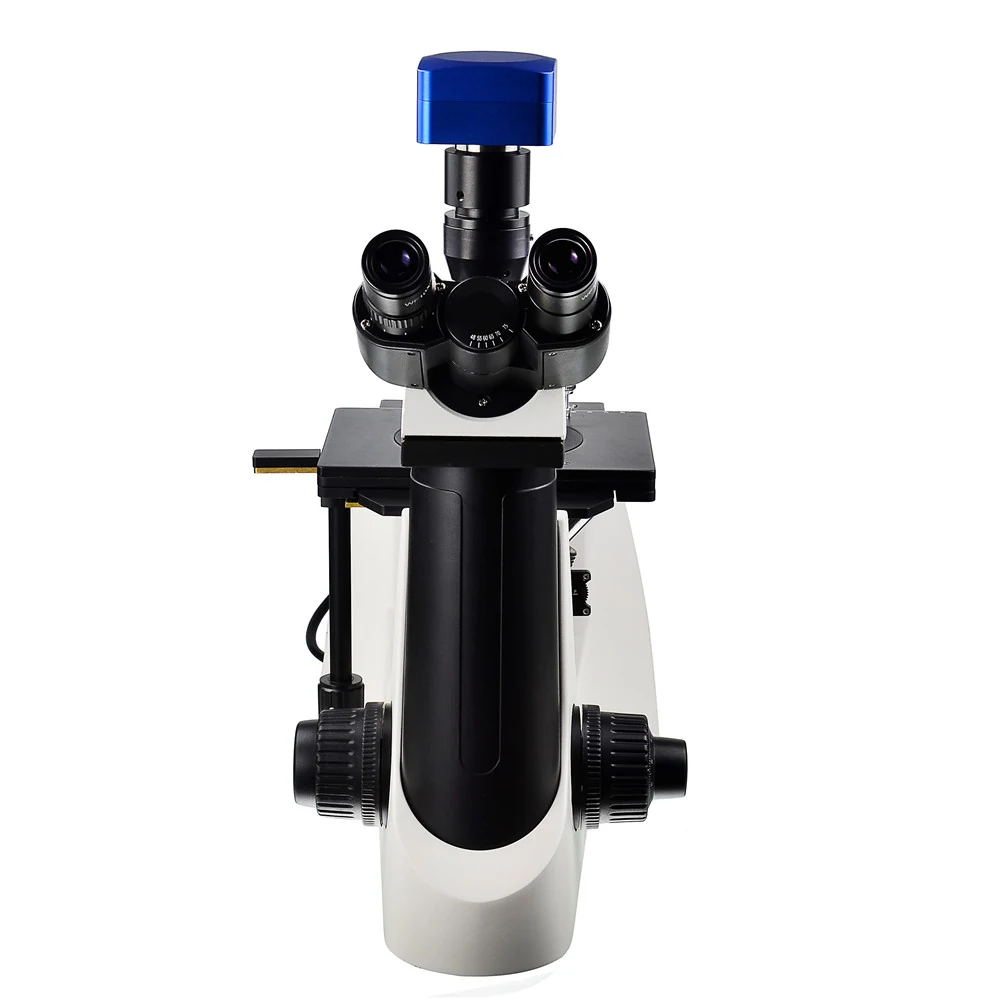

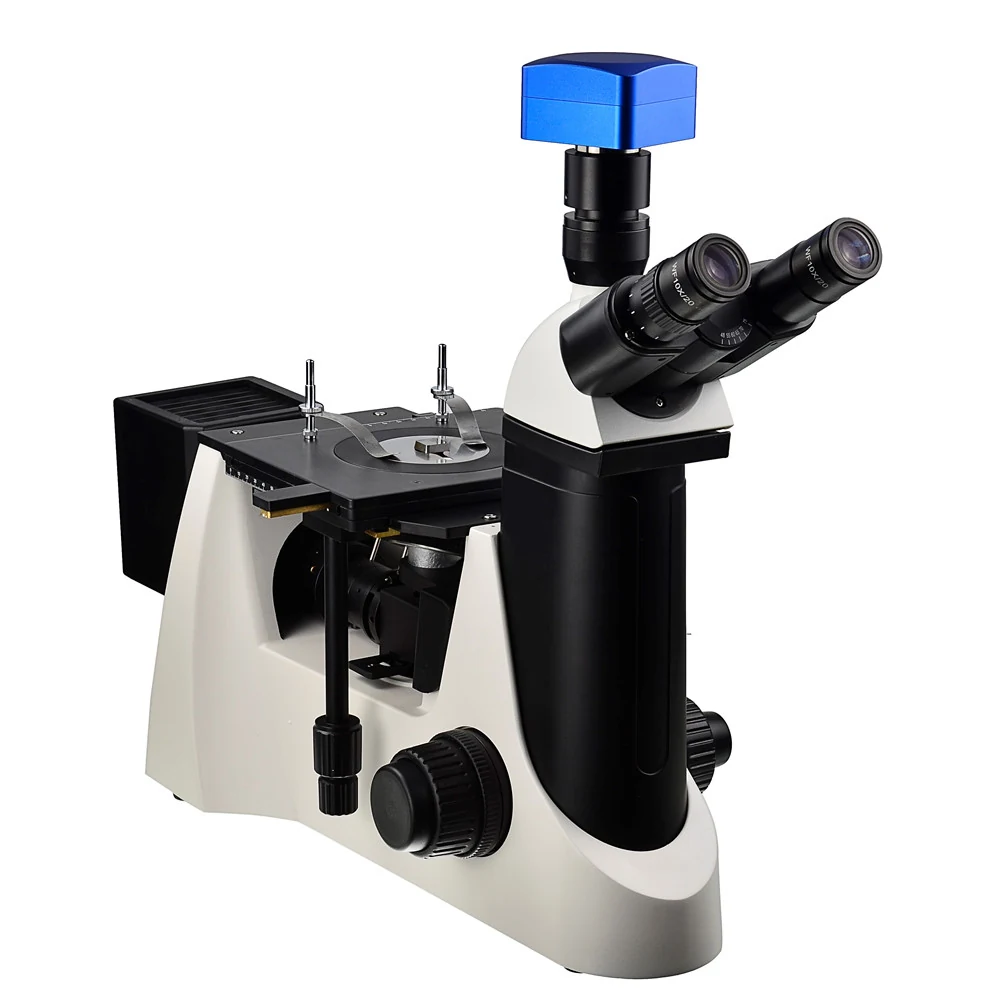

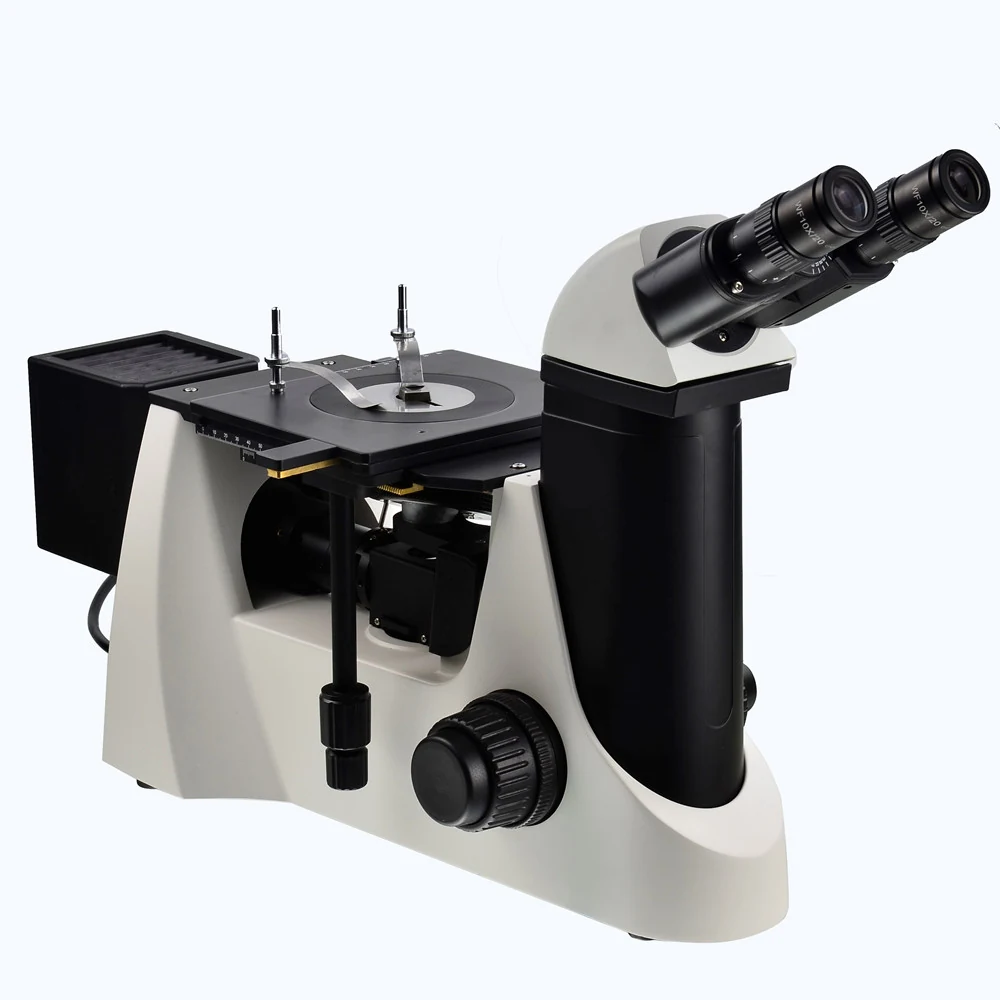

XIM100 Inverted Metallurgical Microscope for Circuit boards

Technical features

• One-piece frame from arm to base for structural rigidity
• Binocular tube with interpupillary distance 48–75 mm, 30° inclined, diopter adjustable
• Trinocular tube options: 48–75 mm or 52–75 mm, 30° inclined, 20/80 or 100/0 light split
• Infinity-corrected objectives: 5X, 10X, 20X, 50X, 80X, 100X (oil immersion)
• Mechanical stage: 180 mm x 155 mm, movement range 80 mm x 50 mm, low-positioned X/Y coaxial knobs
• Quintuple revolving nosepiece for quick objective switching
• 12V100W halogen lamphouse with 12V50W power supply
• 12V50W Osram halogen bulb (included), 250V/3.15A Φ5X20 fuse

Who it is for

• Electronics manufacturers conducting PCB and semiconductor quality checks
• R&D labs performing surface material analysis
• Importers sourcing inverted metallurgical microscopes for industrial inspection lines
• Distributors building a catalog of precision inspection tools for electronics and materials

Specifications

Use guide

• Select trinocular tube with 20/80 split if camera documentation is required during observation
• Use 100X objective with immersion oil for high-resolution surface detail
• Attach C-mount adapter to connect digital camera or microscope camera
• Use filters to enhance contrast on reflective or metallic surfaces
• Use mechanical stage for repeatable positioning of circuit board samples
