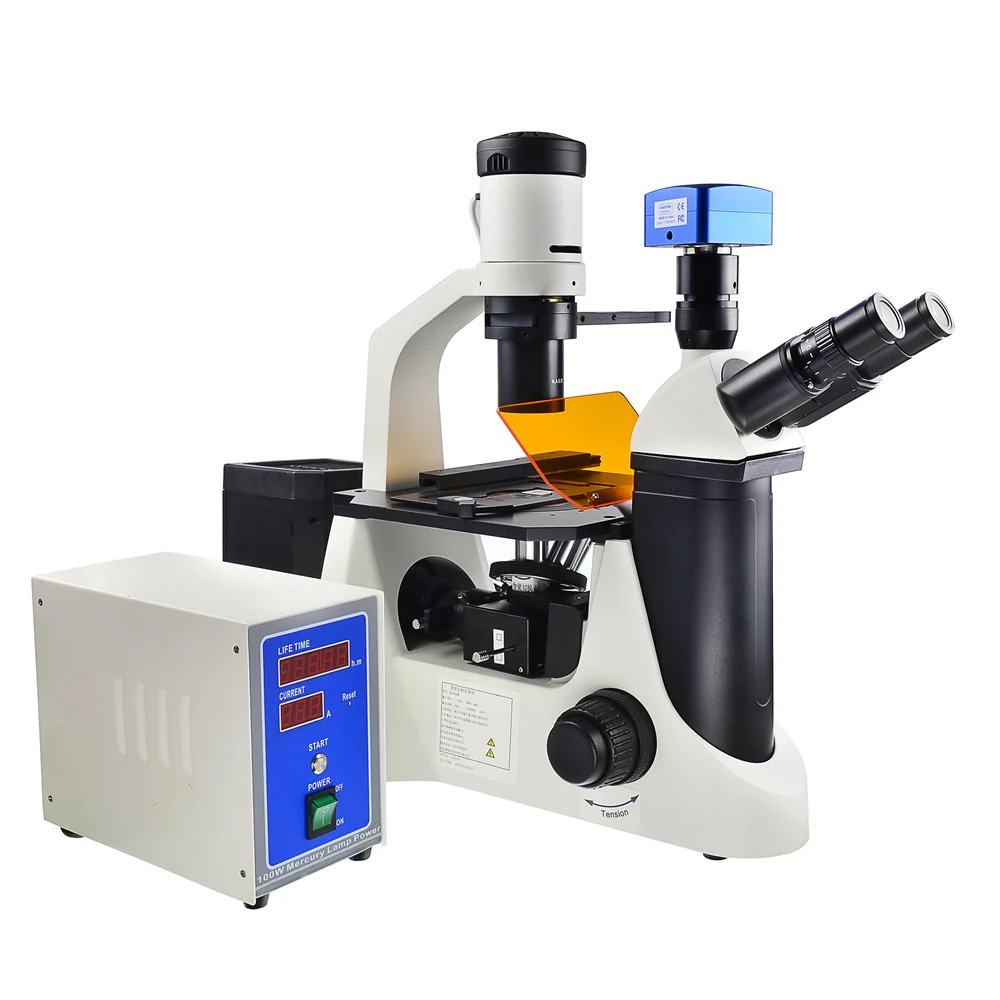

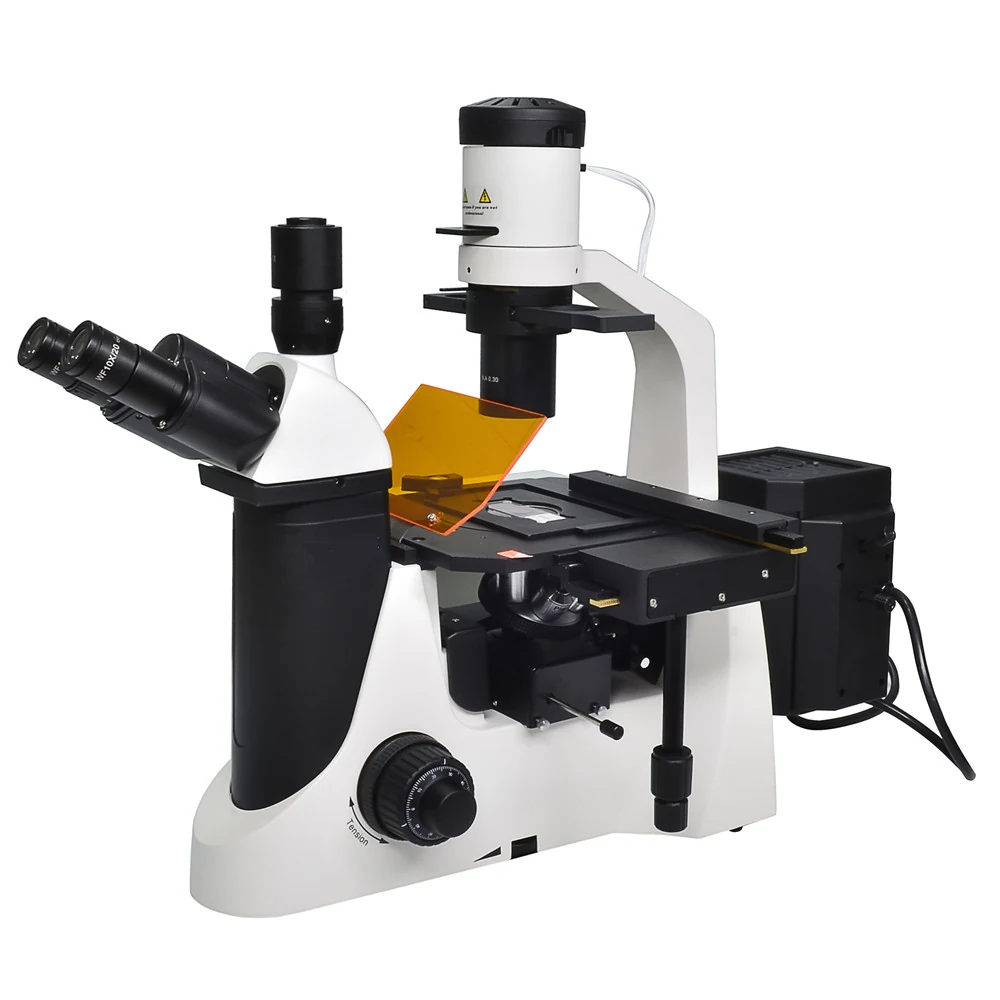

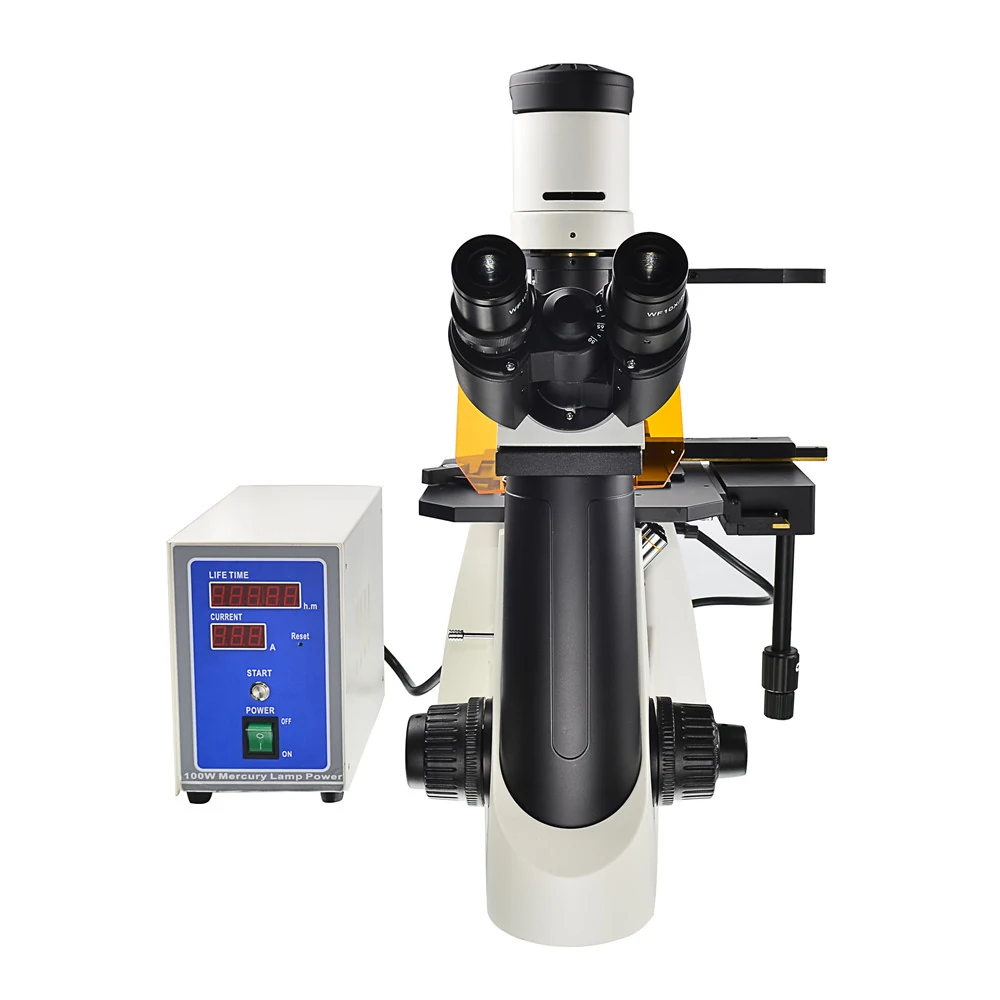

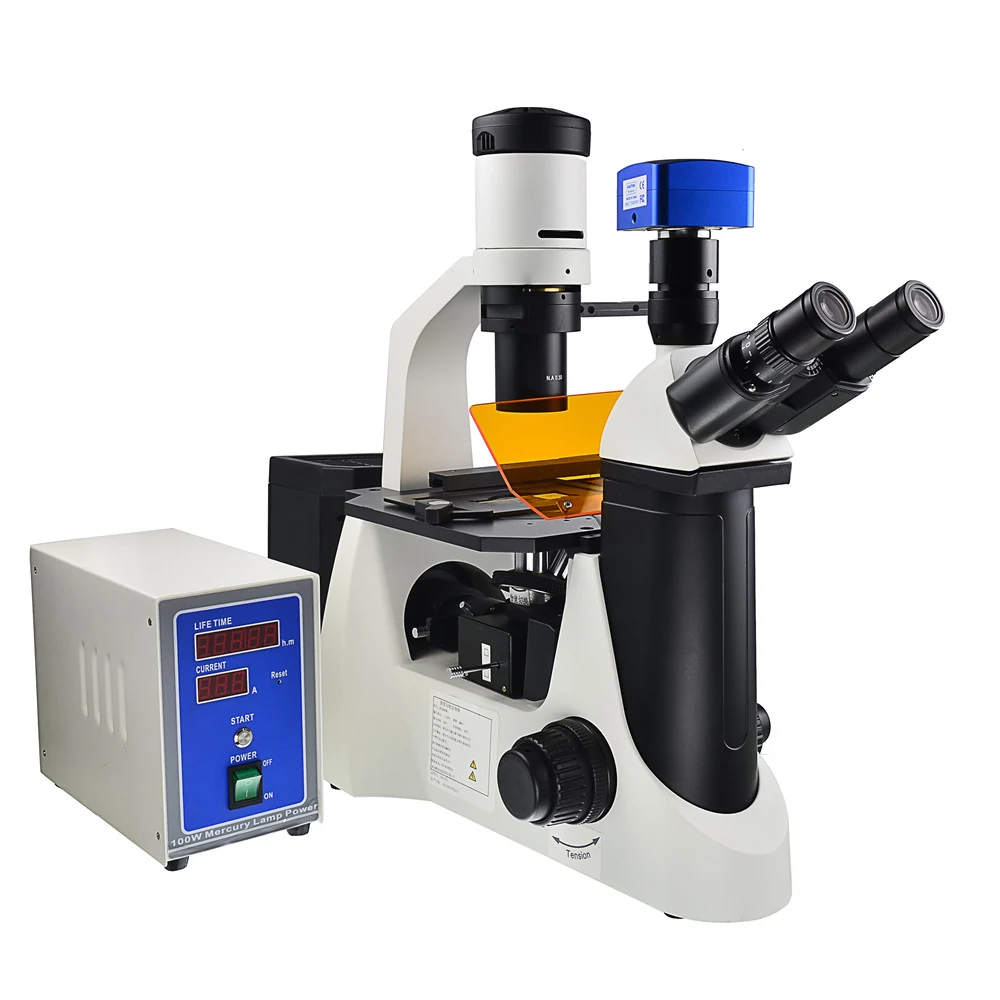

XIF100 Inverted Research Fluorescence Microscope for Living Cells Tissues
XIF100 Inverted Research Fluorescence Microscope for Living Cells Tissues
XIF100 Inverted Research Fluorescence Microscope for Living Cells Tissues
XIF100 Inverted Research Fluorescence Microscope for Living Cells Tissues
XIF100 Inverted Research Fluorescence Microscope for Living Cells Tissues

XIF100 Inverted Research Fluorescence Microscope for Living Cells Tissues

XIF100 is an inverted research fluorescence microscope designed for live cell and tissue imaging. It features an infinity independent achromatic optical system, one-piece structure for stability, and supports both binocular and trinocular configurations with adjustable interpupillary distance and diopter. The system includes a range of objectives, fluorescence illumination, and optional camera and stage accessories.

  • One-piece structure ensures mechanical stability and long-term alignment for live cell imaging
  • Infinity optical system with achromatic objectives for consistent image quality across magnifications
  • Adjustable interpupillary distance (48–75 mm) and diopter compensation for user comfort and accurate focus
  • Supports trinocular configuration with optional camera output for documentation and analysis
  • Inverted design enables large specimen holders and long-term observation of live samples
Request A Quote +86-15195807515

Technical features

  • Infinity independent achromatic optical system with one-piece structure for stability
  • Binocular or trinocular head with interpupillary distance 48–75 mm and diopter adjustment
  • High eye-point plan eyepieces: WF10X/20mm, WF10X/18mm, WF16X/13mm, WF10X/22mm (MS2/MT2/MT2B)
  • Infinity long distance plan achromatic objectives: 4X, 10X, 20X, 40X, 60X
  • Infinity long distance plan positive phase-contrast objectives: 4X, 10X, 20X, 40X
  • Inverted fluorescence illuminator with UV, blue, and green excitation filter options
  • Fluorescence shield kits for safe UV handling and reduced background noise
  • Specimen holders: φ65, φ54, φ35, φ110 drop holder, 96-hole plate mechanical stage (180mm x 155mm, 80mm x 50mm movement)

Who it is for

  • Biomedical research laboratories conducting live cell and tissue studies
  • Academic institutions with cell biology or molecular biology research programs
  • Pharmaceutical and biotech companies performing fluorescence-based assays
  • Importers specifying inverted fluorescence microscopes for research equipment procurement
  • Distributors building catalogs for advanced microscopy solutions in life sciences

Specifications

ModelXIF100
Optical SystemInfinity Independent Achromatic
Head TypeBinocular / Trinocular
Interpupillary Distance48–75 mm
Eyepiece TypeHigh Eye-point Plan
Eyepiece MagnificationWF10X, WF16X
Objective Magnifications4X, 10X, 20X, 40X, 60X
Phase-contrast ObjectivesPositive phase-contrast 4X, 10X, 20X, 40X
IlluminationLED, 6V 30W Halogen, Osram Halogen
Excitation FiltersUV, Blue, Green
C-Mount Options0.25X, 1X, 0.5X, 2.5X Digital Camera
Stage TypeFixed + Attachable Mechanical Stage, 96-Hole Plate Mechanical Stage

Use guide

  • Select trinocular head if camera documentation is required
  • Choose 60X objective for high-resolution imaging of cellular structures
  • Use phase-contrast objectives when observing transparent, unstained live cells
  • Attach 96-well plate stage for high-throughput screening applications
  • Install UV filter and shield kit when using UV excitation to protect users

FAQ

What is the interpupillary distance range?
48–75 mm, adjustable for different users.
Can I use a digital camera?
Yes. C-Mount adapters are available for 0.25X, 1X, 0.5X, and 2.5X camera output.
What objectives are included?
Standard: 4X, 10X, 20X, 40X achromatic. Optional: 60X, phase-contrast 4X–40X.
Is UV excitation safe?
Yes, with the included UV excitation filter and shield kit for safe handling.
What stage options are available?
Fixed stage, mechanical stage, and 96-well plate stage (180mm x 155mm, 80mm x 50mm movement).
