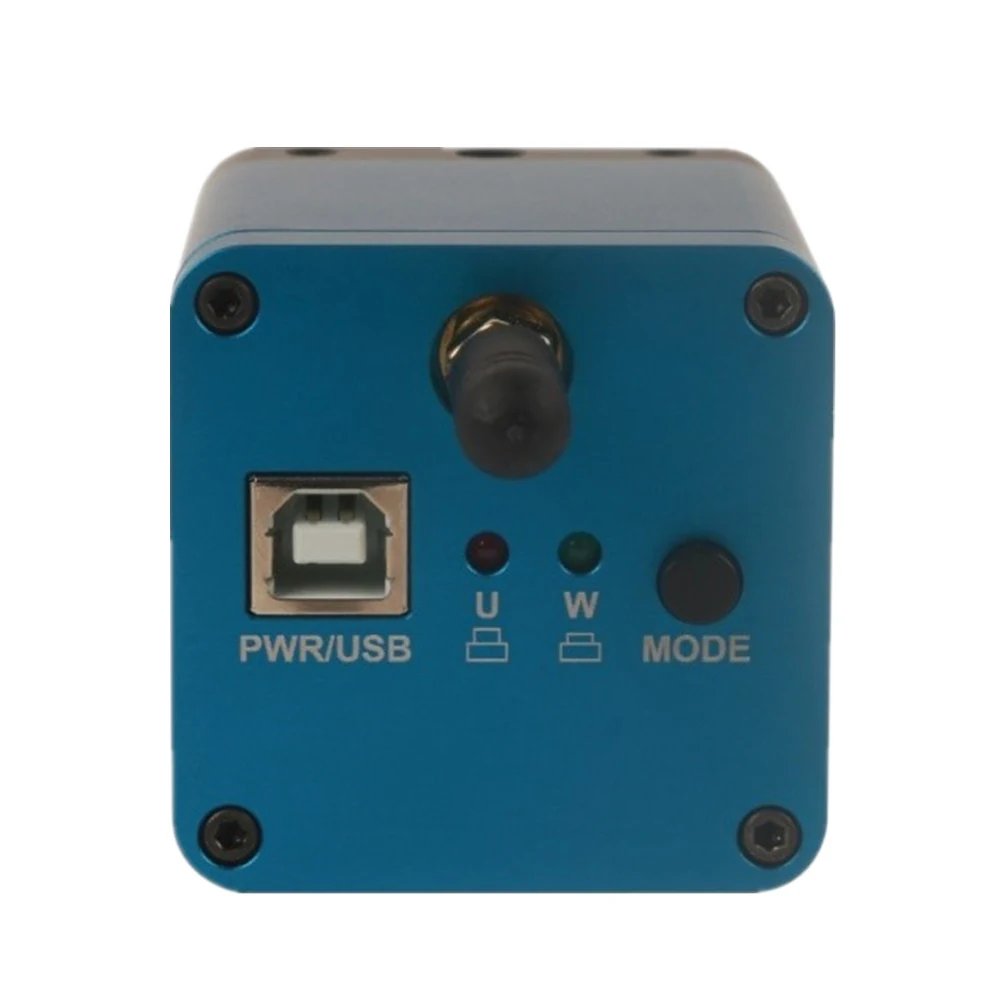

WUCAM WiFi +USB Biological Stereo Microscope Camera
WUCAM WiFi +USB Biological Stereo Microscope Camera

WUCAM WiFi +USB Biological Stereo Microscope Camera

WUCAM WiFi + USB Biological Stereo Microscope Camera is a C-mount CMOS camera designed for biological and stereo microscopes. It supports both USB2.0 and WiFi connectivity, with 720P resolution, 30 FPS, and a 1/2.5" sensor. The camera features an IR-cut filter, natural cooling, and compatibility with Windows, Linux, macOS, Android, and iOS platforms.

  • Dual connectivity: USB2.0 and WiFi on the same device via on-camera switch
  • 720P resolution at 30 FPS with low noise and high dynamic range
  • IR-cut filter protects sensor and improves image clarity in visible light
  • Supports multiple platforms including Windows, Linux, macOS, Android, and iOS
  • CNC aluminum alloy body ensures durability and long-term use in lab or production environments
Request A Quote +86-15195807515

Technical features

  • Sensor: MT9P001 (C) 1/2.5" (5.63×3.17 mm), 2.2×2.2 μm pixel size
  • Resolution: 720P (1280×720), 30 FPS
  • Dynamic range: 66.5dB, SNRmax: 40dB
  • Responsivity: 0.53 V/lux-sec
  • Spectral range: 380–650nm with IR-cut filter
  • White balance: Whole area, manual temp/tint adjustment
  • Color technique: Ultra-Fine TM Color Engine (color version)
  • Binning: 2×2

Who it is for

  • Laboratories requiring remote or mobile microscope imaging
  • Educational institutions using microscopes for demonstrations
  • Manufacturers integrating cameras into inspection stations
  • Distributors offering camera solutions for biological and stereo microscopes

Specifications

ModelWUCAM0720PA
SensorMT9P001 (C) 1/2.5"
Resolution720P (1280×720)
Frame Rate30 FPS
Pixel Size2.2×2.2 μm
Dynamic Range66.5dB
SNRmax40dB
Responsivity0.53 V/lux-sec
Spectral Range380–650nm (with IR-cut filter)
White BalanceWhole area / Manual Temp Tint
Color TechniqueUltra-Fine TM Color Engine
Binning2×2
ExposureAuto / Manual
Output InterfaceUSB or WiFi (on-camera switch)
Power SupplyUSB from PC or USB charger
Operating Temperature-10 to 50°C
Storage Temperature-20 to 60°C
Operating Humidity30–80% RH
Storage Humidity10–60% RH
Max Connected Devices6–10
Cable Length2.0m (USB A male to B male, gold-plated)

Use guide

  • Select the correct lens adapter (23.2mm or 31.75mm) based on your microscope's eyepiece tube diameter
  • Switch between USB and WiFi via the on-camera button; ensure WiFi adapter supports DHCP
  • Install drivers from CD or download from website; use SDKs for custom software integration
  • Connect via USB for power and data, or use WiFi for mobile viewing on iPad, Android tablet, or smartphone

FAQ

Can I use this camera with a biological microscope?
Yes. The WUCAM is designed for C-mount biological and stereo microscopes with standard eyepiece tubes.
Does it support WiFi on mobile devices?
Yes. Connect via WiFi to iPad, iPhone, Android tablet, or smartphone using the built-in WiFi interface.
What is the difference between C and M versions?
C version is color; M version is monochrome, suitable for fluorescence or high-contrast imaging.
How do I switch between USB and WiFi?
Use the on-camera switch to toggle between USB and WiFi modes. No software change needed.
What is the maximum number of devices it can connect to?
Up to 6–10 devices simultaneously, depending on network or PC port capacity.
