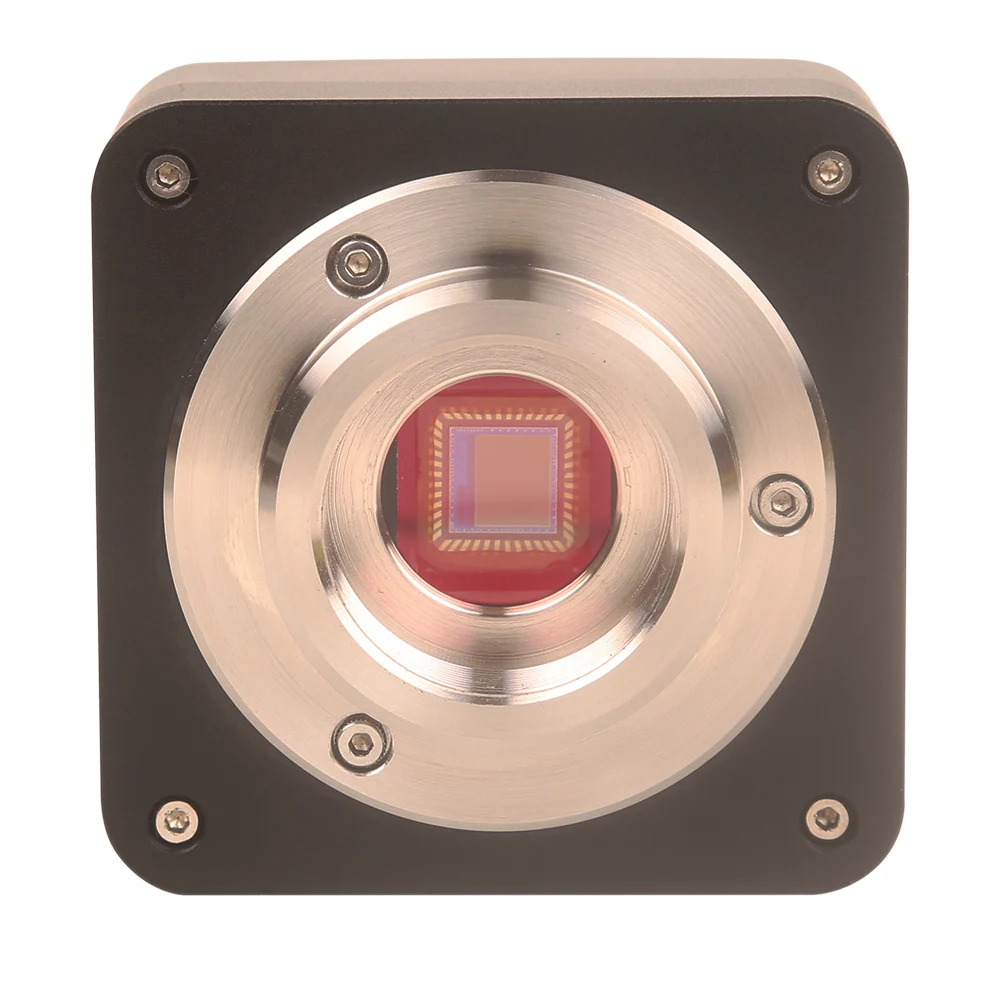

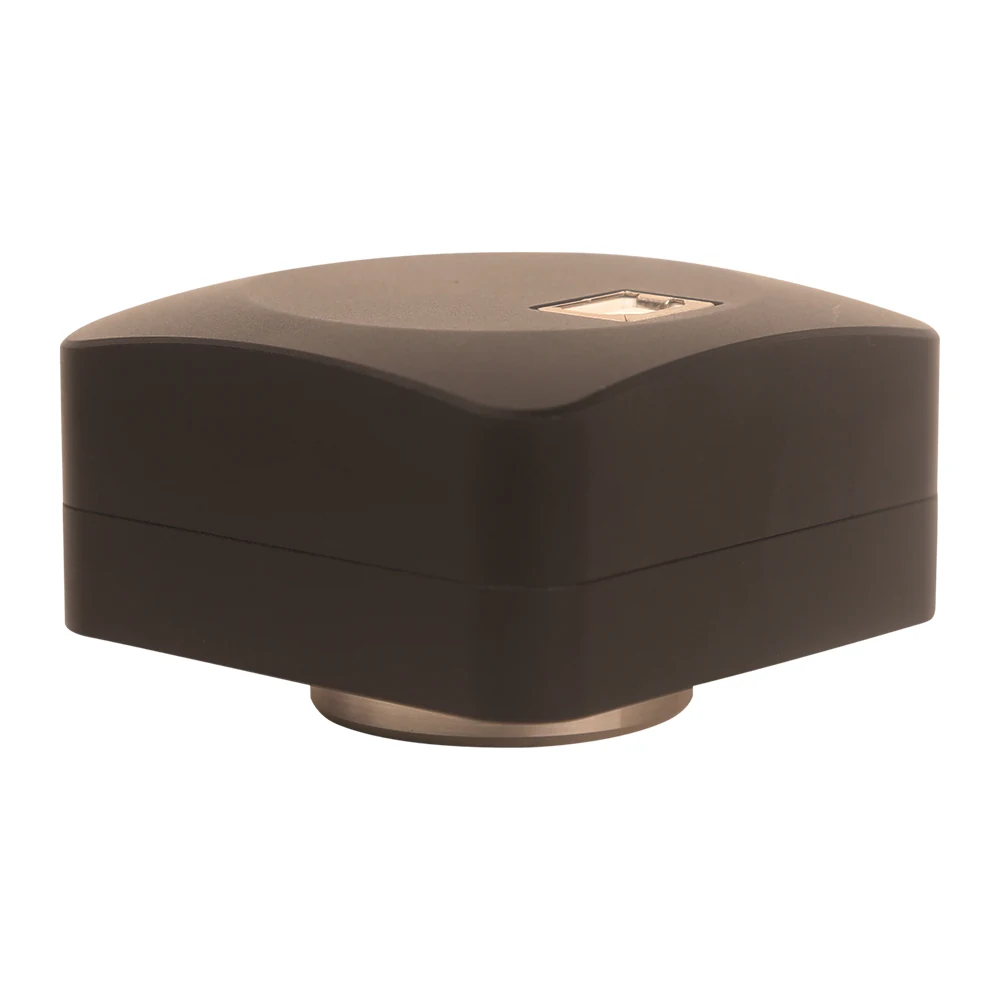

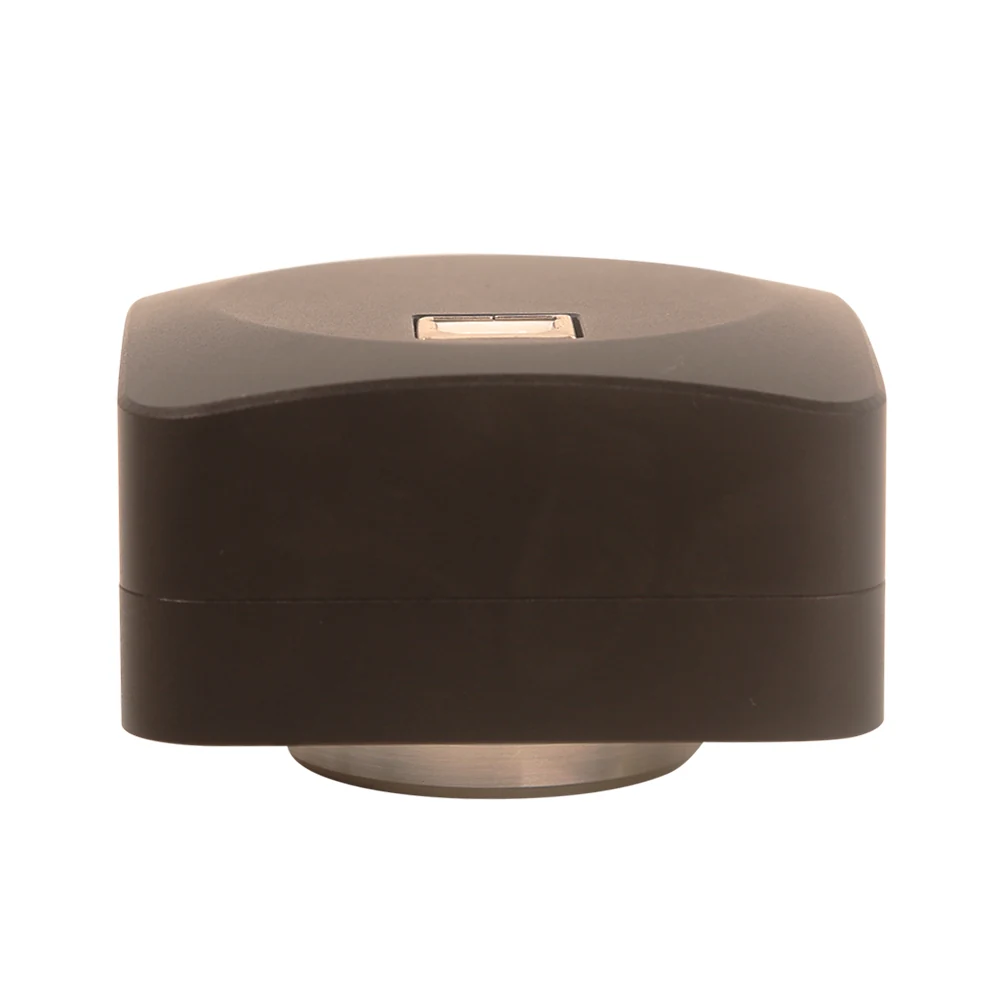

U3ISPM Microscope Camera with Hardware ISP and Video Pipeline
U3ISPM is a USB3.0 CMOS microscope camera with hardware ISP and video pipeline, designed for industrial and research applications requiring high-resolution imaging. The camera features a 20MP AR2020 sensor, 1/1.8" size, 1.4µm pixels, and supports 45 FPS at 2560×1920 resolution. It includes built-in color processing, IR-cut filter, and supports multiple operating systems and SDKs for integration.
- 20MP resolution with 1.4µm pixels for high detail in biological and electronic inspection
- Hardware ISP and video pipeline enable real-time image processing without CPU load
- Supports 45 FPS at 2560×1920 and 20 FPS at 5120×3840 for fast capture and analysis
- IR-cut filter protects sensor and ensures accurate color reproduction in visible spectrum
- Robust aluminum alloy body with no moving parts for long-term reliability in industrial environments
Technical features
- Sensor: AR2020 (20MP), 1/1.8" (7.17×5.38 mm) format
- Pixel size: 1.4×1.4 µm
- Responsivity: 8.4 ke−/lux.sec
- Dynamic range: 20 dB
- SNRmax: 45 dB
- Frame rate: 45 FPS at 2560×1920, 20 FPS at 5120×3840
- Binning: 1×1 and 2×2
- Exposure time: 0.2 ms to 15 seconds
Who it is for
- Electronics manufacturers requiring high-resolution image capture for SMT and PCB inspection
- Biomedical labs using microscopes with digital output for documentation and analysis
- Automation integrators building machine vision systems with USB3.0 cameras
- Distributors offering complete microscope imaging solutions with software compatibility
Specifications
| Model | U3ISPM20000KPA |
|---|---|
| Sensor | AR2020 (20MP) |
| Sensor Size | 1/1.8" (7.17×5.38 mm) |
| Pixel Size | 1.4×1.4 µm |
| Responsivity | 8.4 ke−/lux.sec |
| Dynamic Range | 20 dB |
| SNRmax | 45 dB |
| Max Frame Rate | 45 FPS at 2560×1920 |
| Max Resolution | 5120×3840 |
| Binning | 1×1, 2×2 |
| Exposure Time | 0.2 ms to 15 s |
| Spectral Range | 380–650 nm (with IR-cut filter) |
| Color Processing | Ultra-fine TM HISP VP |
| White Balance | Auto and manual (temp/tint) |
| ROI Support | Yes |
| Operating Temperature | -10 to 50°C |
| Storage Temperature | -20 to 60°C |
| Operating Humidity | 30–80% RH |
| Storage Humidity | 10–60% RH |
| Power Supply | DC 5V via USB3.0 port |

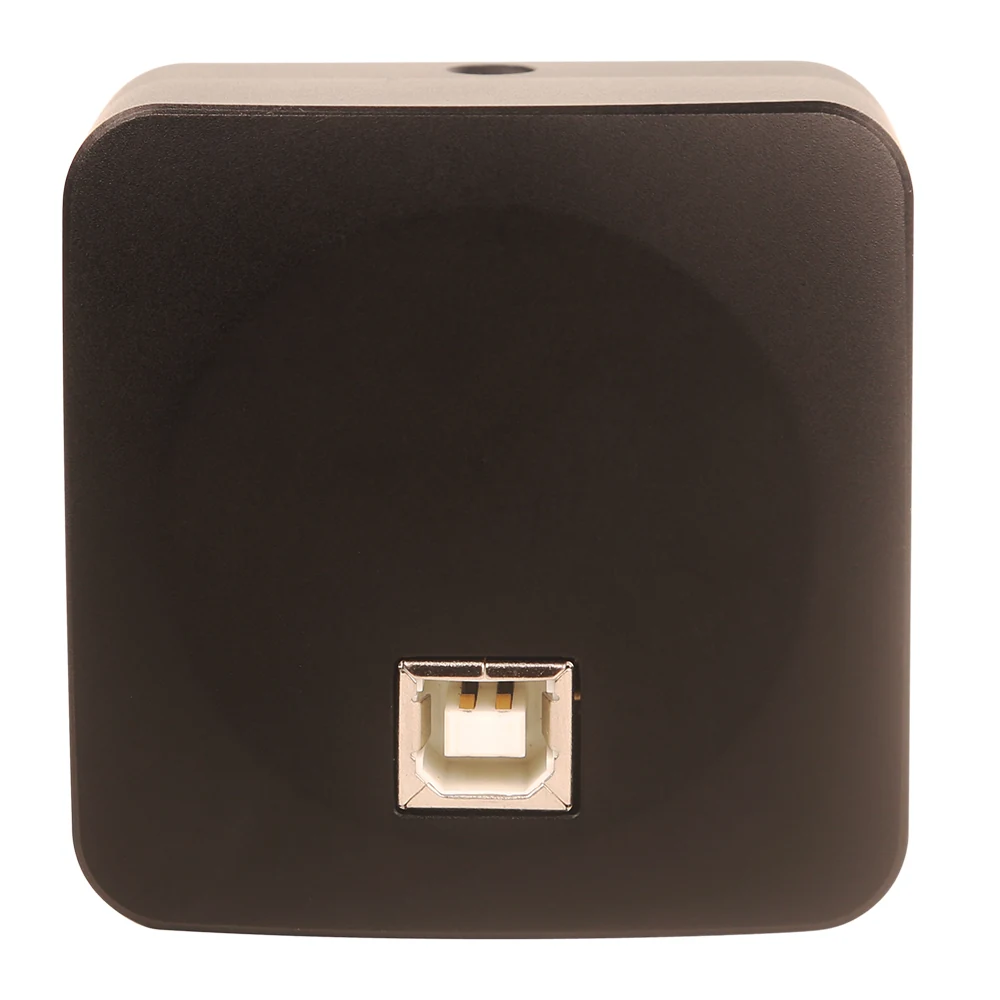

| Connectors | USB3.0 A male to B male, gold-plated |
| Software Support | Windows, Linux, macOS, Android |
Use guide
- Select color or monochrome sensor based on imaging need (color vs. sensitivity)
- Choose adapter type (adjustable or fixed) based on microscope eyepiece tube diameter
- Use 2×2 binning to increase frame rate or reduce data load in high-speed applications
- Ensure PC has USB3.0 port and sufficient processing power for 20MP video stream
FAQ
What is the sensor type and resolution?
AR2020 CMOS sensor with 20MP resolution (5120×3840).
Can I use this camera with a microscope?
Yes. It uses C-mount interface and includes adapters for 23.2mm and 31.75mm eyepiece tubes.
Does it support real-time video output?
Yes. It supports 45 FPS at 2560×1920 with hardware ISP for low-latency video.
What operating systems are supported?
Windows (XP to 10), macOS, Linux, and Android with native SDKs available.
Is there active cooling?
No. The camera uses natural cooling; it operates from -10°C to 50°C ambient.
