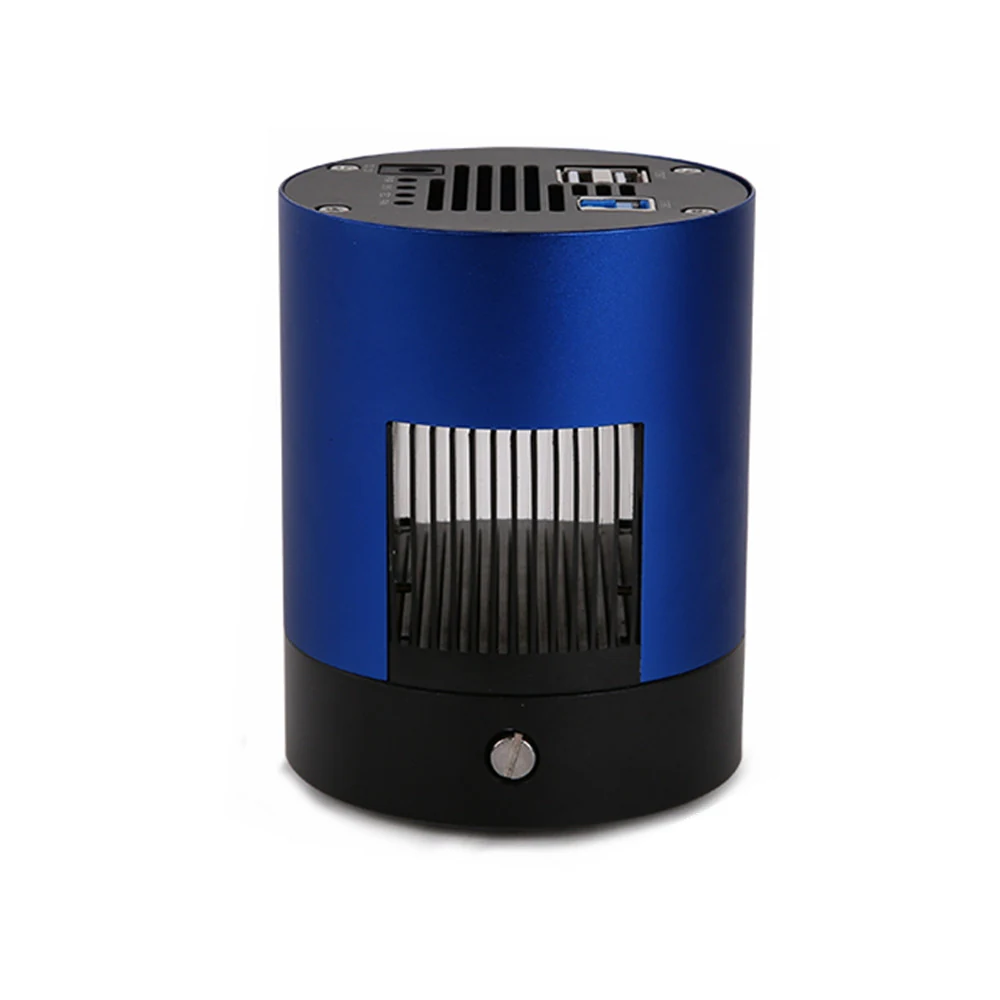

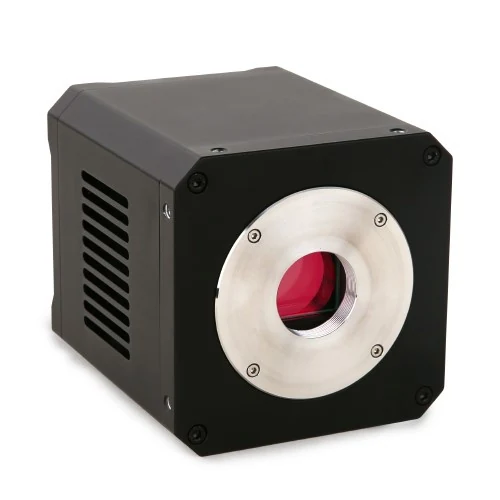

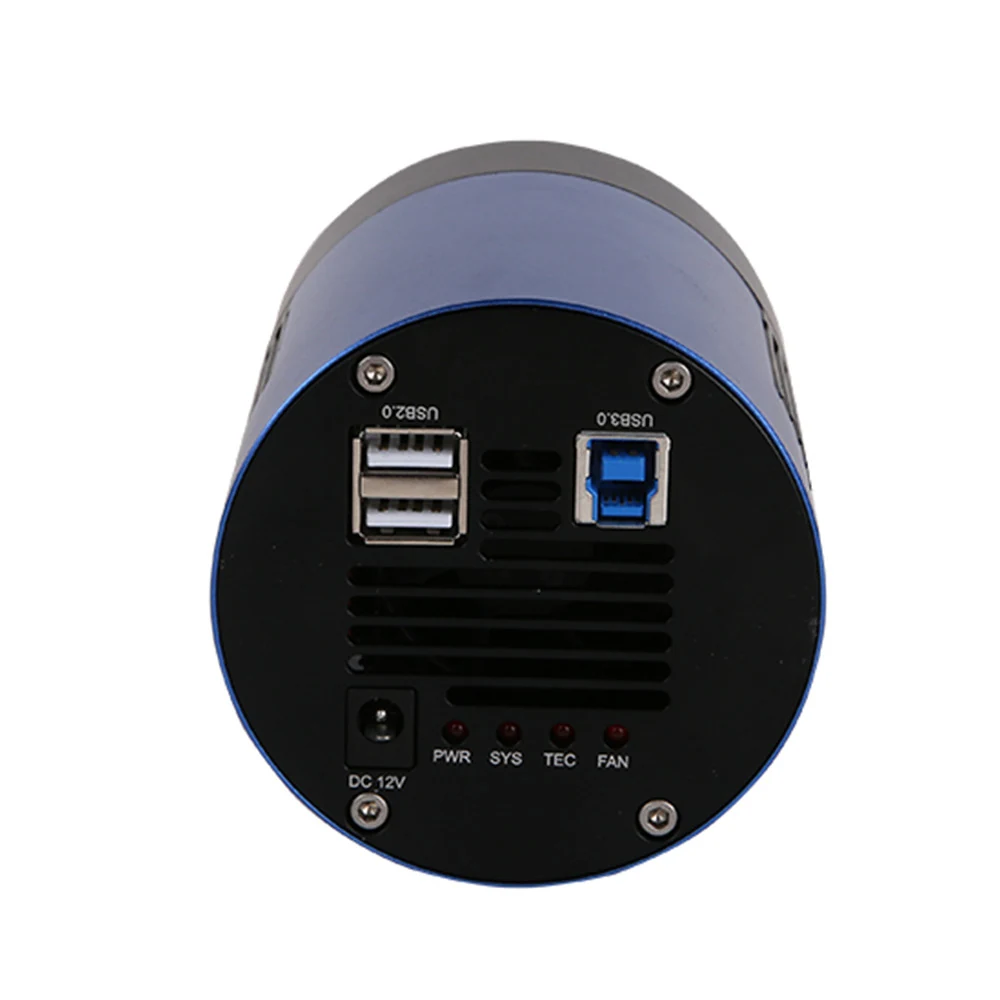

MTR3CMOS TE-Cooling C-mount USB3.0 CMOS Microscope Camera
MTR3CMOS TE-Cooling C-mount USB3.0 CMOS Microscope Camera
MTR3CMOS TE-Cooling C-mount USB3.0 CMOS Microscope Camera
MTR3CMOS TE-Cooling C-mount USB3.0 CMOS Microscope Camera

MTR3CMOS TE-Cooling C-mount USB3.0 CMOS Microscope Camera

MTR3CMOS TE-Cooling C-mount USB3.0 CMOS Microscope Cameras from Nanjing AMADA Instrument are designed for high-resolution imaging in biomedical research, electronics inspection, and industrial testing. The series supports multiple sensor options (IMX492, IMX571, IMX269, IMX183, MN34230PLJ, IMX294, IMX533) with C-mount interface, TE cooling, USB3.0 connectivity, and adjustable exposure from 0.1ms to 1 hour.

  • TE cooling reduces dark signal for low-noise imaging in long exposure applications
  • USB3.0 interface enables high-speed data transfer up to 87.2 FPS at 1360×720 resolution
  • Multiple sensor sizes (4/3”, APS-C, 1”) and pixel pitches (2.315–4.63 μm) to match optical systems
  • Supports 8 Bit to 16 Bit ADC with binning modes (1×1, 2×2, 3×3, 4×4) for flexibility in resolution and speed
  • Adjustable exposure time from 0.1ms to 1 hour for dynamic range control in bright or low-light conditions
Request A Quote +86-15195807515

Technical features

  • TE cooling reduces dark signal to 0.04–0.12mV (depending on model) with 1/30s exposure
  • C-mount interface compatible with standard microscope objectives
  • USB3.0 connectivity with data rates up to 87.2 FPS at 1360×720 resolution
  • Exposure time range: 0.1ms to 1 hour (0.15ms for some models)
  • Binning modes: 1×1, 2×2, 3×3, 4×4 (varies by model and aspect ratio)
  • ADC options: 8 Bit / 12 Bit / 14 Bit / 16 Bit (model-dependent)
  • Sensitivity: 351mV to 877mV with 1/30s exposure (model-dependent)
  • Sensor formats: 4/3” (19.11×13.00 mm), APS-C (23.48×15.67 mm), 1” (13.056×8.755 mm), 1” (11.28×11.28 mm)

Who it is for

  • Procurement engineers sourcing cameras for microscope integration
  • R&D labs building custom imaging systems with C-mount compatibility
  • Manufacturers integrating cameras into inspection stations for quality control

Specifications

ModelsMTR3CMOS45000KMA / MTR3CMOS26000KPA / MTR3CMOS26000KMA / MTR3CMOS21000KPA / MTR3CMOS20000KPA / MTR3CMOS20000KMA / MTR3CMOS16000KPA / MTR3CMOS16000KMA / MTR3CMOS10300KPA / MTR3CMOS10300KMA / MTR3CMOS09000KPA / MTR3CMOS09000KMA
SensorIMX492 (M, RS), IMX571 (C, RS), IMX269 (C), IMX183 (C, RS), MN34230PLJ (C), IMX294 (C), IMX533 (M)
Sensor Size4/3” (19.11×13.00 mm), APS-C (23.48×15.67 mm), 1” (13.056×8.755 mm), 1” (11.28×11.28 mm)
Pixel Size2.315×2.315 μm to 4.63×4.63 μm
Dark Signal0.04–0.12mV with 1/30s exposure
Sensitivity351mV to 877mV with 1/30s exposure
Max Frame Rate110 FPS at 2064×1386 resolution (MTR3CMOS26000KPA)
Exposure Time0.1ms to 1h (0.15ms for some models)
ADC Resolution8 Bit / 12 Bit / 14 Bit / 16 Bit
Binning Modes1×1, 2×2, 3×3, 4×4 (varies by model and aspect ratio)

Use guide

  • Select model based on sensor size and pixel pitch to match your microscope objective
  • Choose ADC bit depth and binning mode to balance resolution, speed, and noise
  • Set exposure time to 0.1ms for fast motion or 1 hour for low-light imaging
  • Use TE cooling to reduce dark signal in long exposure applications

FAQ

What is the maximum frame rate?
Up to 110 FPS at 2064×1386 resolution (MTR3CMOS26000KPA). Other models reach up to 87.2 FPS at 1360×720.
Does it support USB3.0?
Yes. All models use USB3.0 interface for high-speed data transfer.
Can I use it with a microscope?
Yes. The C-mount interface allows direct attachment to standard microscope objectives.
What is the cooling method?
TE cooling (thermoelectric cooling) reduces dark signal for low-noise imaging.
What exposure time range is available?
0.1ms to 1 hour (0.15ms for some models).
Are binning modes available?
Yes. Binning modes include 1×1, 2×2, 3×3, 4×4 depending on model and resolution.
Who manufactures this camera?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
