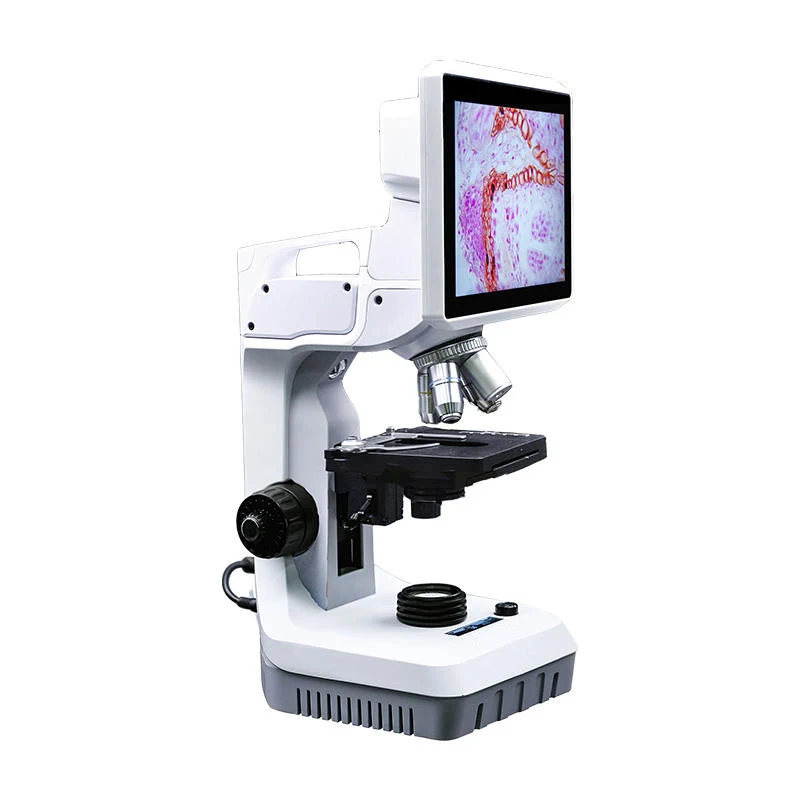

T300 HD 10.1 Inches 5M Digital LCD Biological Stereo Microscope
T300 HD 10.1 Inches 5M Digital LCD Biological Stereo Microscope

T300 HD 10.1 Inches 5M Digital LCD Biological Stereo Microscope

T300 HD 10.1 Inches 5M Digital LCD Biological Stereo Microscope is a digital biological and stereo microscope from Nanjing AMADA Instrument Co., Ltd. designed for educational, clinical, and industrial inspection applications. It features a 10.1-inch HD LCD screen with 1920×1200 resolution, a 5 million effective pixel image sensor, and supports 1080p/30fps HD video recording. The unit integrates USB, VGA, HDMI, Ethernet, and audio interfaces for data output and external display. It includes a coaxial coarse and fine focus system, double-layer mechanical stage, plug-in condenser, and LED bottom and side lighting. The microscope supports biological and stereoscopic observation with optical magnification from 10X to 400X using 4X/10X/20X/40X objectives and 1X or 2X stereoscopic objectives.

  • 10.1-inch HD LCD screen with 1920×1200 resolution for clear real-time imaging
  • 5 million effective pixel sensor and 1080p/30fps video recording for high-resolution documentation
  • Built-in professional software with scale calibration and measurement functions for accurate sample analysis
  • Multiple external interfaces (HDMI, VGA, USB, Ethernet, audio) for connection to monitors, projectors, and data systems
  • Supports sensor integration via multiple USB ports for digital experiment setups
  • Dual illumination (bottom and side LED) with plug-in condenser for flexible lighting in biological and stereo observation
Request A Quote +86-15195807515

Technical features

  • LCD screen size: 10.1 inches, resolution: 1920×1200
  • Maximal image resolution: 2492×1944 at 14fps
  • Effective pixel count: 5 million
  • Video output: 1080p/30fps
  • Photo and video playback capability
  • Integrated USB, VGA, HDMI, audio input/output, and Ethernet interfaces
  • Supports multiple sensors via USB ports for digital experiment applications
  • Built-in solid state disk: 64G, internal memory: 4G

Who it is for

  • Educational institutions and science departments requiring digital microscopy for teaching
  • Clinical labs and diagnostic centers needing documented biological observations
  • Manufacturers in electronics or biotech sectors requiring digital inspection with measurement
  • Distributors offering integrated digital microscope solutions for lab or field use

Specifications

ModelT300
Screen Size10.1 inches
Screen Resolution1920×1200
Maximal Image Resolution2492×1944 at 14fps
Effective Pixel5 million
Video Resolution1080p/30fps
Storage64G SSD, 4G internal memory
CPUIntel core i3
Operating SystemWindows 10
EyepieceWF10×/18mm (optional WF10×/20mm)
Biological Objectives4X, 10X, 20X, 40X
Stereoscopic Objectives1X or 2X
Optical Magnification10X–400X
Light SourceLED (bottom and side)
Input Voltage19V
InterfacesUSB, VGA, HDMI, Ethernet, audio input/output
Focus SystemCoaxial coarse and fine focus
StageDouble-layer mechanical stage
CondenserPlug-in condenser

Use guide

  • Select the model based on required screen size, resolution, and integrated features
  • Choose optional eyepiece (WF10×/20mm) if larger field of view is needed
  • Use 1X or 2X stereoscopic objective depending on required magnification and working distance
  • Connect to external monitor via HDMI or VGA for larger display or group viewing
  • Use the built-in software for scale calibration and measurement of observed samples

FAQ

What is the screen resolution and size?
10.1 inches with 1920×1200 resolution.
Can I measure samples directly on the screen?
Yes. The built-in software supports scale calibration and measurement of observed samples.
Does it support external display?
Yes. It has HDMI, VGA, and USB interfaces for connection to monitors, projectors, and computers.
What is the maximum image resolution?
2492×1944 at 14fps.
What power input does it require?
19V input voltage.
