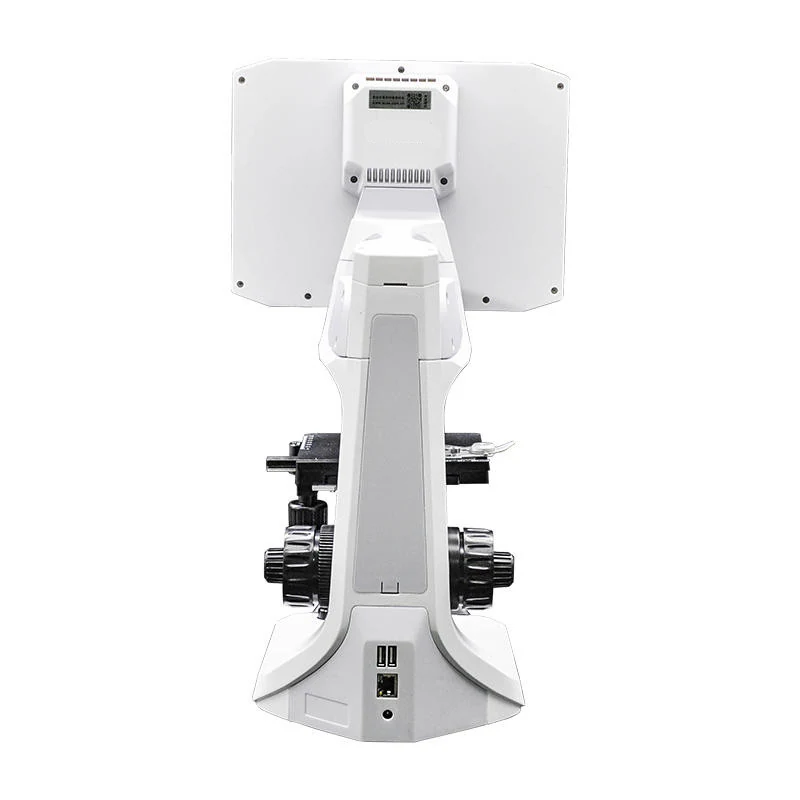

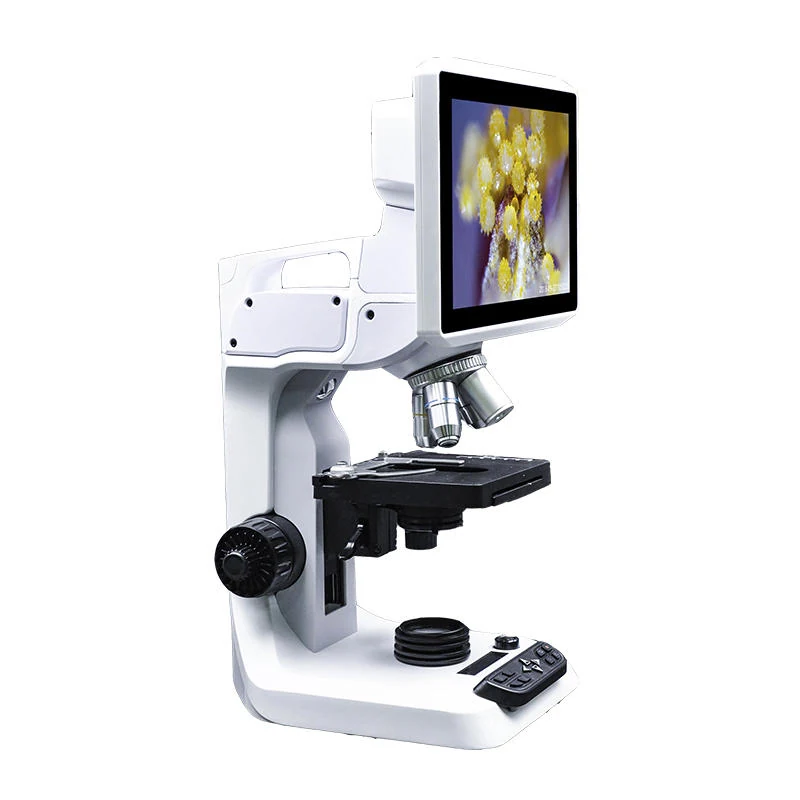

T200 1080P 5M 8M 16M Digital LCD Biological Stereo Microscope
T200 1080P 5M 8M 16M Digital LCD Biological Stereo Microscope
T200 1080P 5M 8M 16M Digital LCD Biological Stereo Microscope

T200 1080P 5M 8M 16M Digital LCD Biological Stereo Microscope

The T200 series is a digital LCD biological stereo microscope from Nanjing AMADA Instrument Co., Ltd., designed for educational, clinical, and industrial inspection tasks. It integrates a 10.1-inch HD LCD screen, built-in 5M to 16M photo resolution, 1080P/30fps video, and USB connectivity for data transfer and external display. The microscope features a lateral reflection light source, coaxial coarse and fine focus, double-layer mechanical stage, and plug-in condenser for versatile sample observation.

  • Built-in 10.1-inch HD LCD screen with real-time image display for immediate observation without external devices
  • Supports 5M, 8M, or 16M photo resolution depending on model, enabling high-detail documentation
  • 1080P/30fps video recording and playback for teaching, training, and process documentation
  • Built-in 8GB storage and USB 1.0 interface for U disk data transfer and software operation
  • USB 2.0 interface for connecting to computers, laptops, or electronic screens for image analysis
  • Integrated professional observation software with scale calibration and measurement tools
Request A Quote +86-15195807515

Technical features

  • Model T205: 5M photo resolution, 3-hole nosepiece, 4X/10X/40X objectives, magnification 40X–400X
  • Model T208: 8M photo resolution, 4-hole nosepiece, 4X/10X/40X objectives, magnification 10X–400X
  • Model T216: 16M photo resolution, 5-hole nosepiece, 4X/10X/40X/100X objectives, magnification 10X–1000X
  • 10.1-inch HD LCD screen with 1920×1200 resolution and 1080P/30fps video output
  • Lateral reflection light source with bottom and side illumination options
  • Coaxial coarse and fine focus system for smooth adjustment
  • Double-layer mechanical stage with plug-in condenser for sample positioning
  • Multi-functional knob controls power, brightness, light source type, and displays battery status

Who it is for

  • Educational institutions and science labs requiring interactive digital microscopy
  • Clinical and diagnostic labs needing measurement-capable biological imaging
  • Electronics and manufacturing QA teams for non-destructive inspection and documentation
  • Distributors sourcing digital microscopes with integrated software and storage
  • Field technicians requiring portable, battery-powered digital microscopes with USB output

Specifications

ModelT205 / T208 / T216
LCD Screen Size10.1 inches
LCD Resolution1920×1200
Video Resolution1080P/30fps
Photo Resolution5M / 8M / 16M
Magnification Range40X–400X (T205) / 10X–400X (T208) / 10X–1000X (T216)
Objective Types4X/10X/40X (T205/T208), 4X/10X/40X/100X (T216)
Nosepiece Holes3 (T205) / 4 (T208) / 5 (T216)
Focusing SystemCoaxial Coarse & Fine Focus
Stage TypeDouble Layers Mechanical Stage
CondenserPlug-in Condenser
Light SourceLED, Bottom & Side Illumination
Light Source ColorsBlack, White, Red, Blue, Green
Input Voltage19V
Built-in Storage8GB
Network InterfaceEthernet / WIFI (T216)
External OutputComputer, U disk, USB camera

Use guide

  • Select model based on required magnification range and photo resolution
  • Use the multi-functional knob to adjust brightness, switch light source, and check battery status
  • Insert U disk via USB 1.0 to store data directly from the microscope
  • Connect to computer via USB 2.0 or WIFI (T216) for advanced image analysis using provided software
  • Enable measurement tools in software for scale calibration and crosshair-based analysis

FAQ

What is the photo resolution for each model?
T205: 5M, T208: 8M, T216: 16M.
Can I store data on a U disk?
Yes. Insert a U disk via USB 1.0 interface; data is stored preferentially on the U disk.
Does it support external computer connection?
Yes. Use USB 2.0 interface to connect to desktops, laptops, or electronic screens for image output and analysis.
What is the screen size and resolution?
10.1-inch HD LCD with 1920×1200 resolution and 1080P/30fps video output.
Is there built-in storage?
Yes. The microscope has 8GB of built-in storage for saving images and videos.
What light source options are available?
LED with lateral reflection, bottom and side illumination, and color options: black, white, red, blue, green.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd., Nanjing, Jiangsu, China.
