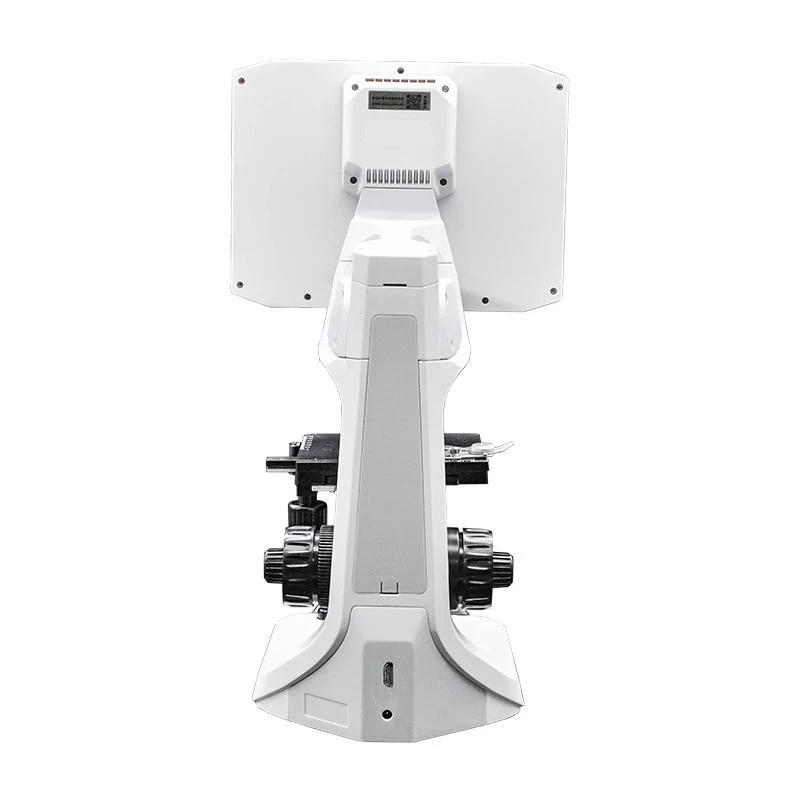

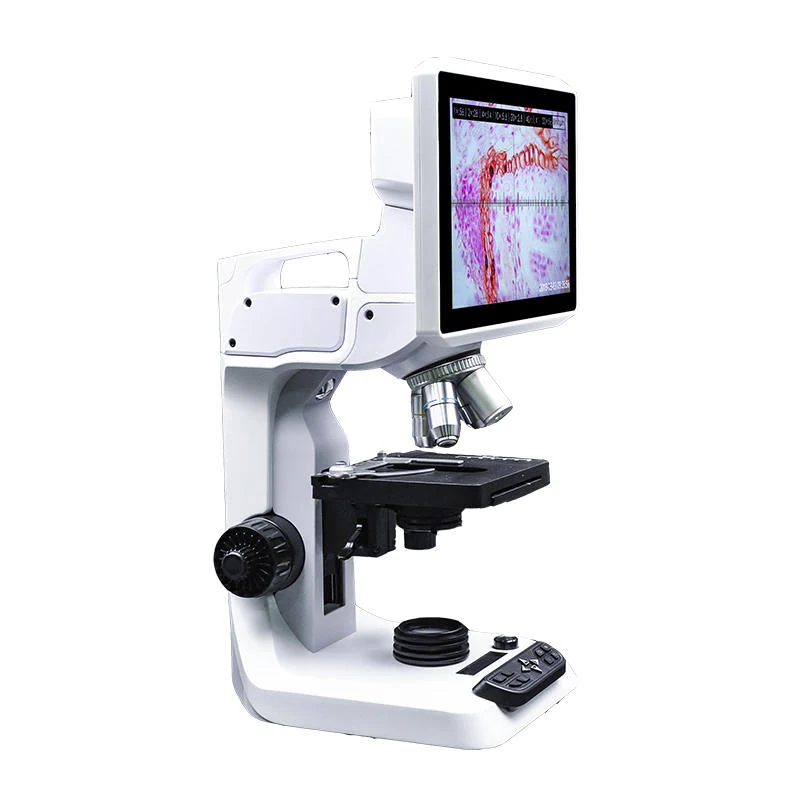

T100 1080P 5M 8M 16M Digital LCD Biological Stereo Microscope
T100 1080P 5M 8M 16M Digital LCD Biological Stereo Microscope
T100 1080P 5M 8M 16M Digital LCD Biological Stereo Microscope

T100 1080P 5M 8M 16M Digital LCD Biological Stereo Microscope

T100 is a digital LCD biological and stereo microscope from Nanjing AMADA Instrument Co., Ltd. designed for educational, clinical, and industrial inspection tasks. The model offers built-in HD imaging with 5M, 8M, or 16M photo resolution, 1080P video recording, and real-time HDMI output for teaching and demonstration. It features a 10.1-inch HD LCD screen, coaxial coarse and fine focus, double-layer mechanical stage, and lateral reflection light source for enhanced sample visibility.

  • Built-in 10.1-inch HD LCD screen with 1920×1200 resolution for direct observation without external monitor
  • Supports 5M, 8M, or 16M photo resolution and 1080P/60fps video recording depending on model
  • HDMI output enables real-time projection for classroom or lab teaching and demonstration
  • TF card storage allows offline image and video capture without computer dependency
  • Operational key panel enables instant photo and video capture without software
  • Lateral reflection light source improves visibility of physical specimens and surface features
Request A Quote +86-15195807515

Technical features

  • LCD screen size 10.1 inches with HD resolution 1920×1200
  • Photo resolution: 5M (T105), 8M (T108), 16M (T116)
  • Video resolution: 720P/30fps (T105), 1080P/30fps (T108), 1080P/60fps (T116)
  • Built-in LED lighting with bottom and side light source options
  • Lateral reflection light source for improved surface and physical entity observation
  • Coaxial coarse and fine focus system for smooth and precise focusing
  • Double-layer mechanical stage with adjustable positioning
  • Plug-in condenser for improved illumination control

Who it is for

  • Schools and universities in medicine, biology, and technology education
  • Clinical labs requiring portable, self-contained imaging for sample analysis
  • Manufacturers in electronics or precision assembly needing on-site inspection with measurement
  • Distributors sourcing digital microscopes with integrated imaging and teaching features

Specifications

ModelT105 / T108 / T116
LCD Screen Size10.1 inches
LCD Resolution1920×1200
Photo Resolution5M / 8M / 16M
Video Resolution720P/30fps / 1080P/30fps / 1080P/60fps
Optical Magnification40X–400X / 10X–400X / 10X–1000X
Biological Objectives4X, 10X, 40X / 4X, 10X, 40X / 4X, 10X, 40X, 100X
Stereoscopic Objectives1X or 2X
Nosepiece Holes3 / 4 / 5
Focusing SystemCoaxial Coarse & Fine Focus
Stage TypeDouble Layers Mechanical Stage
CondenserPlug-in Condenser
Light SourceLED (Bottom & Side)
Input Voltage19V DC
HDMI OutputYes
TF Card StorageYes, rear slot
Operational Key PanelYes, for photo/video capture
Measurement FeaturesCrosshair, Arrow Pointer, Scale Calibration

Use guide

  • Select model (T105/T108/T116) based on required resolution and magnification range
  • Use 1X objective for wide field of view; 2X for higher magnification with reduced field
  • Enable HDMI output to connect to projector or monitor for live demonstration
  • Insert TF card into rear slot to store images and videos without computer
  • Use operational key panel to capture photos or start video recording instantly

FAQ

What is the difference between T105, T108, and T116?
T105: 5M photo, 40X–400X magnification, 3-hole nosepiece; T108: 8M photo, 10X–400X, 4-hole; T116: 16M photo, 10X–1000X, 5-hole with 100X objective.
Can I record video without a computer?
Yes. The T100 series records video directly to a TF card via built-in module.
Does it support HDMI output?
Yes. The built-in HDMI interface allows real-time output to monitors or projectors.
How do I store images and videos?
Use a TF card inserted into the rear slot. The device supports plug-and-play access without software.
Is there a built-in battery?
No. The microscope uses 19V DC input. Optional high capacity lithium battery available as accessory.
