XP100 Student Chidren Biological Microscope for Shcool Hobbyists
XP100 Student Chidren Biological Microscope for Shcool Hobbyists
XP100 Student Chidren Biological Microscope for Shcool Hobbyists
XP100 Student Chidren Biological Microscope for Shcool Hobbyists

XP100 Student Chidren Biological Microscope for Shcool Hobbyists

XP100 is a student and children's biological microscope from the XP Series designed for school science education and hobbyist use. It features a monocular head with Huygens eyepieces, achromatic objectives (4X, 10X, 40X, 100X), a plain stage with paired clips, and adjustable illumination via concave-plan reflector or optional LED lamp. The model supports multiple eyepiece and objective configurations for basic microscopy training.

  • Monocular Huygens eyepieces for clear, low-cost viewing suitable for beginners
  • Four objective lenses (4X, 10X, 40X, 100X) for step-by-step magnification learning
  • Plain stage with 120mm x 120mm size and paired clips to secure slides during observation
  • Adjustable condenser with N.A. 1.25 Abbe type and iris diaphragm for improved contrast
  • Concave-plan reflector for ambient light use; optional LED lamp for consistent illumination
Request A Quote +86-15195807515

Technical features

  • Monocular viewing head with Huygens eyepieces (H5X, H10X, H12.5X, H15X, H16X options)

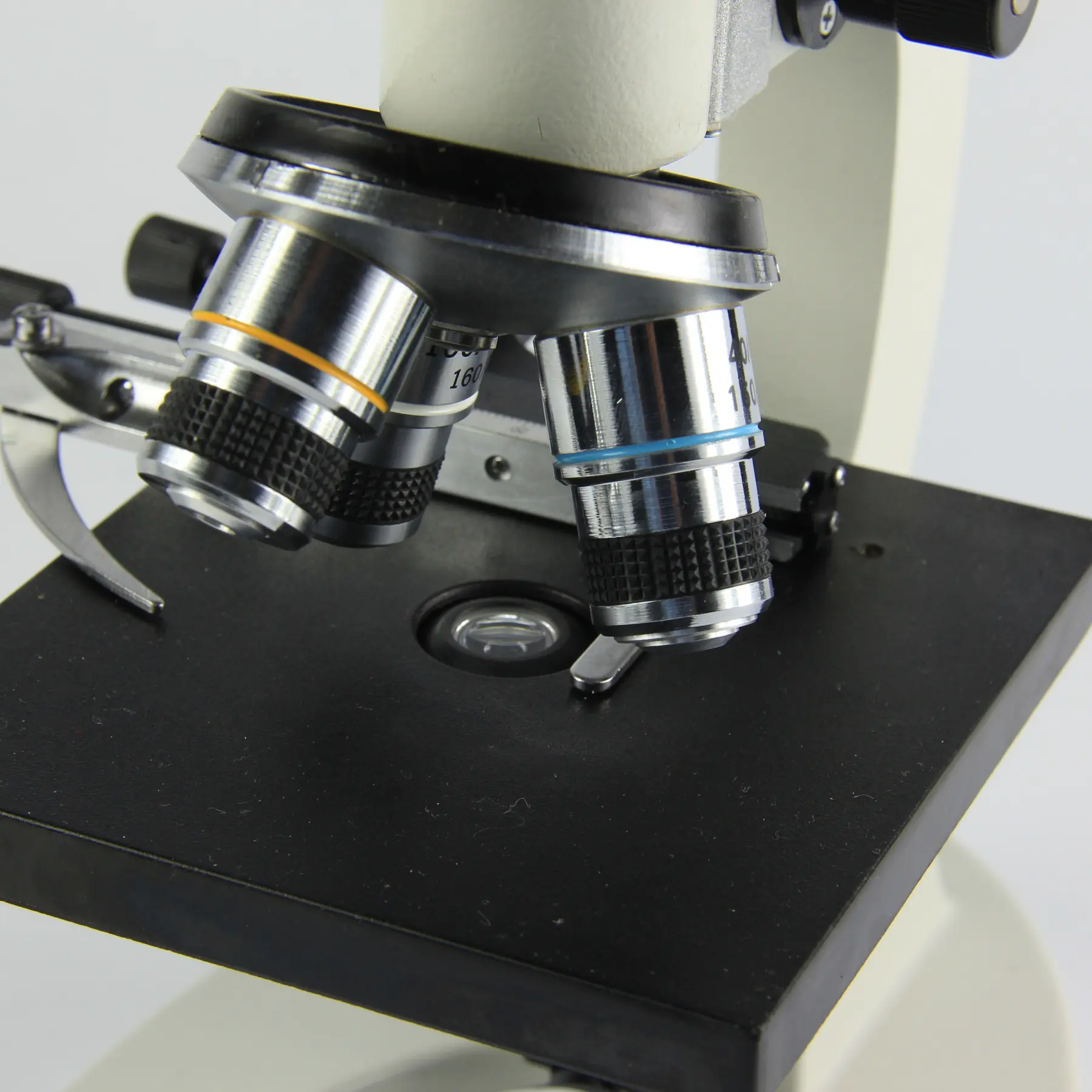

  • Achromatic objectives: 4X, 10X, 40X, 100X (oil immersion not specified)
  • Plain stage with paired clips; stage size 120mm x 120mm
  • Rotating disc diaphragm with five apertures: φ3.2, φ4, φ5, φ8, φ15
  • Abbe condenser with N.A. 1.25 and iris diaphragm with filter slot

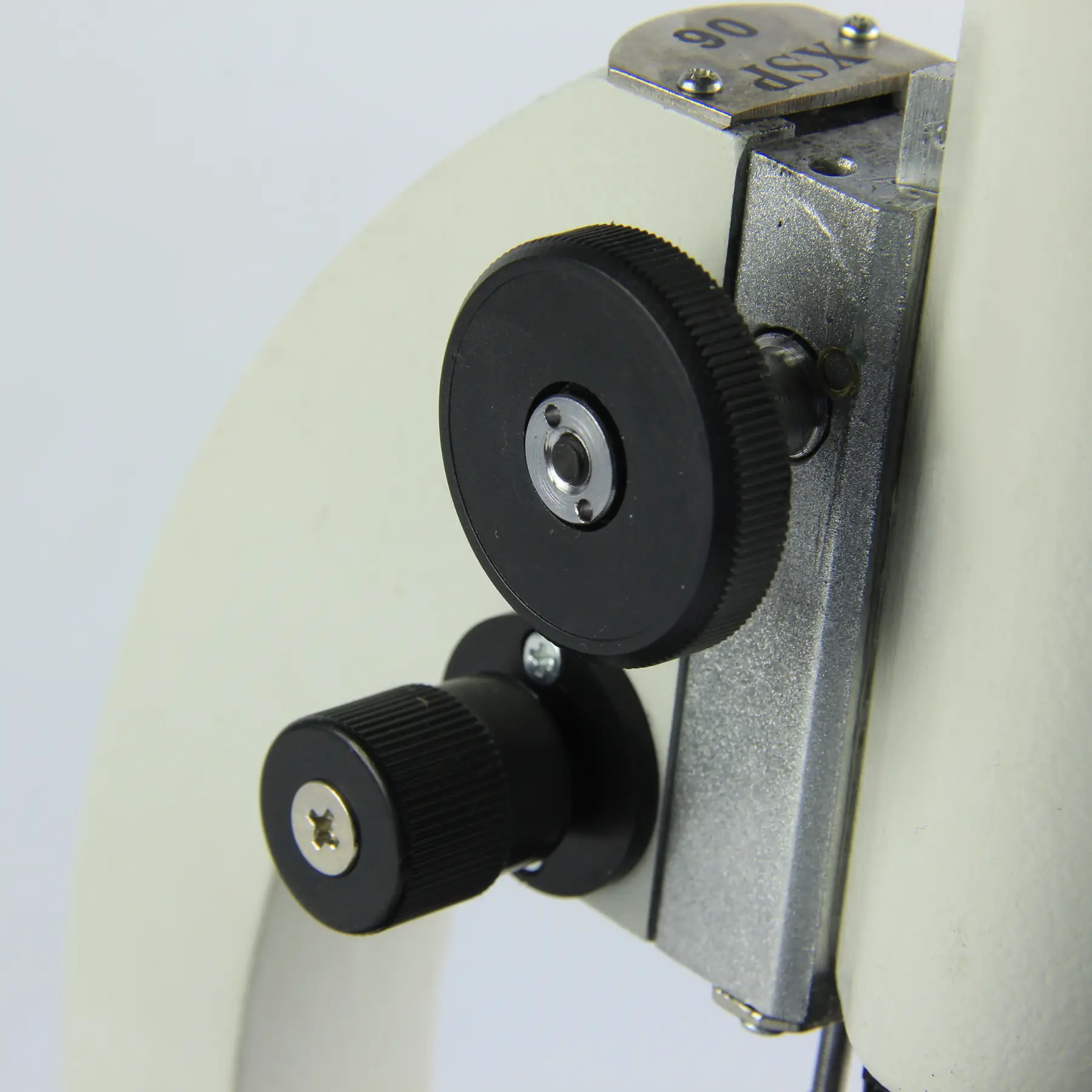

  • Coarse adjustment range: 50mm
  • Fine adjustment range: 1.8–2.2mm

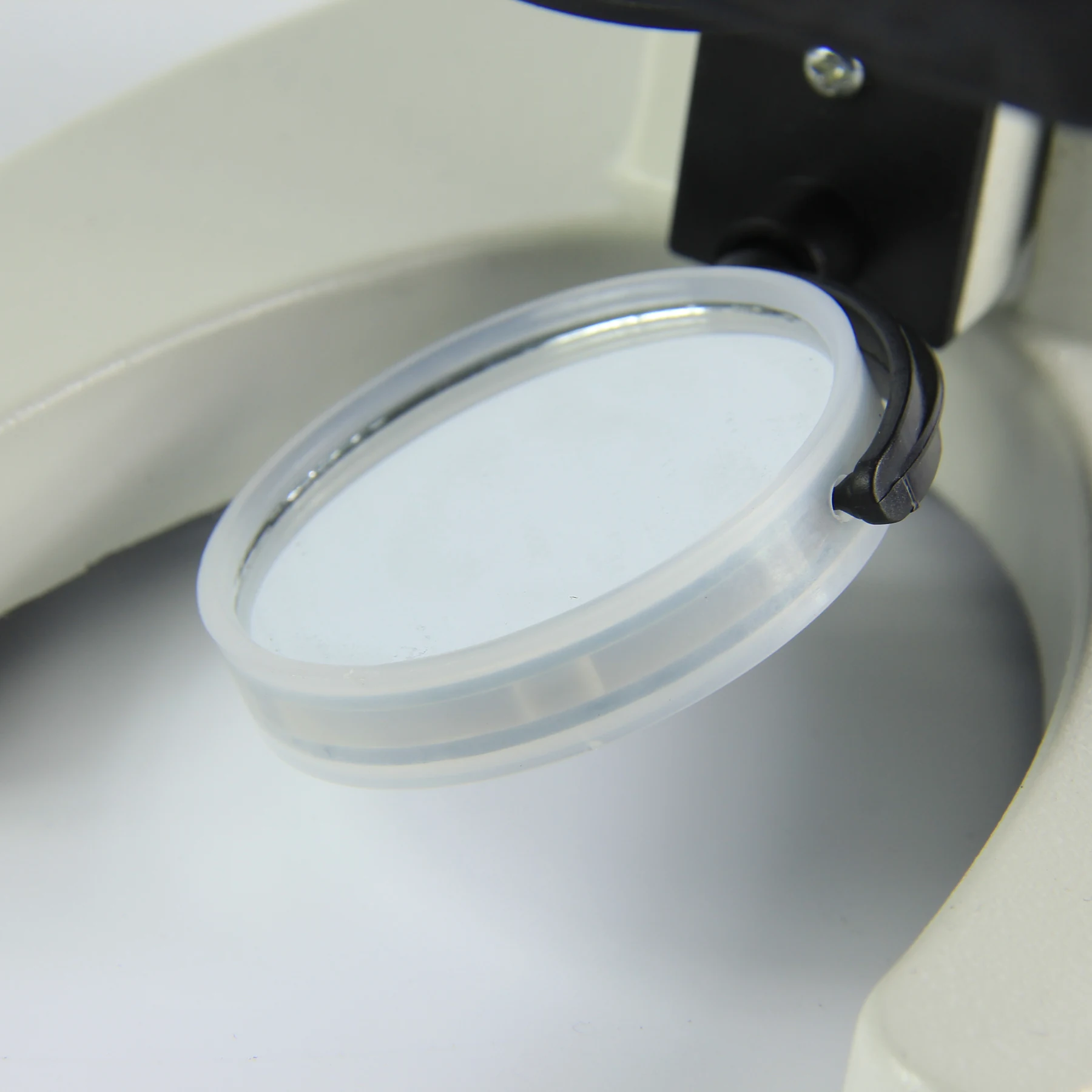

  • Illumination: concave-plan reflector (φ50mm) or optional LED lamp

Who it is for

  • School science teachers and lab coordinators
  • Parents supporting children’s science learning at home
  • Educational suppliers sourcing entry-level microscopes
  • Hobbyist collectors of basic optical instruments

Specifications

ModelXP100
Viewing HeadMonocular
EyepiecesH5X, H10X, H12.5X, H15X, H16X
Objectives4X, 10X, 40X, 100X
Stage TypePlain stage with paired clips
Stage Size120mm x 120mm
DiaphragmRotating disc with five apertures: φ3.2, φ4, φ5, φ8, φ15
CondenserAbbe condenser, N.A. 1.25
Coarse Adjustment50mm range
Fine Adjustment1.8–2.2mm range
IlluminationConcave-plan reflector (φ50mm), optional LED lamp

Use guide

  • Select eyepiece and objective combination based on required magnification and field of view
  • Use the concave-plan reflector for daylight or ambient light; install LED lamp for indoor use
  • Adjust the condenser and diaphragm to optimize contrast and resolution for each objective
  • Secure slides with stage clips before focusing to prevent movement

FAQ

What eyepieces are available for the XP100?
H5X, H10X, H12.5X, H15X, H16X are available options.
Can I use the LED lamp with this model?
Yes, the LED lamp is an optional feature; it is not included by default.
What is the stage size and type?
The stage is plain with paired clips; size is 120mm x 120mm.
Does it support oil immersion?
The 100X objective is listed but oil immersion capability is not specified in the facts.
What is the coarse adjustment range?
50mm, suitable for stable focusing across specimen thicknesses.
Is the condenser adjustable?
Yes, the Abbe condenser has N.A. 1.25 and includes an iris diaphragm and filter slot.
