SCMOS USB2.0 Digital Biological Microscope Eyepiece Camera
SCMOS USB2.0 Digital Biological Microscope Eyepiece Camera
SCMOS USB2.0 Digital Biological Microscope Eyepiece Camera
SCMOS USB2.0 Digital Biological Microscope Eyepiece Camera
SCMOS USB2.0 Digital Biological Microscope Eyepiece Camera
SCMOS USB2.0 Digital Biological Microscope Eyepiece Camera

SCMOS USB2.0 Digital Biological Microscope Eyepiece Camera

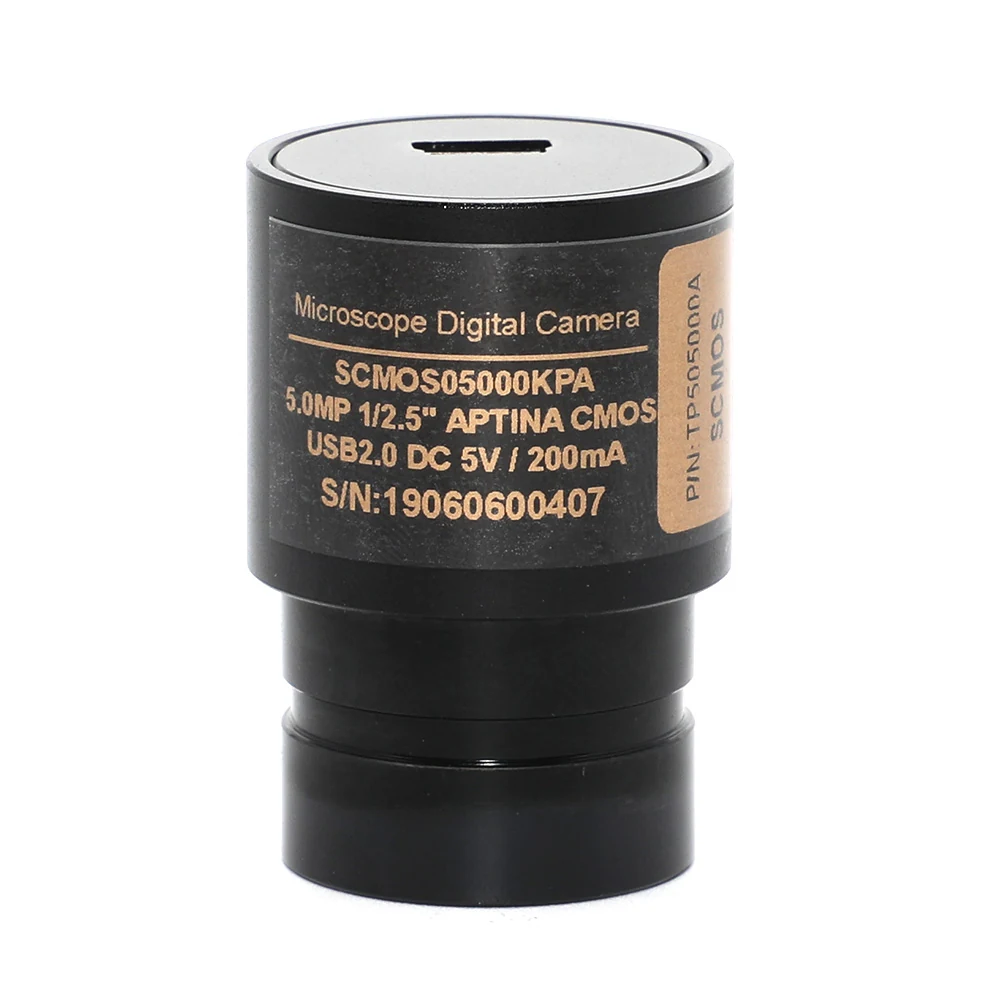

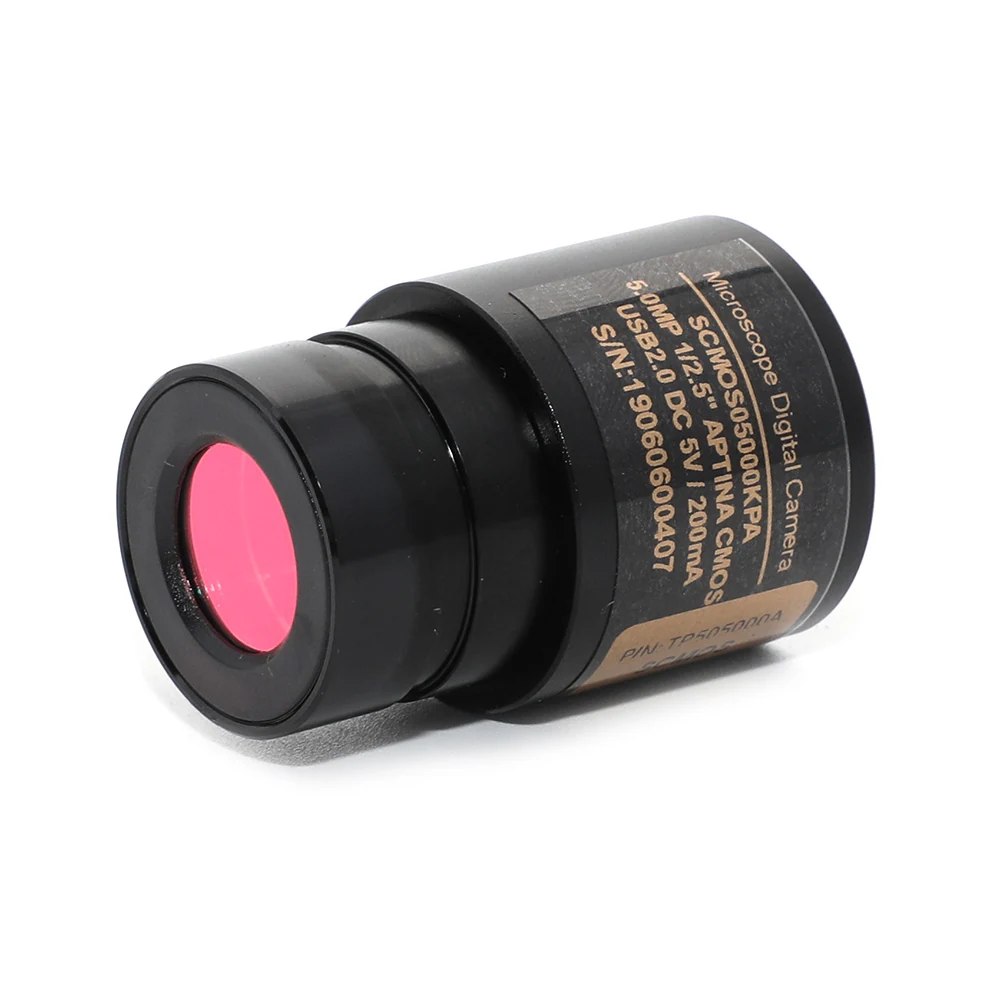

SCMOS USB2.0 Digital Biological Microscope Eyepiece Camera is a series of CMOS-based digital cameras designed for biological microscopes with USB2.0 interface. The series includes models with sensor resolutions from 1.3M to 12M, supporting various frame rates and resolutions. All models feature 1×1 binning, 0.1–2000 ms exposure time, and wide voltage compatibility. The cameras are compatible with standard eyepiece ports and support real-time imaging and recording.

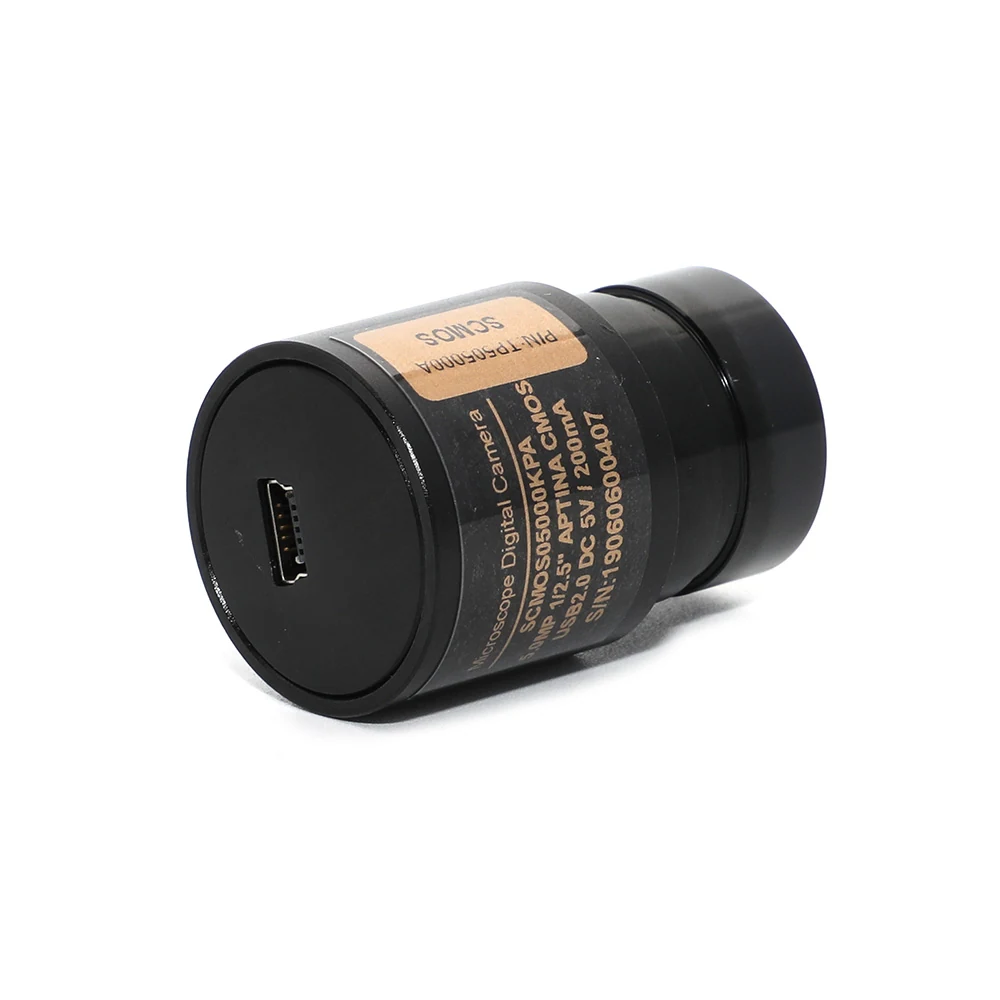

  • USB2.0 interface ensures plug-and-play compatibility with most computers and microscopes
  • Multiple sensor options (1.3M to 12M) allow buyers to match resolution to application needs
  • High dynamic range (up to 74dB) and low noise (SNRmax 43dB) for clear imaging in low light
  • Exposure time from 0.1ms to 2000ms enables capture of fast or slow processes
  • Supports multiple resolutions and frame rates (up to 38fps at 1920×1080) for flexible imaging
  • Built-in sensor with high responsivity (up to 4510mV/lux-s) improves sensitivity
Request A Quote +86-15195807515

Technical features

  • USB2.0 interface with plug-and-play functionality
  • Sensor types: IMX577(C), OV9732(C), IMX274(C), AR0521(C), IMX335(C), Aptina(C), IMX307(C), IMX415(C), SC2332(C), Special(C)
  • Sensor sizes: 1/2.3", 1/4", 1/2.5", 1/2.8", 1/3"
  • Pixel sizes: 1.55×1.55 μm to 3.41×3.41 μm
  • Dynamic range: 64dB to 74dB
  • SNRmax: 35dB to 43dB
  • Frame rates: 20–38fps depending on resolution
  • Exposure time: 0.1ms to 2000ms (0.1ms to 1000ms for some models)

Who it is for

  • Laboratories requiring digital imaging from biological microscopes
  • Educational institutions using microscopes for teaching with visual output
  • Procurement teams sourcing digital camera solutions for microscope upgrades
  • Distributors offering complete microscope imaging packages

Specifications

ModelsSCMOS12000KPA / SCMOS00921KPA / SCMOS08300KPA / SCMOS05100KPA / SCMOS05100KPB / SCMOS03100KPA / SCMOS02100KPA / SCMOS08300KPB / SCMOS02100KPB / SCMOS01301KPA / SCMOS05000KPA / SCMOS05000KPB / SCMOS03000KPA / SCMOS03000KPB / SCMOS02000KPA / SCMOS02000KPB / SCMOS01300KPA
Resolution1.3M to 12M
SensorIMX577(C) / OV9732(C) / IMX274(C) / AR0521(C) / IMX335(C) / Aptina(C) / IMX307(C) / IMX415(C) / SC2332(C) / Special(C)
Sensor Size1/2.3" / 1/4" / 1/2.5" / 1/2.8" / 1/3"
Pixel Size1.55×1.55 μm to 3.41×3.41 μm
Dynamic Range64dB to 74dB
SNRmax35dB to 43dB
Frame Rate20–38fps
Exposure Time0.1–2000ms
Binning1×1
InterfaceUSB2.0

Use guide

  • Select model based on required resolution, frame rate, and exposure needs

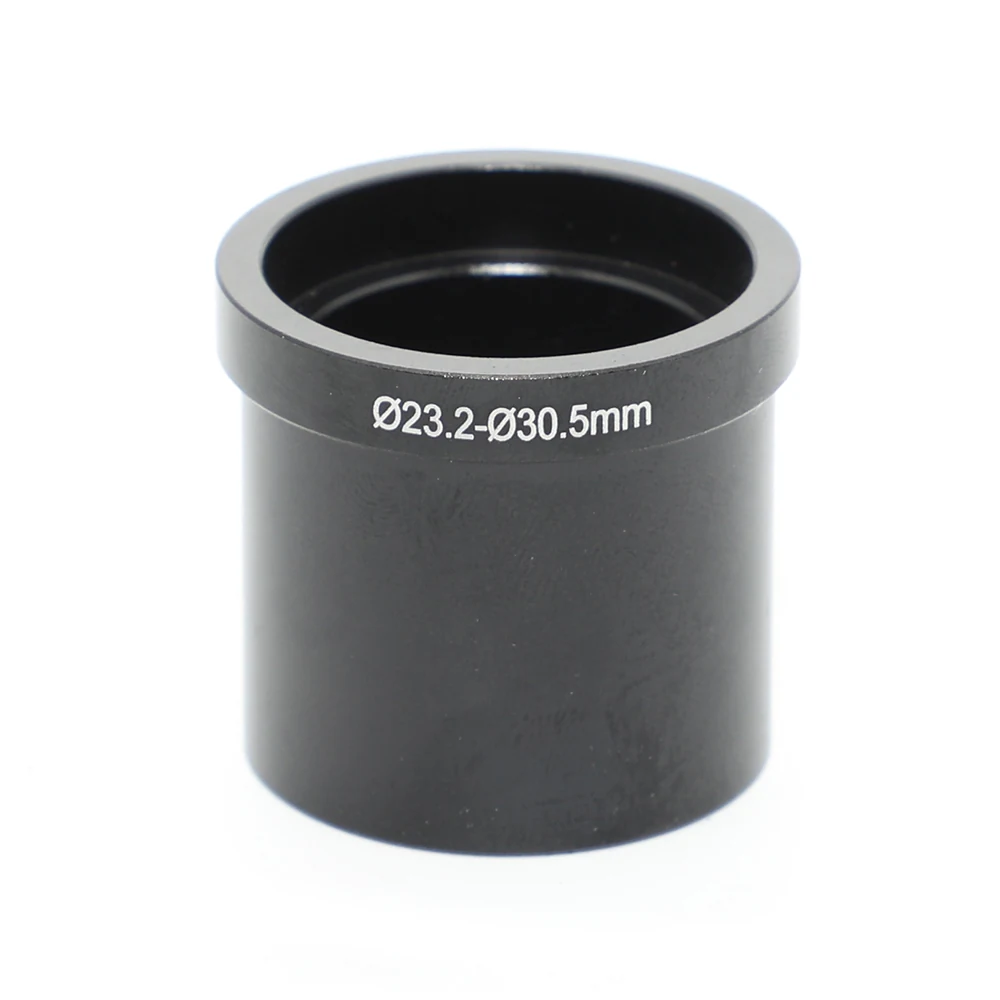

  • Ensure microscope eyepiece port is 23.2mm diameter for standard fit
  • Use USB2.0 port on computer; avoid USB hubs for stable connection
  • Adjust exposure time based on sample brightness and motion
  • Use 1×1 binning for maximum resolution; no other binning options available

FAQ

What is the interface type?
USB2.0, plug-and-play compatible with most computers.
What resolution options are available?
From 1.3M to 12M, depending on the model selected.
Can I use this with my biological microscope?

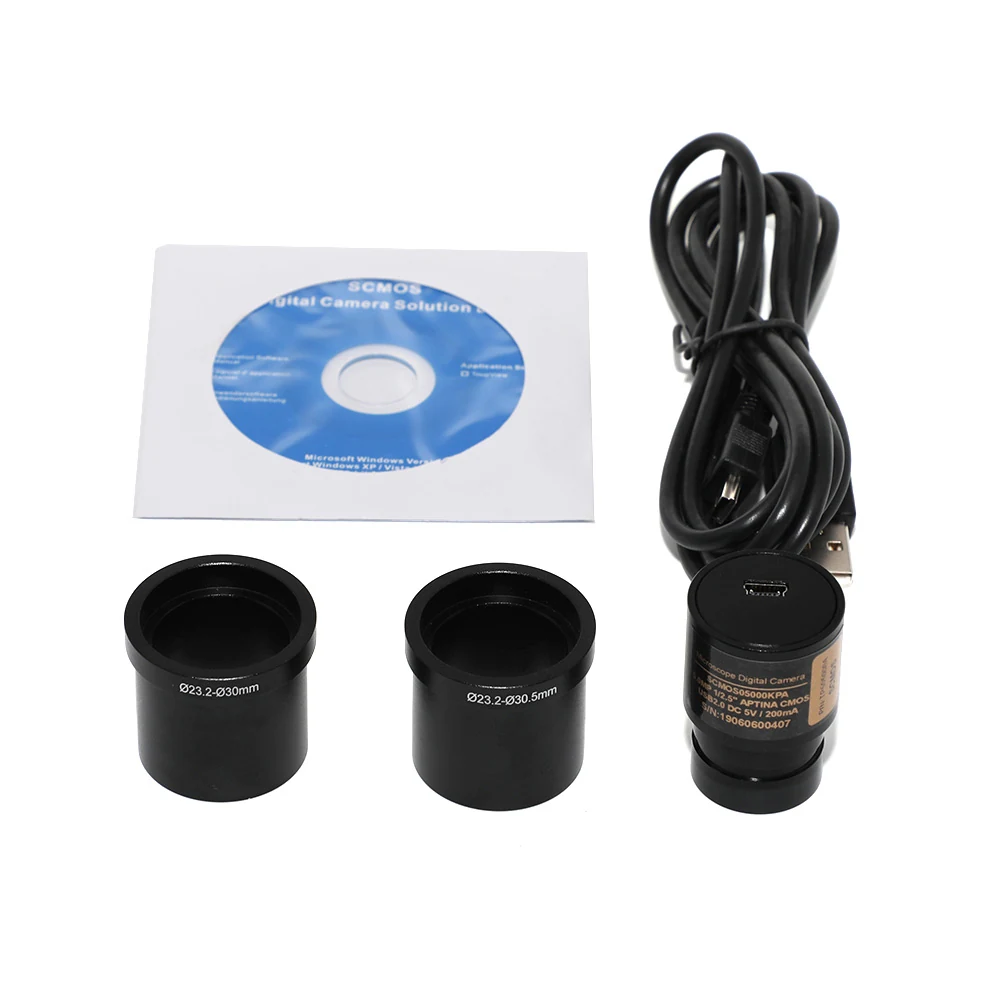

Yes, it fits standard 23.2mm eyepiece ports on biological microscopes.
What is the minimum exposure time?
0.1ms for most models; 0.1ms to 1000ms for some older models.
Do you offer drivers?
No drivers required; the camera is plug-and-play with standard USB2.0 support.
What is the pixel size range?
1.55×1.55 μm to 3.41×3.41 μm across the model range.
Which models are the newest?
SCMOS00921KPA, SCMOS08300KPB, SCMOS02100KPB, and SCMOS01301KPA (20220829) are post-Jan 2020 models.
