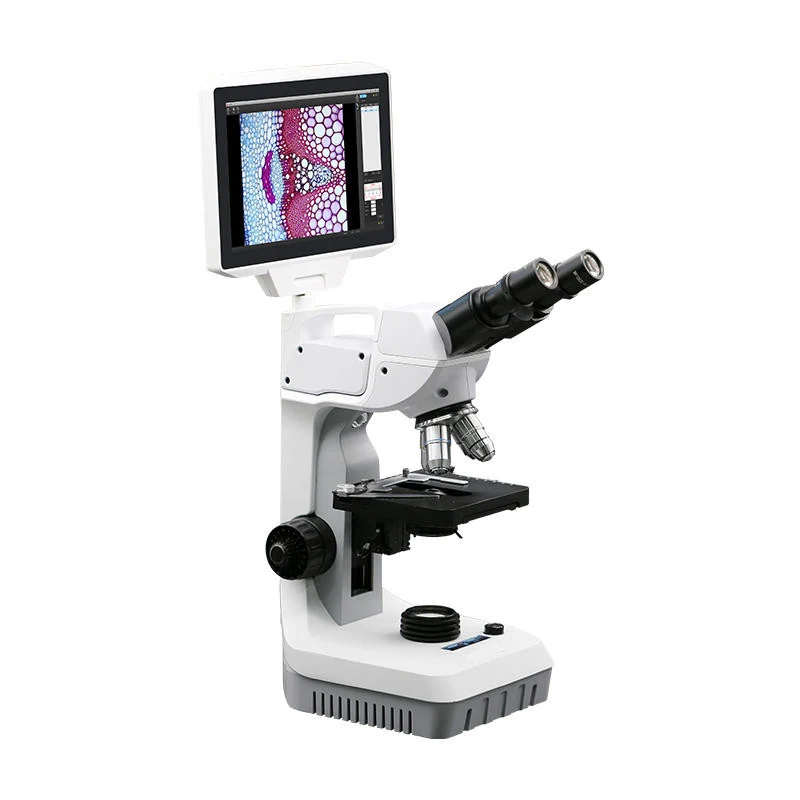

S400 10.1 inches 5M 14M HD Digital LCD Biological Stereo Microscope
S400 10.1 inches 5M 14M HD Digital LCD Biological Stereo Microscope

S400 10.1 inches 5M 14M HD Digital LCD Biological Stereo Microscope

S400 is a 10.1-inch HD digital LCD biological stereo microscope with built-in 5M/14M camera and 1080p video output. It supports biological and stereoscopic observation with infinity-corrected objectives, LED bottom and side illumination, and a 19V power input. The system includes a 64G or 128G SSD, 4G or 8G RAM, and Intel Core i3/i5 CPU for real-time image processing and measurement.

  • 10.1-inch HD LCD screen with 1920×1200 resolution for clear real-time observation
  • Built-in 5M/14M camera with 1080p/30fps video recording and photo playback
  • Infinity-corrected optical system with 4X, 10X, 40X, and optional 100X objectives
  • Integrated USB3.0, HDMI, VGA, Ethernet, and audio interfaces for external devices
  • Supports scale calibration and precise measurement via free professional software
Request A Quote +86-15195807515

Technical features

  • Model S405: 5M camera, 64G SSD, 4G RAM, Intel Core i3 CPU
  • Model S414: 14M camera, 128G SSD, 8G RAM, Intel Core i5 CPU
  • 10.1-inch HD LCD screen with 1920×1200 resolution
  • Video resolution 1080p/30fps, photo playback and recording support
  • USB3.0, HDMI, VGA, Ethernet, audio input/output, and projector output interfaces
  • Coaxial coarse and fine focus system with focusing handwheel
  • Double-layer mechanical stage with plug-in condenser
  • LED bottom and side illumination with 19V input voltage

Who it is for

  • Educational institutions requiring digital microscopy for biology labs
  • Clinical labs performing routine biological sample analysis
  • Research teams needing digital image capture and measurement tools
  • Exporters sourcing all-in-one digital microscopes for medical or educational markets

Specifications

ModelS405 / S414
LCD Screen Size10.1 inches
Screen Resolution1920×1200
Video Resolution1080p/30fps
Camera Resolution5M (S405) / 14M (S414)
Storage64G SSD (S405) / 128G SSD (S414)
RAM4G (S405) / 8G (S414)
CPUIntel Core i3 (S405) / Intel Core i5 (S414)
Objective Magnification4X, 10X, 40X (S405); 4X, 10X, 40X, 100X (S414)
Optical Magnification Range10X–400X (S405); 10X–1000X (S414)
EyepieceWF10×/18mm
IlluminationLED bottom and side light source
Input Voltage19V
Operating SystemWindows 7/10

Use guide

  • Select S405 for basic biological observation with cost efficiency
  • Choose S414 when 100X magnification and 14M resolution are required
  • Use the built-in software for scale calibration and measurement after connecting the microscope
  • Connect external devices via HDMI, VGA, or USB3.0 for live projection or data transfer

FAQ

What is the difference between S405 and S414?
S405 has 5M camera, 64G SSD, 4G RAM, Intel i3; S414 has 14M camera, 128G SSD, 8G RAM, Intel i5, and supports 100X objective.
Can I use this microscope without a computer?
Yes. The built-in LCD screen, storage, and processing allow standalone operation.
What software is included?
Free professional observation software with scale calibration and measurement tools for Windows 7/10.
What interfaces are available?
USB3.0, HDMI, VGA, Ethernet, audio input/output, and projector output ports.
Is the 100X objective included?
Only in S414 model. It is optional and requires a 5-hole converter.
