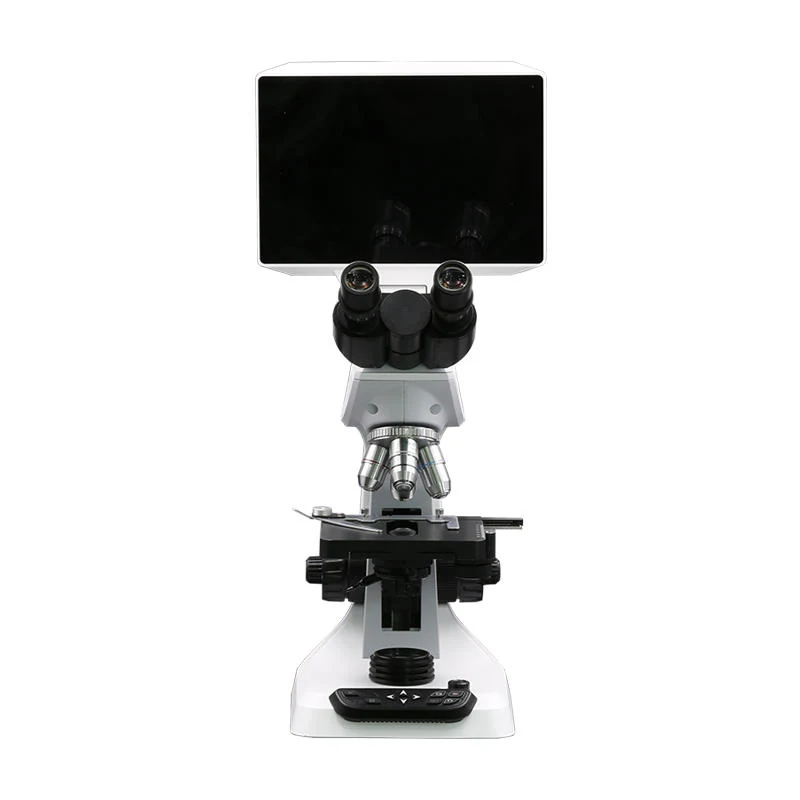

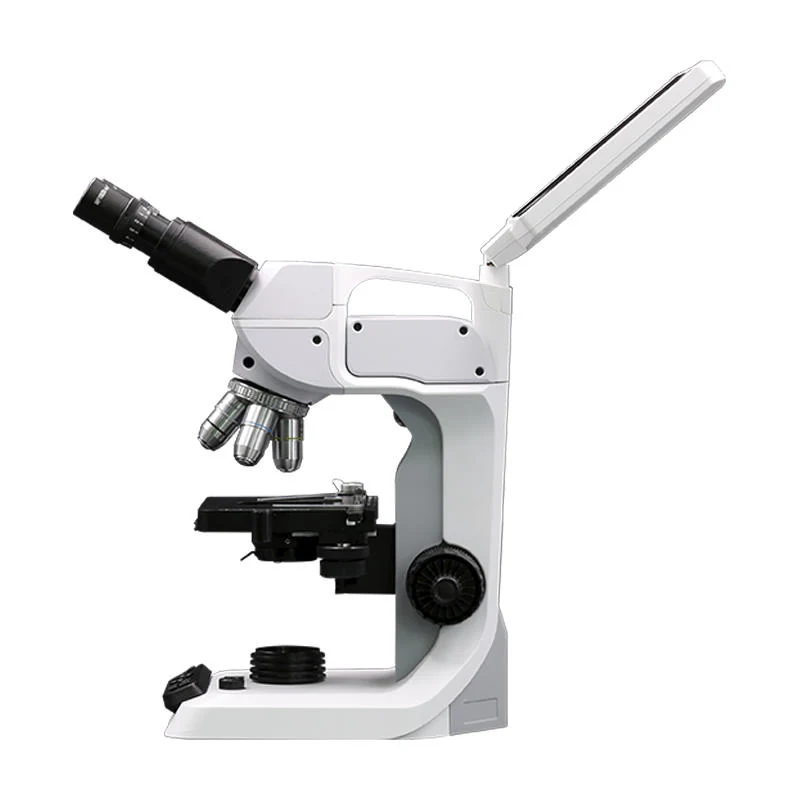

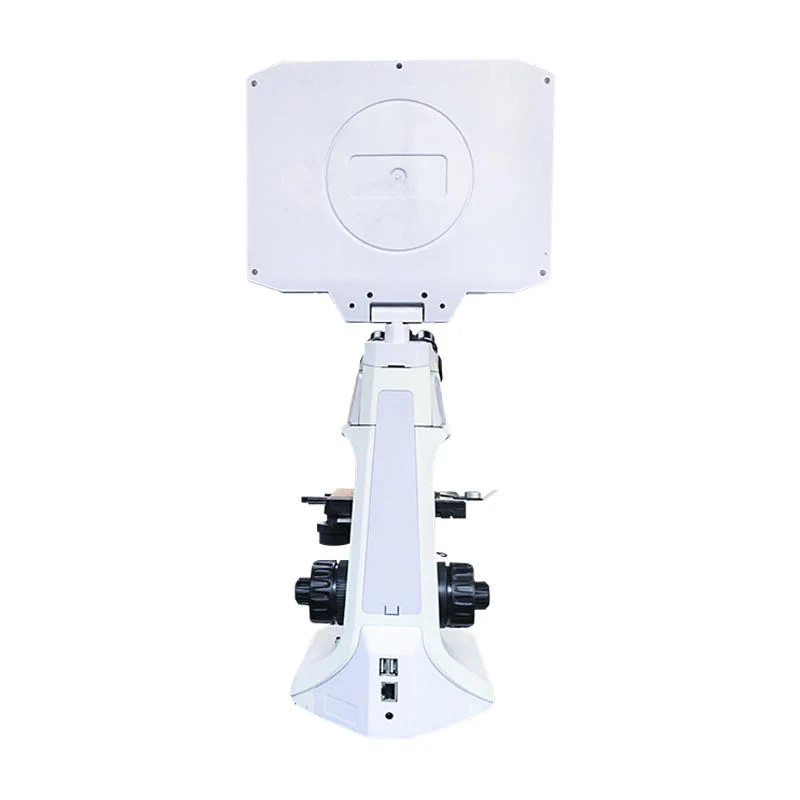

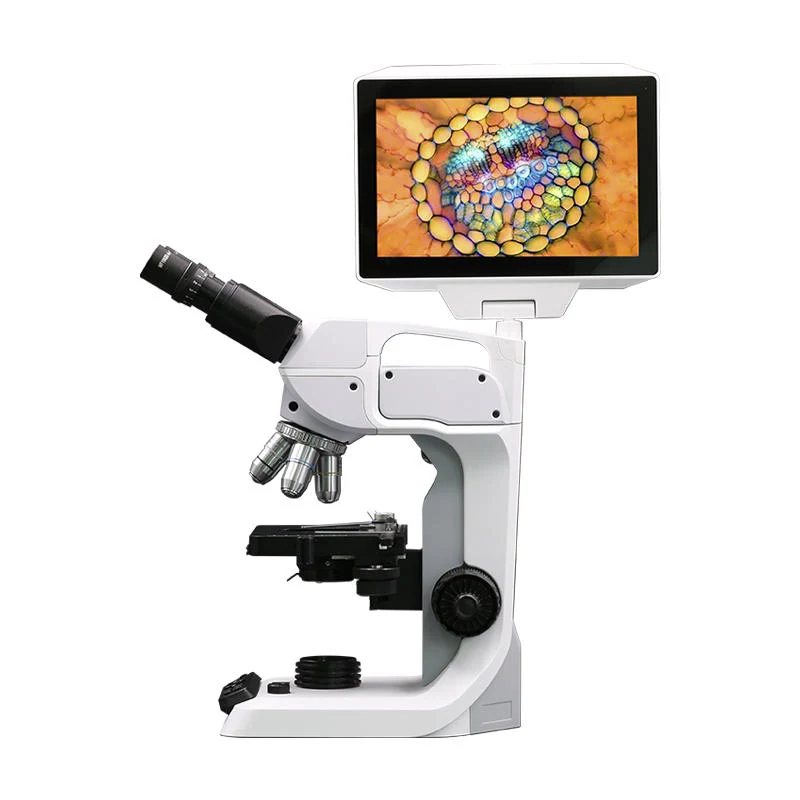

S300 1080P 5M 8M 16M HD Digital LCD Biological Stereo Microscope
S300 1080P 5M 8M 16M HD Digital LCD Biological Stereo Microscope
S300 1080P 5M 8M 16M HD Digital LCD Biological Stereo Microscope
S300 1080P 5M 8M 16M HD Digital LCD Biological Stereo Microscope
S300 1080P 5M 8M 16M HD Digital LCD Biological Stereo Microscope
S300 1080P 5M 8M 16M HD Digital LCD Biological Stereo Microscope

S300 1080P 5M 8M 16M HD Digital LCD Biological Stereo Microscope

The S300 series is a digital biological stereo microscope with an integrated 10.1-inch HD LCD screen, supporting 1080P video output and 5M/8M/16M photo resolution. It features a lateral reflection light source, coaxial coarse and fine focus, double-layer mechanical stage, and built-in 8G storage with USB and Ethernet/WiFi connectivity for data transfer and remote viewing.

  • Integrated 10.1-inch HD LCD screen allows multiple users to observe simultaneously
  • Built-in 8G storage and USB 1.0 interface for direct U disk data transfer
  • Supports 1080P/30fps HD video and 5M/8M/16M photo resolution with scale calibration
  • Lateral reflection light source enhances visibility of physical specimens

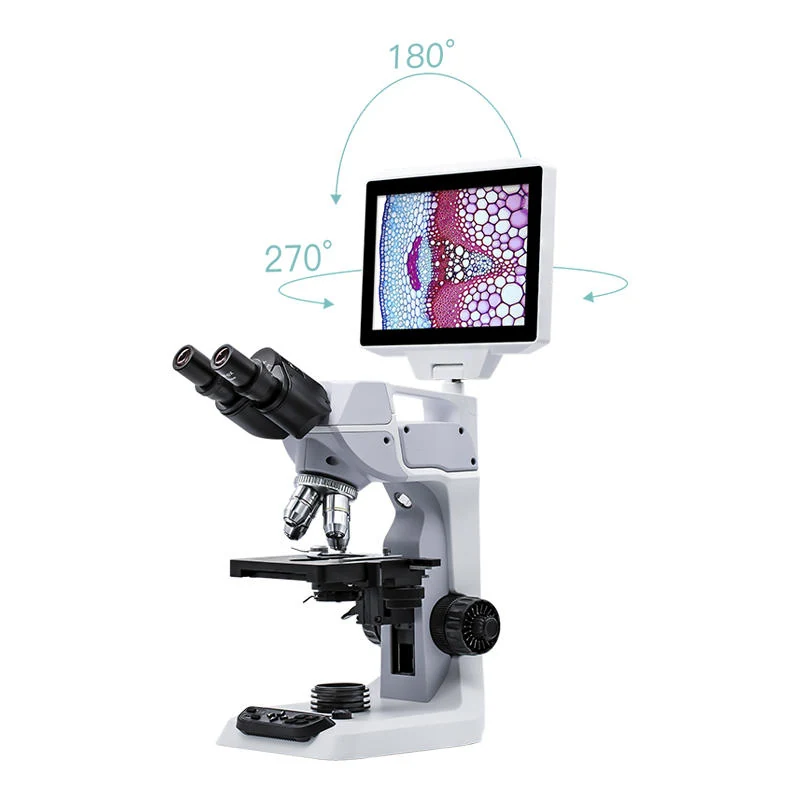

  • Adjustable screen rotates 270° and flips 180° for flexible positioning
  • Single knob controls power, brightness, light source type, and battery status
Request A Quote +86-15195807515

Technical features

  • 10.1-inch HD LCD screen with 1920×1200 resolution
  • Video output: 1080P/30fps with real-time playback capability
  • Photo resolution: 5M (S305), 8M (S308), 16M (S316)
  • Lateral reflection light source for enhanced specimen contrast
  • Coaxial coarse and fine focus system for smooth adjustment
  • Double-layer mechanical stage with 360° rotation and 100mm travel
  • Plug-in condenser for adjustable illumination
  • Built-in 8G storage with USB 1.0 interface for U disk data transfer

Who it is for

  • Educational institutions conducting biology or life science labs
  • Research labs requiring digital imaging and measurement of macro specimens
  • Medical or clinical labs performing routine biological sample checks
  • Exporters supplying digital microscopes to schools or testing facilities

Specifications

ModelS305 / S308 / S316
LCD Screen Size10.1 inches
Screen Resolution1920×1200
Video Resolution1080P/30fps
Photo Resolution5M / 8M / 16M
Light Source TypeLED, lateral reflection
Focusing SystemCoaxial coarse and fine focus
Stage TypeDouble-layer mechanical stage
CondenserPlug-in condenser
Nosepiece Holes3 / 4 / 5
Biological Objectives4X, 10X, 40X (S305/S308), 4X, 10X, 40X, 100X (S316)
Stereoscopic Objective1X
Optical Magnification40X–400X (S305), 10X–400X (S308), 10X–1000X (S316)
Input Voltage19V DC
Built-in Storage8G

Use guide

  • Select model based on required photo resolution and objective count
  • Use the lateral reflection light source for better contrast on opaque specimens
  • Insert U disk via USB 1.0 to store data directly from the built-in 8G memory
  • Connect to a computer via USB 2.0 for image analysis using the provided software
  • Adjust screen angle and orientation to suit observer position

FAQ

What is the photo resolution for each model?
S305: 5M, S308: 8M, S316: 16M
Can I save images directly to a USB drive?
Yes. Insert a U disk via the USB 1.0 port; data is stored on the U disk preferentially.
Does it support WiFi or Ethernet?
S308 and S316 support Ethernet and WiFi; S305 only has USB and Ethernet.
What is the screen size and resolution?
10.1-inch HD LCD with 1920×1200 resolution.
Can multiple people view the same image at once?
Yes. The 10.1-inch screen supports simultaneous viewing from multiple angles due to 270° rotation and 180° flip.
Is there built-in storage?
Yes. The microscope has 8G of internal storage for images and videos.
What is the input voltage?
19V DC
