S200 1080P 5M 8M 16M HD Digital LCD Biological Stereo Microscope
S200 1080P 5M 8M 16M HD Digital LCD Biological Stereo Microscope
S200 1080P 5M 8M 16M HD Digital LCD Biological Stereo Microscope

S200 1080P 5M 8M 16M HD Digital LCD Biological Stereo Microscope

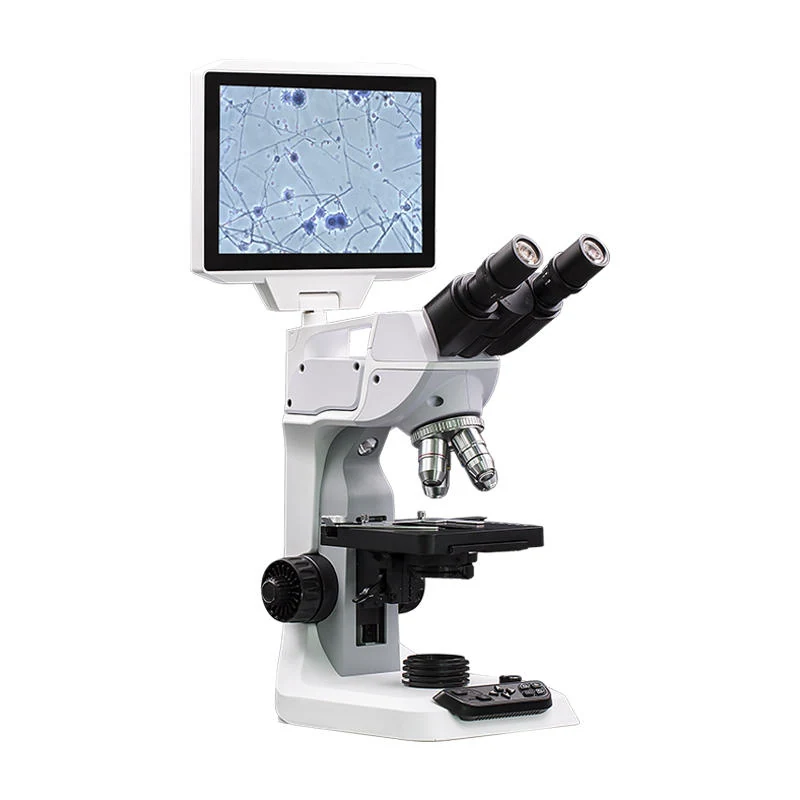

The S200 is a digital LCD biological stereo microscope from Nanjing AMADA Instrument designed for educational, clinical, and industrial inspection tasks. It integrates a 10.1-inch HD LCD screen, built-in 5M to 16M photo resolution, 1080P/30fps video output, and a coaxial coarse and fine focus system. The model supports lateral reflection light source for enhanced sample visibility, with optional TF card storage, HDMI output, and a portable handle for mobility.

  • Integrated 10.1-inch HD LCD screen with real-time image display for immediate observation without external monitors
  • Built-in HD image module with 5M, 8M, or 16M effective pixels and 1080P/30fps video recording for documentation
  • Supports scale calibration and measurement via free professional software for accurate sample analysis
  • Portable handle ensures stable lifting and transport, reducing risk of damage during movement
  • HDMI output enables direct connection to projectors or monitors for live teaching and demonstration
  • TF card slot allows offline image and video storage without relying on computer systems
Request A Quote +86-15195807515

Technical features

  • 10.1-inch HD LCD screen with resolution 1920×1200
  • Built-in image module with 5M (S205), 8M (S208), or 16M (S216) effective pixels
  • Video output at 1080P/30fps with HDMI interface for monitor or projector connection
  • TF card slot at the back for removable storage, avoiding touch interference
  • Coaxial coarse and fine focus system with mechanical double-layer stage
  • Plug-in condenser with bottom and side light source for lateral reflection illumination
  • Eyepiece: WF10x / 18mm; optical magnification range: 40X–400X (S205), 10X–400X (S208), 10X–1000X (S216)
  • Biological objectives: 4X/10X/40X (S205/S208), 4X/10X/40X/100X (S216)

Who it is for

  • Educational institutions requiring self-contained digital microscopes for biology labs
  • Clinical or field technicians needing portable imaging tools for on-site sample evaluation
  • Manufacturers requiring inspection tools with built-in measurement and documentation
  • Distributors sourcing digital microscopes with integrated display and storage

Specifications

ModelS205 / S208 / S216
LCD Screen Size10.1 inches
LCD Resolution1920×1200
Video Resolution1080P/30fps
Photo Resolution5M / 8M / 16M
Optical Magnification Range40X–400X / 10X–400X / 10X–1000X
Biological Objectives4X/10X/40X / 4X/10X/40X / 4X/10X/40X/100X
Stereoscopic Objective1X (S208/S216)
Nosepiece Holes3 / 4 / 5
EyepieceWF10x / 18mm
Focusing SystemCoaxial Coarse & Fine Focus
Stage TypeDouble Layers Mechanical Stage
CondenserPlug-in Condenser
Light SourceLED, Bottom & Side Light Source
Input Voltage19V
External InterfacesHDMI, TF Card Slot
Measurement FeatureCrosshair Positioning / Arrow Pointer

Use guide

  • Select model (S205/S208/S216) based on required magnification and image resolution
  • Use the Operational Key Panel to capture images and videos directly on the device
  • Insert TF card into the rear slot for offline storage; remove only when device is powered off
  • Connect HDMI to projector or monitor for live teaching or demonstration
  • Use the portable handle to lift and move the microscope safely

FAQ

What is the photo resolution for each model?
S205: 5M, S208: 8M, S216: 16M
Can I record video directly on the device?
Yes. The built-in module supports 1080P/30fps video recording with HDMI output and TF card storage.
Is there a built-in screen?
Yes. All models include a 10.1-inch HD LCD screen for real-time image display.
Can I use this without a computer?
Yes. The microscope operates independently with full imaging, recording, and measurement functions.
What is the purpose of the portable handle?
It ensures the microscope remains upright and secure during lifting and transport, reducing the risk of dropping.
