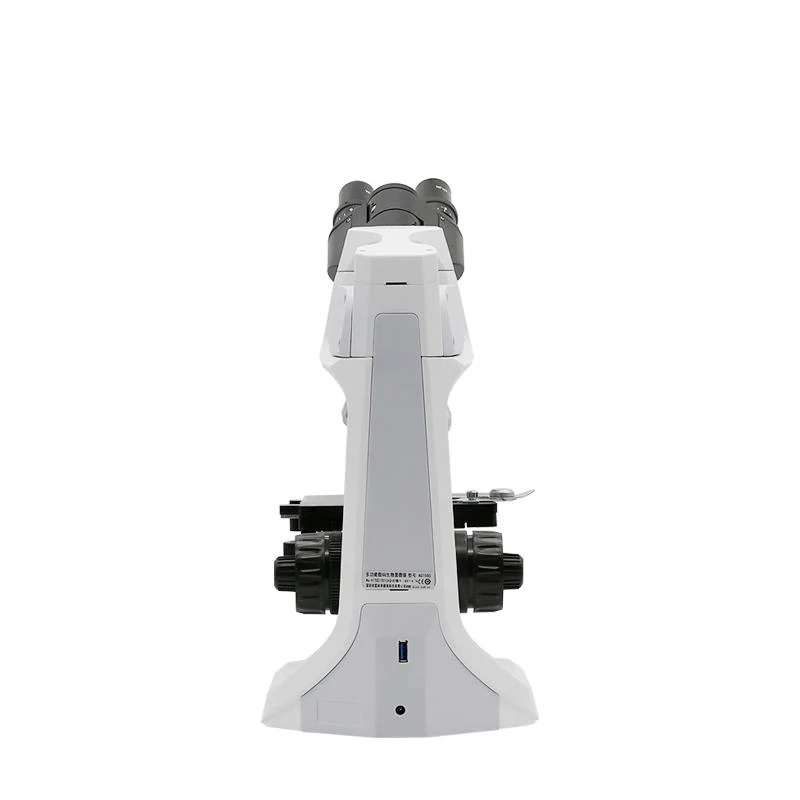

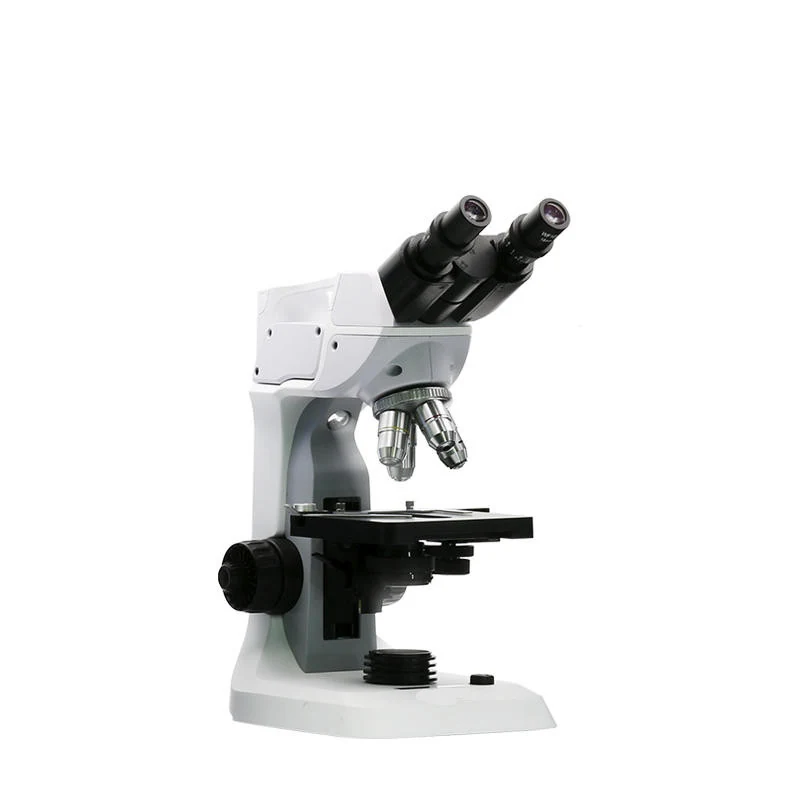

S100 1080P 5M 8M 14M HD Digital Biological Stereo Microscope
S100 1080P 5M 8M 14M HD Digital Biological Stereo Microscope
S100 1080P 5M 8M 14M HD Digital Biological Stereo Microscope

S100 1080P 5M 8M 14M HD Digital Biological Stereo Microscope

S100 is a digital biological stereo microscope from Nanjing AMADA Instrument for educational, clinical, and industrial inspection applications. The series features a lateral reflection light source, built-in HD image module with 5M to 14M resolution, USB connectivity, and software-based measurement. Models S105, S108, and S114 offer increasing optical and storage capabilities with coaxial coarse and fine focus, double-layer mechanical stage, and adjustable bottom and side illumination.

  • Lateral reflection light source enables clear observation of physical specimens and enhances teaching applications
  • Built-in HD image module supports 5M, 8M, or 14M photo resolution and 1080P/30fps video output
  • USB2.0/USB3.0 connectivity allows real-time image display, storage, and software-level processing on a computer
  • Free professional software enables scale calibration and precise measurement of observed samples
  • Adjustable bottom and side illumination with knob control for consistent lighting across sample types
Request A Quote +86-15195807515

Technical features

  • Model S105: Basic, 5M photo resolution, USB2.0, 3-hole nosepiece, 4X/10X/40X objectives
  • Model S108: Average, 8M photo resolution, USB3.0, 4-hole nosepiece, 4X/10X/40X objectives
  • Model S114: Professional, 14M photo resolution, USB3.0, 5-hole nosepiece, 4X/10X/40X/100X objectives
  • Coaxial coarse and fine focus system for smooth adjustment
  • Double-layer mechanical stage with left-right and forward-backward movement for precise sample positioning
  • Plug-in condenser for improved illumination control
  • LED lighting with bottom and side light source options, adjustable via knob
  • Optical magnification range: 40X–400X (S105), 10X–400X (S108), 10X–1000X (S114)

Who it is for

  • Educational institutions and science teachers requiring digital documentation tools
  • Clinical labs needing low-cost digital microscopy with measurement capability
  • Manufacturers and inspectors using digital microscopes for quality control and reporting
  • Distributors sourcing digital microscopes with scalable resolution and storage options

Specifications

ModelsS105 / S108 / S114
Photo Resolution5M / 8M / 14M
Video Resolution1080P/30fps
Data OutputUSB2.0 / USB3.0
EyepieceWF10× / 18mm
Biological Objectives4X/10X/40X / 4X/10X/40X / 4X/10X/40X/100X
Stereoscopic Objective1X
Optical Magnification40X–400X / 10X–400X / 10X–1000X
Focusing SystemCoaxial Coarse & Fine Focus
StageDouble Layers Mechanical Stage
CondenserPlug-in Condenser
IlluminationBottom & Side Light Source, LED, Adjustable Knob
Input Voltage19V
Nosepiece3-Hole / 4-Hole / 5-Hole

Use guide

  • Choose model based on required resolution and data output speed (USB2.0 vs USB3.0)
  • Select 100X objective only if high magnification for fine biological or material structures is needed
  • Use the double-layer mechanical stage to position samples precisely during observation
  • Adjust bottom and side illumination knobs to optimize contrast for transparent or opaque specimens

FAQ

What is the maximum optical magnification?
S105: 400X, S108: 400X, S114: 1000X
Can I connect this to a computer?
Yes, via USB cable. The microscope supports real-time image display and software-based processing.
What resolution does the camera support?
S105: 5M, S108: 8M, S114: 14M photo resolution; all support 1080P/30fps video.
Is the software included?
Yes, free professional observation software is included for scale calibration and measurement.
What is the input voltage?
19V, supplied via the included 19V adapter.
