0.35X 0.5X 0.65X 0.8X 1X 1.2X Adapter Compatiable for P95 Zeiss Microscope
0.35X 0.5X 0.65X 0.8X 1X 1.2X Adapter Compatiable for P95 Zeiss Microscope
0.35X 0.5X 0.65X 0.8X 1X 1.2X Adapter Compatiable for P95 Zeiss Microscope
0.35X 0.5X 0.65X 0.8X 1X 1.2X Adapter Compatiable for P95 Zeiss Microscope
0.35X 0.5X 0.65X 0.8X 1X 1.2X Adapter Compatiable for P95 Zeiss Microscope
0.35X 0.5X 0.65X 0.8X 1X 1.2X Adapter Compatiable for P95 Zeiss Microscope

0.35X 0.5X 0.65X 0.8X 1X 1.2X Adapter Compatiable for P95 Zeiss Microscope

The 0.35X to 1.2X adapter series is designed for Zeiss Primo Star and Primo Vert microscopes, enabling camera integration with multiple magnification options and sensor size compatibility. Adapters are available in 0.35X, 0.5X, 0.65X, 0.8X, 1X, 1.2X, and 1.5X variants, supporting C-Mount, T2-Mount, and M52 mounts with sensor sizes from 1/5” to 2.7”.

  • Direct compatibility with Zeiss Primo Star and Primo Vert series microscopes
  • Multiple magnification options (0.35X to 1.5X) for flexible image scaling
  • Support for various sensor sizes including 1/5”, 1/4”, 1/3”, 1/2”, 1/1.8”, 2/3”, 1”, 4/3”, 1.8”, and 2.7”
  • Available in C-Mount, T2-Mount, and M52 mount types for integration with different camera systems
  • Clear optical path with minimal distortion for consistent imaging in clinical and research applications
Request A Quote +86-15195807515

Technical features

  • Magnification options: 0.35X, 0.5X, 0.65X, 0.8X, 1X, 1.2X, 1.5X
  • Mount types: C-Mount, T2-Mount, M52
  • Sensor size compatibility: 1/5”, 1/4”, 1/3”, 1/2”, 1/1.8”, 2/3”, 1”, 4/3”, 1.8”, 2.7”
  • Designed specifically for Zeiss Primo Star and Primo Vert series microscopes
  • Optical design ensures minimal distortion and consistent image quality across magnifications
  • Supports both 1X and 1.5X versions of the P95 series adapters with corresponding sensor size tables

Who it is for

  • Procurement engineers sourcing camera adapters for Zeiss microscope systems
  • Laboratories upgrading to digital imaging with existing Zeiss Primo Star/Vert microscopes
  • Distributors offering complete imaging solutions for biomedical and industrial inspection
  • Manufacturers integrating microscopes into automated inspection lines requiring standardized adapters

Specifications

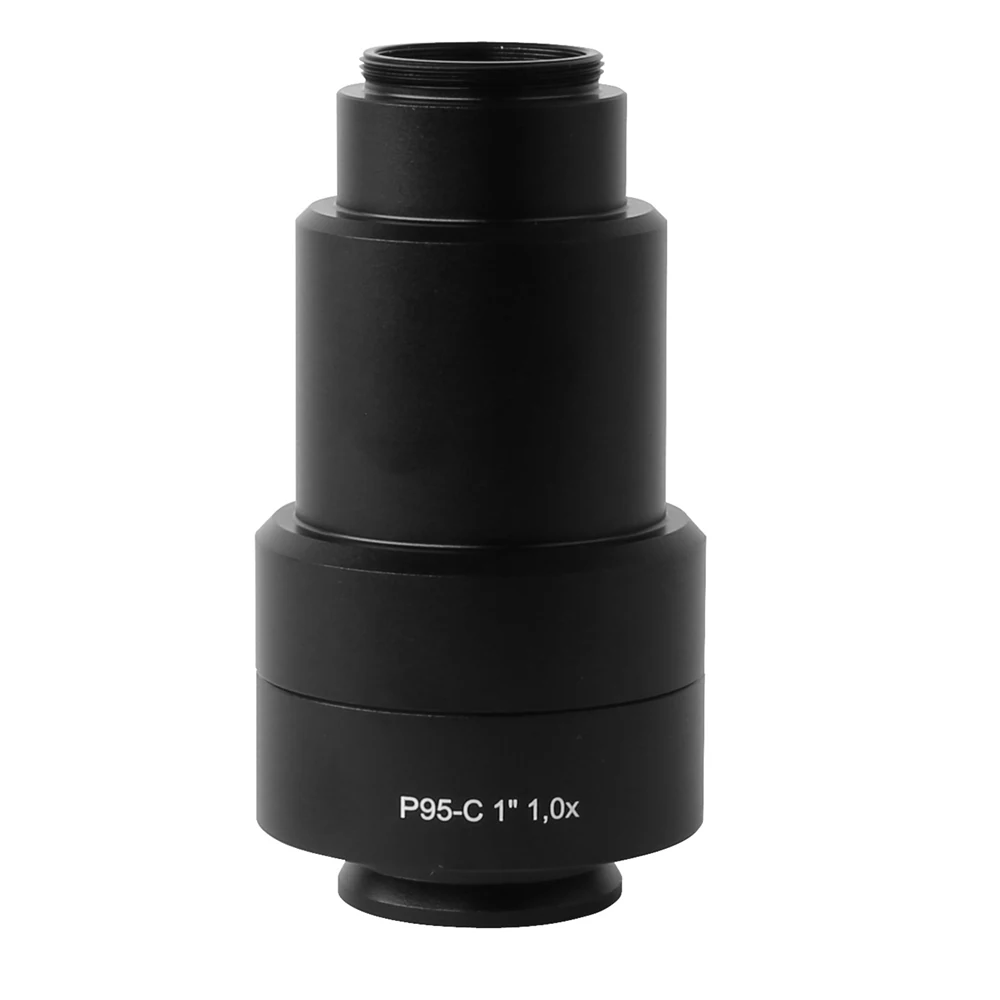

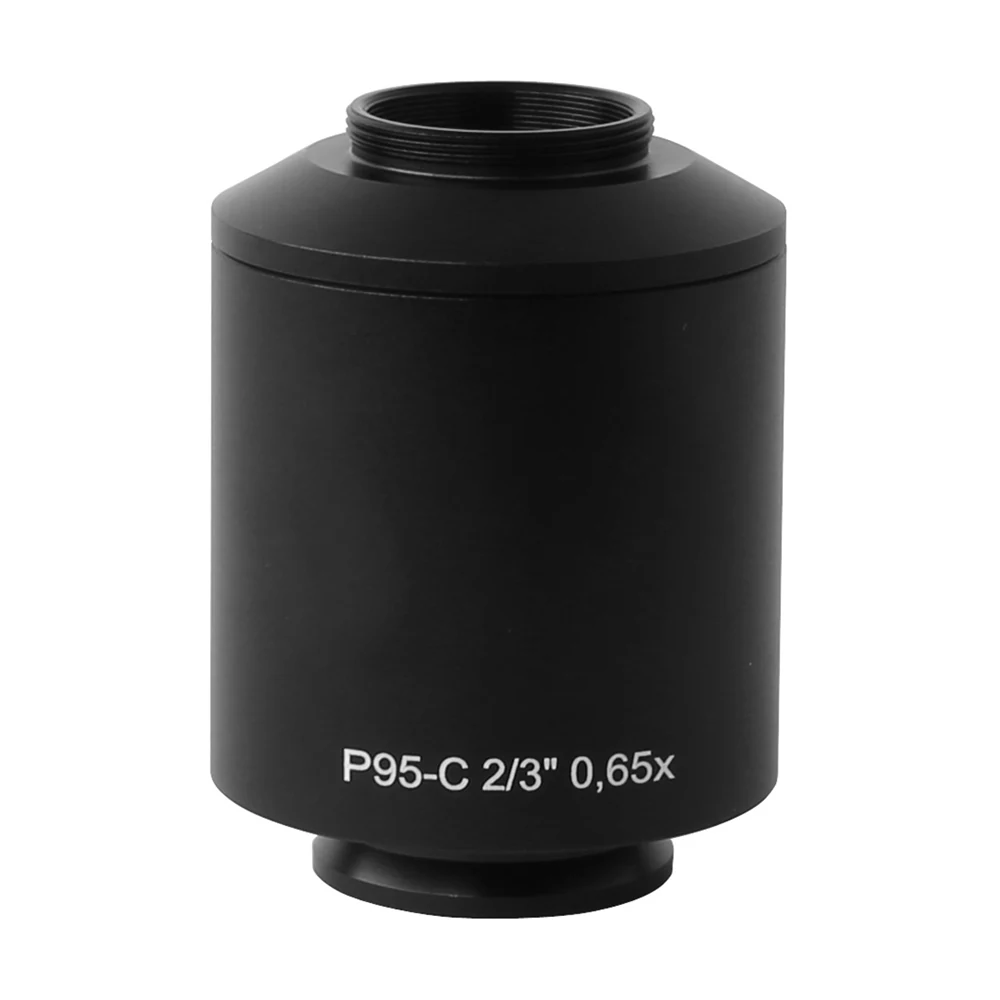

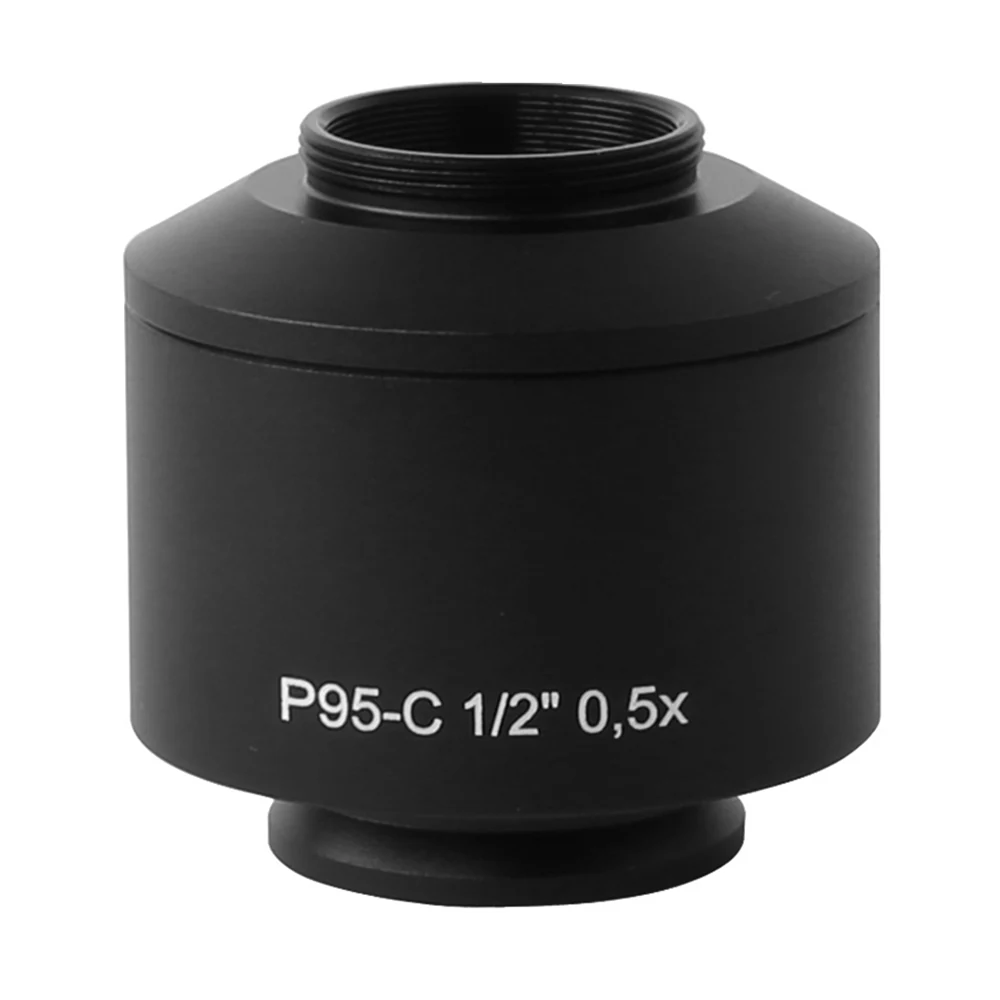

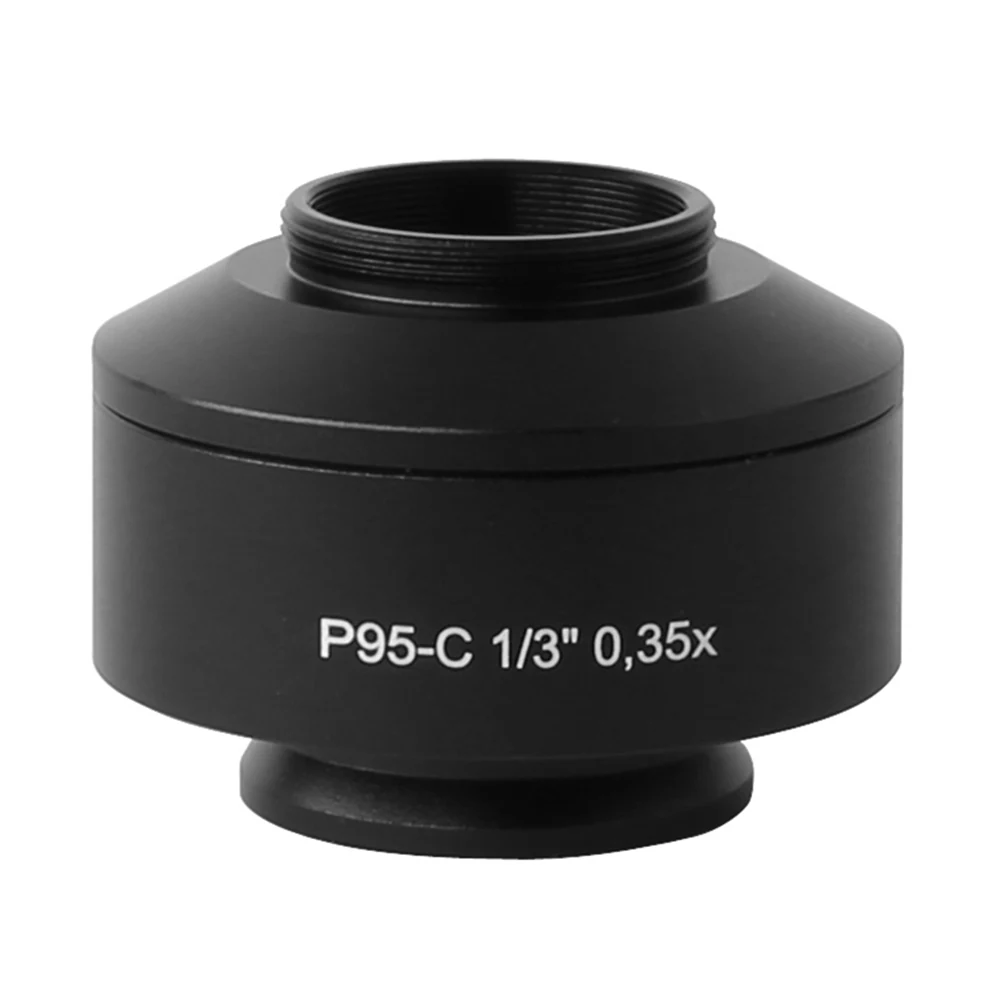

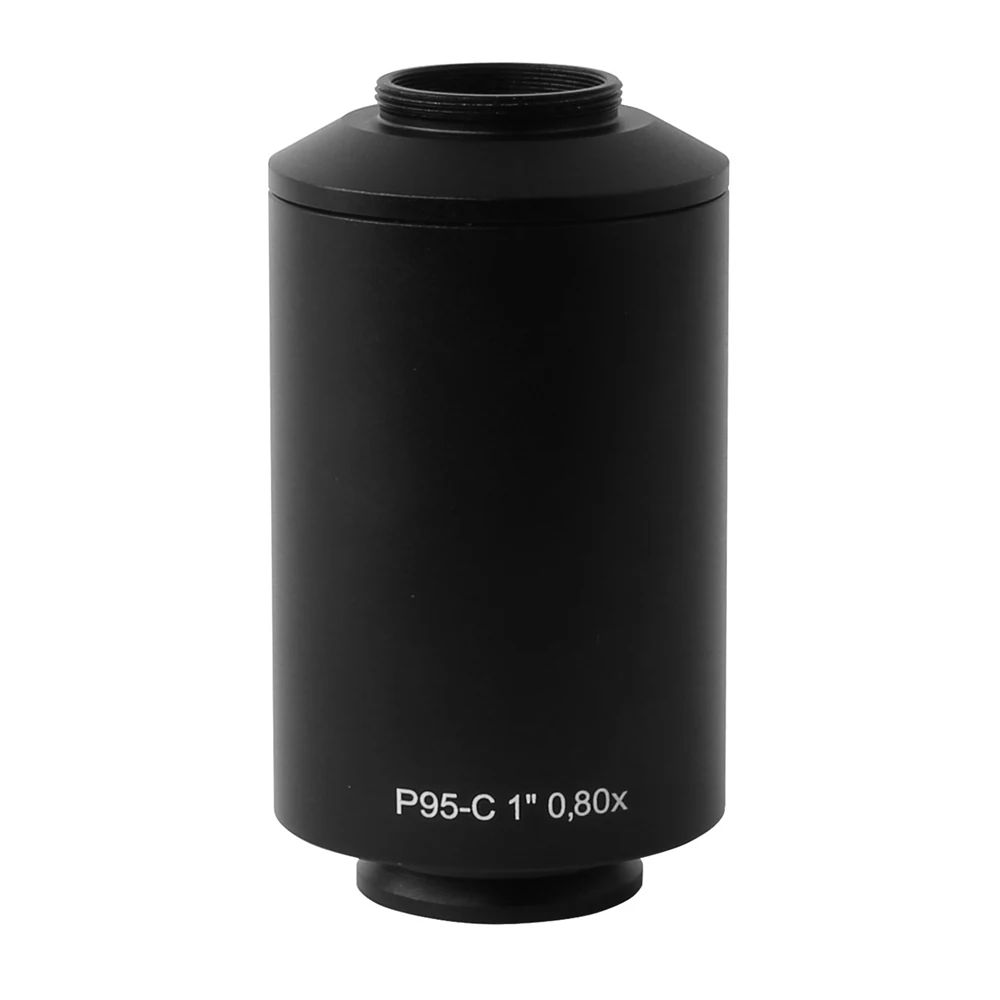

ModelsP95-C 1/3” 0.35X, P95-C 1/2” 0.5X, P95-C 2/3” 0.65X, P95-C 1” 0.8X, P95-C 1” 1X, P95-T2 1.2X, P95-T2-1.8” 1.5X, P95-M52-2.7” 2.25X
Magnification0.35X, 0.5X, 0.65X, 0.8X, 1X, 1.2X, 1.5X
Mount TypeC-Mount, T2-Mount, M52
Sensor Size1/5”, 1/4”, 1/3”, 1/2”, 1/1.8”, 2/3”, 1”, 4/3”, 1.8”, 2.7”
Compatible MicroscopesZeiss Primo Star series, Zeiss Primo Vert series
Optical DesignStandard adapter with minimal distortion for imaging

Use guide

  • Identify the microscope model (Primo Star or Primo Vert) and confirm compatibility
  • Determine the camera sensor size and select the adapter with matching supported sizes
  • Choose the desired magnification (0.35X to 1.5X) based on required field of view and image scale
  • Match the adapter mount type (C-Mount, T2-Mount, M52) to the camera’s interface
  • Verify that the selected adapter supports both the sensor size and magnification needed

FAQ

Which microscopes are compatible with these adapters?
Designed specifically for Zeiss Primo Star and Primo Vert series microscopes.
What sensor sizes do these adapters support?
1/5”, 1/4”, 1/3”, 1/2”, 1/1.8”, 2/3”, 1”, 4/3”, 1.8”, 2.7” — check model-specific tables for exact match.
Can I use a 1.5X adapter with a 1/2” sensor?
Yes, the 1.5X adapter supports 1.8” and 1” sensors; confirm exact compatibility via the sensor size table.
What mount types are available?
C-Mount, T2-Mount, and M52 — each model specifies the correct mount type.
Do these adapters affect image quality?
Designed for minimal distortion and consistent optical performance across magnifications.
