Home / Products / XP Series / XP200 Chidren Biological Microscope for
XP200 Chidren Biological Microscope for Students Labs Shcools Hospitals
XP200 Chidren Biological Microscope for Students Labs Shcools Hospitals
XP200 Chidren Biological Microscope for Students Labs Shcools Hospitals
XP200 Chidren Biological Microscope for Students Labs Shcools Hospitals
XP200 Chidren Biological Microscope for Students Labs Shcools Hospitals
XP200 Chidren Biological Microscope for Students Labs Shcools Hospitals

XP200 Chidren Biological Microscope for Students Labs Shcools Hospitals

XP200 is a student-grade biological microscope from the XP Series by Nanjing AMADA Instrument Co., Ltd., designed for classroom labs, school science programs, and basic clinical use. It features an achromatic objective set, wide field eyepieces, and a monocular or binocular head with adjustable interpupillary distance. The model supports halogen or LED illumination and includes a double-layer mechanical stage with 125 mm x 115 mm size and coaxial coarse and fine focusing with 0.002 mm interval.

  • Achromatic objectives (4X, 10X, 40X, 100X oil) for clear, distortion-free imaging in educational settings
  • Wide field eyepieces (WF10X standard, WF16X optional) for larger field of view and reduced eye strain
  • Adjustable monocular or binocular head with 45° inclination for ergonomic viewing
  • Coaxial coarse and fine focus with 0.002 mm interval for precise sample alignment
  • Double-layer mechanical stage (125 mm x 115 mm) for stable specimen positioning
  • Halogen lamp (6V/20W) standard; LED option available for lower power consumption
Request A Quote +86-15195807515

Technical features

  • Achromatic objectives: 4X, 10X, 40X (spring), 100X (oil immersion)
  • Eyepiece options: WF10X (standard), WF16X (optional)

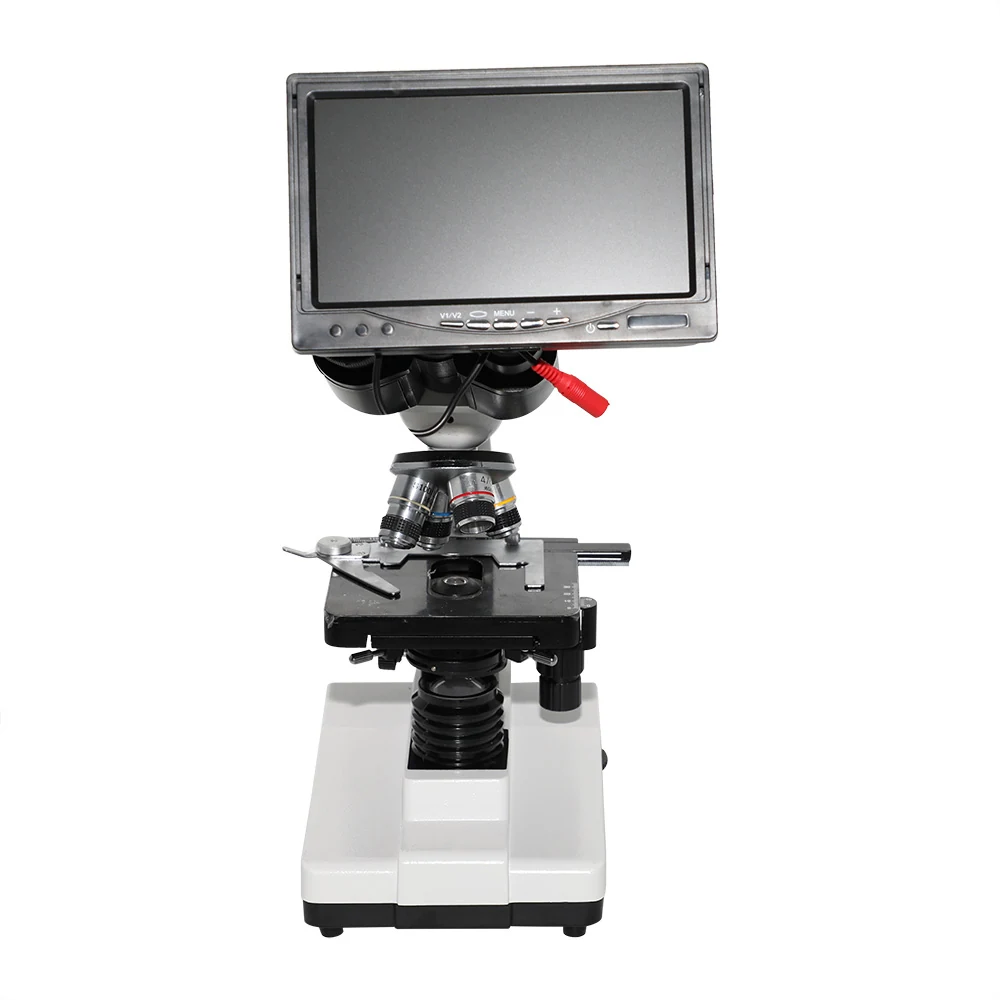

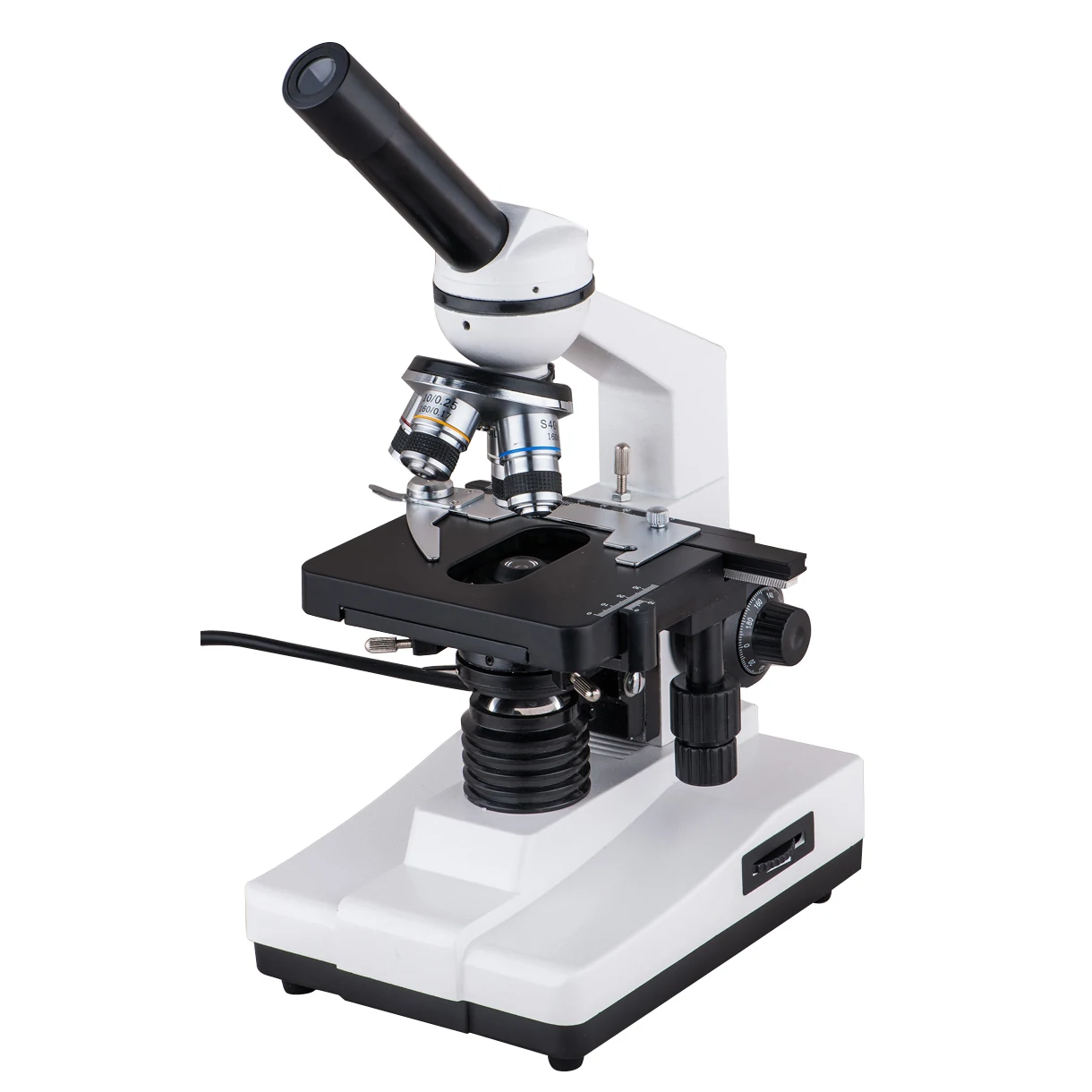

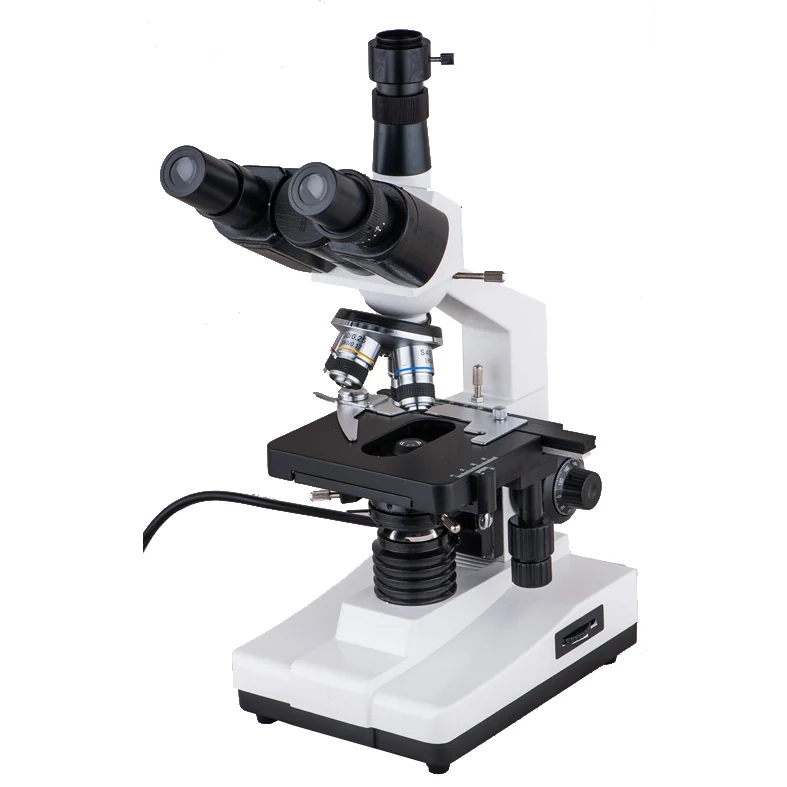

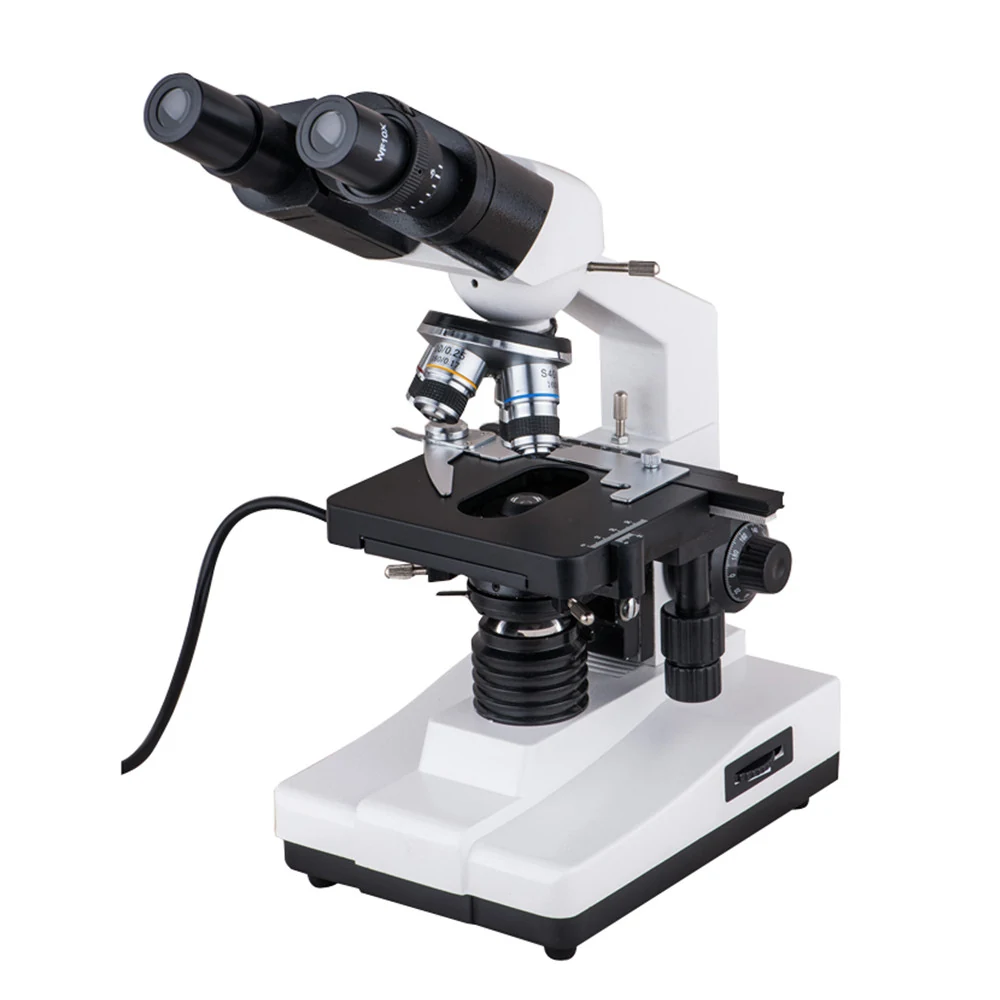

  • Viewing head: Monocular (standard), Binocular (compensation free, 45° inclined), Trinocular (standard), Dual head (30° inclined + vertical 360° rotatable), Trinocular with 7'' LCD screen (optional)

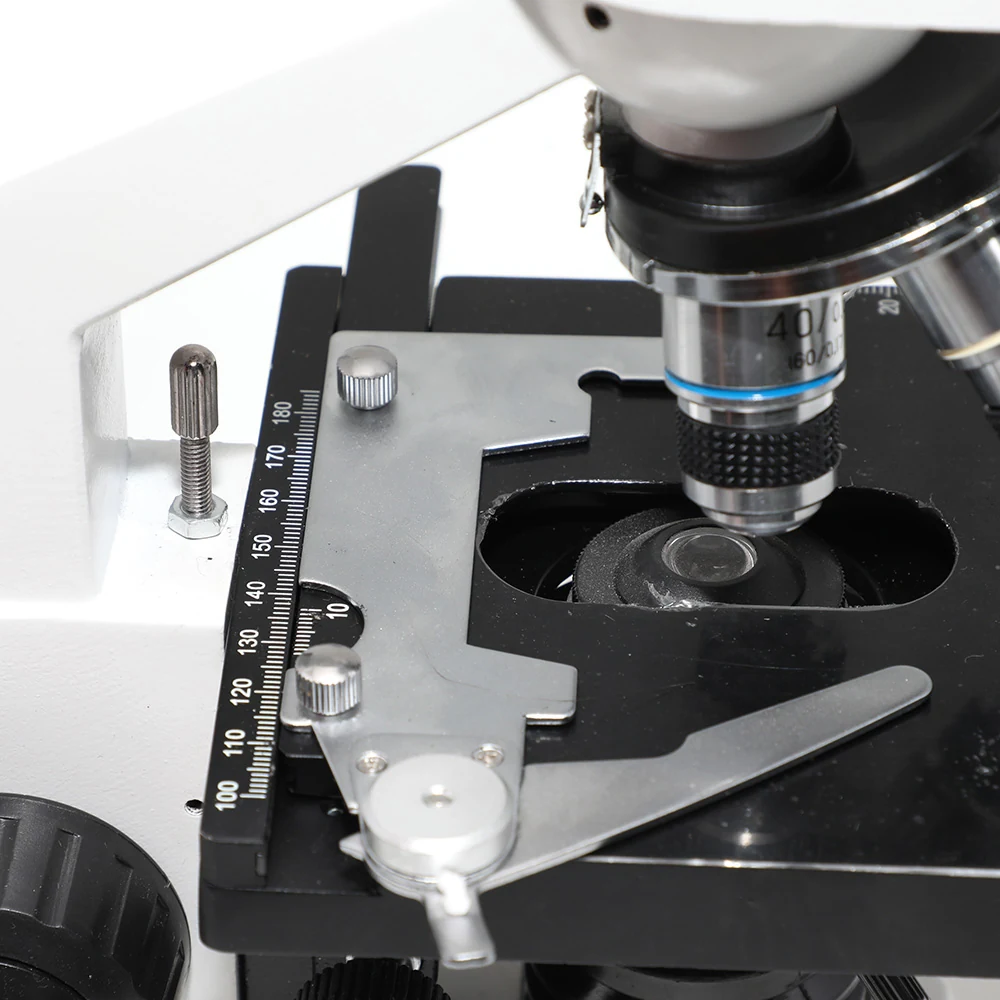

  • Double-layer mechanical stage: 125 mm x 115 mm, with stage clips
  • Coaxial coarse and fine focusing: focusing range 30 mm, interval 0.002 mm

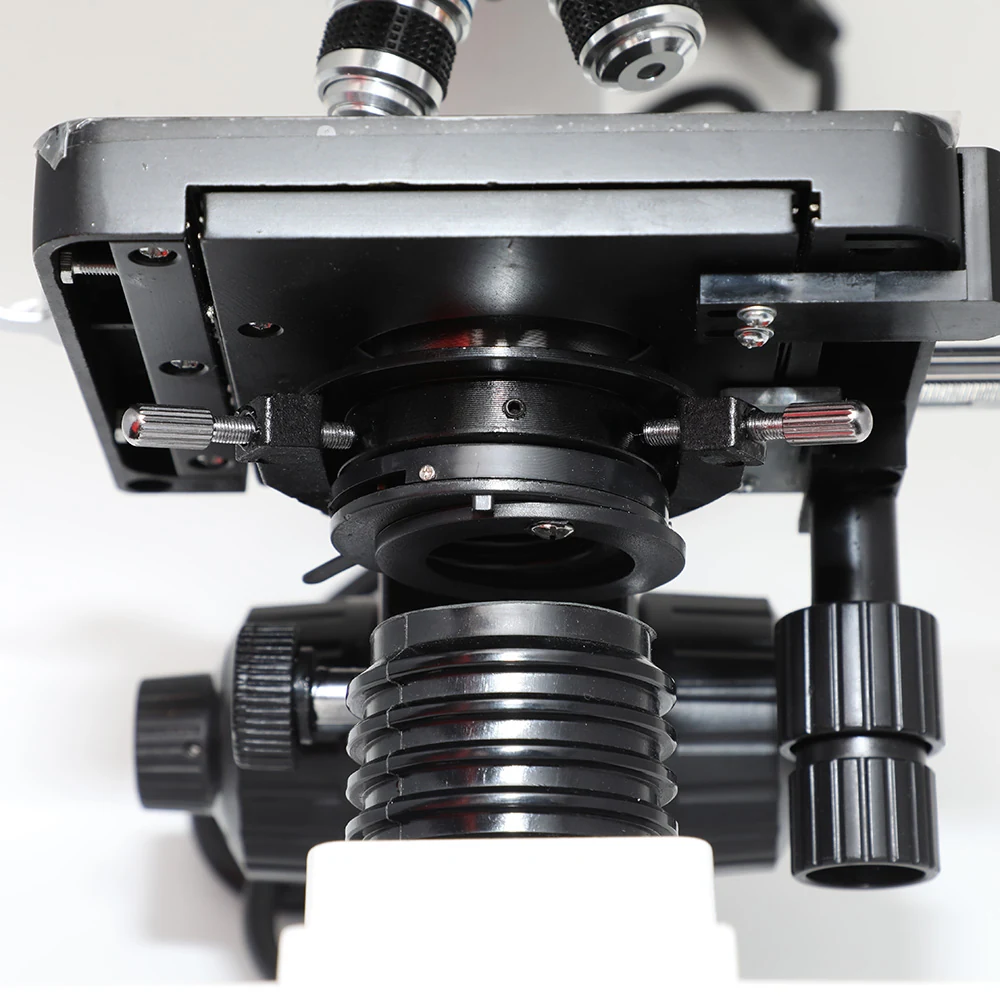

  • Condenser: Abbe NA=1.25 with iris diaphragm and filter holder
  • Illumination: Halogen lamp 6V/20W (220V or 110V), LED lamp (optional)
  • Power supply: 100V–240V compatible (halogen version)

Who it is for

  • Schools and universities procuring student microscopes for lab courses
  • Medical training centers requiring entry-level biological microscopes
  • Procurement officers sourcing standardized equipment for multiple institutions
  • Distributors building a line of educational optical instruments

Specifications

ModelXP200
Objective Lenses4X, 10X, 40X (Spring), 100X (Oil Immersion)
EyepieceWF10X (Standard), WF16X (Optional)
Viewing HeadMonocular, Binocular (45° Inclined), Trinocular, Dual Head (30° + Vertical 360° Rotatable), Trinocular with 7'' LCD Screen (Optional)
Stage Size125 mm x 115 mm
Stage TypeDouble Layer Mechanical Stage
Focusing SystemCoaxial Coarse and Fine Adjustment
Focusing Range30 mm
Focusing Interval0.002 mm
CondenserAbbe NA=1.25 with Iris Diaphragm and Filter Holder
IlluminationHalogen Lamp 6V/20W (220V or 110V), LED Lamp (Optional)

Use guide

  • Select monocular head for single-user, cost-effective setups
  • Choose binocular or trinocular head when multiple users need to view simultaneously
  • Use WF16X eyepiece for larger field of view in classroom demonstrations
  • Select LED illumination if operating in low-power or remote environments
  • Add oil immersion objective (100X) only when high magnification of thin sections is required

FAQ

What is the standard eyepiece?
WF10X is standard; WF16X is available as an optional upgrade.
Can I use oil immersion with the 100X objective?
Yes. The 100X objective is designed for oil immersion use with proper immersion oil.
What is the focusing interval?
0.002 mm per revolution of the fine focus knob.
Is the stage mechanical?
Yes. The double-layer mechanical stage includes X and Y movement with clips for specimen fixation.
What voltage does the halogen lamp support?
6V/20W halogen lamp compatible with 110V or 220V power supply.
Can I add a camera?
Yes. The trinocular head supports camera attachment; the 7'' LCD screen option is available for direct viewing.
