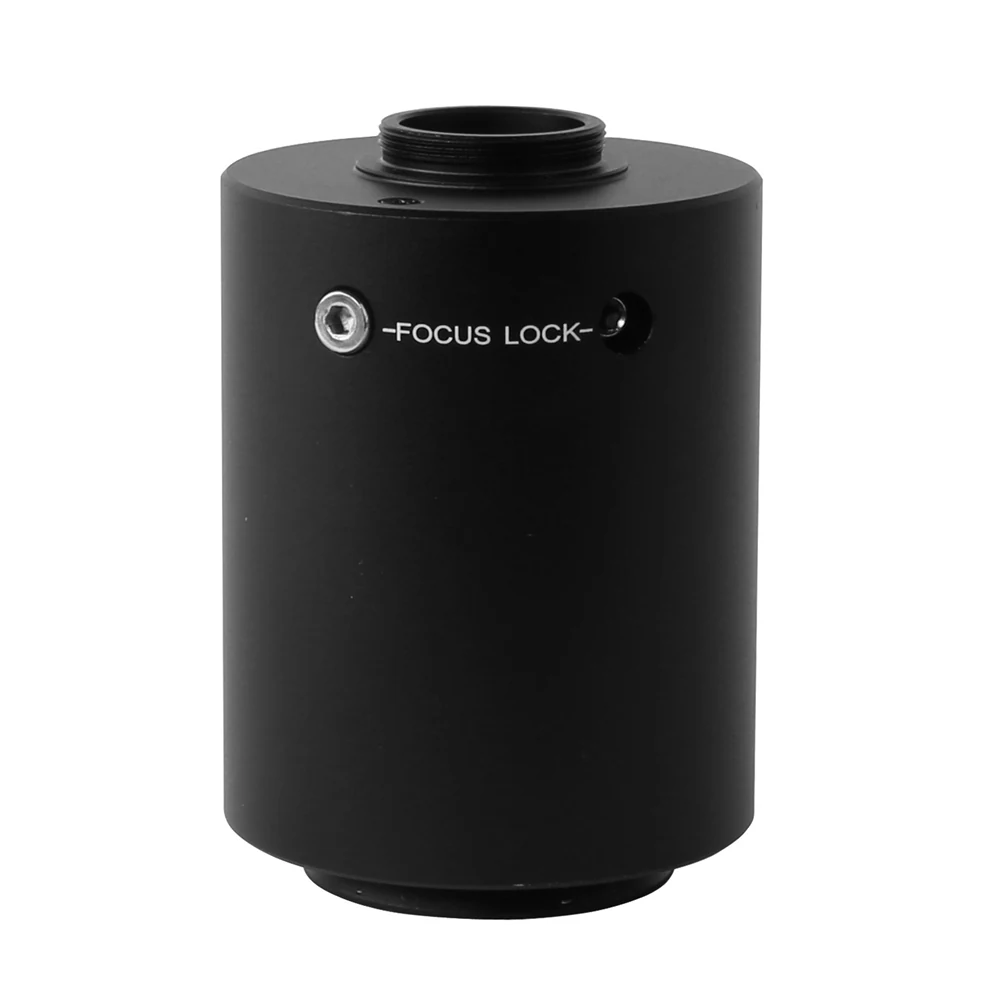

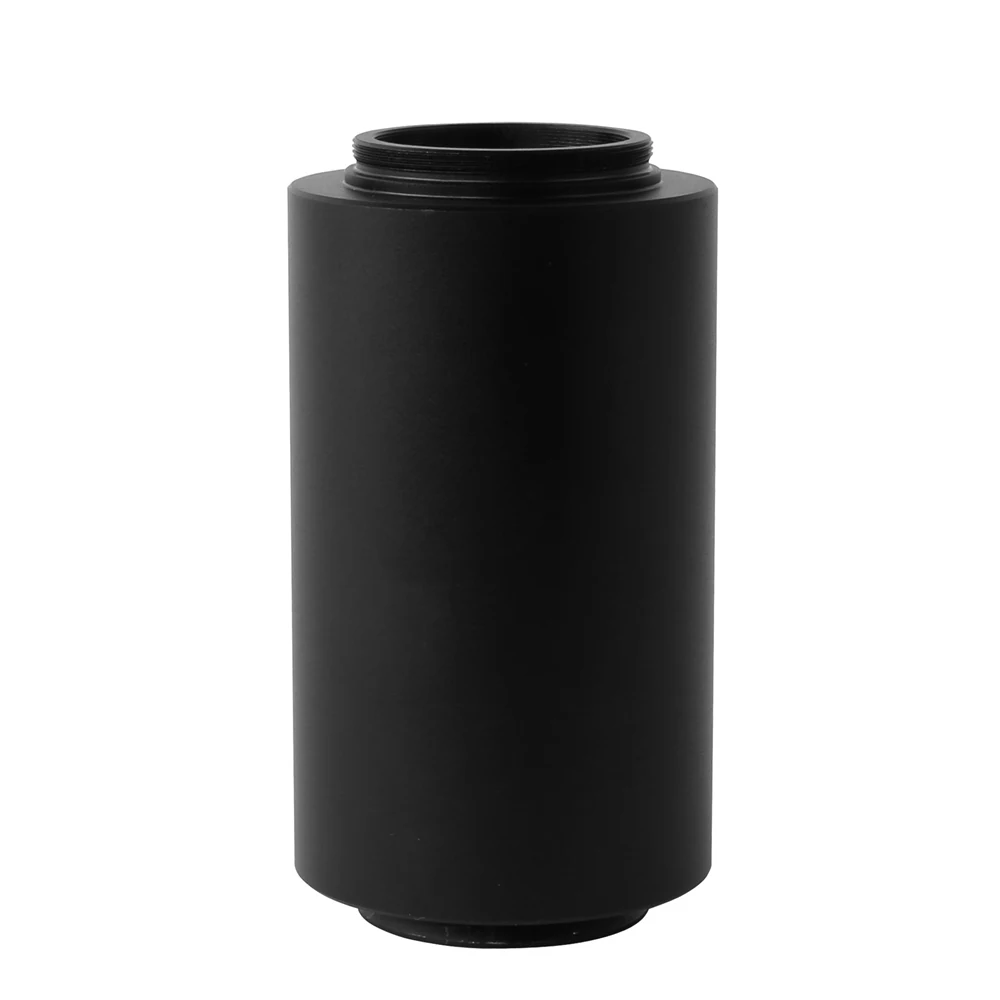

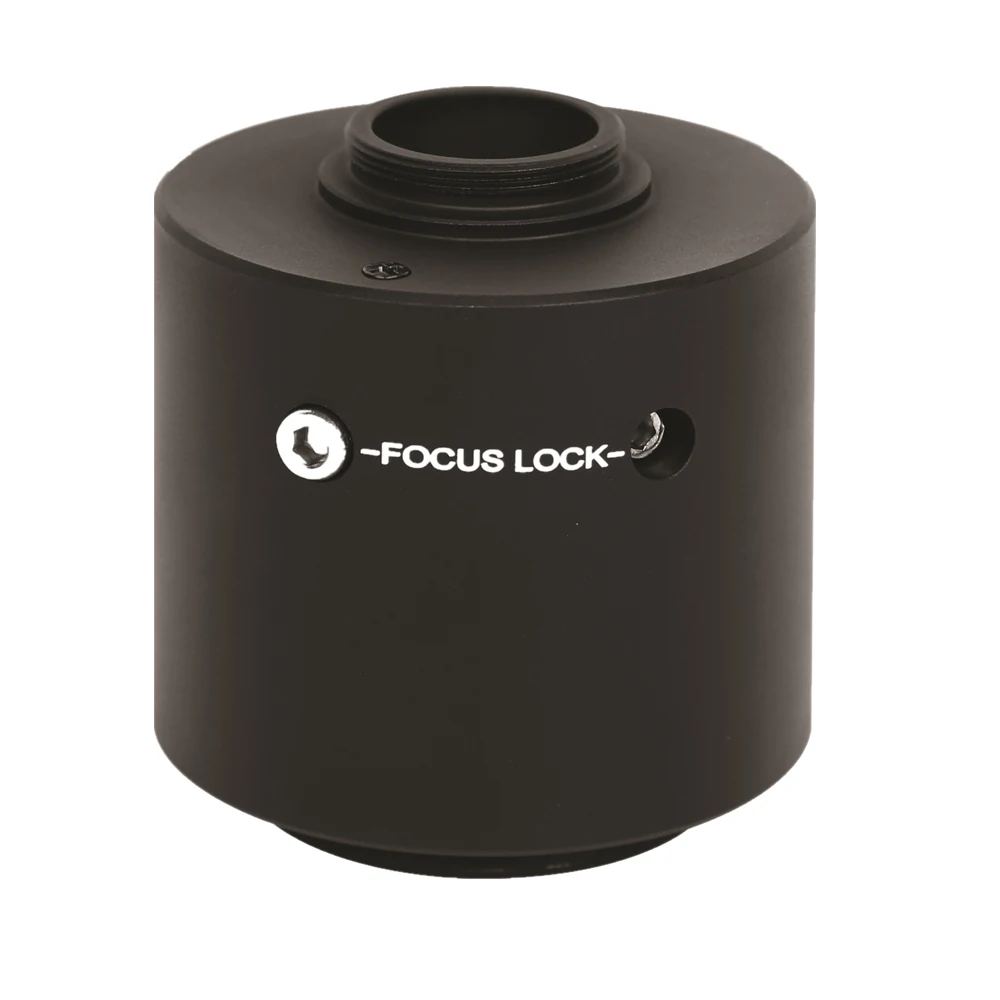

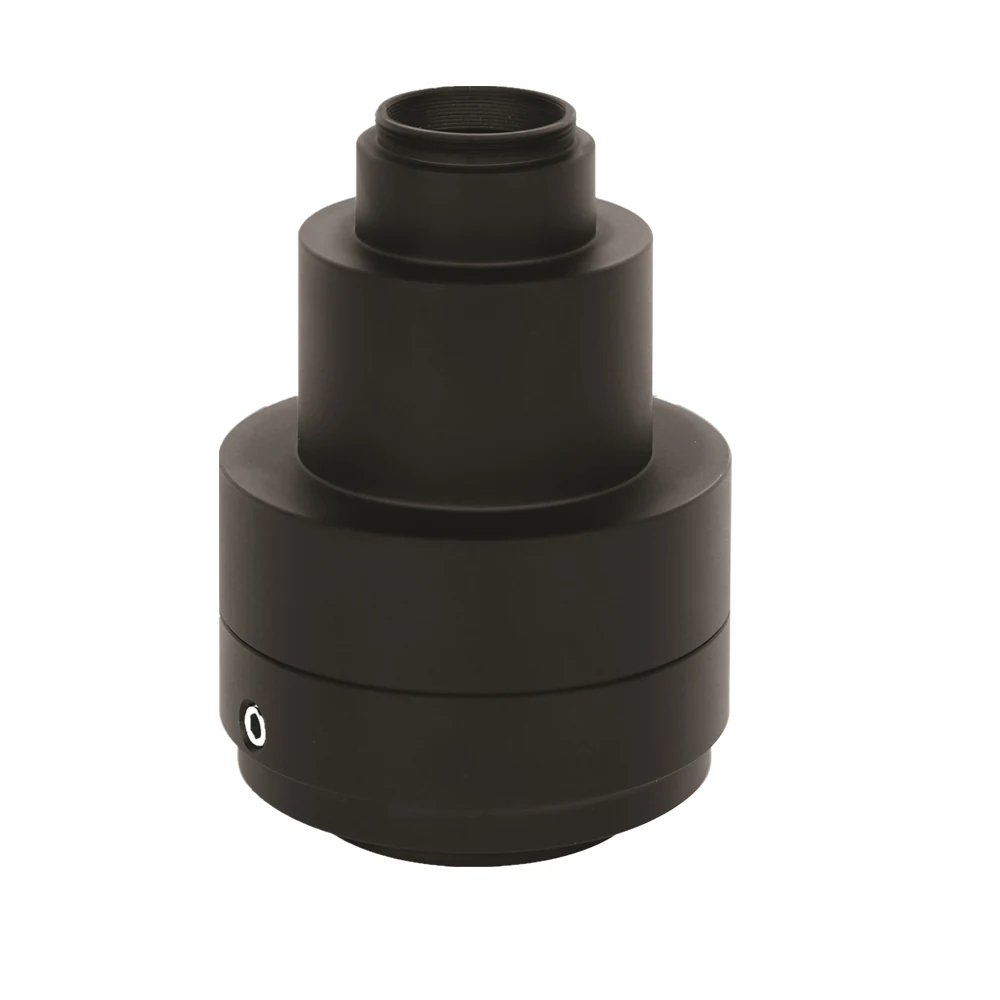

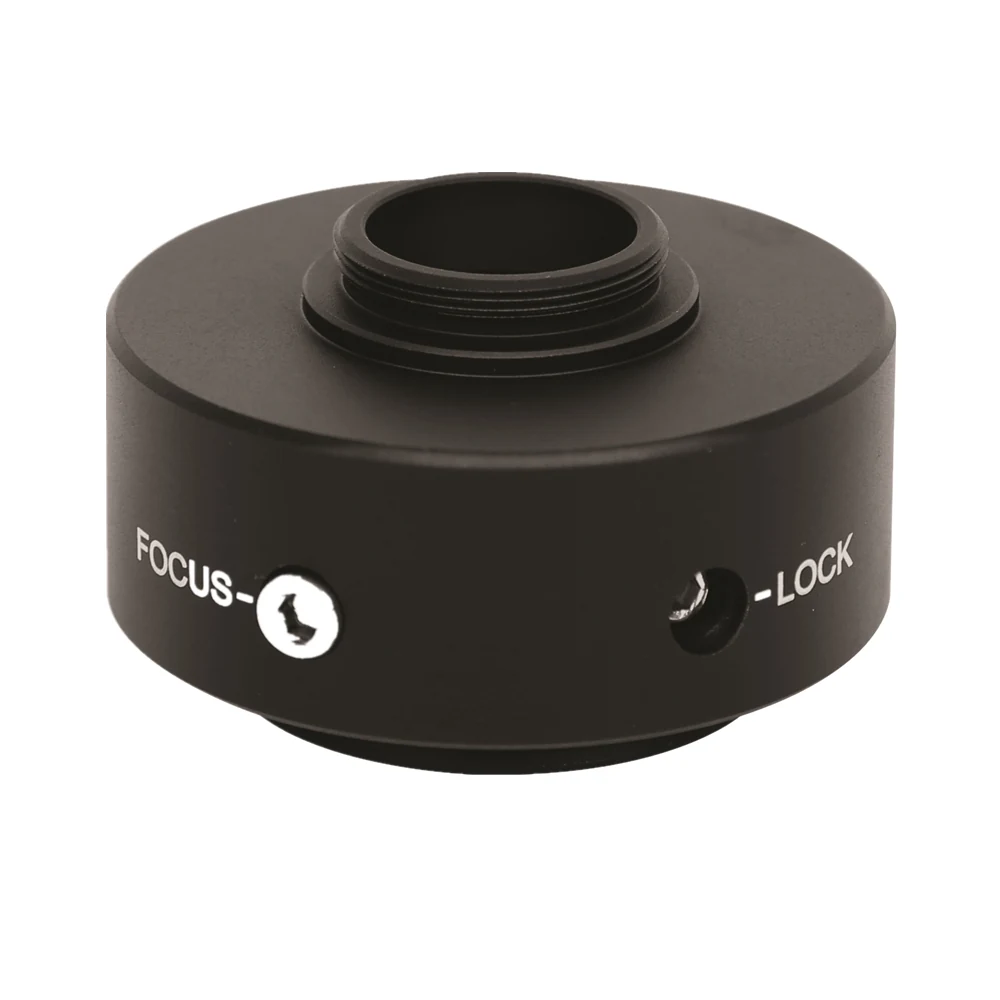

0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Olympus Microscope
0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Olympus Microscope
0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Olympus Microscope
0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Olympus Microscope
0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Olympus Microscope
0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Olympus Microscope

0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Olympus Microscope

The 0.35X to 1.2X Olympus microscope adapter series converts the standard 35 mm outer diameter phototube of Olympus trinocular microscopes to C-Mount (25.4 mm, 32 TPI) for direct connection to CCD or CMOS cameras. Available with built-in reduction lenses (0.35X, 0.5X, 0.63X, 0.8X, 1X) to match sensor sizes from 1/4” to 1”, supporting UIS trinocular heads on BX, BX2, CX, CX2, MX, STM, SZX, IX, and GX series microscopes. Features telecentric optics, parfocal design, and diffraction-limited MTF for consistent image quality across objectives.

  • Converts Olympus trinocular phototube (35 mm OD) to standard C-Mount for camera integration
  • Built-in reduction lenses (0.35X to 1.2X) optimize field of view for various sensor sizes
  • Telecentric optics minimize light deficiency and maintain image uniformity
  • Parfocal with all UIS microscope objectives for consistent focus across magnifications
  • Diffraction-limited MTF ensures sharp, high-contrast imaging across the sensor
  • Aperture fully coupled with objective exit pupil for accurate light transfer
Request A Quote +86-15195807515

Technical features

  • Converts Olympus trinocular phototube (35 mm OD) to C-Mount (25.4 mm, 32 TPI)
  • Built-in reduction lenses: 0.35X, 0.5X, 0.63X, 0.8X, 1X, 1.2X
  • Supports sensor sizes: 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3”, 1/4”
  • Telecentric optics with low light deficiency and diffraction-limited MTF
  • Aperture fully coupled with UIS objective exit pupil
  • Parfocal with all UIS microscope objectives
  • Compatible with Olympus BX, BX2, CX, CX2, MX, STM, SZX, IX, GX (GX41) series trinocular heads
  • Anodized aluminum body for rigidity and thermal stability

Who it is for

  • Laboratories upgrading analog microscopes to digital imaging systems
  • Electronics and semiconductor inspection teams requiring camera integration
  • Medical and research labs using Olympus microscopes for image capture and analysis
  • Distributors supplying camera-ready microscope accessories to end users

Specifications

ModelsU-TV0.35XC-2, U-TV0.5XC-3, U-TV0.63XC, U-TV0.80XC(New), U-TV1X-2, U-TV1.2XT2
Magnification0.35X, 0.5X, 0.63X, 0.8X, 1X, 1.2X
Sensor Size Support1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3”, 1/4”
Mount TypeC-Mount (25.4 mm, 32 TPI)
Phototube Diameter35 mm OD
CompatibilityOlympus BX, BX2, CX, CX2, MX, STM, SZX, IX, GX (GX41) series
Optics TypeTelecentric, diffraction-limited MTF
ParfocalYes, with UIS objectives
MaterialAnodized aluminum

Use guide

  • Select adapter model based on required magnification and camera sensor size
  • Ensure the microscope has a 35 mm OD trinocular phototube
  • Confirm compatibility with Olympus BX/CX/MX/IX/GX series UIS trinocular heads
  • Install adapter into the phototube and connect to C-Mount camera
  • Verify parfocality by switching objectives and confirming focus remains stable

FAQ

Which Olympus microscopes are compatible?
BX, BX2, CX, CX2, MX, STM, SZX, IX, and GX (GX41) series with UIS trinocular heads.
Can I use this with a 1/2” sensor camera?
Yes. U-TV0.63XC, U-TV0.5XC-3, and U-TV0.80XC support 1/2” sensors.
What is the mount type?
C-Mount (25.4 mm diameter, 32 threads per inch).
Is the adapter parfocal?
Yes. It is parfocal with all UIS microscope objectives.
What reduction lenses are available?
0.35X, 0.5X, 0.63X, 0.8X, 1X, and 1.2X models are available.
