Microscope 23.2mm to 30mm, 30.5mm, 30.75mm Eyepiece Converter
Microscope 23.2mm to 30mm, 30.5mm, 30.75mm Eyepiece Converter
Microscope 23.2mm to 30mm, 30.5mm, 30.75mm Eyepiece Converter
Microscope 23.2mm to 30mm, 30.5mm, 30.75mm Eyepiece Converter

Microscope 23.2mm to 30mm, 30.5mm, 30.75mm Eyepiece Converter

The 23.2mm to 30mm, 30.5mm, and 30.75mm eyepiece converters from Nanjing AMADA Instrument are adapters for mounting eyepieces with different outer diameters onto microscope bodies. The series includes three models: MET2323000 (23.2mm to 30.0mm), MET2323050 (23.2mm to 30.5mm), and MET2323175 (23.2mm to 31.75mm). Each adapter allows secure fit and alignment between eyepieces and microscope optical paths.

  • Three models available for precise fit across 23.2mm to 30.0mm, 30.5mm, and 31.75mm eyepiece diameters
  • Secure mechanical coupling between eyepiece and microscope body without optical misalignment
  • Simple installation with no need for tooling or modification to the microscope or eyepiece
  • Supports interchangeable eyepieces from different manufacturers with compatible outer diameters
Request A Quote +86-15195807515

Technical features

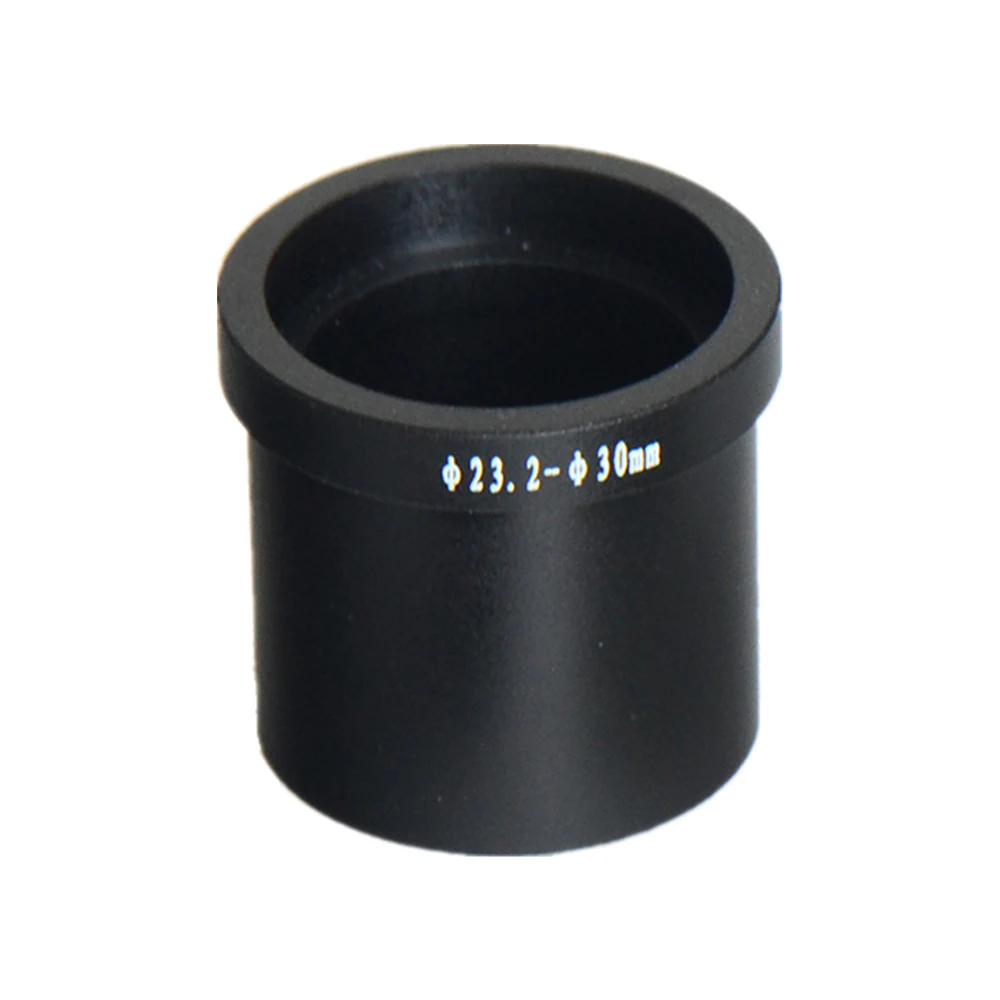

  • MET2323000: Converts 23.2mm to 30.0mm outer diameter

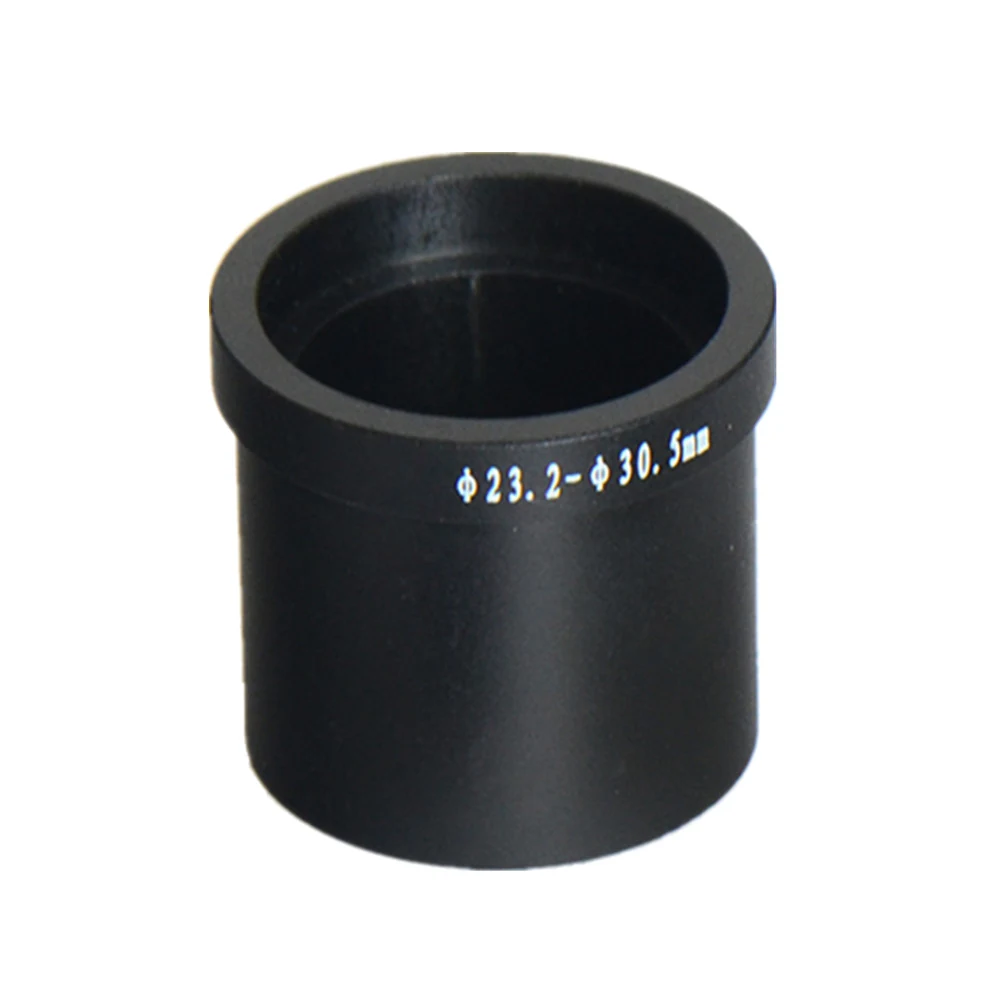

  • MET2323050: Converts 23.2mm to 30.5mm outer diameter

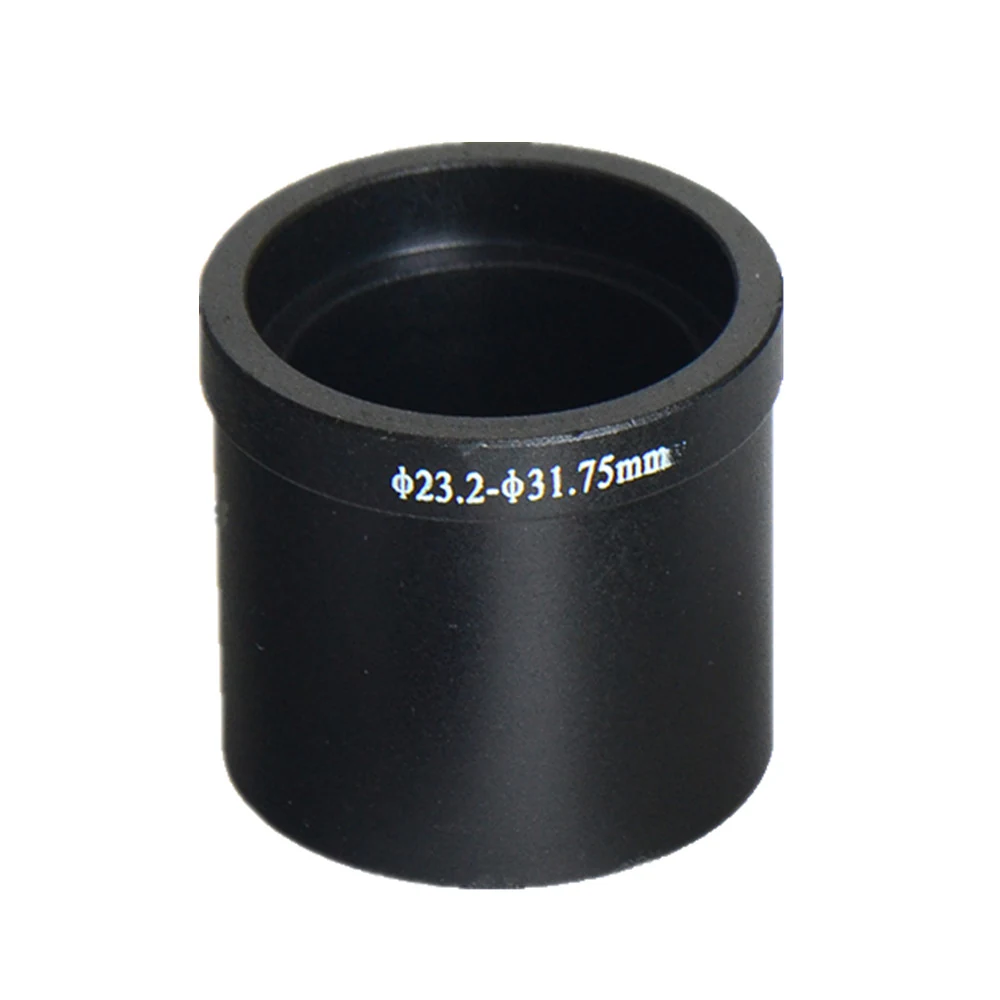

  • MET2323175: Converts 23.2mm to 31.75mm outer diameter
  • Designed for use with standard 23.2mm barrel eyepieces and 30mm/30.5mm/31.75mm eyepieces
  • No optical elements; purely mechanical adapter with alignment features
  • Smooth internal bore to prevent damage to eyepiece lens barrel

Who it is for

  • Laboratories managing mixed eyepiece inventory from different suppliers
  • Procurement teams sourcing interchangeable accessories for microscope systems
  • Service centers performing maintenance or upgrades on existing microscope setups

Specifications

ModelMET2323000 / MET2323050 / MET2323175
Input Diameter23.2mm
Output Diameter30.0mm / 30.5mm / 31.75mm
ApplicationEyepiece mounting adapter
MaterialMetal alloy (non-corrosive)

Use guide

  • Select model based on the outer diameter of the eyepiece to be mounted
  • Ensure the microscope body accepts 23.2mm eyepiece barrels
  • Insert the eyepiece into the adapter and screw it into the microscope body until secure

FAQ

What is the input and output size for each model?
MET2323000: 23.2mm to 30.0mm; MET2323050: 23.2mm to 30.5mm; MET2323175: 23.2mm to 31.75mm.
Can I use this adapter with a 30mm eyepiece?
Yes, MET2323000 and MET2323050 are suitable for 30mm and 30.5mm eyepieces respectively.
Is there a model for 32mm eyepieces?
No. The maximum output is 31.75mm (MET2323175).
Do these adapters affect optical alignment?
No. They are purely mechanical and do not include optical elements.
Are the adapters reusable?
Yes. They are designed for repeated use with no degradation in fit or function.
