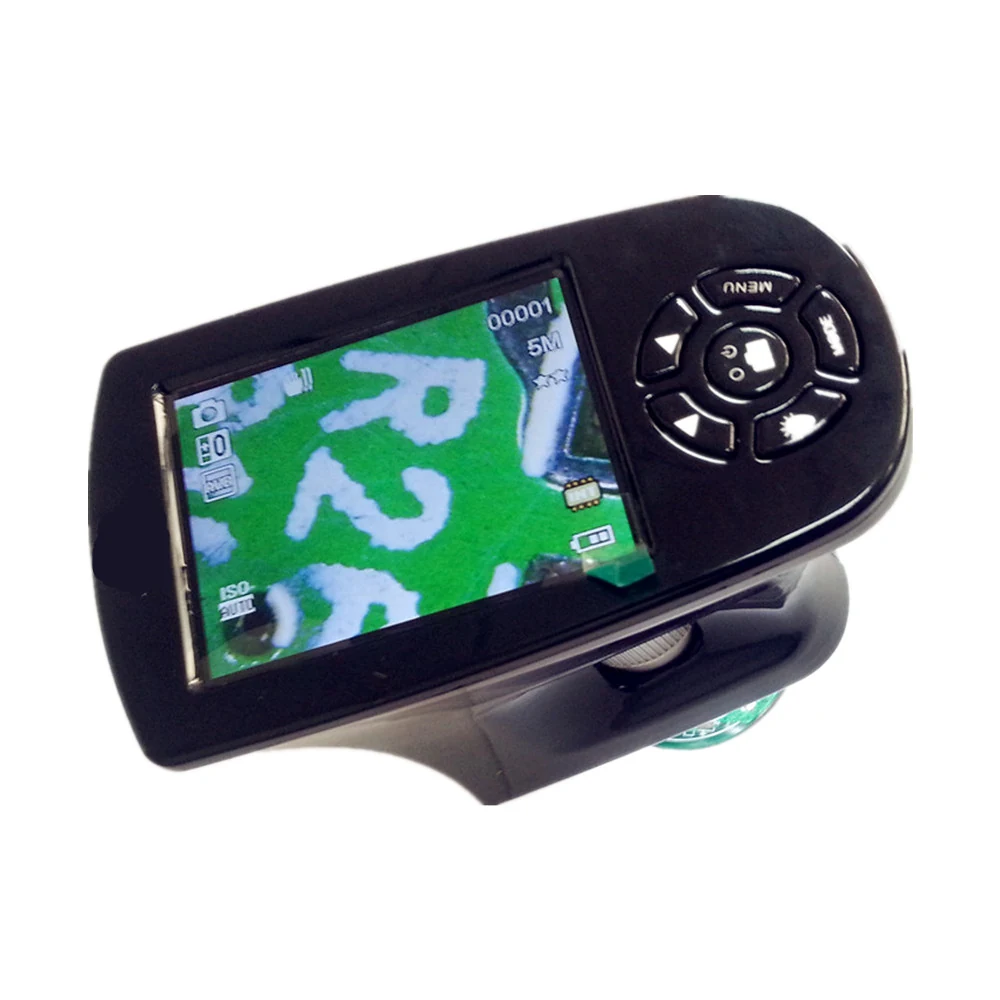

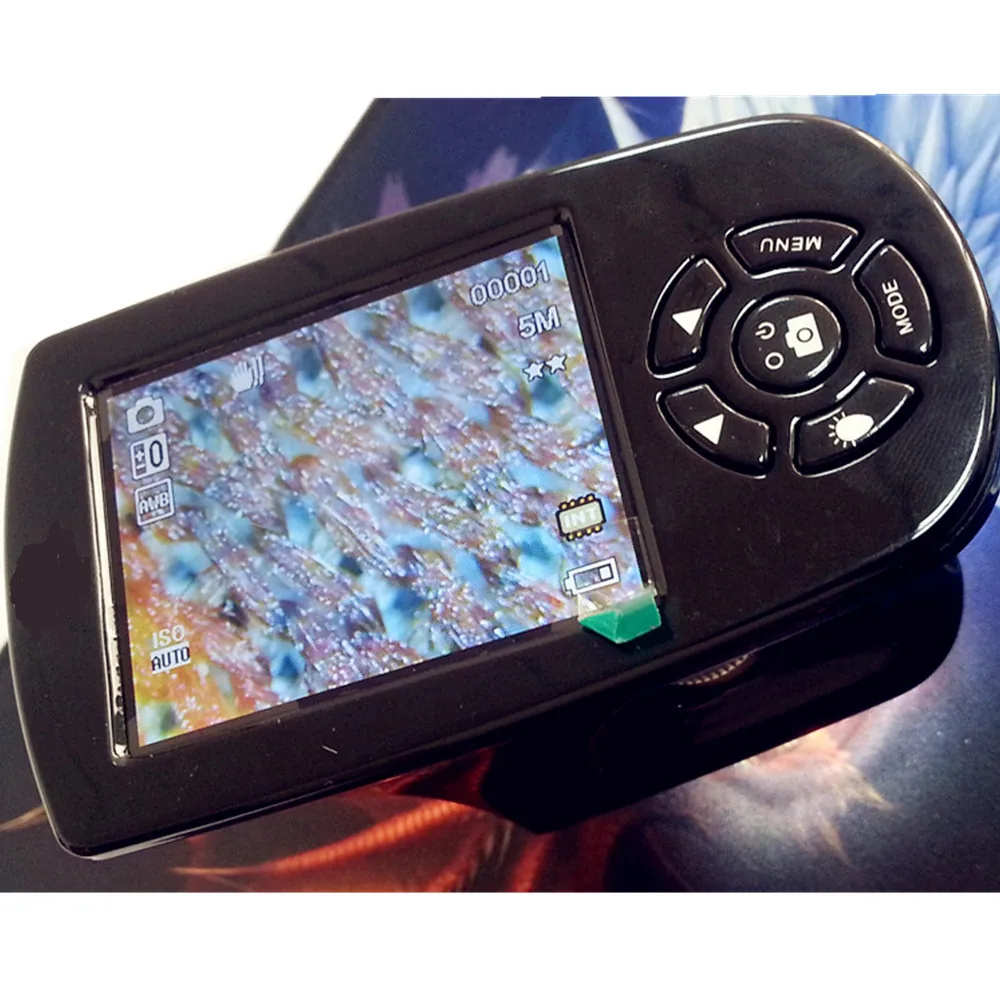

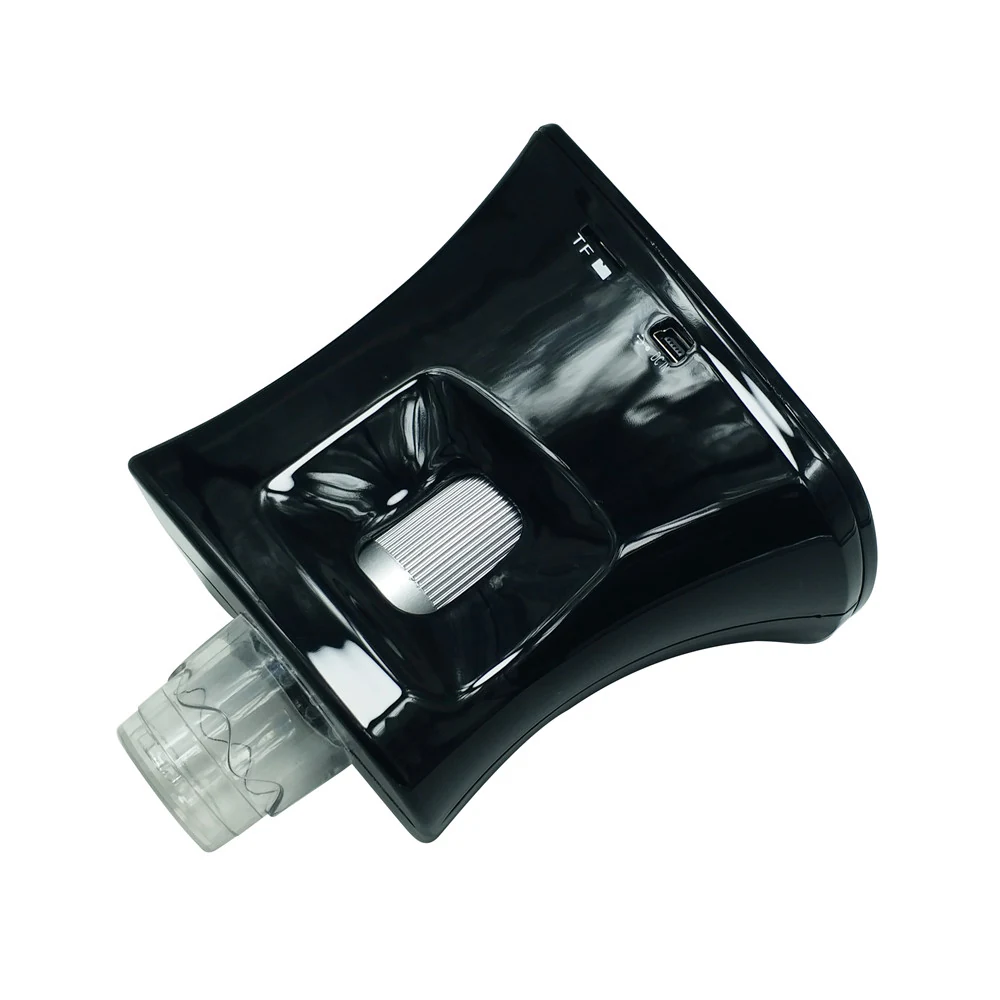

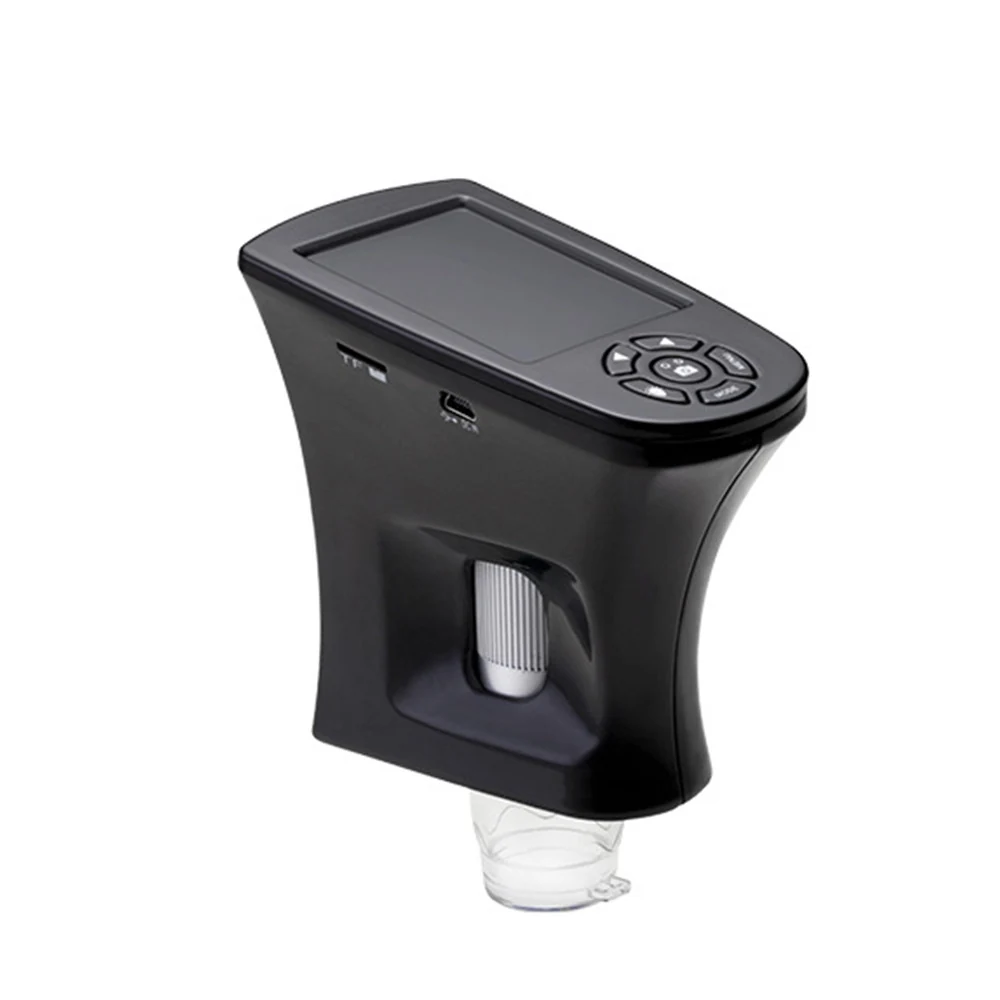

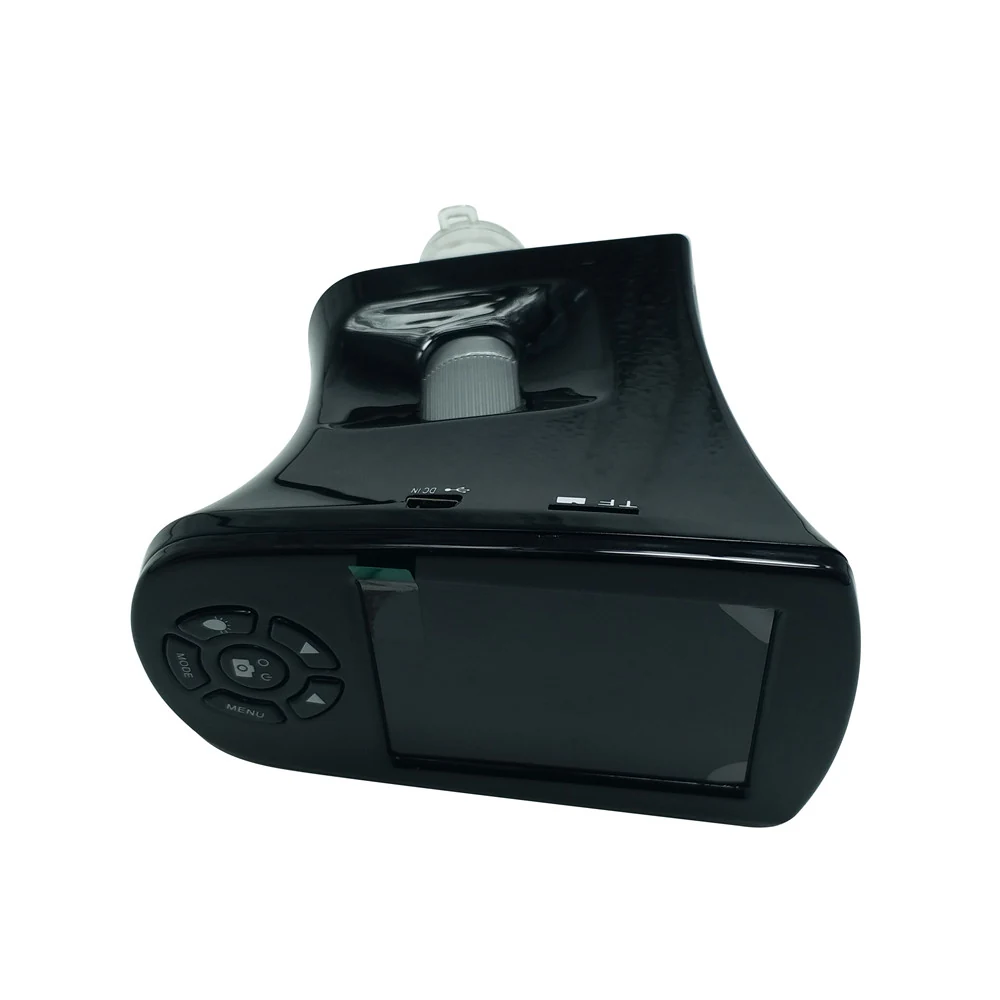

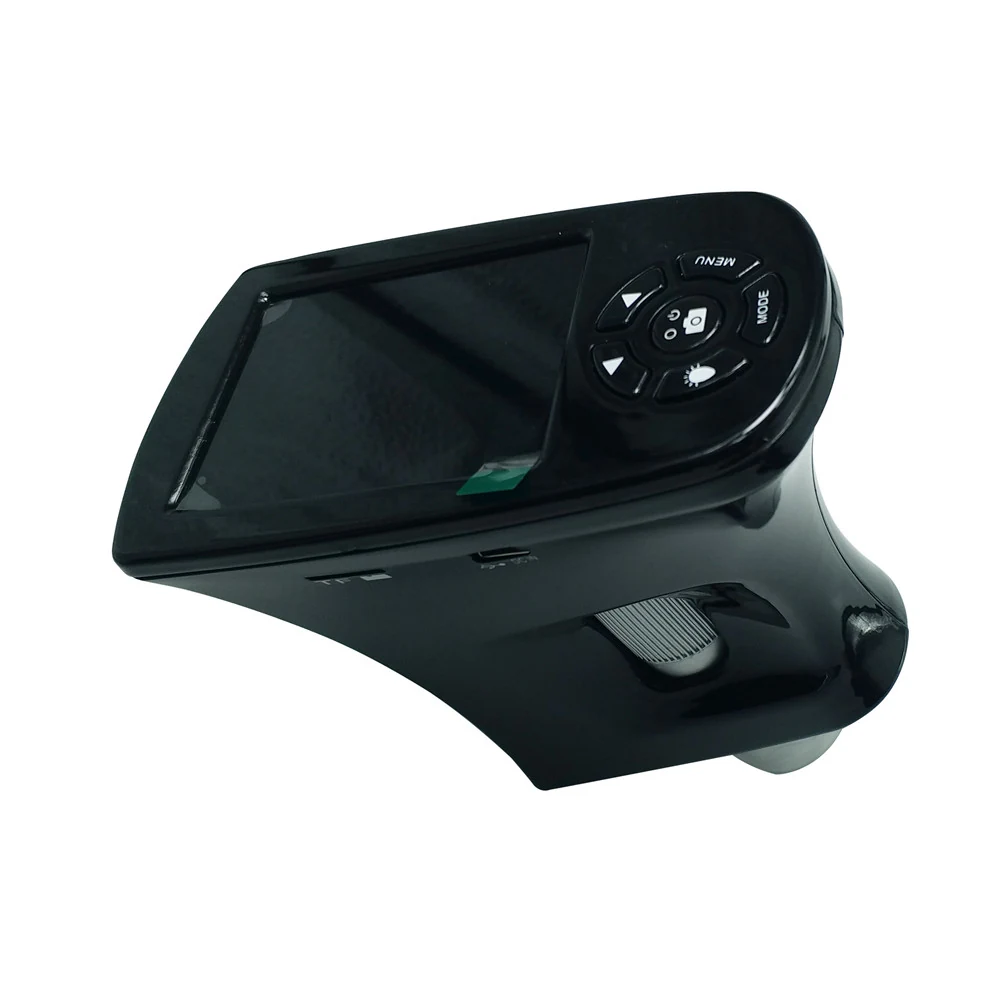

M35 LCD Digital Microscope for Tablet, Phone and Windows
M35 LCD Digital Microscope for Tablet, Phone and Windows
M35 LCD Digital Microscope for Tablet, Phone and Windows
M35 LCD Digital Microscope for Tablet, Phone and Windows
M35 LCD Digital Microscope for Tablet, Phone and Windows
M35 LCD Digital Microscope for Tablet, Phone and Windows

M35 LCD Digital Microscope for Tablet, Phone and Windows

M35 LCD Digital Microscope is a portable, battery-powered device for skin and scalp inspection, designed for use with tablets, smartphones, and Windows systems. It features a 3 million pixel image sensor, polar clear lens, and 4–8 LED lighting with manual focus from 1mm to infinity. The microscope supports HDMI output, wireless transmission via IEEE802.11 WiFi, and runs on a high-speed video processing chip with built-in 1200 mAh rechargeable battery.

  • Portable design with 90 gram weight and compact 150 mm x 33 mm size for on-site use
  • Supports tablet, mobile phone, and Windows systems via HDMI and wireless transmission
  • Manual focus from 1mm to infinity with 50X–200X optical magnification (skin) and 600X (scalp)
  • Built-in 1200 mAh lithium battery for 4–6 hours of continuous operation
  • Wireless transmission via IEEE802.11 standard for real-time viewing on external devices
Request A Quote +86-15195807515

Technical features

  • Image sensor: 3 million high quality pixels
  • Lens specification: Polar clear microscope lens
  • Focus area: Manual focus from 1mm to infinity
  • Video resolution: 720P
  • Snapshot button: Yes
  • Shutter speed: 1 second to 1/1000 second
  • Lighting mode: 4–8 LED lights
  • Optical magnification: 50X–200X (skin), 600X (scalp)

Who it is for

  • Dermatologists and skincare professionals requiring portable inspection tools
  • Beauty clinics and aesthetic centers integrating digital diagnostics
  • Distributors supplying digital microscopes for medical or cosmetic applications
  • Importers sourcing compact, multi-platform compatible microscopes for clinical use

Specifications

Image Sensor3 million high quality pixels
Lens SpecificationPolar clear microscope lens
Focus AreaManual focus from 1mm to infinity
Video Resolution720P
Snapshot ButtonYes
Shutter Speed1 second to 1/1000 second
Lighting Mode4–8 LED lights
Optical Magnification50X–200X (skin), 600X (scalp)
Digital Magnification1–5X
Use Environment-20℃ to +60℃
Power SupplyDC5V, built-in 1200 mAh rechargeable lithium battery
Movie CompressionH.264, MP4
Photo CompressionJPEG
Supported SystemsTablet, mobile phone, Windows (iOS and Android)
Image EffectsSingle solid drawing, four grid solid drawing contrast
Wireless TransmissionIEEE802.11 standard
Bundling SoftwareMrkf, mrkv scalp and skin analysis software
Product Size150 mm long, 33 mm diameter
Weight90 grams

Use guide

  • Connect the M35 to a tablet, smartphone, or Windows device via HDMI or WiFi
  • Power on and adjust focus manually from 1mm to infinity for clear imaging
  • Select skin or scalp mode in the bundled software to match magnification needs
  • Use the snapshot button to capture still images or record video in H.264/MP4 format
  • Enable wireless transmission for real-time viewing on external screens

FAQ

What is the battery life?
Approximately 4–6 hours of continuous use on a full charge with built-in 1200 mAh lithium battery.
Can I use it with my Android tablet?
Yes. The M35 is compatible with tablets and smartphones running Android and iOS systems via HDMI or WiFi.
What is the maximum magnification?
Optical magnification up to 600X for scalp, 200X for skin; digital magnification extends to 5X.
Does it support video recording?
Yes. Video is recorded in H.264 or MP4 format with 720P resolution.
What software comes with the microscope?
Bundled software includes Mrkf and mrkv for scalp and skin analysis.
