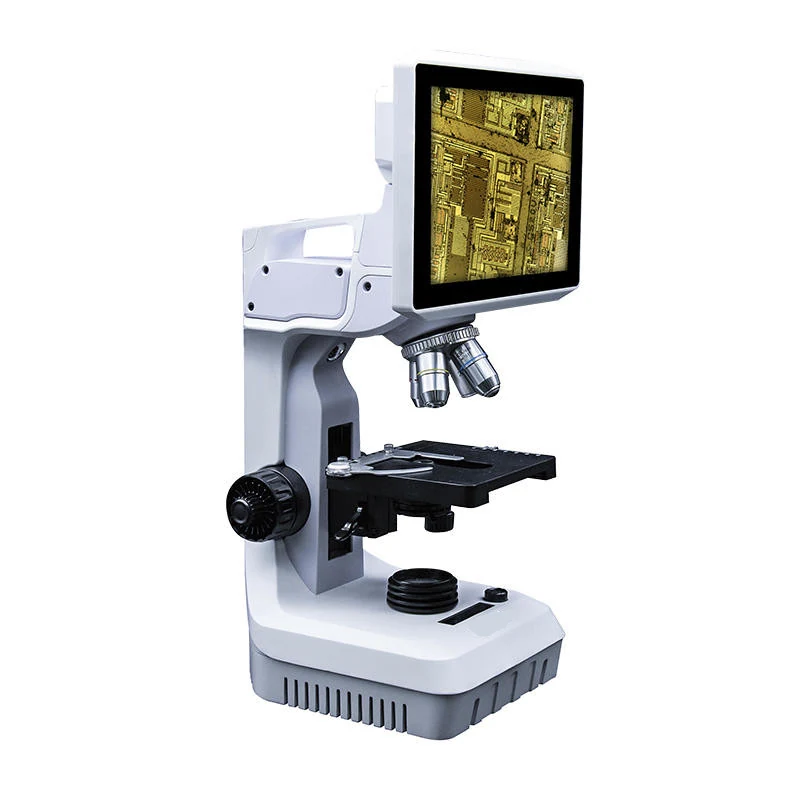

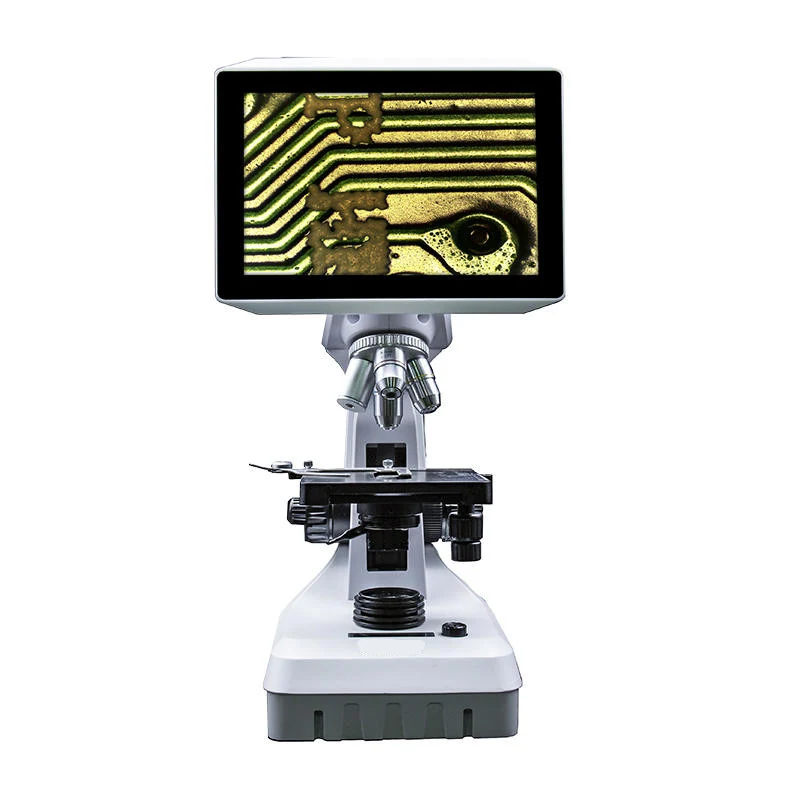

M300 5M LCD Digital Metallurgical Biological Stereo Microscope
M300 5M LCD Digital Metallurgical Biological Stereo Microscope
M300 5M LCD Digital Metallurgical Biological Stereo Microscope

M300 5M LCD Digital Metallurgical Biological Stereo Microscope

M300 is a 5M LCD digital metallurgical biological stereo microscope from Nanjing AMADA Instrument Co., Ltd. It integrates bottom, side, and coaxial illumination with optimized optical path to support observation of metallographic samples, biological slides, and real-world specimens such as insects and leaves. The built-in HD digital imaging module captures 5 million effective pixels and records 1080p/30fps video. It features a 10.1-inch HD LCD screen, multiple interfaces, and professional software for scale calibration and measurement.

  • Single instrument supports metallurgical, biological, and real-object observation with multiple illumination paths
  • Built-in 5M HD imaging module with 1080p/30fps video recording and photo capture
  • 10.1-inch HD LCD screen with 1920×1200 resolution for clear real-time viewing
  • Integrated USB, VGA, HDMI, Ethernet, and audio interfaces for data output and external display
  • Supports scale calibration and measurement via free professional software for accurate analysis
Request A Quote +86-15195807515

Technical features

  • Model M305 with 10.1-inch HD LCD screen, resolution 1920×1200, maximal resolution 2492×1944 at 14fps
  • Built-in HD digital image module with 5 million effective pixels
  • Supports 1080p/30fps HD video recording and photo playback
  • Illumination: bottom, side, and coaxial light sources with LED lighting
  • Optical magnification range: 10X–400X using biological objectives 4X/10X/40X/100X and stereoscopic objectives 1X or 2X
  • Coaxial coarse and fine focus system with focusing handwheel
  • Double-layer mechanical stage with condenser and plug-in condenser
  • Input voltage: 19V DC; OS: Windows 10

Who it is for

  • Manufacturers requiring metallographic inspection with digital output
  • Clinical and research labs needing multi-sample observation tools
  • Educational institutions building digital microscopy stations
  • Importers sourcing all-in-one digital microscopes for industrial or academic use
  • Distributors offering integrated digital microscopy solutions

Specifications

ModelM305
Screen Size10.1 inches
Screen Resolution1920×1200
Maximal Resolution2492×1944 at 14fps
Image Sensor5 million effective pixels
Video Output1080p/30fps
Optical Magnification10X–400X
Biological Objectives4X, 10X, 40X, 100X
Stereoscopic Objectives1X or 2X
EyepieceWF10×/18mm (optional WF10×/20mm)
IlluminationBottom, side, coaxial LED
Input Voltage19V DC
Operating SystemWindows 10
Internal Storage64G SSD
RAM4G
CPUIntel Core i3
External InterfacesUSB, VGA, HDMI, audio in/out, Ethernet

Use guide

  • Select biological objectives (4X/10X/40X/100X) and stereoscopic objective (1X or 2X) based on required magnification
  • Use coaxial illumination for transparent samples; bottom and side for opaque or textured specimens
  • Connect external monitor or projector via HDMI/VGA for group observation
  • Use the free software to calibrate scale and perform measurements on captured images

FAQ

What is the maximum magnification?
400X using 100X biological objective and 2X stereoscopic objective.
Can I use this without a PC?
Yes. The M300 has a built-in 10.1-inch HD LCD screen, internal storage, and software for standalone operation.
What interfaces are available?
USB, VGA, HDMI, audio input/output, and Ethernet for data output and external device connection.
Is scale calibration supported?
Yes. The free professional software includes scale calibration and measurement tools for accurate analysis.
What power supply is required?
19V DC input. The unit supports standard AC adapters with 19V output.
