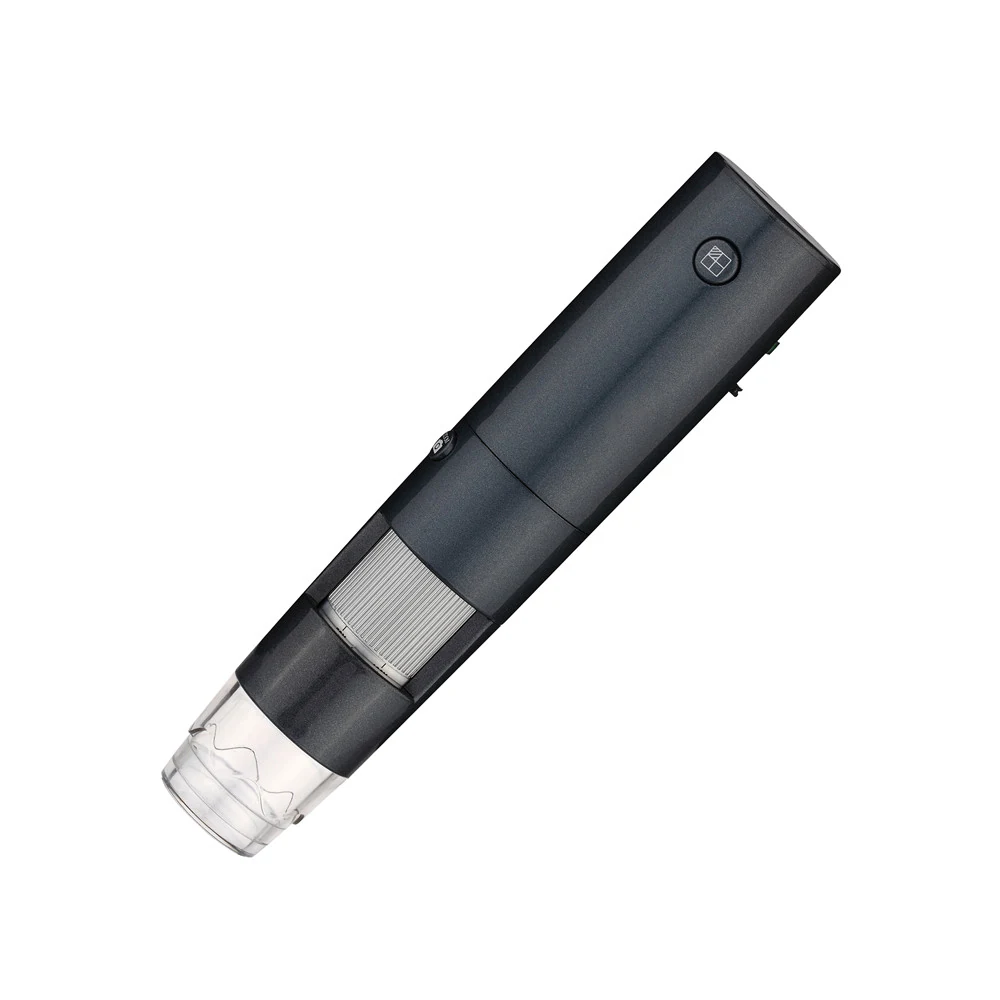

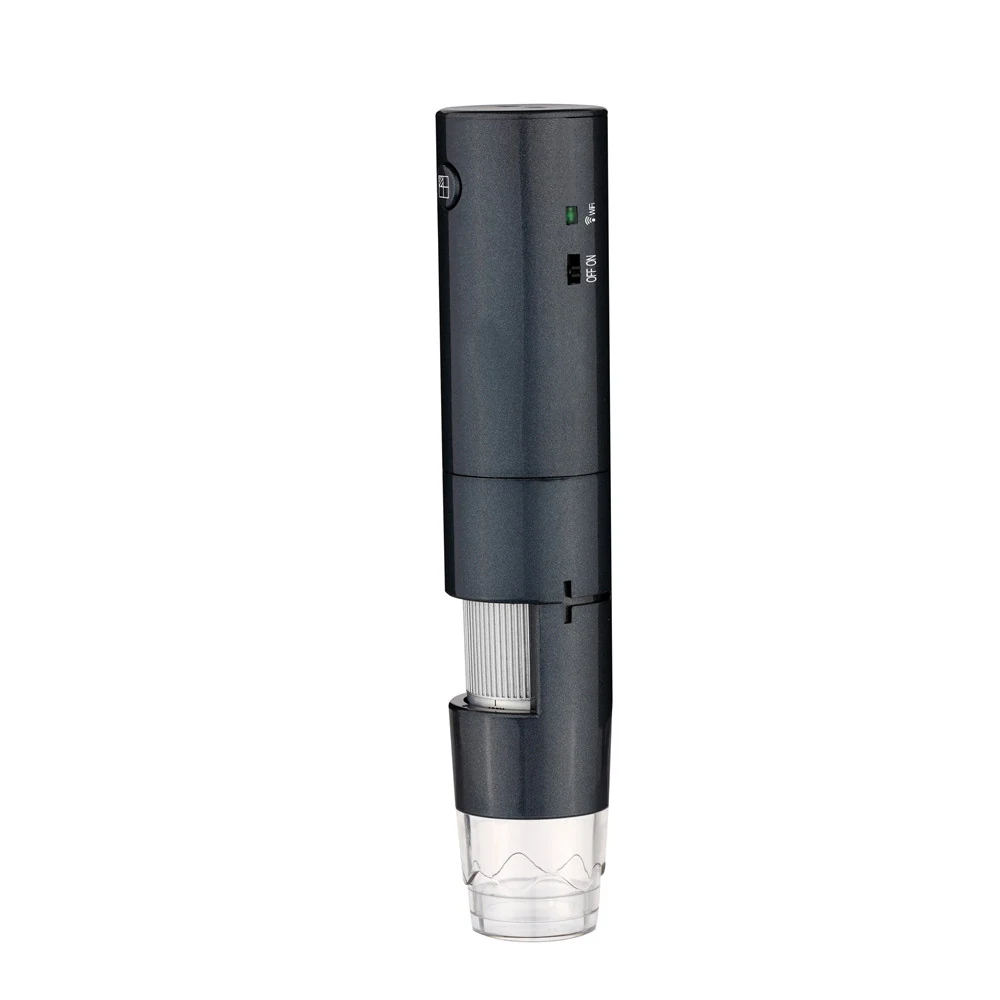

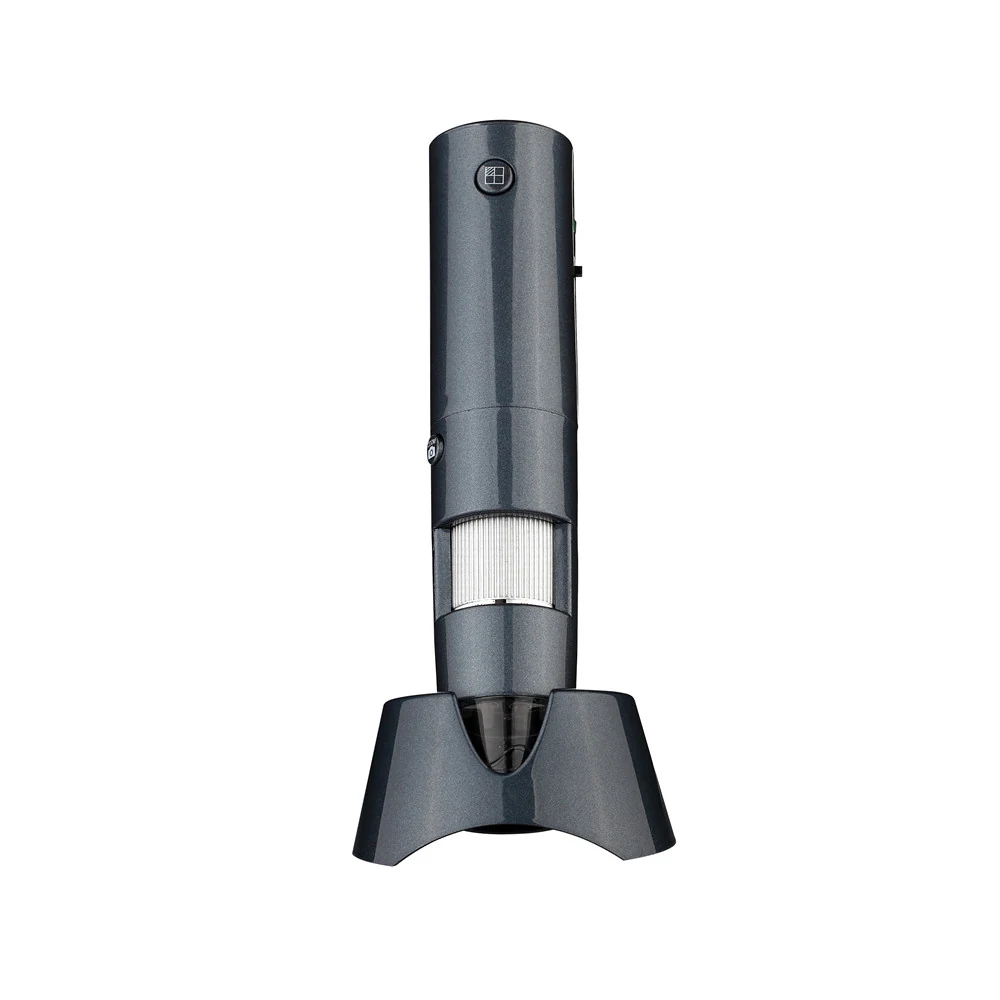

M30 Wireless WiFi Digital Microscope Windows IOS and Android system
M30 Wireless WiFi Digital Microscope Windows IOS and Android system
M30 Wireless WiFi Digital Microscope Windows IOS and Android system
M30 Wireless WiFi Digital Microscope Windows IOS and Android system

M30 Wireless WiFi Digital Microscope Windows IOS and Android system

M30 is a wireless WiFi digital microscope from Nanjing AMADA Instrument for scalp analysis, dermatology, and small object inspection. It features a 3 million pixel image sensor, 10x to 300x optical magnification, digital zoom up to 5x, and real-time wireless transmission to tablets, smartphones, and Windows systems via IEEE802.11 WiFi. Operates on DC5V with a built-in 1200 mAh rechargeable battery and supports 4–8 LED lighting modes.

  • Wireless transmission to mobile, tablet, and Windows devices via standard IEEE802.11 WiFi without cables
  • Supports both English and Chinese language interfaces for global usability
  • Built-in 1200 mAh battery enables portable operation in field or clinic settings
  • Manual focus from 1 mm to infinity for flexible depth control across sample types
  • Dual image modes: single curing and 4-split curing contrast for comparative analysis
Request A Quote +86-15195807515

Technical features

  • Image sensor: 3 million high quality pixels
  • Lens specification: Polar clear microscope lens
  • Magnification: 10x optical, 300x optical, digital magnification 1–5x
  • Focus area: Manual focus from 1 mm to infinity
  • Video resolution: 720P
  • Snapshot button: Yes
  • Shutter speed: 1 second to 1/1000 second
  • Lighting mode: 4–8 LED lights

Who it is for

  • Dermatologists and trichologists requiring portable scalp analysis tools
  • Hair clinics and beauty centers offering diagnostic services
  • Field technicians inspecting small components or surface defects
  • Educational institutions using digital microscopes for live demonstrations

Specifications

ModelM30
Image Sensor3 million pixels
Optical Magnification10x, 300x
Digital Magnification1–5x
Focus Range1 mm to infinity
Video Resolution720P
Shutter Speed1 sec to 1/1000 sec
LED Lighting4–8 lights
Power SupplyDC5V, 1200 mAh rechargeable battery
Operating Temperature-20℃ to +60℃
Wireless StandardIEEE802.11
Supported SystemsWindows, iOS, Android, tablets
Image EffectsSingle curing, 4-split curing contrast
Movie FormatH.264, MP4
Photo FormatJPEG
SoftwareMrkf, mrkv
Product Dimensions150 mm long, 33 mm diameter
Weight90 grams

Use guide

  • Power on and connect to the Mrkf/mrkv app via WiFi on your device
  • Adjust LED lighting based on sample reflectivity and depth
  • Use manual focus ring to bring sample into sharp view from 1 mm to infinity
  • Switch between single curing and 4-split curing modes for visual comparison
  • Capture still images or record video using the snapshot button

FAQ

What systems does the M30 support?
Windows, iOS, Android, and tablets via the Mrkf/mrkv application software.
Can I use it without a battery?
No. The device requires the built-in 1200 mAh battery for operation; it is not designed for continuous AC power use.
What is the maximum magnification?
300x optical magnification with the lens; digital zoom extends up to 5x, totaling 1500x.
How long does the battery last?
Battery life depends on usage; typical operation ranges from 2 to 4 hours under continuous video transmission.
Is the image sensor replaceable?
No. The 3 million pixel image sensor is integrated and not user-replaceable.
