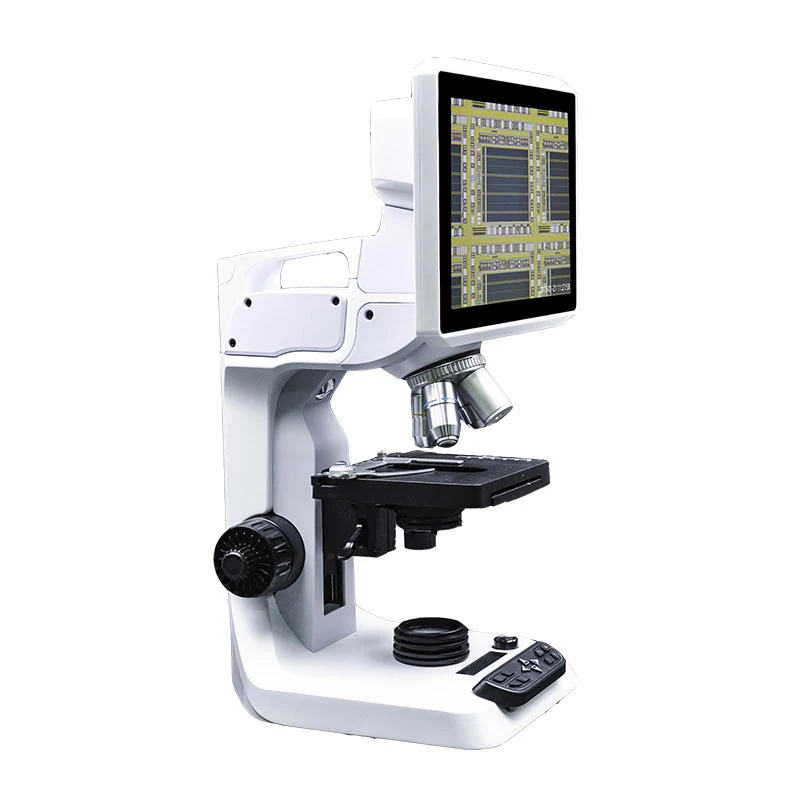

M200 5M 8M 16M Digital Metallurgical Biological Stereo Microscope
M200 5M 8M 16M Digital Metallurgical Biological Stereo Microscope
M200 5M 8M 16M Digital Metallurgical Biological Stereo Microscope

M200 5M 8M 16M Digital Metallurgical Biological Stereo Microscope

M200 series digital metallurgical biological stereo microscopes from Nanjing AMADA Instrument offer integrated HD imaging, multi-source illumination, and built-in data storage for real-time observation and measurement across biological, metallurgical, and macro specimen inspection. The series supports 5M, 8M, and 16M photo resolution models with 10.1-inch HD LCD screens, USB and Ethernet connectivity, and optional Wi-Fi for data transfer and remote operation.

  • Integrated HD digital imaging with 5M to 16M effective pixels and 1080p/30fps video output
  • Multi-source illumination (bottom, side, coaxial LED) for diverse specimen types including metals, slides, insects, and leaves
  • Built-in 8G storage and USB interface for direct U disk data transfer without external devices
  • On-screen measurement with crosshair positioning, scale calibration, and arrow pointer tools
  • Coaxial coarse and fine focus system with mechanical double-layer stage for stable specimen handling
Request A Quote +86-15195807515

Technical features

  • Model M205: 5M photo resolution, 3-hole nosepiece, infinity 4X/10X/40X biological objectives
  • Model M208: 8M photo resolution, 4-hole nosepiece, infinity 4X/10X/20X/40X biological objectives
  • Model M216: 16M photo resolution, 5-hole nosepiece, infinity 4X/10X/20X/40X/80X biological objectives
  • Optical magnification range: 40X – 400X (M205/M208), 40X – 800X (M216)
  • 10.1-inch HD LCD screen with 1920×1200 resolution, touch-enabled display
  • Built-in 8G storage, USB 1.0 interface for U disk data transfer
  • USB 2.0 interface for connecting to computers, laptops, or electronic displays
  • Ethernet and Wi-Fi (M216) for networked data output and remote access

Who it is for

  • Industrial quality control teams in electronics and metal manufacturing
  • Research labs requiring digital documentation and measurement of biological or material samples
  • Educational institutions setting up digital microscopy stations with minimal setup
  • Distributors sourcing all-in-one digital microscopes with built-in software and storage

Specifications

ModelsM205 / M208 / M216
Photo Resolution5M / 8M / 16M
LCD Screen Size10.1 inches
LCD Resolution1920×1200
Video Output1080p/30fps
Built-in Storage8G
Data Output InterfacesEthernet / USB / Wi-Fi (M216)
Nosepiece Holes3 / 4 / 5
Biological ObjectivesInfinity 4X/10X/40X (M205), 4X/10X/20X/40X (M208), 4X/10X/20X/40X/80X (M216)
Optical Magnification40X – 400X (M205/M208), 40X – 800X (M216)
Focusing SystemCoaxial coarse and fine focus
Stage TypeDouble-layer mechanical stage
CondenserPlug-in condenser
Light SourceLED (bottom, side, coaxial)
Input Voltage19V DC
Coordinate ColorsBlack / White / Red / Blue / Green

Use guide

  • Select model by required photo resolution and number of objectives (M205: 3-hole, M208: 4-hole, M216: 5-hole)
  • Use 19V power supply or high-capacity lithium battery for mobile or field use
  • Insert U disk to enable automatic data transfer to external storage
  • Connect to computer via USB 2.0 for software-based image analysis and measurement

FAQ

What is the photo resolution for each model?
M205: 5M, M208: 8M, M216: 16M
Can I transfer data directly to a U disk?
Yes. Insert a U disk into the USB 1.0 port; data is stored on the U disk preferentially.
Does the microscope support Wi-Fi?
Only the M216 model includes Wi-Fi connectivity.
What types of specimens can I observe?
Biological slides, metallographic samples, insects, leaves, and other macroscopic objects using bottom, side, or coaxial LED illumination.
How do I calibrate measurements?
Use the built-in software with scale calibration tool and crosshair positioning for accurate measurement.
What is the input voltage?
19V DC. Use a compatible 19V power adapter.
Can I use the microscope without a computer?
Yes. The built-in LCD screen, storage, and software allow full operation without a computer.
