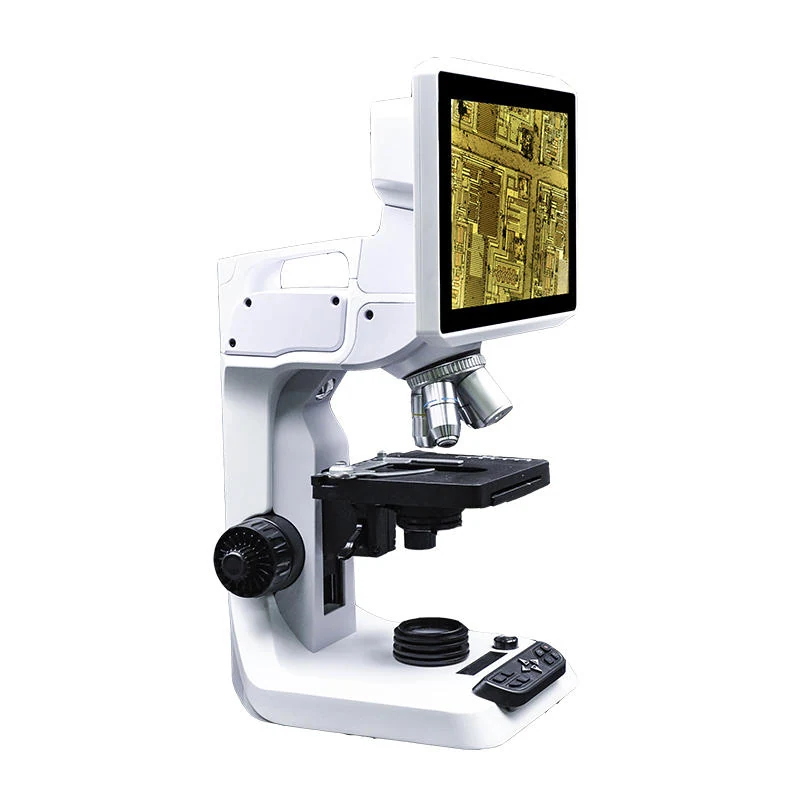

M100 5M 8M 16M Digital Metallurgical Biological Stereo Microscope
M100 5M 8M 16M Digital Metallurgical Biological Stereo Microscope
M100 5M 8M 16M Digital Metallurgical Biological Stereo Microscope

M100 5M 8M 16M Digital Metallurgical Biological Stereo Microscope

M100, M108, and M116 are digital metallurgical, biological, and stereo microscopes from Nanjing AMADA Instrument Co., Ltd. designed for multi-purpose inspection in electronics, materials science, and life sciences. The series features built-in HD imaging with 5M, 8M, and 16M effective pixels, coaxial coarse and fine focus, double-layer mechanical stage, and multiple illumination sources including bottom, side, and coaxial LED lighting. Integrated HDMI output and TF card storage support real-time teaching, documentation, and data transfer.

  • Single instrument supports biological, metallurgical, and stereo observation with interchangeable objectives
  • Built-in HD imaging module with 5M to 16M effective pixels and 1080p/30fps video recording
  • Coaxial coarse and fine focus system for smooth and precise focusing across magnifications
  • Double-layer mechanical stage with plug-in condenser for stable sample positioning
  • HDMI output and TF card storage enable real-time teaching, demonstration, and offline data access
  • Portable handle ensures safe lifting and transport without risk of damage
Request A Quote +86-15195807515

Technical features

  • Model M105: 5M photo resolution, 720p/30fps video, 3-hole nosepiece, 4X/10X/20X biological objectives
  • Model M108: 8M photo resolution, 1080p/30fps video, 4-hole nosepiece, 4X/10X/20X/40X biological objectives
  • Model M116: 16M photo resolution, 1080p/30fps video, 5-hole nosepiece, 4X/10X/20X/40X/80X biological objectives
  • Optical magnification range: 40X – 400X (M105/M108), 40X – 800X (M116)
  • LCD screen: 10.1 inches, HD resolution 1920×1200
  • Coaxial coarse and fine focus system with handwheel
  • Double-layer mechanical stage with plug-in condenser
  • Illumination: bottom, side, and coaxial LED lighting with multiple color options

Who it is for

  • Electronics manufacturers and quality control labs requiring multi-mode inspection
  • Research labs in materials science and biology needing portable digital microscopes
  • Educational institutions and training centers for hands-on microscopy instruction
  • Field technicians performing on-site component or material analysis

Specifications

ModelsM105 / M108 / M116
LCD Screen Size10.1 inches
LCD Resolution1920×1200
Photo Resolution5M (M105) / 8M (M108) / 16M (M116)
Video Resolution720p/30fps (M105) / 1080p/30fps (M108/M116)
Nosepiece Holes3 (M105) / 4 (M108) / 5 (M116)
Biological Objectives4X/10X/20X (M105) / 4X/10X/20X/40X (M108) / 4X/10X/20X/40X/80X (M116)
Optical Magnification40X – 400X (M105/M108) / 40X – 800X (M116)
Focusing SystemCoaxial coarse and fine focus
Stage TypeDouble-layer mechanical stage with plug-in condenser
IlluminationBottom, side, and coaxial LED lighting
Color OptionsBlack / White / Red / Blue / Green
Input Voltage19V
HDMI OutputBuilt-in
TF Card StorageYes, rear slot
Measurement SoftwareCrosshair positioning, scale calibration, arrow pointer

Use guide

  • Select model based on required magnification range and image resolution
  • Use 4X–20X objectives for general biological and stereo inspection
  • Use 40X–80X objectives for detailed metallurgical or cellular analysis
  • Enable HDMI output to connect to projector or monitor for live demonstration
  • Insert TF card into rear slot for offline image and video storage

FAQ

What is the maximum magnification available?
40X – 400X on M105 and M108; 40X – 800X on M116.
Can I record video and take photos without a computer?
Yes. The built-in HD module supports instant capture via the Operational Key Panel and stores files on TF card.
What is the resolution of the LCD screen?
1920×1200 HD resolution on all models.
Is the microscope portable?
Yes. A built-in handle ensures safe lifting and transport without risk of damage.
Can I connect this to a projector?
Yes. The HDMI output allows direct connection to monitors, projectors, or displays for real-time teaching.
What accessories are available?
Optional accessories include an aluminum alloy case and high-capacity lithium battery.
