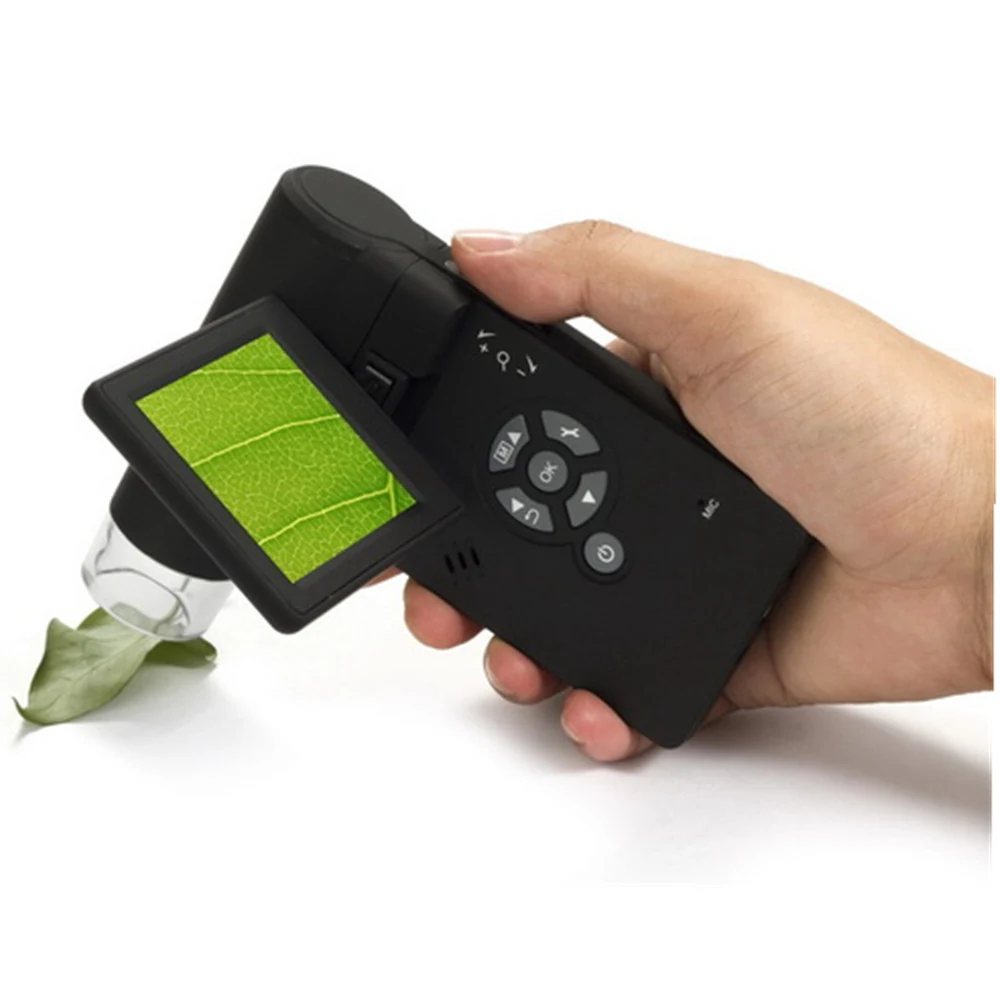

M09 5M LCD Digital Microscope 3 Inches TFT Panel 8 LED

M09 5M LCD Digital Microscope 3 Inches TFT Panel 8 LED

M09 is a portable LCD digital microscope with a 3-inch TFT panel, 5M image sensor, and 8 LED illumination for inspection tasks in electronics, quality control, and field diagnostics. It supports magnifications from 10x to 300x (up to 1200x with software), offers multiple resolution outputs, and operates on a 3.7V Li-ion battery with 3.5–4 hours of working time. The unit includes an HDMI output and supports OSD and software languages for international use.

  • Integrated 3-inch TFT display with 4:3 ratio for real-time visual inspection without external monitors
  • 5M image sensor with selectable resolutions up to 12M for detailed image capture
  • 8 LED lights with adjustable brightness for consistent illumination in variable environments
  • Portable design with 300g weight and 3.5–4 hour battery life for on-site or mobile use
  • HDMI output enables live display on larger screens or recording via external devices
Request A Quote +86-15195807515

Technical features

  • Image sensor: 5M high quality image sensor with support for 12M, 8M, 5M, 3M resolutions
  • Magnification range: 10x–300x (up to 1200x with software enhancement)
  • Display: 3-inch TFT panel, 4:3 aspect ratio, built-in
  • LED illumination: 8 LEDs with adjustable brightness
  • Power: 3.7V Li-ion 800mAh battery, 3.5–4 hours working time, 5 hours charging time
  • Input voltage: 100–240V, 50/60Hz; Output: 5V, 1A via adaptor
  • Frame rate: 30fps
  • OSD languages: English, Germany, French, Spanish, Italian, Portuguese, Japanese, Chinese

Who it is for

  • Procurement engineers sourcing portable inspection tools for electronics production
  • Field service teams requiring compact, self-contained digital microscopes
  • Distributors building a line of handheld digital microscopes for industrial buyers
  • Lab managers needing low-cost, battery-powered inspection devices

Specifications

ModelM09
Image Sensor5M high quality
Magnification10x–300x (up to 1200x with software)
Resolution Options12M, 8M, 5M, 3M
Display3-inch TFT, 4:3 ratio
LED Light Sources8 with adjustable brightness
Battery3.7V Li-ion, 800mAh
Working Time3.5–4 hours
Charging Time5 hours
Frame Rate30fps
Input Voltage100–240V, 50/60Hz
Output Voltage5V, 1A
OSD LanguagesEnglish, Germany, French, Spanish, Italian, Portuguese, Japanese, Chinese
Software LanguagesEnglish, Germany, French, Spanish
MeasurementBy software
Size130 x 103 x 29 mm
Weight300g
Output InterfaceHDMI

Use guide

  • Use the built-in display for immediate inspection without connecting to a computer
  • Adjust LED brightness based on specimen reflectivity and ambient light
  • Select resolution mode based on required image detail and storage needs
  • Connect via HDMI to a monitor or recorder for documentation or team review
  • Charge fully before first use and monitor battery level during extended sessions

FAQ

Does it have a built-in screen?
Yes, it features a 3-inch TFT panel with 4:3 aspect ratio.
How long does the battery last?
3.5 to 4 hours of continuous use on a full charge.
Can I connect it to a monitor?
Yes, it has an HDMI output for connection to external displays or recorders.
What languages are supported?
OSD: English, Germany, French, Spanish, Italian, Portuguese, Japanese, Chinese; Software: English, Germany, French, Spanish.
Is there internal storage?
No, images are displayed in real time and must be recorded via HDMI or software.
