0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Leica Microscope
0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Leica Microscope
0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Leica Microscope
0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Leica Microscope
0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Leica Microscope

0.35X 0.5X 0.63X 0.8X 1X 1.2X Adapter Compatiable for Leica Microscope

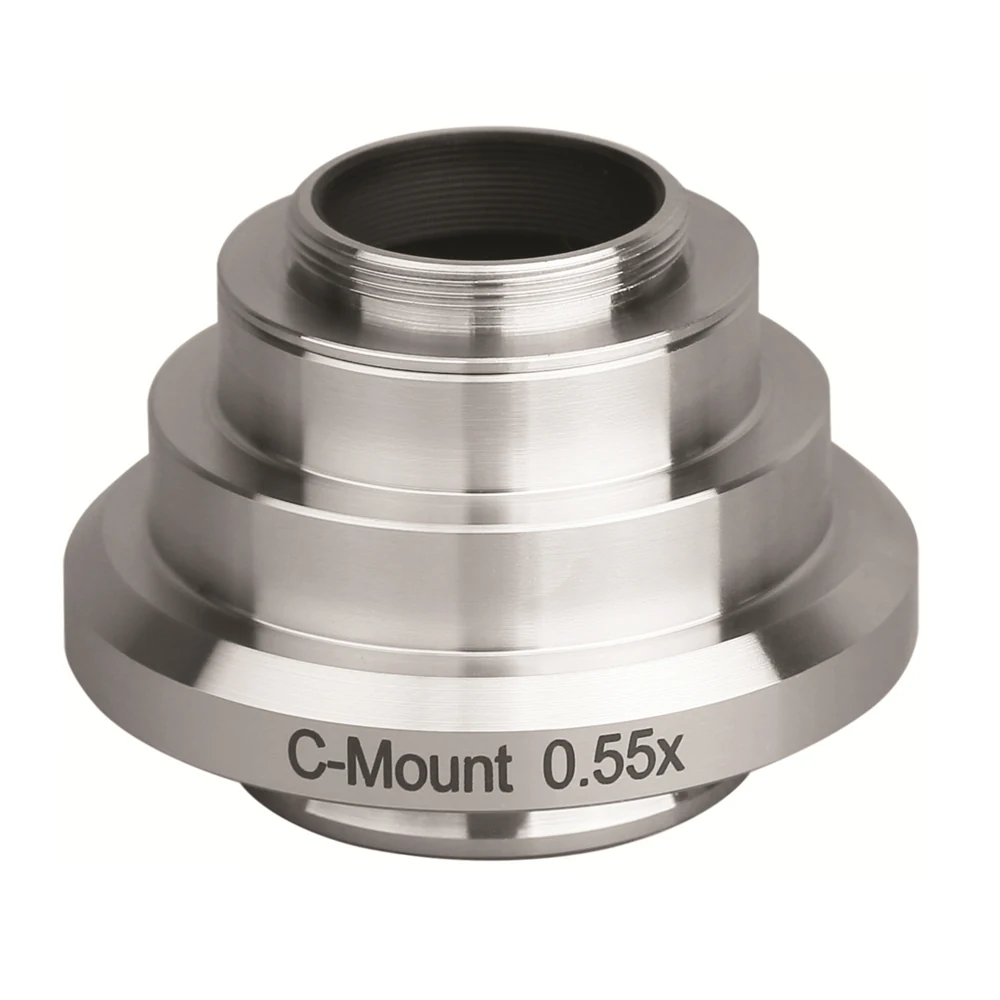

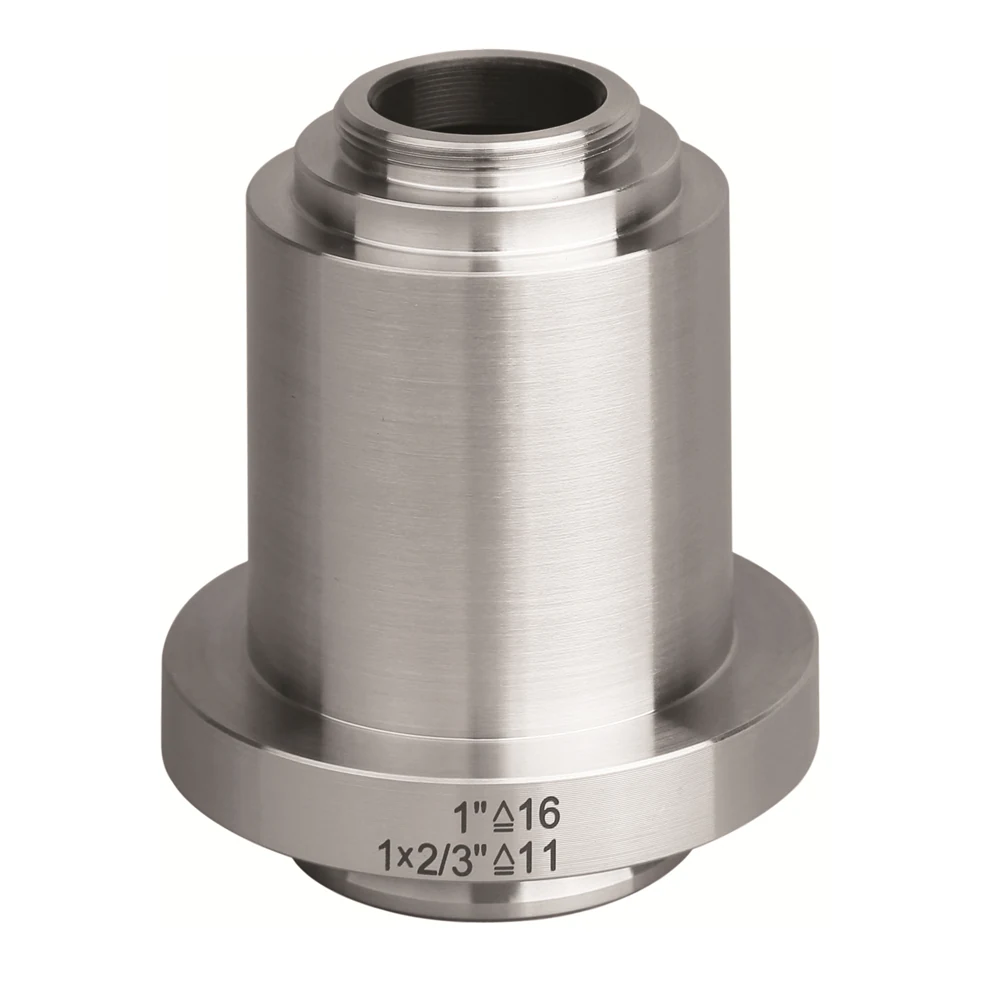

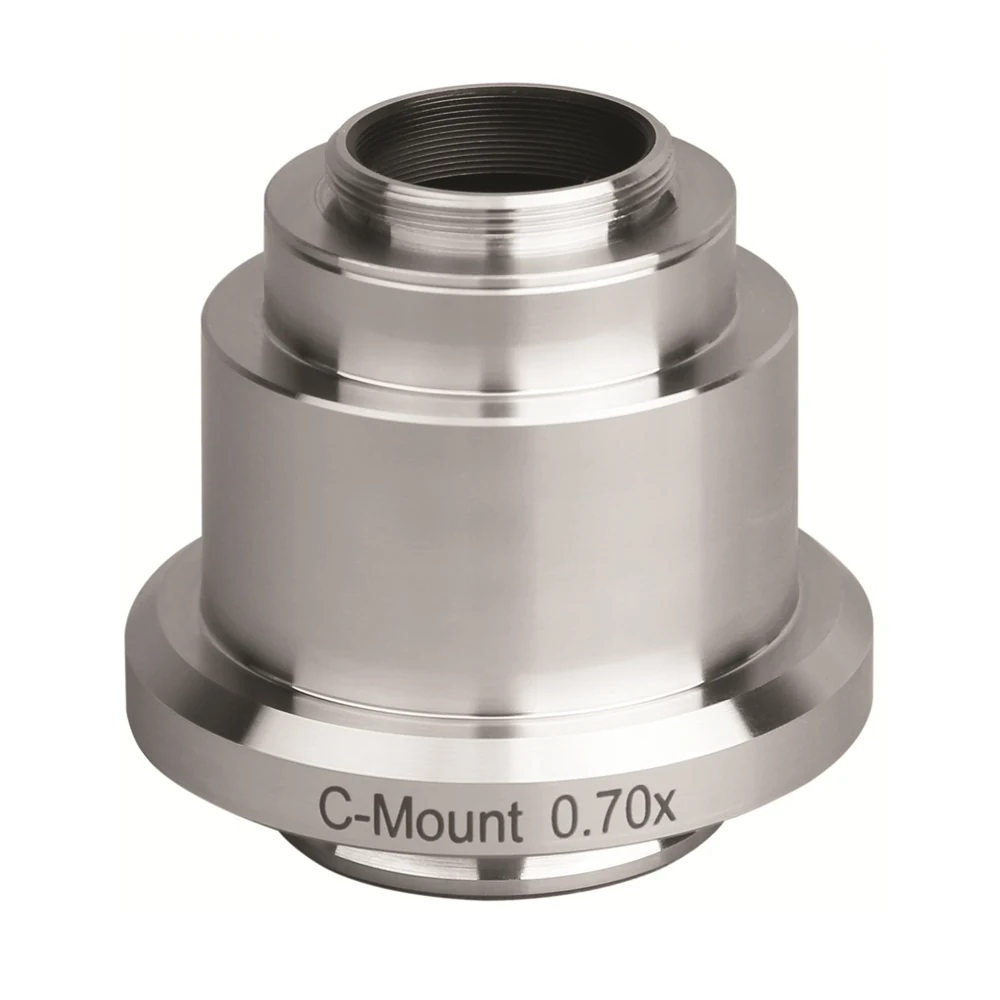

0.35X, 0.5X, 0.63X, 0.8X, 1X, 1.2X adapters are compatible with Leica microscopes for connecting cameras to the phototube. Designed for Leica DM series biological and industrial microscopes, these adapters support C-mount, T2-mount, and M52-mount cameras with sensor sizes from 1/5” to 2.7”. The series includes magnification options from 0.35X to 2.25X and is used to match camera sensor size and optical path requirements.

  • Direct compatibility with Leica DM series biological and industrial microscopes
  • Multiple magnification options (0.35X to 2.25X) to match camera sensor size and field of view
  • Supports C-mount, T2-mount, and M52-mount camera interfaces
  • Enables camera integration without modifying the microscope’s optical path
  • Adjustable magnification reduces image distortion and ensures sensor coverage
Request A Quote +86-15195807515

Technical features

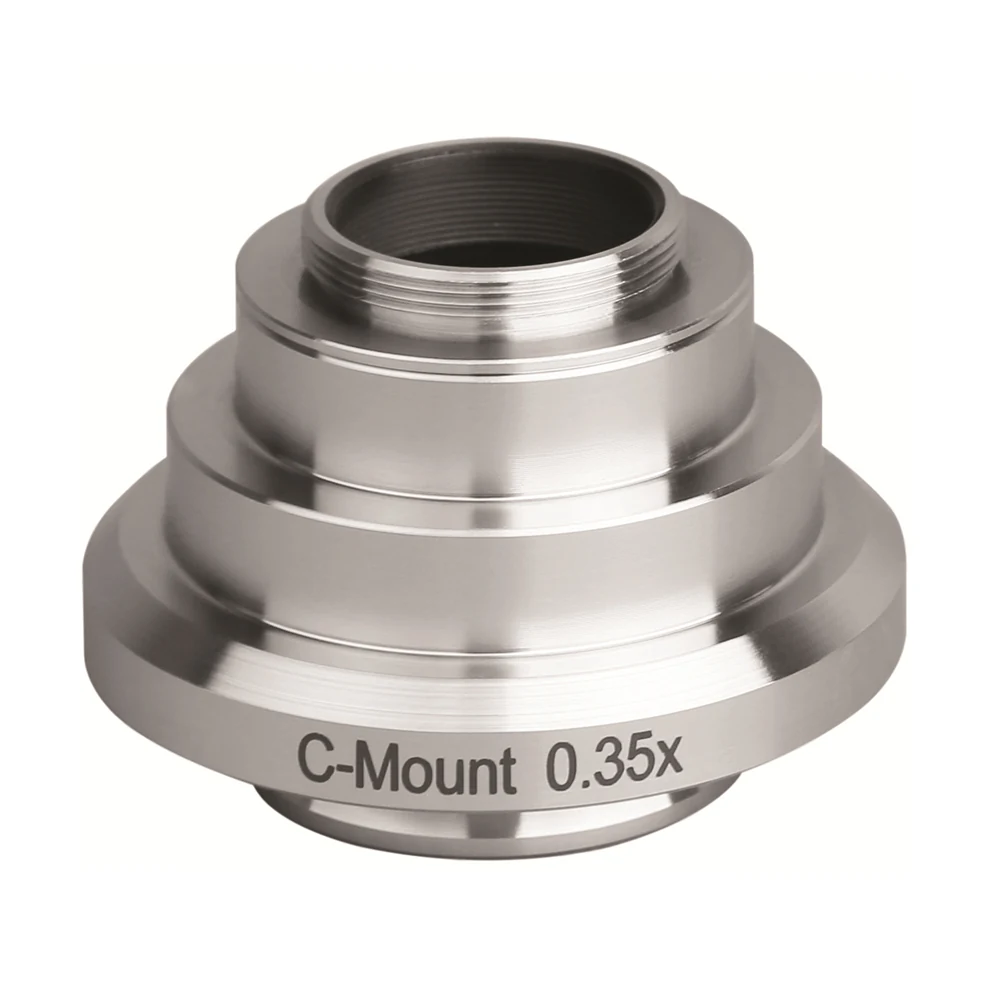

  • 0.35X adapter: magnification 0.35X, supports 1/3”, 1/4”, 1/5” sensors, C-mount
  • 0.5X adapter: magnification 0.5X, supports 1/2”, 1/1.8”, 1/2.5” sensors, C-mount
  • 0.63X adapter: magnification 0.63X, supports 1/2”, 1/1.8”, 1/2.5” sensors, C-mount
  • 0.8X adapter: magnification 0.8X, supports 1”, 2/3” sensors, C-mount
  • 1X adapter: magnification 1.0X, supports 1”, 2/3” sensors, C-mount
  • 1.2X adapter: magnification 1.2X, supports 4/3”, 1” sensors, T2-mount
  • Compatible with Leica DM series biological and industrial microscopes
  • Mount types: C-mount, T2-mount, M52-mount

Who it is for

  • Laboratories using Leica DM series microscopes requiring camera integration
  • Manufacturers setting up automated inspection lines with digital imaging
  • Distributors supplying camera-compatible accessories for Leica microscope users

Specifications

Models0.35X / 0.5X / 0.63X / 0.8X / 1X / 1.2X
Magnification Range0.35X to 2.25X
Mount TypesC-mount / T2-mount / M52-mount
Supported Sensors1/5” to 2.7”
Compatible MicroscopesLeica DM series biological and industrial microscopes

Use guide

  • Identify the camera sensor size and mount type (C, T2, M52)
  • Match the sensor size to the appropriate adapter magnification
  • Confirm the microscope is a Leica DM series model
  • Select the correct adapter from the list based on sensor and mount

FAQ

Which Leica microscopes are compatible?
Leica DM series biological and industrial microscopes.
What camera sensors are supported?
Sensors from 1/5” to 2.7” including 1/3”, 1/4”, 1/5”, 1/2”, 1/1.8”, 1/2.5”, 2/3”, 4/3”, 1”, 1.8”, 2.7”.
What mount types are available?
C-mount, T2-mount, and M52-mount options are supported.
How do I choose the right magnification?
Match the adapter magnification to your camera sensor size and desired field of view; specify your sensor size for correct selection.
Can I use this with non-Leica microscopes?
Designed specifically for Leica DM series microscopes; not guaranteed for other brands.
