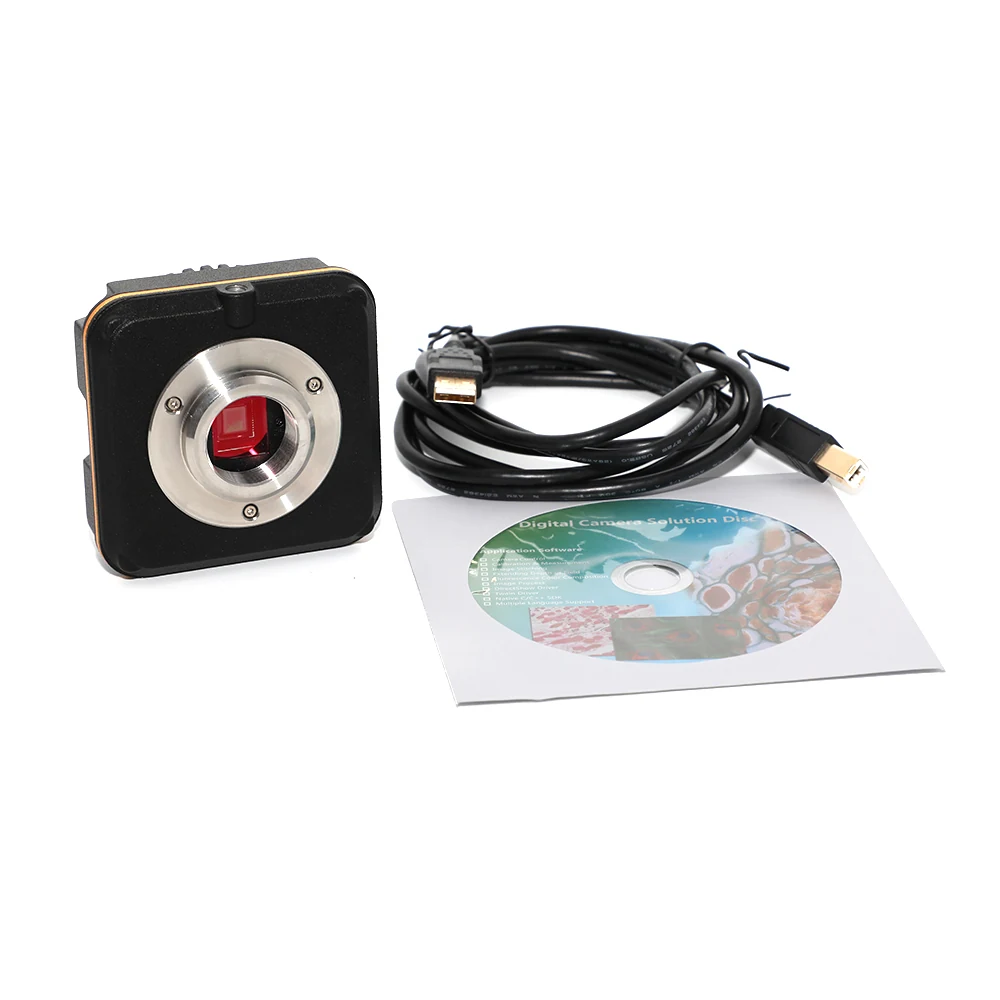

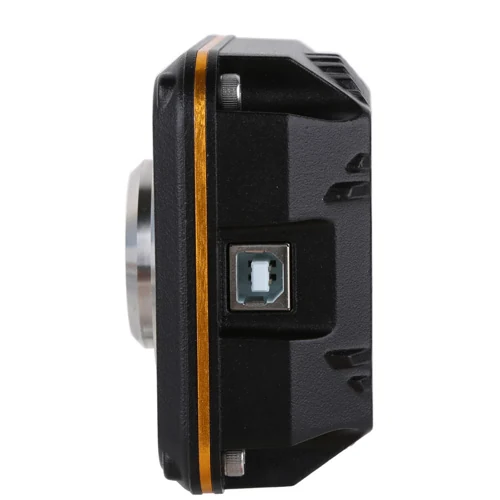

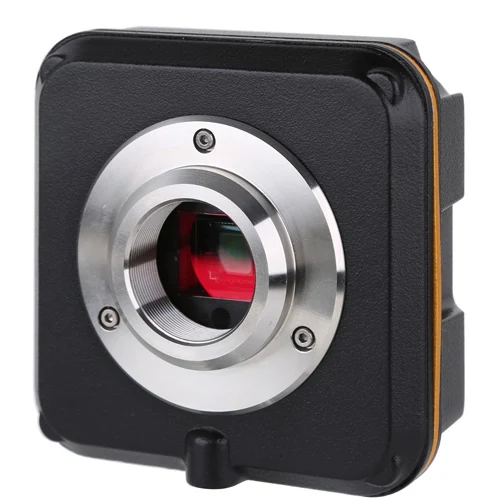

LCMOS USB2.0 Stereo Biological C-mount Microscope Camera
LCMOS USB2.0 Stereo Biological C-mount Microscope Camera
LCMOS USB2.0 Stereo Biological C-mount Microscope Camera
LCMOS USB2.0 Stereo Biological C-mount Microscope Camera
LCMOS USB2.0 Stereo Biological C-mount Microscope Camera

LCMOS USB2.0 Stereo Biological C-mount Microscope Camera

LCMOS USB2.0 Stereo Biological C-mount Microscope Cameras from Nanjing AMADA Instrument provide image capture for biological research, clinical applications, and other imaging tasks. Available in resolutions from 1.3MP to 14MP, these cameras offer various pixel sizes, dynamic range up to 85.3dB, and compatibility with Windows, Linux, macOS, and Android operating systems.

  • Multiple resolutions (1.3MP to 14MP) to match image detail requirements
  • USB 2.0 interface for broad compatibility with PCs and laptops
  • SDK available for Windows, Linux, macOS, and Android platforms
Request A Quote +86-15195807515

Technical features

  • Sensor sizes range from 1/3” to 1/2.3”
  • Pixel sizes from 1.67μm to 3.75μm
  • Dynamic range up to 85.3dB
  • Frame rates up to 30 FPS at 1280x960 resolution
  • Spectral range 380-650nm (with IR-cut filter)
  • White balance: ROI, Manual Temp, Tint Adjustment
  • Exposure time: 0.14ms to 2000ms
  • Power supply: DC 5V via USB

Who it is for

  • Researchers needing digital image capture for microscopy
  • Clinical labs requiring image documentation for analysis
  • Manufacturers integrating cameras into inspection systems
  • Distributors of microscopy equipment

Specifications

SensorMT9M111, AR0130, MT9T001, IMX036, MT9P001, MT9J003, MT9F002, LP614000A, LP609000B, LP608000B, LP605100A, LP603100A, LP602000B, LP601300A, LP601200B
Resolution1.3MP, 2.0MP, 3.1MP, 5.1MP, 8MP, 9MP, 10MP, 14MP
Pixel Size1.67μm, 2.2μm, 2.5μm, 3.2μm, 3.6μm, 3.75μm
Dynamic Range61dB, 65.2dB, 65.3dB, 66.5dB, 68.2dB, 85.3dB
InterfaceUSB 2.0
Spectral Range380-650nm
Operating Temperature-10~ 50°C
Operating Humidity30~80%RH
Power SupplyDC 5V
Software SupportWindows, Linux, macOS, Android

Use guide

  • Select the camera resolution based on the required image detail

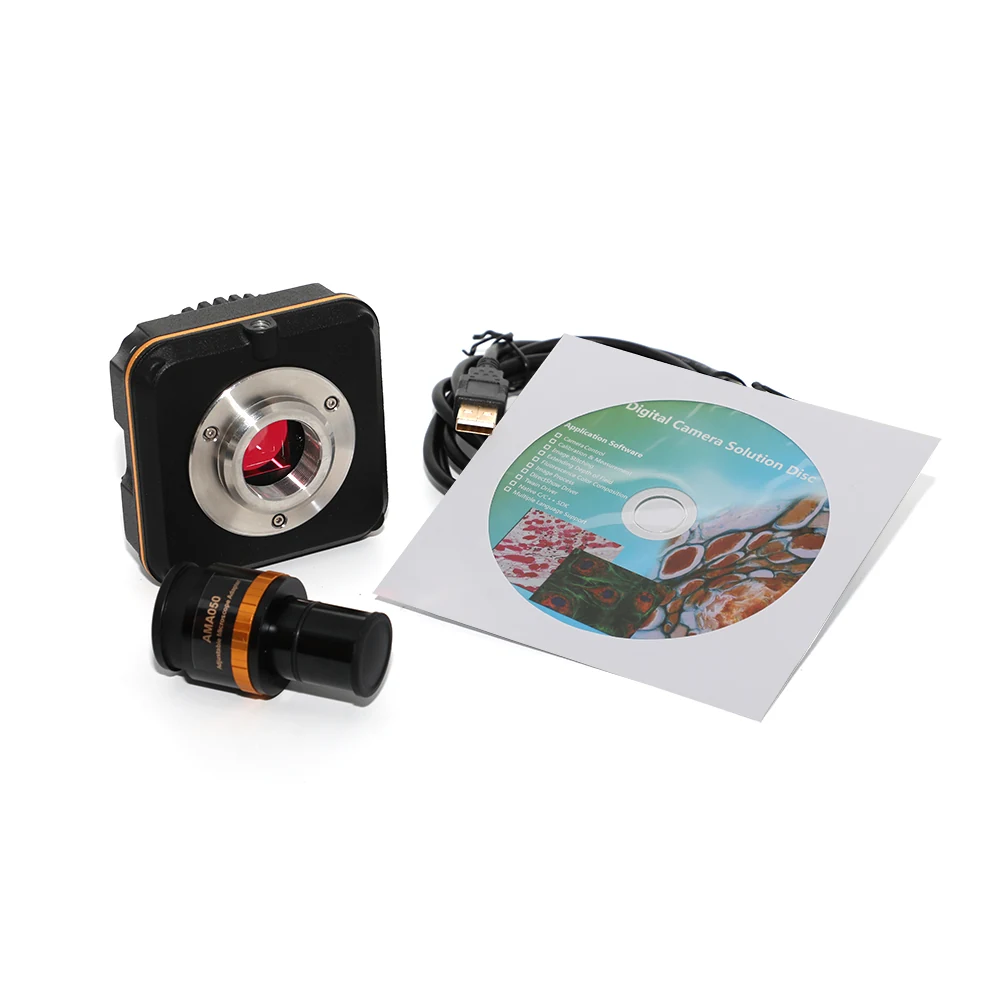

  • Confirm compatibility with the microscope C-mount adapter
  • Install the appropriate SDK for the target operating system

FAQ

What operating systems are supported?
Windows, Linux, macOS, and Android.
What is the frame rate at 1280x960?
Up to 30 FPS depending on the sensor.
What is the sensor size?
Sensor sizes range from 1/3” to 1/2.3” depending on the model.
What is the power supply requirement?
DC 5V via USB.
Is an SDK available?
Yes, an SDK is available for Windows, Linux, macOS, and Android.
What is the warranty period?
Contact [email protected] for warranty details.
What is the spectral range?
380-650nm (with IR-cut filter).
