LCD600 Digital LCD Biological Microscope for Lab School Teaching
LCD600 Digital LCD Biological Microscope for Lab School Teaching
LCD600 Digital LCD Biological Microscope for Lab School Teaching
LCD600 Digital LCD Biological Microscope for Lab School Teaching
LCD600 Digital LCD Biological Microscope for Lab School Teaching
LCD600 Digital LCD Biological Microscope for Lab School Teaching

LCD600 Digital LCD Biological Microscope for Lab School Teaching

LCD600 is a digital biological microscope from Nanjing AMADA Instrument designed for lab and school teaching applications. It features a trinocular articulated head with an 8-inch color LCD display, 45mm DIN achromatic objectives (4X, 10X, 40X(S), 100X(S,Oil)), Kohler illumination, and a double mechanical stage with 0.1mm precision. The system supports optional phase contrast, darkfield, and polarizing accessories.

  • Integrated 8-inch color LCD display enables real-time viewing without eyepieces
  • Articulated trinocular head with 30° inclination and 50–75 mm interpupillary adjustment for ergonomic use
  • Double mechanical stage with steel wire transmission and 0.1 mm precision for accurate slide positioning
  • Kohler illumination system ensures even, glare-free lighting across all magnifications
  • Optional accessories (phase contrast, darkfield, polarizing) expand functionality for teaching and demonstration
Request A Quote +86-15195807515

Technical features

  • Articulated free trinocular head, 30° inclined, interpupillary distance 50–75 mm
  • High eyepoint eyepiece PL10X/23 mm with diopter adjustment ±5
  • 45mm DIN achromatic objectives: 4X, 10X, 40X(S), 100X(S,Oil)
  • Backward quintuple or quadruple objective nosepiece

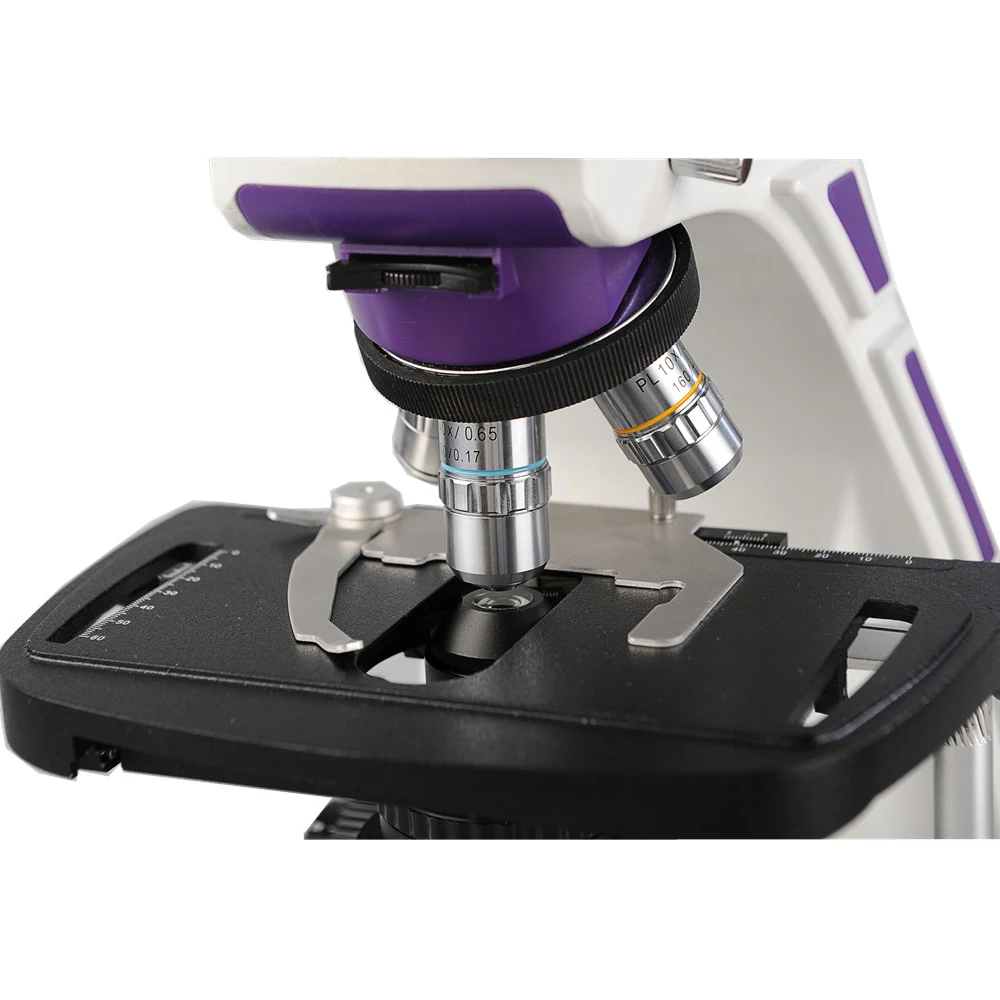

  • 220X148 mm X-axis low hand position double mechanical stage with steel wire transmission
  • 76X50 mm slide area, precision 0.1 mm, damped double slide clamp
  • Abbe condenser set with adjustable aperture

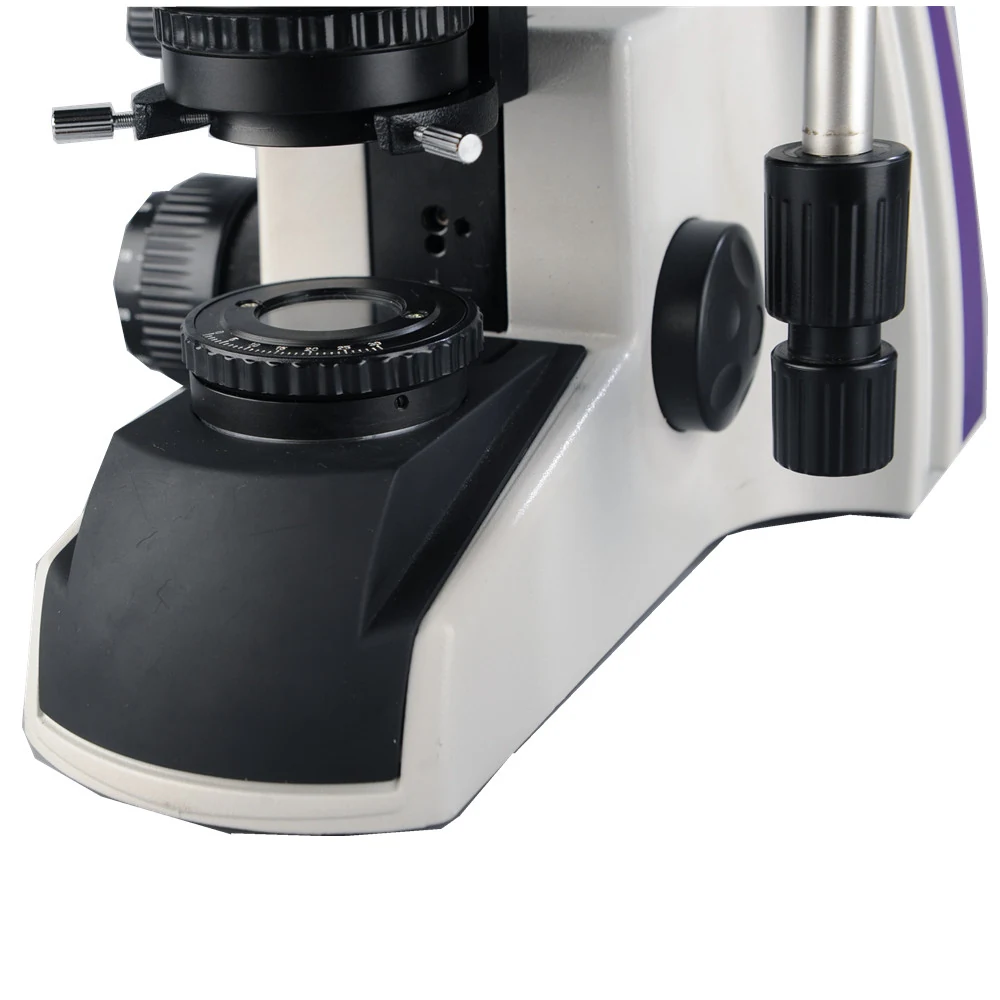

  • Coaxial coarse and fine focus knobs with 0.002 mm precision

Who it is for

  • Educational institutions (secondary and tertiary) for biology and life sciences teaching
  • Lab technicians in training programs needing consistent, shared visual access
  • Schools and universities specifying digital microscopes for curriculum-based lab work
  • Instructors requiring real-time projection of specimens for group instruction

Specifications

ModelLCD600
Display8-inch color LCD
EyepiecePL10X/23 mm, high eyepoint, diopter ±5
Objective Lenses4X, 10X, 40X(S), 100X(S,Oil) — DIN achromatic
NosepieceBackward quintuple or quadruple
Stage Size220X148 mm
Mechanical StageDouble, X-axis low hand position, steel wire transmission
Slide Area76X50 mm
Slide Precision0.1 mm
CondenserAbbe condenser set
Focusing SystemCoaxial coarse and fine focus, 0.002 mm precision
Illumination3W LED with Kohler illumination
Net Weight8 kg
Carton Dimension36X31X67 cm

Use guide

  • Select the objective nosepiece configuration (quintuple or quadruple) based on required lens count
  • Use the 100X(S,Oil) objective with immersion oil for maximum resolution in teaching demonstrations
  • Enable phase contrast or darkfield when observing transparent specimens like cells or microorganisms
  • Adjust the Abbe condenser aperture to match objective magnification for optimal contrast

FAQ

What is the display size and type?
8-inch color LCD display integrated into the trinocular head.
Can I use immersion oil with the 100X objective?
Yes, the 100X(S,Oil) objective supports immersion oil for high-resolution imaging.
Is the mechanical stage precise enough for lab work?
Yes, the double mechanical stage has 0.1 mm precision with damped slide clamps for stable positioning.
What optional accessories are available?

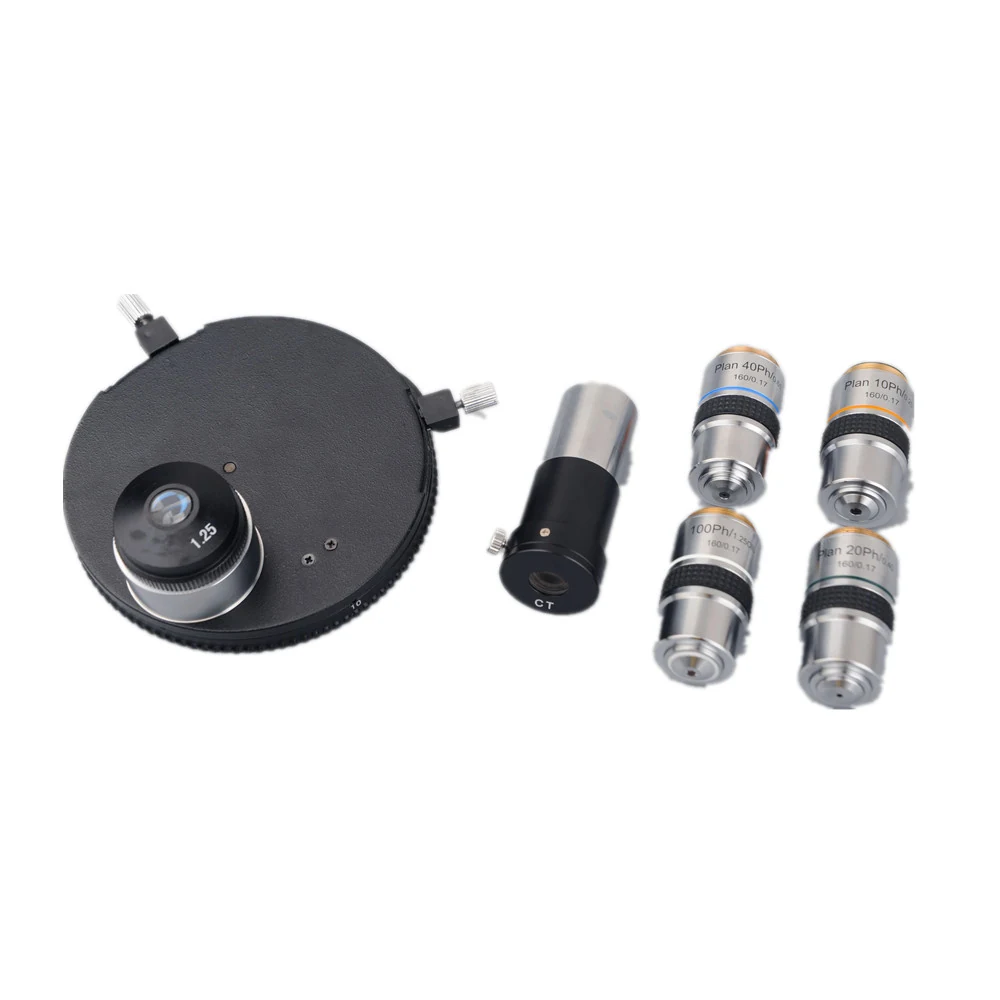

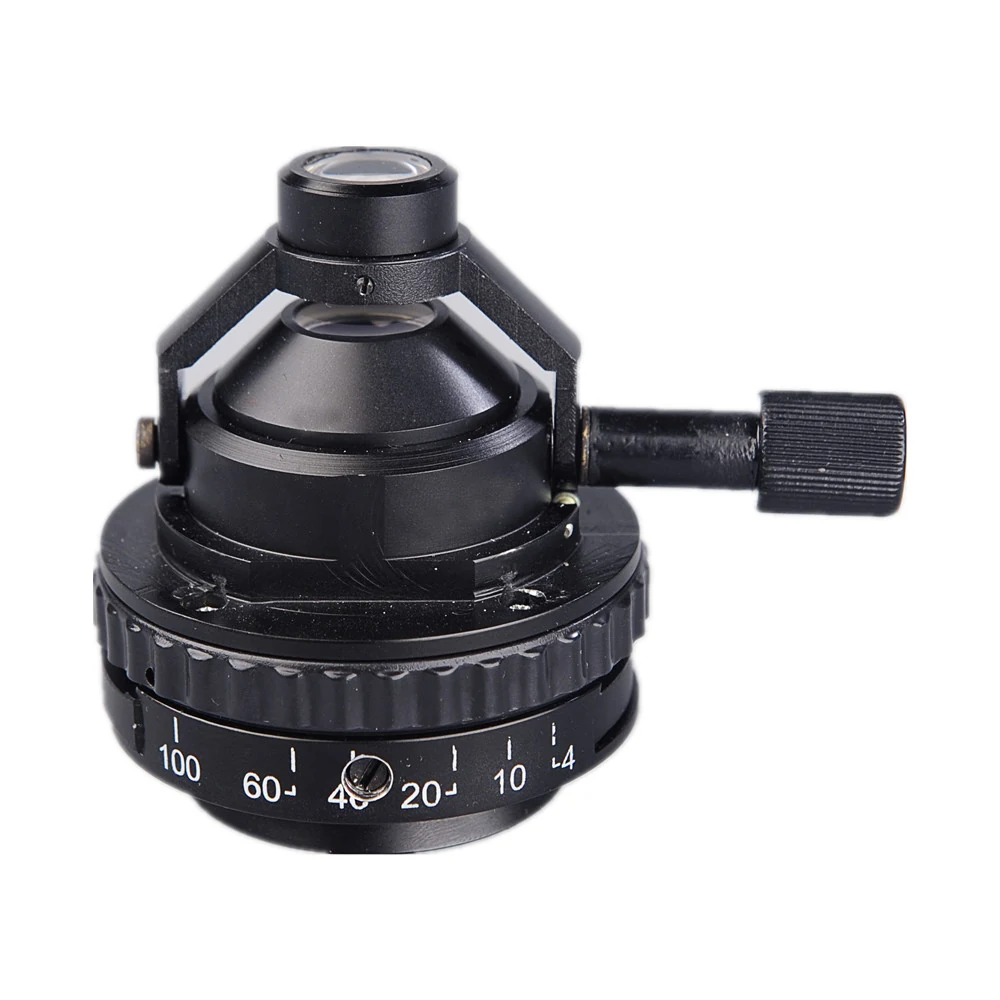

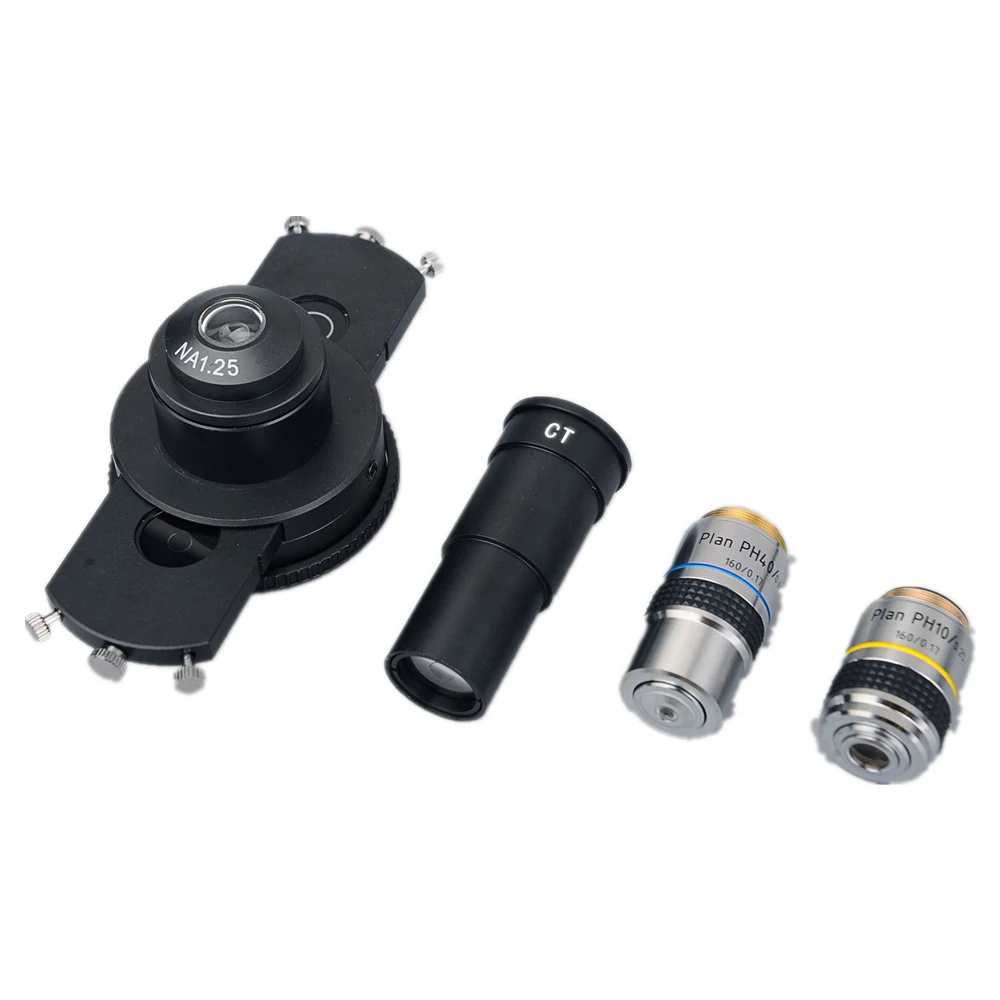

Phase contrast apparatus, dry and oil darkfield condensers, polarizing device, plan objective sets, infinity plan achromatic objectives, swing Abbe condenser, and 5W LED lamp.
What is the working distance for the 100X objective?
Not specified in the source text. Refer to the objective lens specifications for exact working distance.
