Home / Products / XP Series / XP300 Student Chidren Biological Microsc

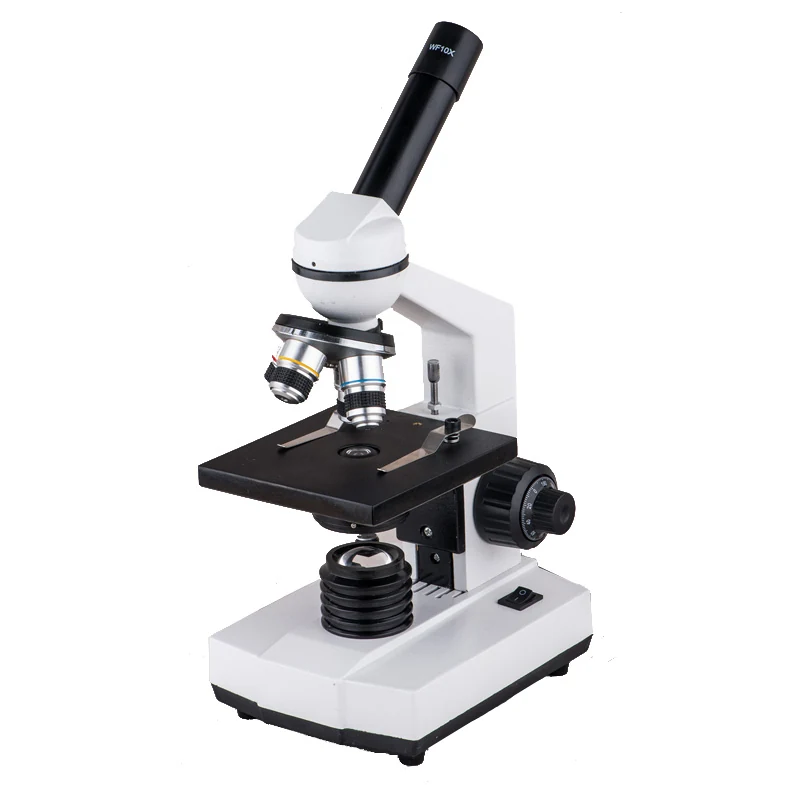

XP300 Student Chidren Biological Microscope for Laboratory Education

XP300 Student Chidren Biological Microscope for Laboratory Education

XP300 is a student and children's biological microscope from the XP Series by Nanjing AMADA Instrument Co., Ltd., designed for laboratory education in schools and training institutions. It features a monocular or dual viewing head with 30° inclined and 360° rotatable vertical tube, coaxial coarse and fine focusing, and a triple nosepiece with spring-mounted achromatic objectives (4X, 10X, 40X). Illumination includes a rotating disc diaphragm and optional LED lamp with AC input 110V/220V and DC output 6V.

  • Monocular or dual viewing head with 30° inclined and 360° rotatable vertical tube for flexible classroom use
  • Coaxial coarse and fine focusing with 20 mm focusing range for stable and precise adjustment
  • Spring-mounted achromatic objectives (4X, 10X, 40X) reduce lens damage during switching
  • Wide field eyepieces (WF10X standard, WF16X optional) improve field of view for beginners
  • Rotating disc diaphragm and optional LED lamp support adjustable illumination for various specimen types
Request A Quote +86-15195807515

Technical features

  • Model: XP301 (monocular), XP302 (dual viewing head)
  • Viewing head: Monocular or dual (30° inclined + vertical, 360° rotatable)
  • Eyepieces: WF10X standard, WF16X optional
  • Objectives: Achromatic, spring-mounted, 4X, 10X, 40X (triple nosepiece)
  • Stage: Plain stage with paired clips
  • Focusing: Coaxial coarse and fine adjustment, focusing range 20 mm
  • Illumination: Rotating disc diaphragm, optional LED lamp
  • Power: AC input 110V or 220V, DC output 6V

Who it is for

  • Schools and educational institutions purchasing microscopes for student use
  • Science teachers needing reliable, easy-to-use microscopes for demonstrations
  • Importers supplying educational equipment to developing markets
  • Training centers requiring cost-effective, robust microscopes for hands-on sessions

Specifications

ModelXP301 / XP302
Viewing HeadMonocular / Dual (30° inclined + vertical, 360° rotatable)
EyepieceWF10X (WF16X optional)
Objectives4X, 10X, 40X (spring-mounted, achromatic)
NosepieceTriple
StagePlain stage with paired clips
FocusingCoaxial coarse and fine adjustment, 20 mm range
IlluminationRotating disc diaphragm, optional LED lamp
Power InputAC 110V / 220V
DC Output6V (for LED lamp)

Use guide

  • Select XP301 for single-user, basic lab setups; XP302 for shared classroom use
  • Choose WF16X eyepiece if wider field of view is needed for specimen orientation
  • Enable LED lamp option when using in dimly lit rooms or for extended sessions
  • Set AC input to match local voltage (110V or 220V) to avoid damage

FAQ

What is the difference between XP301 and XP302?
XP301 is monocular; XP302 has a dual viewing head with one 30° inclined tube and one vertical tube, 360° rotatable.
Can I use a different eyepiece?
Yes. WF10X is standard; WF16X is available as an optional upgrade.
Is the LED lamp included?
No. The LED lamp is optional and must be specified during ordering.
What voltage does it support?
AC input 110V or 220V; DC output 6V for the optional LED lamp.
Are the objectives spring-mounted?
Yes. The 4X, 10X, and 40X objectives are spring-mounted to prevent damage during switching.
