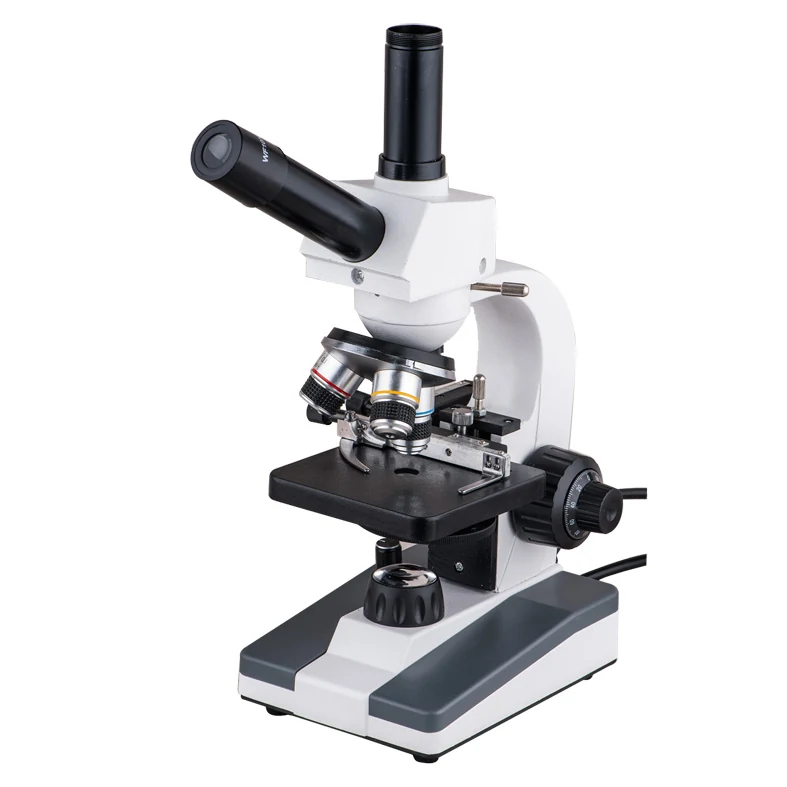

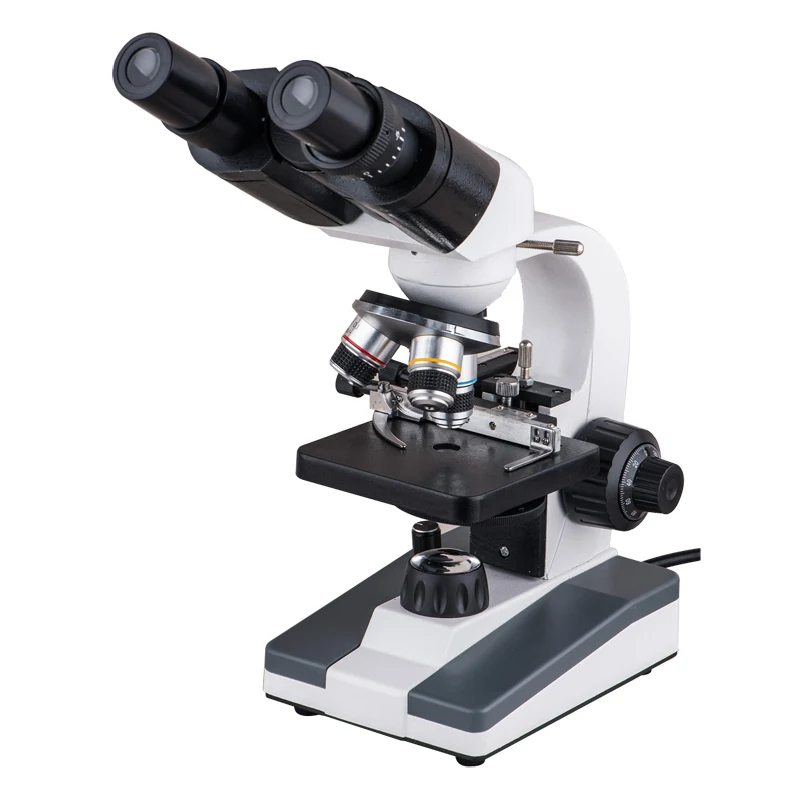

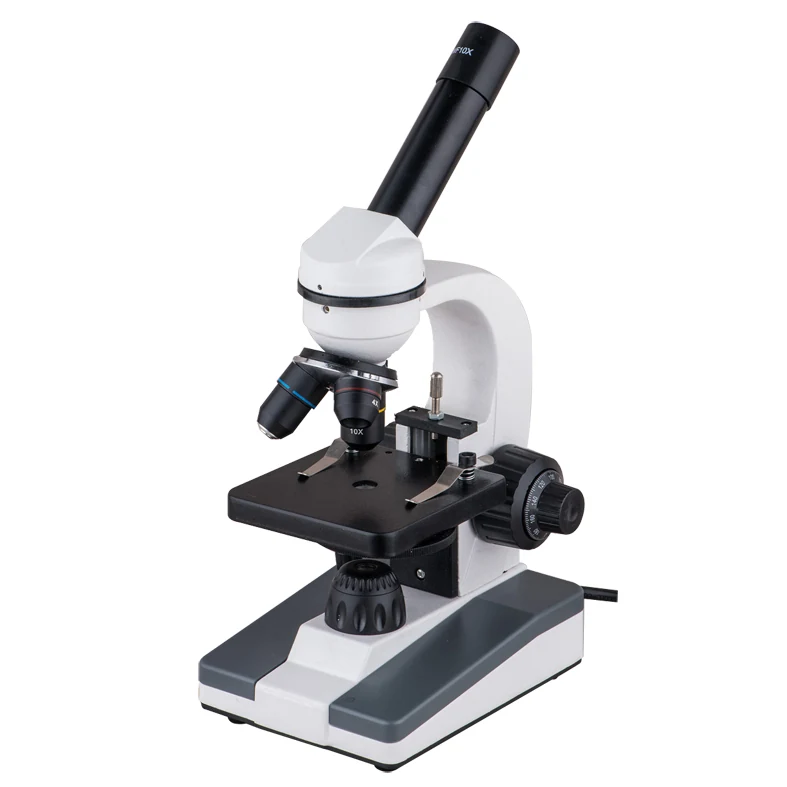

XP900 Student Chidren Biological Microscope for Clinical Observation
XP900 is a student and children's biological microscope from Nanjing AMADA Instrument for clinical observation, classroom teaching, and basic laboratory work. The series includes models XP901 to XP905 with achromatic objectives (4X, 10X, 40X spring-loaded), wide field eyepieces (WF10X standard, WF16X optional), monocular, binocular, trinocular, or dual viewing heads, and LED illumination with 220V AC input.
- Monocular, binocular, trinocular, or dual viewing head options to match educational or lab setup needs

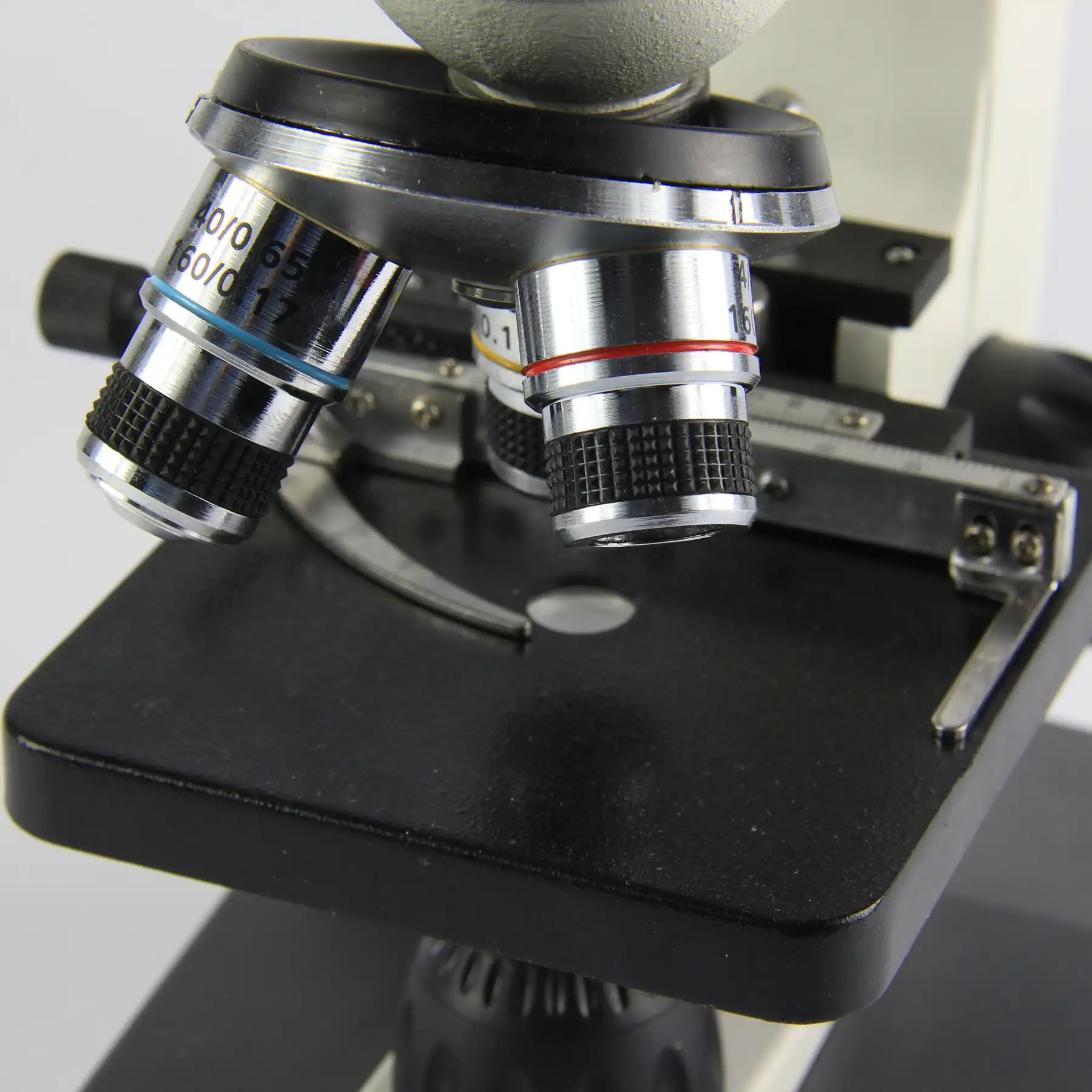

- Spring-loaded 4X, 10X, 40X achromatic objectives for safe specimen handling and consistent focus
- Wide field eyepieces (WF10X standard, WF16X optional) for larger field of view during observation
- LED illumination with 220V AC input for stable, low-heat operation in classrooms and labs
- Plain stage with moving scale (90mm x 90mm) for precise specimen positioning
Technical features
- Models: XP901, XP902, XP903, XP904, XP905
- Achromatic objectives: 4X, 10X, 40X (spring-loaded) standard on all models
- Eyepieces: WF10X standard; WF16X optional
- Viewing head options: monocular (45° inclined), binocular, trinocular, dual viewing head
- Stage: plain stage with moving scale, size 90mm x 90mm
- Condenser: N.A. 0.65 with disc diaphragm
- Focusing: coarse and fine adjustment
- Power supply: AC input 220V
Who it is for
- Schools and universities procuring microscopes for biology labs
- Educational institutions setting up science classrooms or training centers
- Importers sourcing student-grade microscopes for regional distribution
- Non-profits or NGOs supporting science education in developing regions
Specifications
| Models | XP901 / XP902 / XP903 / XP904 / XP905 |
|---|---|
| Objective Lenses | 4X, 10X, 40X (spring-loaded) |
| Eyepiece Type | WF10X (standard), WF16X (optional) |
| Viewing Head | Monocular (45°), Binocular, Trinocular, Dual Viewing Head |
| Stage Type | Plain stage with moving scale, 90mm x 90mm |
| Condenser NA | 0.65 |
| Focusing Mechanism | Coarse and fine adjustment |
| Power Input | AC 220V |
| Illumination | LED lamp |
Use guide
- Select model (XP901–XP905) based on required viewing head and eyepiece configuration
- Choose WF16X eyepiece if larger field of view is needed for student observation
- Select trinocular head if camera documentation is required for teaching or record-keeping
- Use spring-loaded objectives to prevent damage during student use
FAQ
What is the magnification range?
Total magnification ranges from 40X (4X objective + 10X eyepiece) to 400X (40X objective + 10X eyepiece), with optional WF16X eyepiece extending to 640X.
Can I use oil immersion with this microscope?
No. The condenser has N.A. 0.65 and is not designed for oil immersion; it is for dry objectives only.
Is the LED lamp replaceable?
Yes. The LED lamp is integrated but can be replaced with a compatible unit if needed.
What is the working distance for the 40X objective?
The working distance for the 40X objective is approximately 0.5 mm; use with care to avoid contact with the slide.
Can I connect a camera?
Yes. The trinocular head model supports camera attachment via standard C-mount or adapter.
