XP800 Student Chidren Biological Microscope for Clinical Work Research
XP800 Student Chidren Biological Microscope for Clinical Work Research
XP800 Student Chidren Biological Microscope for Clinical Work Research
XP800 Student Chidren Biological Microscope for Clinical Work Research
XP800 Student Chidren Biological Microscope for Clinical Work Research
XP800 Student Chidren Biological Microscope for Clinical Work Research

XP800 Student Chidren Biological Microscope for Clinical Work Research

XP800 series are student and children biological microscopes from Nanjing AMADA Instrument designed for clinical work, basic research, and educational settings. The series includes four models (XP801 to XP804) with achromatic objectives, wide field eyepieces, and mechanical stages. Models support monocular, binocular, and trinocular viewing heads with coaxial coarse and fine focusing for stable operation.

  • Four models (XP801 to XP804) allow selection based on viewing head type and stage size for classroom or lab use
  • Achromatic objectives (4X, 10X, 40X, 100X oil) ensure clear imaging for routine biological specimens
  • Wide field eyepieces (WF10X standard, WF16X optional) increase field of view for easier sample location

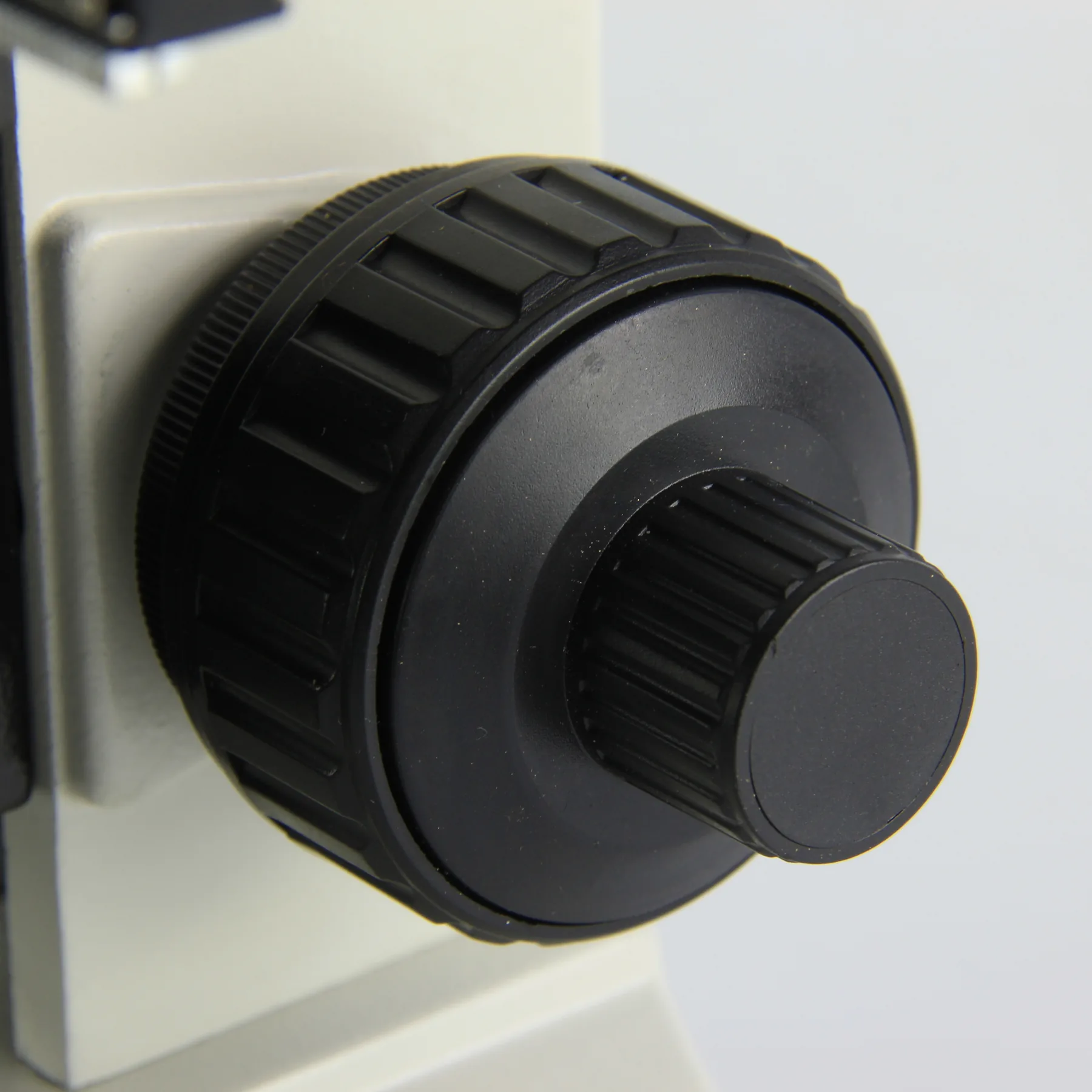

  • Coaxial coarse and fine focusing with 0.002 mm interval enables precise focusing for thin sections
  • Double layer mechanical stages (132X140mm or 140X140mm) with 75X45mm moving range support large slides and repeated positioning
Request A Quote +86-15195807515

Technical features

  • Achromatic objectives: 4X, 10X, 40X (Spring), 100X (Spring, Oil) on all models
  • WF10X eyepiece standard; WF16X optional on XP801–XP803

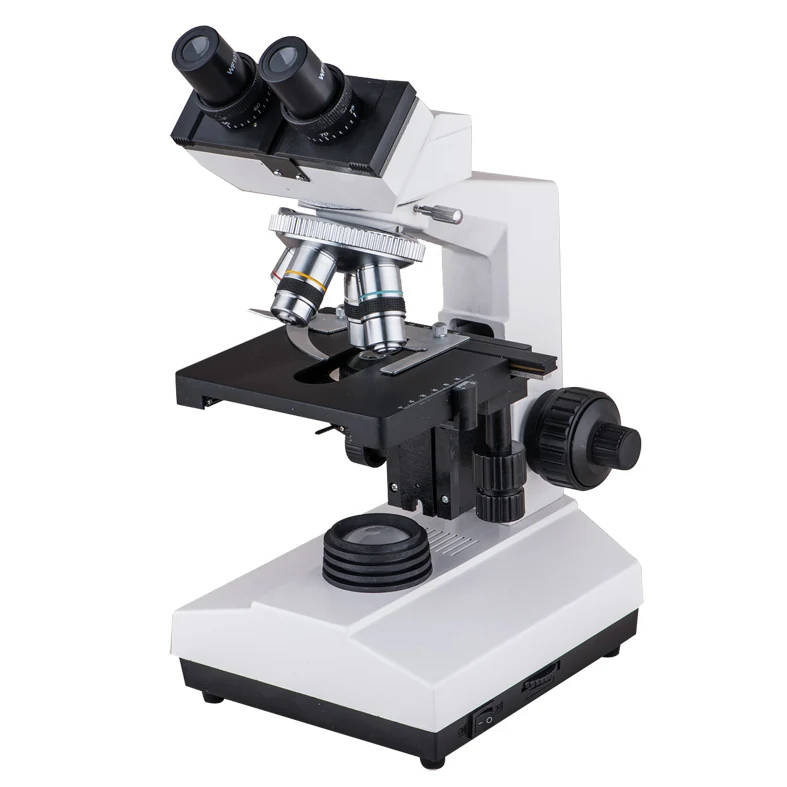

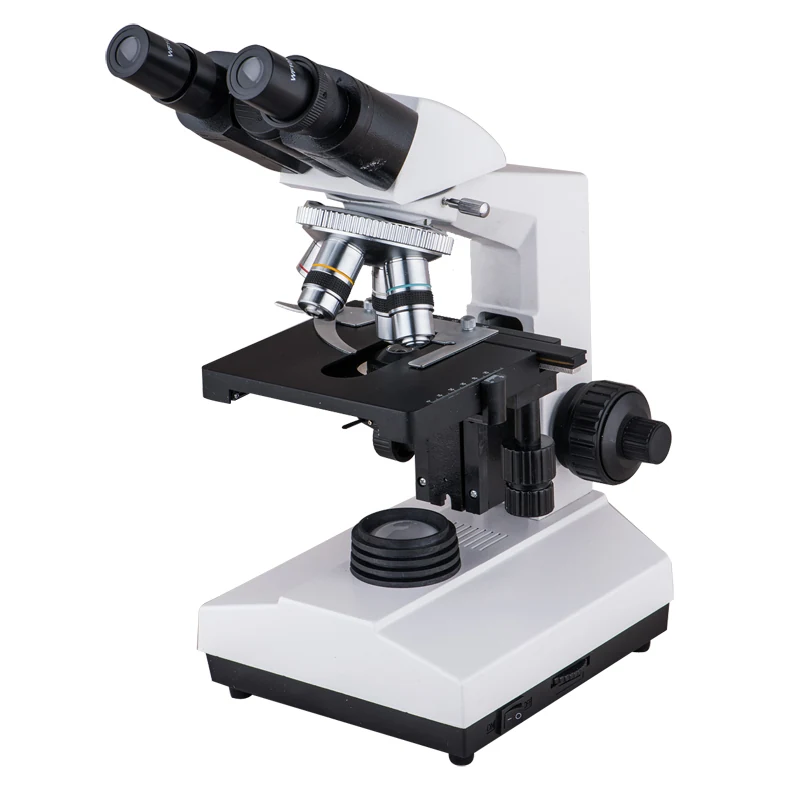

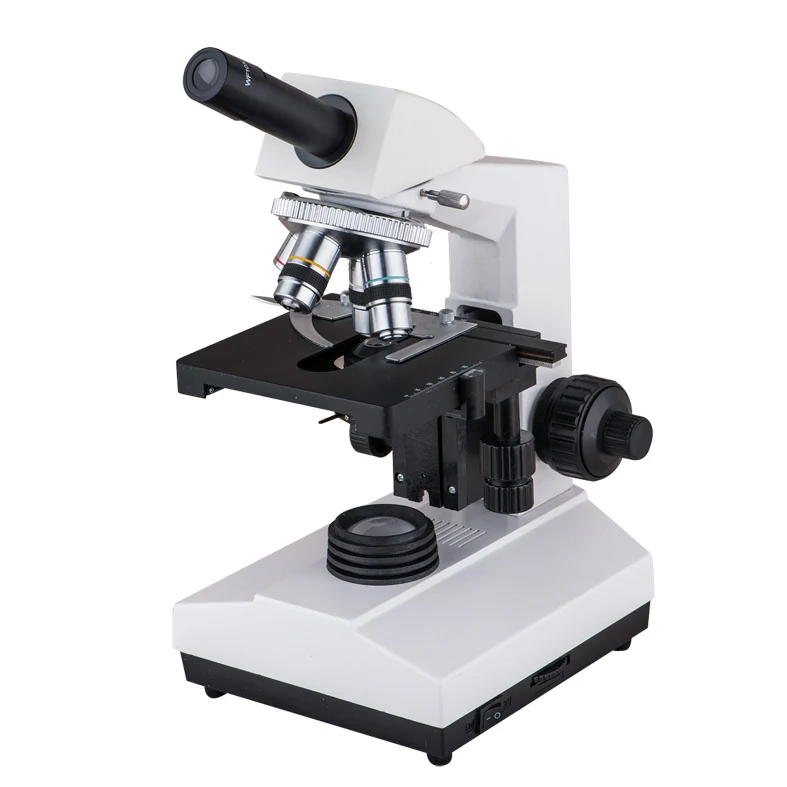

  • Monocular head inclined at 45° (XP801), binocular head inclined at 30° (XP802), sliding binocular head inclined at 45° (XP803), trinocular head (XP804)
  • Double layer mechanical stage: 132X140mm (XP801), 140X140mm (XP802–XP804), moving range 75X45mm
  • Coaxial coarse and fine focusing, focusing range 30mm, focusing interval 0.002mm
  • Compensation free on binocular and trinocular models
  • Viewing head angles: 45° (monocular and sliding binocular), 30° (binocular), 45° (trinocular)

Who it is for

  • Schools and universities procuring microscopes for biology labs
  • Medical training institutions needing student-grade instruments for clinical practice
  • Educational suppliers sourcing affordable, reliable microscopes for science kits
  • Non-profit organizations distributing lab tools to under-resourced institutions

Specifications

ModelsXP801 / XP802 / XP803 / XP804
Achromatic Objectives4X, 10X, 40X(S), 100X(S,Oil)
EyepieceWF10X (standard), WF16X (optional)
Viewing HeadMonocular (45°), Binocular (30°), Sliding Binocular (45°), Trinocular
Stage Size132X140mm (XP801), 140X140mm (XP802–XP804)
Stage Moving Range75X45mm
Focusing TypeCoaxial coarse and fine adjustment
Focusing Range30mm
Focusing Interval0.002mm

Use guide

  • Select model based on required viewing head type and stage size for lab setup
  • Use WF16X eyepiece only if wider field of view is needed for large specimens or group viewing
  • Choose oil immersion (100X) only when examining high-resolution samples like bacteria or blood smears
  • Use trinocular model (XP804) if digital imaging or documentation is required

FAQ

What objectives are included in the XP800 series?
All models include 4X, 10X, 40X (spring), and 100X (spring, oil immersion) achromatic objectives.
Can I use a WF16X eyepiece?
Yes. WF16X is optional on XP801, XP802, and XP803; WF10X is standard on all models.
What is the stage size and moving range?
XP801: 132X140mm; XP802–XP804: 140X140mm. All have 75X45mm moving range.
Is oil immersion supported?
Yes. 100X objective supports oil immersion on all models.
Which model has a trinocular head?
Only XP804 includes a trinocular head for camera attachment.
