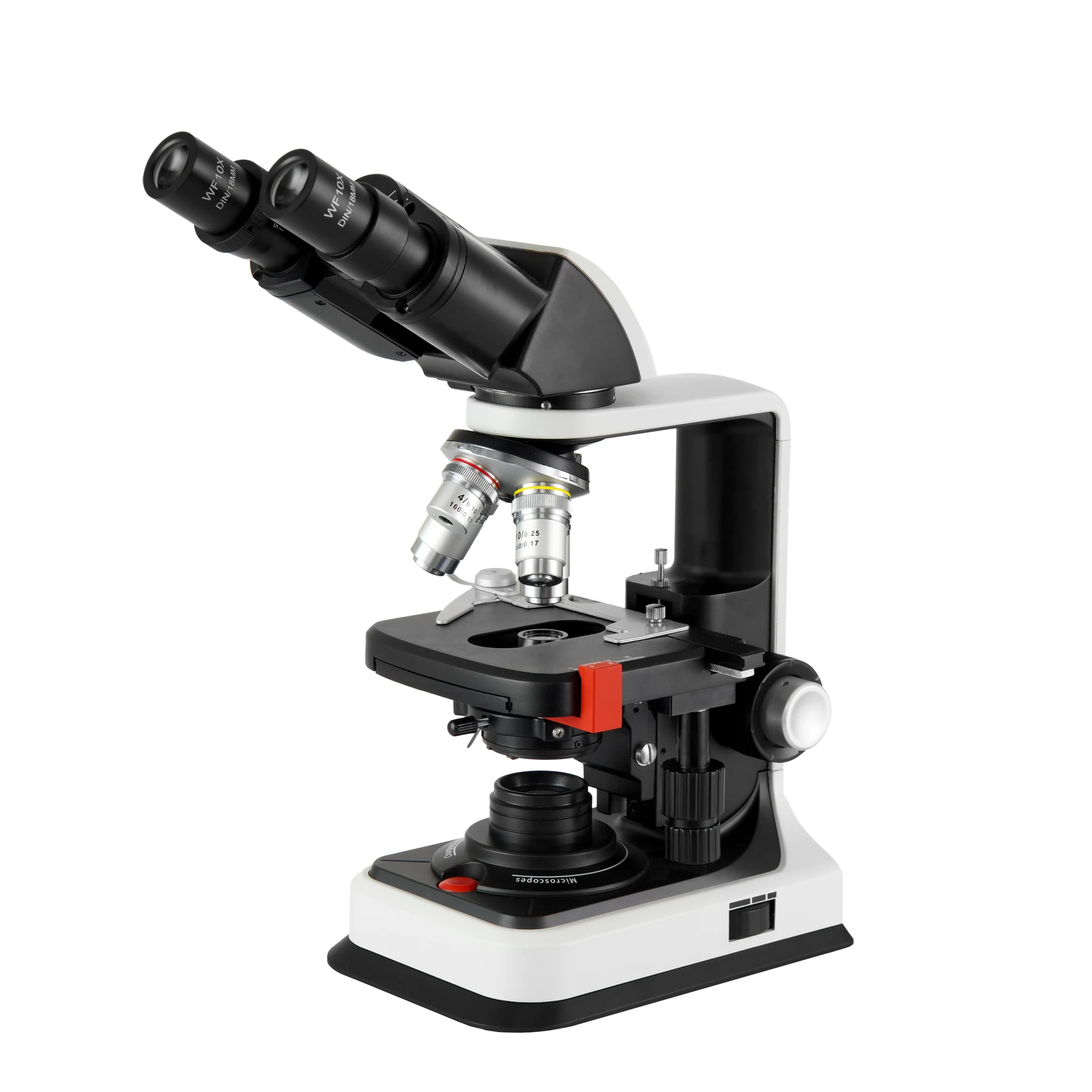

XUB300 Laboratory Biological Microscope for Hosptial Research

XUB300 Laboratory Biological Microscope for Hosptial Research

XUB301, XUB302, and XUB303 are laboratory biological microscopes from Nanjing AMADA Instrument Co., Ltd. designed for hospital research, clinical diagnostics, and biomedical applications. The series features monocular, binocular, or trinocular observation heads with 30° tilt, 195mm achromatic objectives (4X, 10X, 40X, 100X), a double-layer mechanical stage, coaxial coarse and fine focusing, and LED illumination with adjustable brightness and rechargeable power. All models support optional upgrades including higher magnification eyepieces, plan-field objectives, and advanced focusing systems.

  • Three configurations (XUB301 / XUB302 / XUB303) allow selection based on observation head type and required accessories
  • 195mm tube length ensures compatibility with standard optical components and consistent magnification
  • Coaxial coarse and fine focusing with 0.02mm fine adjustment value for precise specimen alignment
  • LED light source with adjustable brightness and rechargeable power via Type C interface for flexible use
  • Double-layer mechanical stage with 115mmX125mm platform and 80mmX30mm movement range for stable specimen handling
Request A Quote +86-15195807515

Technical features

  • Observation head: Monocular (XUB301), Binocular (XUB302), Trinocular (XUB303), 30° tilt, interpupillary distance 48–75 mm
  • Eyepiece: WF10X18mm standard; optional WF16X, WF20X, WF25X
  • Objectives: 4X, 10X, 40X, 100X achromatic, 195mm tube length
  • Condenser: Abbe N.A 1.25 with variable aperture diaphragm
  • Stage: Double-layer mobile mechanical metal platform, 115mmX125mm, movement range 80mmX30mm
  • Focusing system: Coaxial coarse and fine focusing, fine adjustment value 0.02mm
  • Light source: LED 1W, adjustable brightness, rechargeable battery
  • Power adapter: Input AC100–240V–50/60Hz, Output DC5V–12V/1A, Type C interface

Who it is for

  • Hospitals and clinical laboratories in developing and emerging markets
  • Biomedical research institutions sourcing cost-effective, standardized laboratory microscopes
  • Importers specifying biological microscopes for medical equipment procurement in public health projects

Specifications

ModelsXUB301 / XUB302 / XUB303
Observation HeadMonocular / Binocular / Trinocular, 30° tilt
Eyepiece StandardWF10X18mm
Objectives4X, 10X, 40X, 100X achromatic, 195mm tube length
CondenserAbbe N.A 1.25 with variable aperture
Stage Size115mmX125mm
Stage Movement80mmX30mm
Focusing SystemCoaxial coarse and fine, 0.02mm fine adjustment
Light SourceLED 1W, adjustable brightness
Power InputAC100–240V–50/60Hz
Output VoltageDC5V–12V/1A
Connector TypeType C
Tube Length195mm

Use guide

  • Select model based on required observation head type (monocular, binocular, trinocular)
  • Choose higher magnification eyepieces (WF16X–WF25X) for detailed cellular analysis
  • Add plan-field objectives for improved image flatness across the field of view
  • Use the gearbox focusing system when high-precision depth control is needed
  • Select white + yellow light source when observing specific fluorescent markers or contrast enhancement

FAQ

What is the tube length of the objectives?
195mm, standard for all models in the XUB series.
Can I add a camera?
Yes. The trinocular model (XUB303) supports a 1X photographic eyepiece for camera attachment.
Is the light source rechargeable?
Yes. The LED light source is powered by a rechargeable battery via the included Type C power adapter.
What is the fine focusing adjustment value?
0.02mm per full rotation of the fine focus knob.
What power input does it accept?
AC100–240V, 50/60Hz, compatible with global mains voltage.
Can I use a different objective?
Yes. Plan-field finite achromatic objectives are available as optional upgrades.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd., located in Nanjing, Jiangsu, China.
