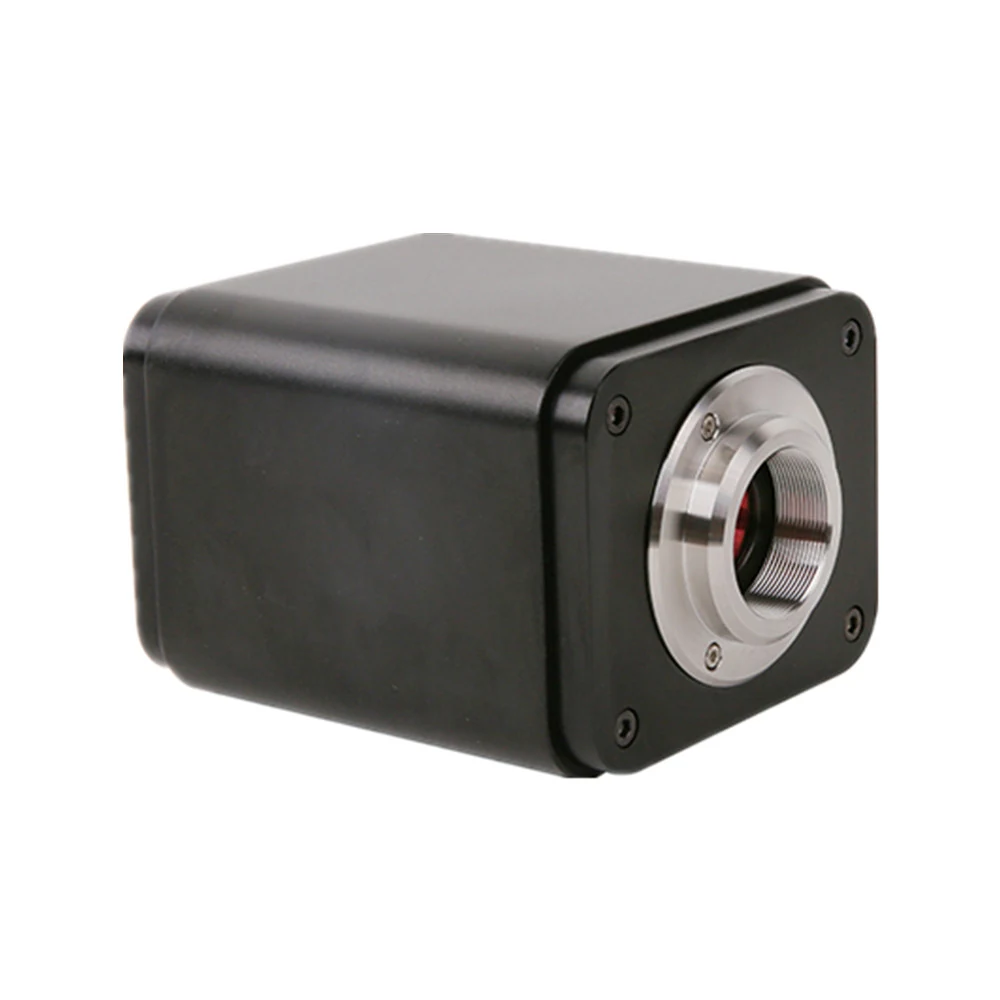

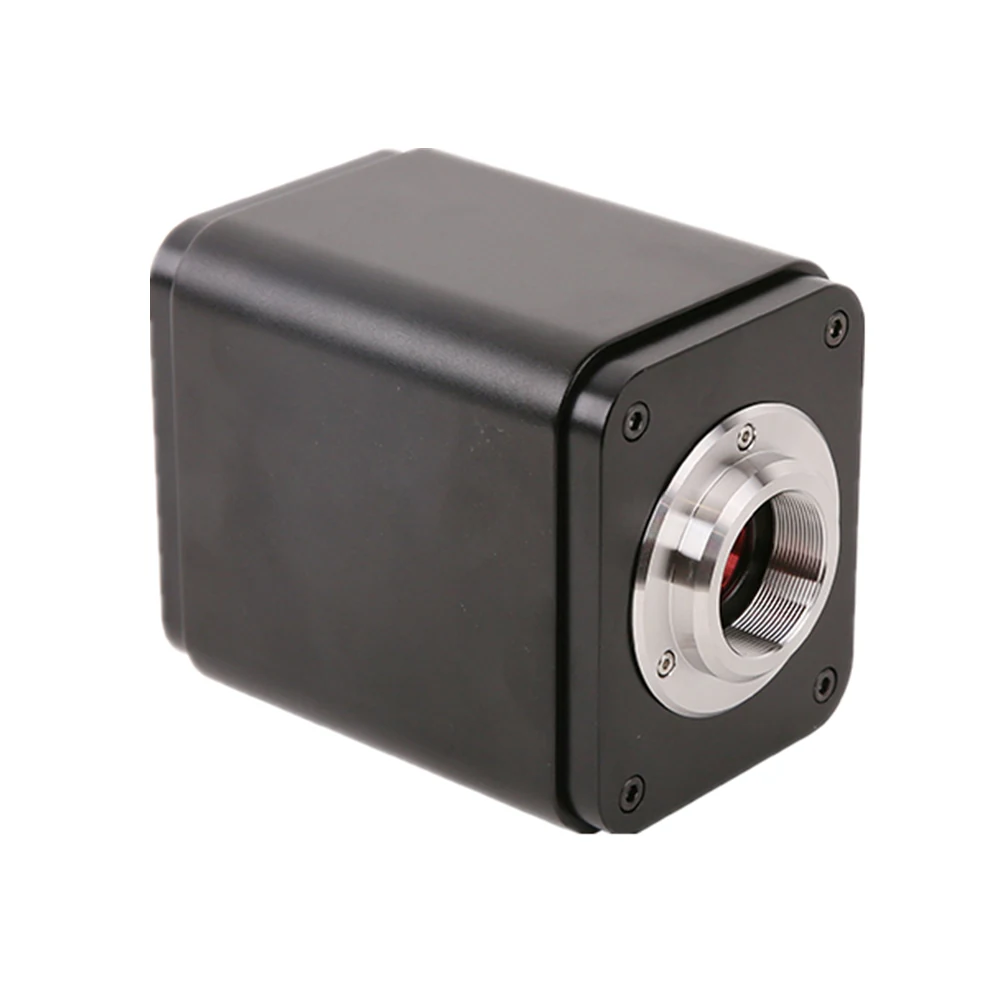

X7CAM4K HDMI USB WIFI Microscope Camera SONY IMX678/IMX585
X7CAM4K8MPA and X7CAM4K8MPB are 4K HDMI and WiFi multi-output microscope cameras from Nanjing AMADA Instrument Co., Ltd. featuring Sony IMX678 and IMX585 sensors. Designed for industrial inspection, PCB analysis, and laboratory imaging, they deliver ultra-high-definition real-time imaging via HDMI and wireless WiFi streaming. The standard C-Mount interface ensures compatibility with a wide range of microscopes and optical systems.
- Ultra-high-definition 4K resolution for detailed imaging at 3840×2160
- Dual output: HDMI for real-time low-latency display and WiFi for wireless streaming
- Standard C-Mount interface for broad compatibility with microscopes and optical systems
- Stable performance in industrial and laboratory environments
- Supports remote observation and collaboration via WiFi without signal delay
Technical features
- Sensor: Sony IMX678 (1/1.8″, 7.68×4.32 mm) or IMX585 (C-Mount compatible)
- Resolution: 3840×2160 (4K) at 72 FPS with 1×1 binning
- Pixel size: 2.0×2.0 μm
- High sensitivity: 1364 mv at 1/30s exposure
- Low dark signal: 0.1 mv at 1/30s exposure
- Exposure range: 0.019 ms to 1000 ms
- Output: HDMI for real-time display, WiFi for wireless streaming
- C-Mount interface standard for compatibility with microscopes
Who it is for
- Industrial inspection engineers requiring 4K resolution and real-time monitoring
- Electronics manufacturers integrating cameras into production line inspection systems
- Laboratory technicians performing high-precision imaging and documentation
- Procurement teams sourcing multi-output cameras for inspection stations
- Distributors building camera solutions for microscope integration
Specifications
| Model | X7CAM4K8MPA / X7CAM4K8MPB |
|---|---|
| Sensor | Sony IMX678 (C) / IMX585 (C) |
| Sensor Size | 1/1.8″ (7.68×4.32 mm) |
| Pixel Size | 2.0×2.0 μm |
| Resolution | 3840×2160 (4K) |
| Frame Rate | 72 FPS at 3840×2160 |
| Exposure Range | 0.019 ms – 1000 ms |
| Output | HDMI + WiFi (dual output) |
| Interface | Standard C-Mount |
| Sensitivity | 1364 mv at 1/30s |
| Dark Signal | 0.1 mv at 1/30s |
Use guide
- Select model based on required sensitivity and environmental lighting
- Choose dual output (HDMI + WiFi) for stations needing both real-time display and remote access
- Verify C-Mount compatibility with the microscope objective before mounting
- Use HDMI output for fixed inspection stations requiring zero-latency viewing
- Use WiFi output for mobile or remote inspection scenarios with mobile devices or computers
FAQ
What sensors are used in X7CAM4K8MPA and X7CAM4K8MPB?
X7CAM4K8MPA uses Sony IMX678; X7CAM4K8MPB uses Sony IMX585. Both are C-Mount compatible.
Can I use both HDMI and WiFi at the same time?
Yes. The camera supports dual output: HDMI for real-time display and WiFi for wireless streaming simultaneously.
What is the resolution and frame rate?
3840×2160 (4K) at 72 FPS with 1×1 binning.
Is the camera compatible with my microscope?
Yes, if your microscope has a standard C-Mount interface. Confirm compatibility with the objective lens.
What is the exposure range?
0.019 ms to 1000 ms, suitable for fast or slow lighting conditions.
