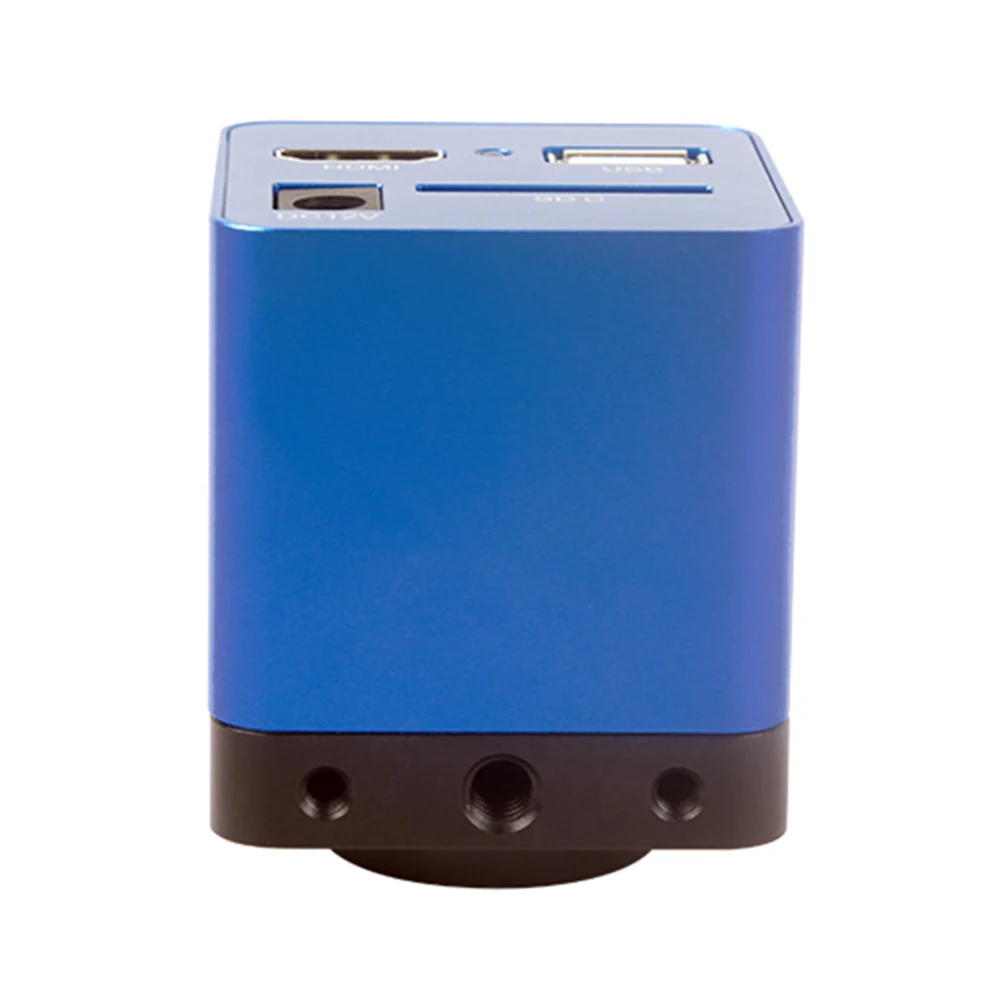

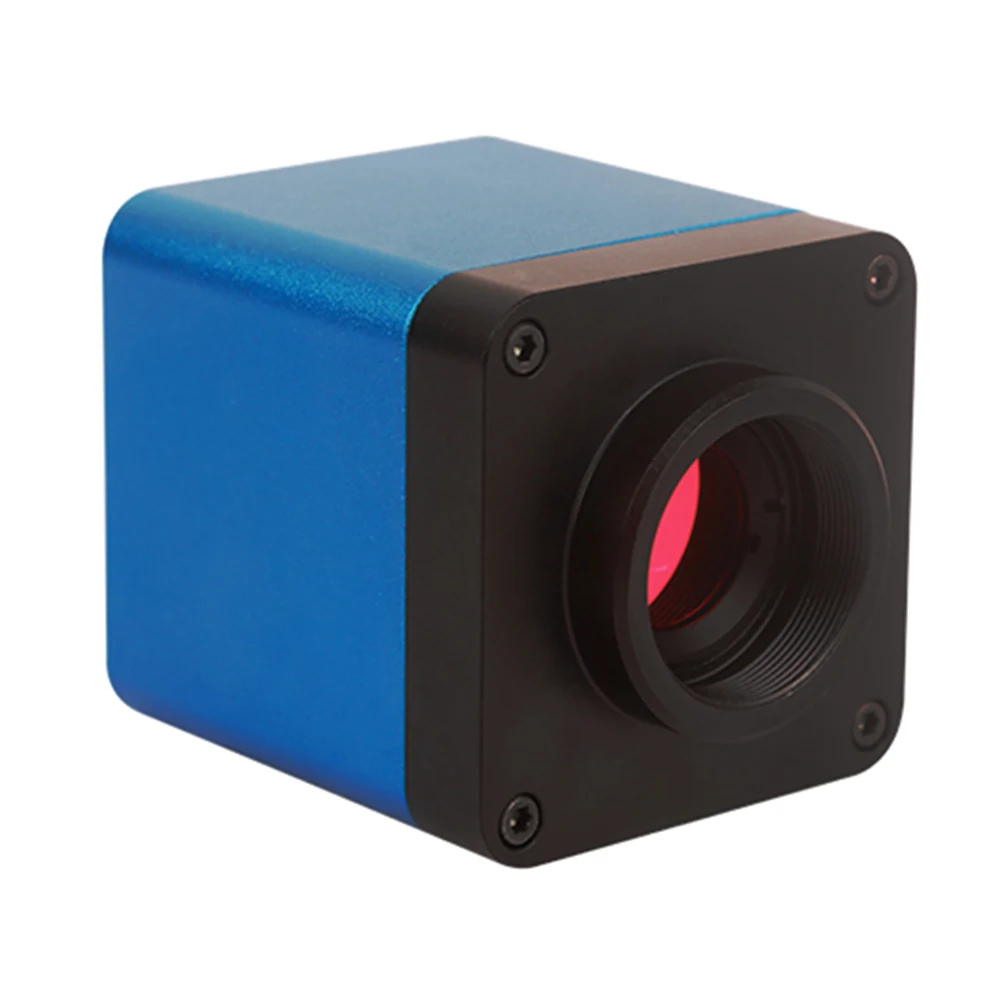

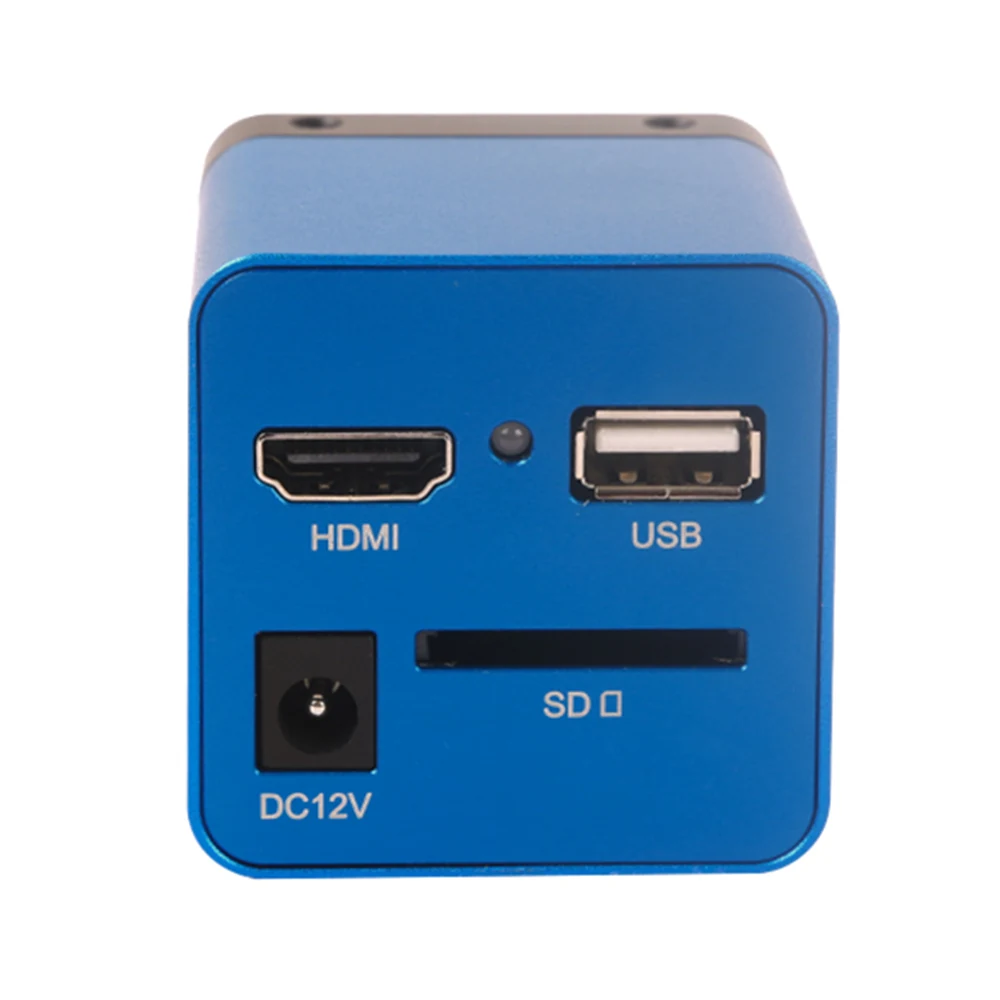

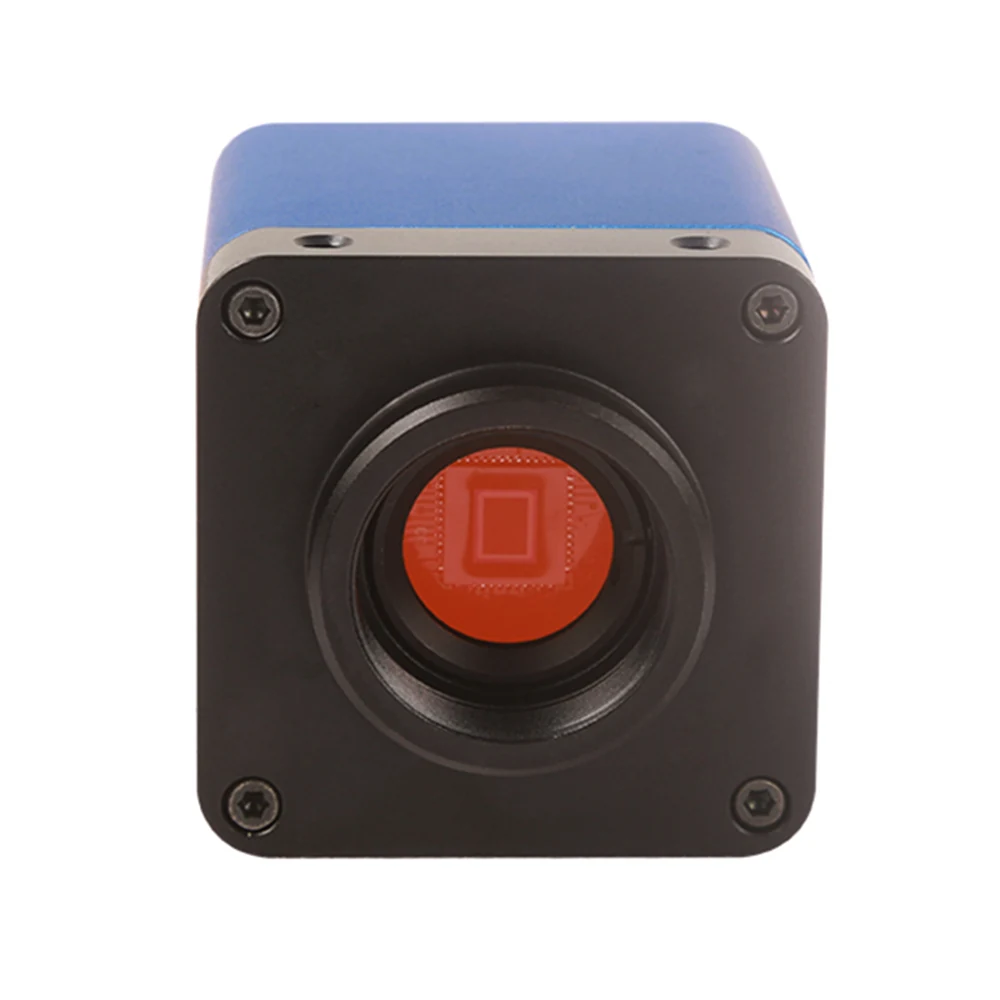

XCAMLITE1080PA HDMI C-Mount Microscope Industrial Camera
XCAMLITE1080PA HDMI C-Mount Microscope Industrial Camera
XCAMLITE1080PA HDMI C-Mount Microscope Industrial Camera
XCAMLITE1080PA HDMI C-Mount Microscope Industrial Camera
XCAMLITE1080PA HDMI C-Mount Microscope Industrial Camera

XCAMLITE1080PA HDMI C-Mount Microscope Industrial Camera

XCAMLITE1080PA is an HDMI C-Mount 1080p CMOS microscope camera designed for industrial inspection with real-time, low-latency video output. It supports 60fps at 1920×1080 resolution, includes SD card video and image recording, and features manual and automatic controls for exposure, white balance, and image processing. The camera is compatible with microscopes using C-Mount interfaces and supports HDMI 1.4 output for direct connection to monitors or recording devices.

  • Real-time HDMI output with no latency for live inspection and production line monitoring
  • 60fps at 1080p resolution ensures smooth, accurate image capture for fast-moving processes
  • Built-in SD card recording for video (H.264 MP4) and still images (JPEG) without computer dependency
  • Manual and automatic exposure, white balance, and image adjustments for consistent results across lighting conditions
  • Supports 3D denoise, sharpening, and anti-flicker (50Hz/60Hz) for improved image clarity in industrial environments
Request A Quote +86-15195807515

Technical features

  • Sensor: Sony IMX307(C), 1/2.8″ (5.57×3.13 mm) size
  • Pixel size: 2.9×2.9 μm
  • Sensitivity: 1300mv with 1/30s exposure
  • Frame rate: 60fps at 1920×1080 resolution via HDMI
  • Binning mode: 1×1
  • Exposure time: 0.01 to 1000 ms
  • HDMI output: Complies with HDMI 1.4 standard
  • SD card recording: 2M (1920×1080) H.264 encoded MP4 video at 50–60fps

Who it is for

  • Industrial inspection engineers in electronics manufacturing
  • Procurement teams sourcing cameras for automated or semi-automated inspection systems
  • Distributors building camera solutions for microscope integration in industrial settings
  • Quality control labs requiring documented, high-speed visual data for compliance

Specifications

ModelXCAMLITE1080PA
SensorSony IMX307(C)
Sensor Size1/2.8″ (5.57×3.13 mm)
Pixel Size2.9×2.9 μm
Sensitivity1300mv with 1/30s
Resolution1920×1080
Frame Rate60fps @ 1920×1080 (HDMI)
Binning1×1
Exposure Time0.01–1000 ms
Output InterfaceHDMI 1.4
Video RecordingH.264 MP4, 2M, 50–60fps
Image CaptureJPEG, 1920×1080
Power InputIncluded power adapter
C-MountStandard C-Mount interface
LanguagesEnglish, Simplified Chinese, Traditional Chinese, Korean, Thai, French, German, Japanese, Italian, Russian

Use guide

  • Connect the camera to a microscope using the standard C-Mount interface
  • Power the camera via the included adapter and connect HDMI output to a monitor or recorder
  • Use the on-screen menu to adjust exposure, white balance, and image settings as needed
  • Insert an SD card to enable video and image recording directly on the camera
  • Use the zoom, freeze, and cross-line functions for detailed inspection without external software

FAQ

What is the output interface?
HDMI 1.4 standard, supporting 60fps at 1920×1080 resolution.
Can I record video without a computer?
Yes. The camera supports direct SD card recording of H.264 MP4 video at up to 60fps.
What is the frame rate at 1080p?
60fps at 1920×1080 resolution via HDMI output.
Is the sensor sensitive enough for low-light inspection?
Yes. The Sony IMX307(C) sensor has 1300mv sensitivity with 1/30s exposure, suitable for industrial lighting conditions.
Can I adjust exposure and white balance manually?
Yes. Both automatic and manual modes are available for exposure and white balance control.
