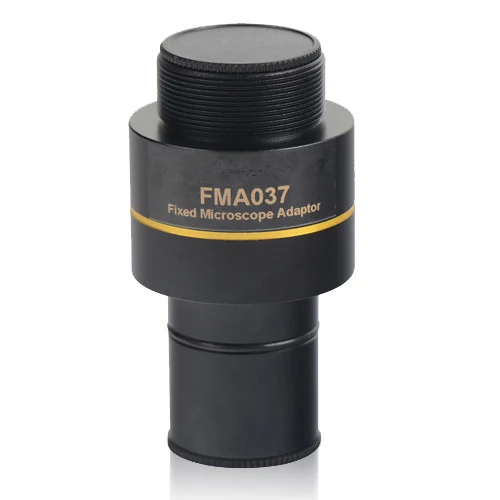

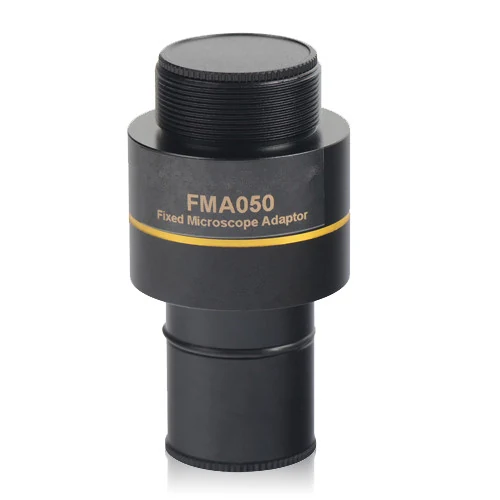

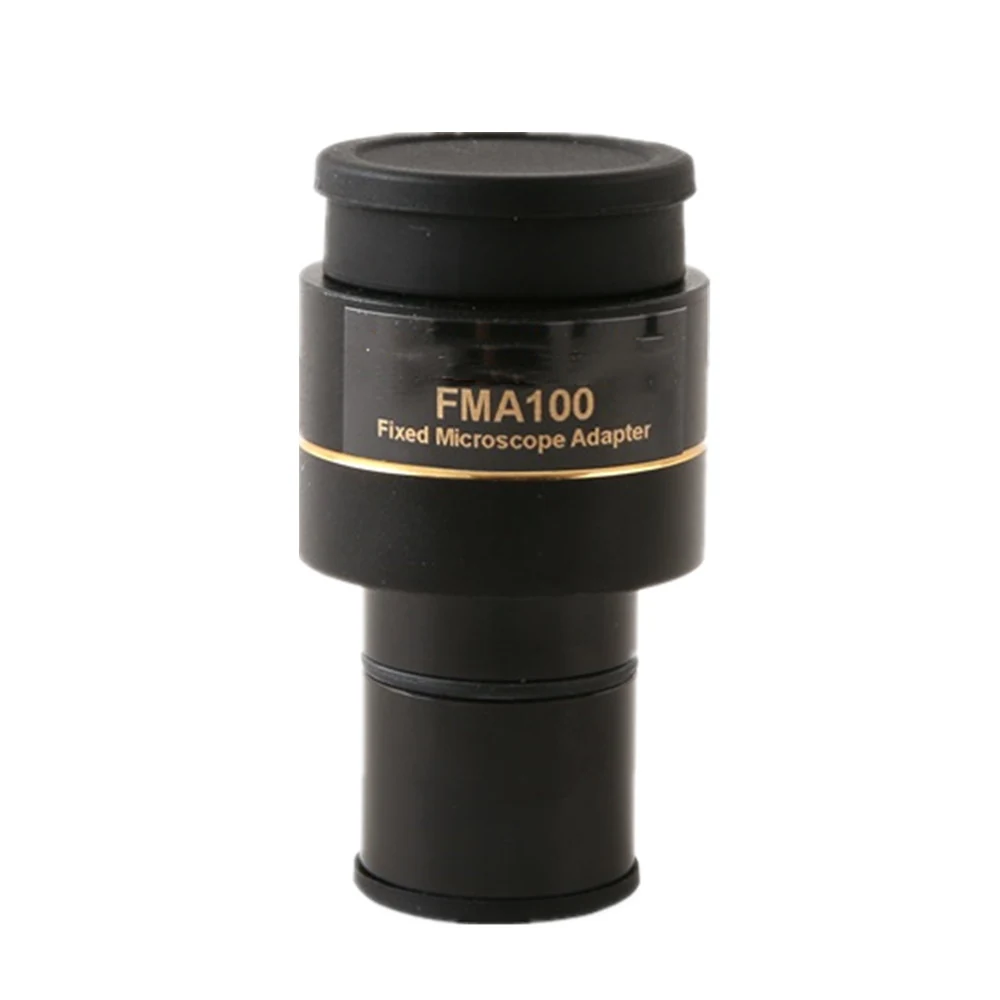

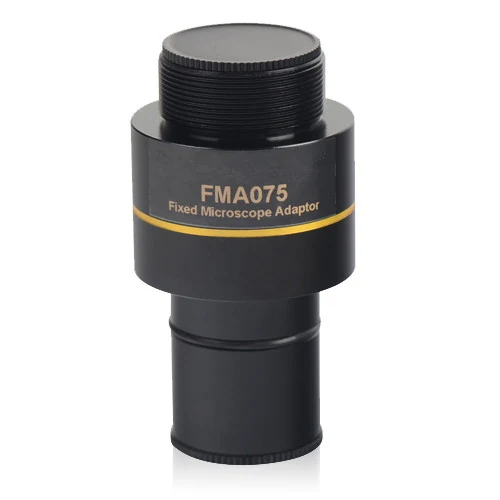

FMA 23.2mm Eyepiece to Fixed Microscope Eyepiece Adapter
FMA 23.2mm Eyepiece to Fixed Microscope Eyepiece Adapter
FMA 23.2mm Eyepiece to Fixed Microscope Eyepiece Adapter
FMA 23.2mm Eyepiece to Fixed Microscope Eyepiece Adapter
FMA 23.2mm Eyepiece to Fixed Microscope Eyepiece Adapter

FMA 23.2mm Eyepiece to Fixed Microscope Eyepiece Adapter

FMA 23.2mm Eyepiece to C-mount Fixed Microscope Eyepiece Adapter series connects 23.2mm diameter eyepieces to C-mount microscope cameras. Available in four magnification options (0.37X, 0.50X, 0.75X, 1.00X) for compatibility with sensors from 1/4" to 1" in size. Designed for fixed mounting on microscopes with 18mm field of view eyepieces.

  • Direct adapter from 23.2mm eyepiece to C-mount camera with no optical shift
  • Four magnification options to match sensor size and field coverage
  • Fixed mounting design ensures stable alignment during imaging
  • Supports cameras with sensors from 1/4" to 1" in size
  • Prevents vignetting by matching adapter size to sensor dimensions
Request A Quote +86-15195807515

Technical features

  • Adapter body diameter: 23.2mm eyepiece tube to C-mount
  • Magnification options: 0.37X, 0.50X, 0.75X, 1.00X
  • Compatible with 18mm field of view eyepieces
  • Supports sensor sizes: 1/4"–1/3" (FMA037), 1/2"–2/3" (FMA050), 1/1.8"–1" (FMA075), 1" (FMA100)
  • Fixed mounting design with no adjustable focus or tilt
  • Designed for use with C-mount cameras only
  • No optical correction beyond magnification factor

Who it is for

  • Procurement engineers specifying camera integration for inspection systems
  • Manufacturers setting up automated optical inspection stations
  • Distributors offering complete microscope imaging solutions
  • Laboratories requiring stable, repeatable camera mounting on fixed microscopes

Specifications

ModelFMA037 / FMA050 / FMA075 / FMA100
Magnification0.37X / 0.50X / 0.75X / 1.00X
Eyepiece Tube Diameter23.2mm
Sensor Compatibility1/4"–1/3" (FMA037), 1/2"–2/3" (FMA050), 1/1.8"–1" (FMA075), 1" (FMA100)
Field of View18mm
Mount TypeC-mount
Mounting StyleFixed

Use guide

  • Identify the sensor size of your C-mount camera
  • Match the sensor size to the correct FMA model (FMA037 to FMA100)
  • Ensure the microscope uses an 18mm field of view eyepiece
  • Install the adapter directly onto the eyepiece and connect the camera to the C-mount

FAQ

What camera sensors are compatible with each model?
FMA037: 1/4"–1/3"; FMA050: 1/2"–2/3"; FMA075: 1/1.8"–1"; FMA100: 1"
Can I use this adapter with a 20mm field eyepiece?
No. This adapter is designed for 18mm field of view eyepieces only.
Is the adapter adjustable?
No. It is a fixed mounting adapter with no focus or tilt adjustment.
Do I need to adjust the microscope focus after attaching the camera?
No. The adapter does not alter the optical path; focus remains unchanged.
What is the magnification factor used for?
It adjusts the image size to match the camera sensor; higher magnification reduces the field of view on the sensor.
