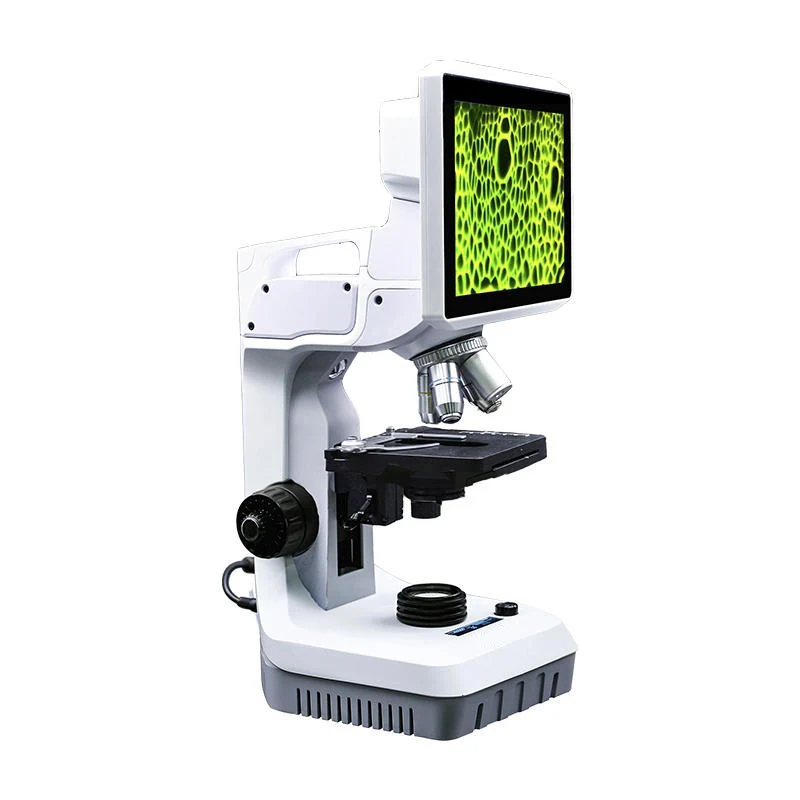

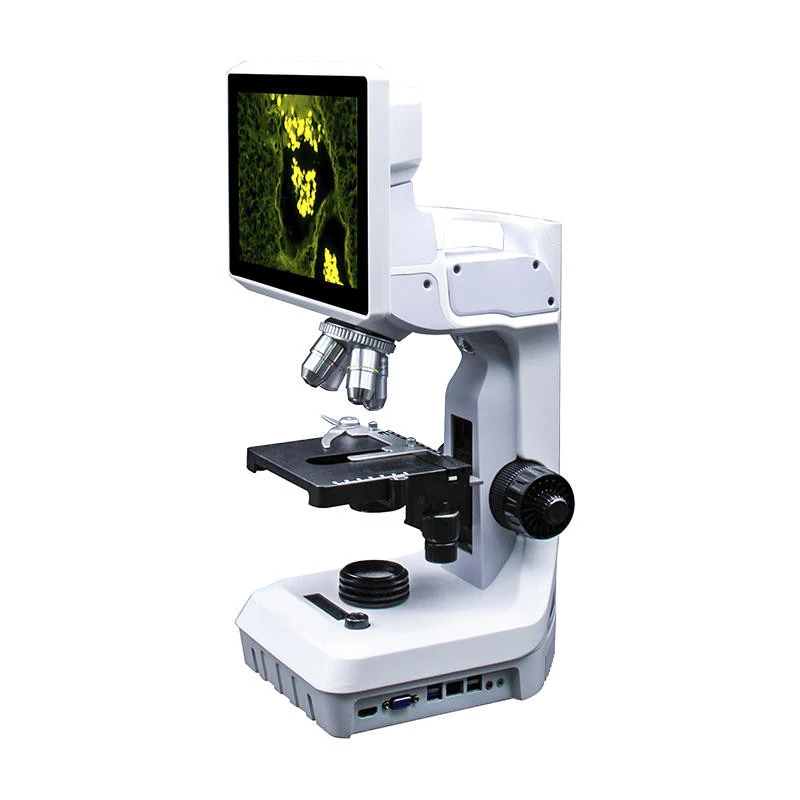

F300 5M LCD Digital Fluorescent Biological Stereo Microscope
F300 5M LCD Digital Fluorescent Biological Stereo Microscope
F300 5M LCD Digital Fluorescent Biological Stereo Microscope

F300 5M LCD Digital Fluorescent Biological Stereo Microscope

F300 is a digital fluorescent biological stereo microscope with a 10.1-inch HD LCD screen, 5 million effective pixel imaging, and built-in fluorescence excitation filters. It supports biological and stereoscopic observation with optical magnification from 10X to 400X, coaxial coarse and fine focus, and integrated USB, HDMI, VGA, Ethernet, and audio interfaces for data output and sensor connectivity.

  • Integrated 10.1-inch HD LCD screen with 1920×1200 resolution for real-time observation without external monitor
  • 5 million effective pixel digital imaging and 1080p/30fps video recording for high-resolution documentation
  • Built-in fluorescence filter system with three selectable excitation wavelengths (B: 460–490nm, G: 510–550nm, U: 365–420nm)
  • Coaxial coarse and fine focus system for precise sample alignment and depth control
  • Multiple interfaces (USB, HDMI, VGA, Ethernet, audio) support external display, data transfer, and sensor integration
  • Internal storage (64G SSD) and 4G RAM with Intel Core i3 processor for stable digital operation
Request A Quote +86-15195807515

Technical features

  • Model: F305
  • LCD Screen Size: 10.1 inches
  • LCD Resolution: 1920×1200
  • Maximal Resolution: 2492×1944 at 14fps
  • Photo/Video Playback: Yes
  • Data Output: HDMI, VGA, Ethernet, Audio In/Out
  • Integrated USB Interfaces: Multiple for sensor and device connection
  • Focusing System: Coaxial coarse and fine focus

Who it is for

  • Research institutions in life sciences and medical diagnostics
  • Laboratories conducting fluorescence-based biological experiments
  • Educational institutions requiring digital microscopy for teaching and documentation
  • Exporters sourcing integrated digital microscopes for clinical and research markets
  • Procurement teams specifying all-in-one digital microscopes with built-in imaging and storage

Specifications

ModelF305
LCD Screen Size10.1 inches
LCD Resolution1920×1200
Maximal Resolution2492×1944 at 14fps
Photo/Video PlaybackYes
Data Output InterfacesHDMI, VGA, Ethernet, Audio In/Out
USB InterfacesMultiple (for sensors and peripherals)
Focusing SystemCoaxial coarse and fine focus
Stage TypeDouble-layer mechanical stage
CondenserPlug-in condenser
Lighting SourceLED bottom and side light
Input Voltage19V
Fluorescence Filter OptionsB (460–490nm), G (510–550nm), U (365–420nm)
Biological Objectives4X, 10X, 40X, 100X (4-hole converter)
Stereoscopic Objective1X or 2X
Optical Magnification10X – 400X
Internal Storage64G SSD
RAM4G
CPUIntel Core i3
SoftwareFree professional observation software with scale calibration and measurement

Use guide

  • Select fluorescence filter (B/G/U) based on the fluorophore excitation wavelength used in the sample
  • Choose 1X or 2X stereoscopic objective depending on required magnification and working distance
  • Use the coaxial focus system to adjust focus smoothly across the depth of the sample
  • Connect external devices (projector, monitor, sensor) via HDMI, VGA, or USB as needed
  • Use the free software to calibrate scale and measure sample features directly on the screen

FAQ

What fluorescence filters are available?
Three options: B (460–490nm), G (510–550nm), U (365–420nm). Select one based on the fluorophore used.
Can I use this microscope without an external monitor?
Yes. The F300 has a built-in 10.1-inch HD LCD screen for standalone observation and operation.
What is the maximum resolution for photos and video?
Photos: 5 million effective pixels. Video: 1080p/30fps, up to 2492×1944 at 14fps.
Does it support external sensors?
Yes. Multiple USB interfaces allow simultaneous connection of sensors for digital experimentation.
What software is included?
Free professional observation software with scale calibration and measurement tools.
