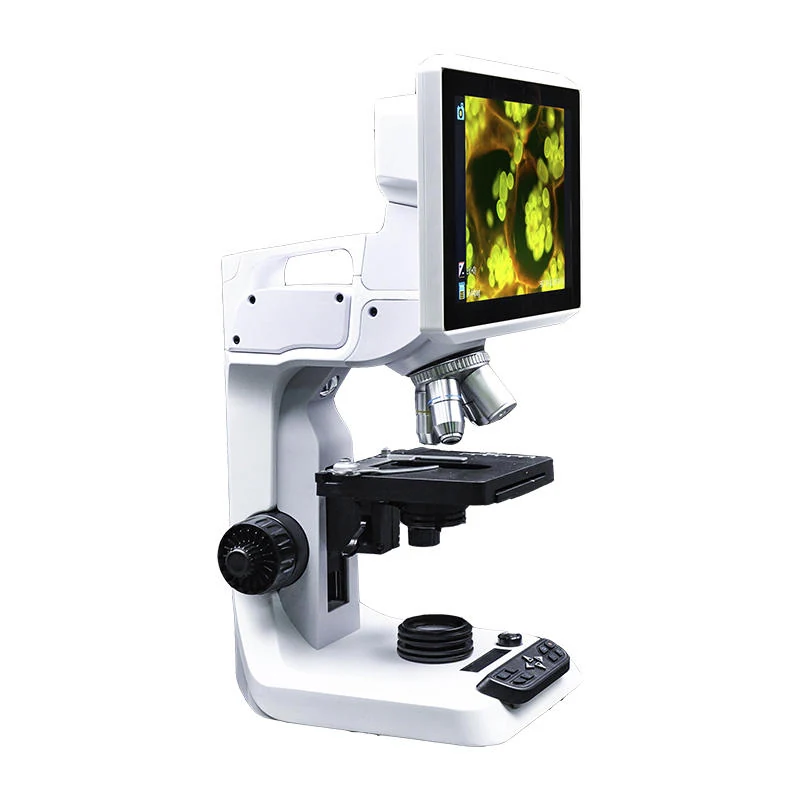

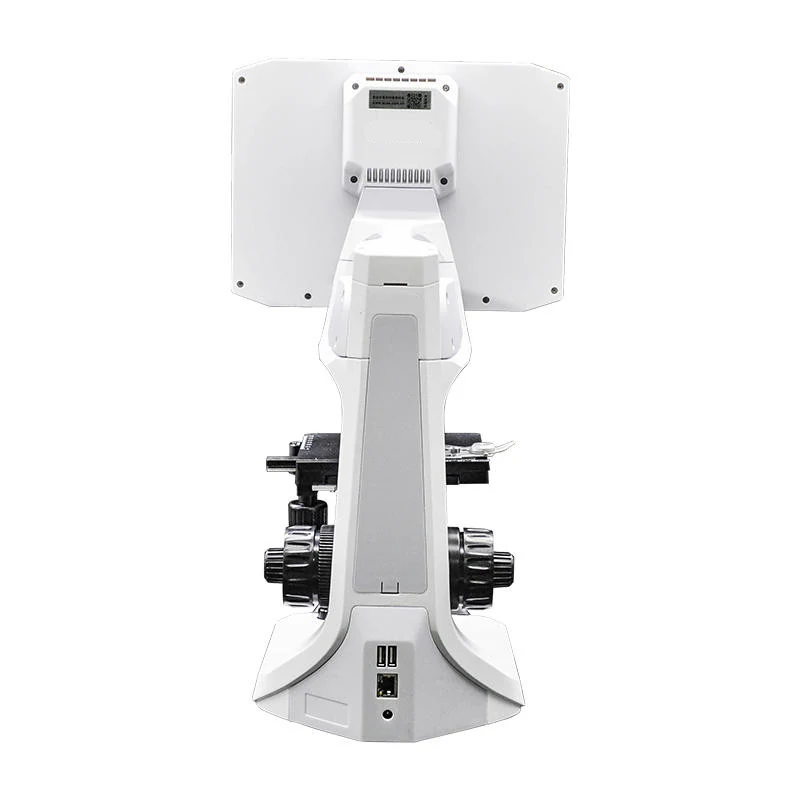

F200 5M 8M 16M Digital Fluorescent Biological Stereo Microscope
F200 5M 8M 16M Digital Fluorescent Biological Stereo Microscope
F200 5M 8M 16M Digital Fluorescent Biological Stereo Microscope

F200 5M 8M 16M Digital Fluorescent Biological Stereo Microscope

F200 series is an integrated digital LCD fluorescent microscope combining biological, stereo, and fluorescence capabilities. Designed for research in biology, cytology, genetics, and immunology, it features infinite plan achromatic objectives, Epi-illumination, and a built-in HD image module with 5M, 8M, or 16M effective pixels. The system supports 1080p/30fps video, USB data transfer, and measurement functions via free software.

  • Integrated biological, stereo, and fluorescence functions in one unit for multi-mode research
  • Built-in HD image module with 5M, 8M, or 16M effective pixels and 1080p/30fps video output
  • 10.1 inch HD LCD screen with real-time image display and playback
  • USB interface for U disk storage and connection to external devices
  • Free professional software for scale calibration, measurement, and image analysis
  • Multi-functional knob for light source control, brightness adjustment, and power management
Request A Quote +86-15195807515

Technical features

  • Integrated digital LCD fluorescent microscope with biological and stereo functions
  • 10.1 inch HD LCD screen with resolution 1920×1200
  • Video resolution 1080p/30fps, photo and video playback supported
  • Built-in HD image module with effective pixel count 5M / 8M / 16M (model dependent)
  • Free professional software for scale calibration, crosshair positioning, and measurement
  • Multi-functional knob for light source switch, brightness adjustment, and power control
  • Light source state display showing brightness, source type (Chinese indication), battery level, and charging status
  • Built-in 8G storage; data saved to U disk when inserted via USB1 interface

Who it is for

  • Research institutions in life sciences and medical diagnostics
  • Laboratories conducting fluorescence-based experiments
  • Educational and training centers needing a multi-functional teaching microscope
  • Importers sourcing digital microscopes for scientific and medical equipment catalogs
  • Distributors building product lines for biomedical and agricultural research

Specifications

ModelsF205 / F208 / F216
LCD Screen Size10.1 inches
LCD Resolution1920×1200
Video Resolution1080P/30fps
Photo Resolution5M / 8M / 16M
Built-in Storage8G
USB InterfaceUSB1 (U disk), USB2 (camera output)
Fluorescence FiltersB (460–490nm), G (510–550nm), U (365–420nm)
Nosepiece Holes3 / 4 / 5
Biological Objectives4X, 10X, 40X (F205); 4X, 10X, 40X, 100X (F216)
Stereoscopic Objective1X (F208, F216)
Optical Magnification40X–400X (F205), 10X–400X (F208), 10X–1000X (F216)
Input Voltage19V
External InterfaceEthernet

Use guide

  • Select model (F205/F208/F216) based on required resolution and magnification range
  • Choose fluorescence filter (B/G/U) matching the fluorophore excitation wavelength
  • Use USB1 port to transfer data to U disk for secure backup
  • Connect USB2 to external device for live image output and software analysis
  • Use free software for measurement, scale calibration, and crosshair positioning

FAQ

What is the photo resolution for each model?
F205: 5M, F208: 8M, F216: 16M
Can I connect this microscope to a computer?
Yes. Use the USB2 interface to connect to desktops, laptops, or electronic screens for live output and software analysis.
Does it support fluorescence imaging?
Yes. It includes three fluorescence filter options: B (460–490nm), G (510–550nm), U (365–420nm).
How do I save data?
Data can be saved to the built-in 8G storage or automatically to a U disk when inserted via USB1 interface.
What is the input voltage?
19V DC
Can I use the built-in screen for team viewing?
Yes. The 10.1 inch HD LCD screen displays real-time images and supports photo/video playback for group observation.
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
