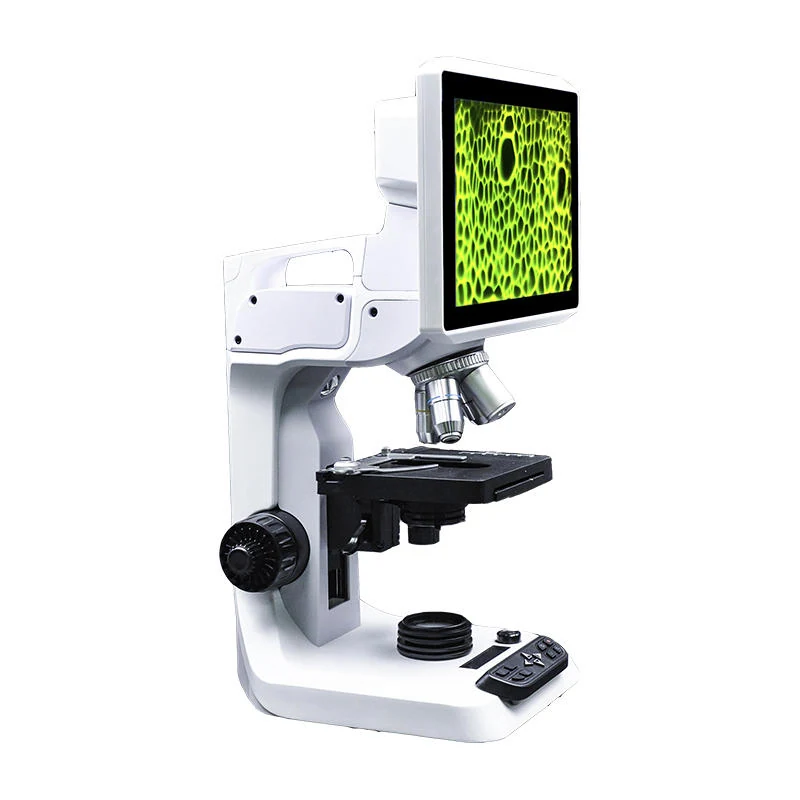

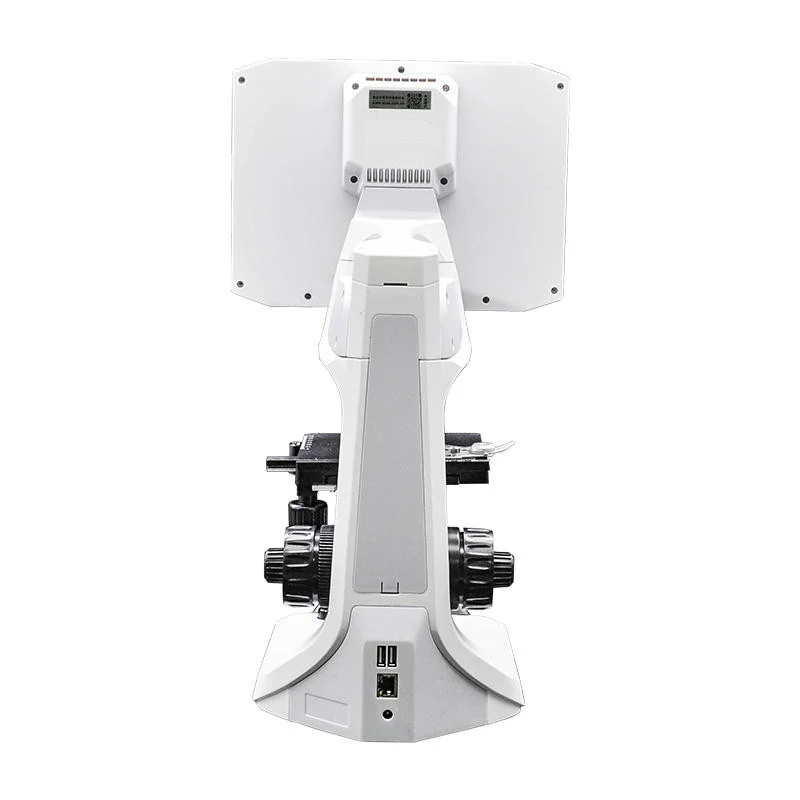

F100 5M 8M 16M Digital Fluorescent Biological Stereo Microscope
F100 5M 8M 16M Digital Fluorescent Biological Stereo Microscope
F100 5M 8M 16M Digital Fluorescent Biological Stereo Microscope

F100 5M 8M 16M Digital Fluorescent Biological Stereo Microscope

F100 series is a digital fluorescent biological stereo microscope integrating biological, stereo, and fluorescence imaging for research in biology, cytology, genetics, and immunology. It features a 10.1-inch HD LCD screen, built-in HD image module with 5M/8M/16M photo resolution, and Epi-illumination with three selectable fluorescence filter sets. The system supports HD video 1080p/30fps, TF card storage, HDMI output, and measurement functions via professional software.

  • Integrated fluorescence, biological, and stereo microscopy in one compact digital system
  • Built-in HD image module with 5M, 8M, or 16M effective pixels for high-resolution imaging
  • Supports real-time HD video 1080p/30fps and TF card storage for offline data access
  • HDMI output enables live teaching and demonstration on monitors or projectors
  • Measurement tools with scale calibration and crosshair/arrow pointer for accurate sample analysis
Request A Quote +86-15195807515

Technical features

  • LCD screen size 10.1 inches, resolution 1920×1200
  • Video resolution 1080p/30fps, photo resolution 5M / 8M / 16M (model dependent)
  • Built-in HD digital image module with scale calibration and measurement tools
  • Fluorescence filter system with three options: B (460–490nm), G (510–550nm), U (365–420nm)
  • Biological objectives: 4X/10X/40X (F105), 4X/10X/40X (F108), 4X/10X/40X/100X (F116)
  • Stereoscopic objective: 1X (F108/F116), no stereoscopic objective (F105)
  • Optical magnification range: 40X–400X (F105), 10X–400X (F108), 10X–1000X (F116)
  • Coaxial coarse and fine focus system with handwheel

Who it is for

  • Research institutions in life sciences and medical diagnostics
  • Public health and epidemic prevention laboratories
  • Agricultural research teams using fluorescence staining
  • Educational institutions conducting practical microscopy training
  • Distributors supplying digital microscopes for scientific and clinical use

Specifications

ModelF105 / F108 / F116
LCD Screen Size10.1 inches
LCD Resolution1920×1200
Video Resolution1080p/30fps
Photo Resolution5M / 8M / 16M
Fluorescence Filter SetB (460–490nm), G (510–550nm), U (365–420nm)
Biological Objectives4X/10X/40X (F105), 4X/10X/40X (F108), 4X/10X/40X/100X (F116)
Stereoscopic Objective1X (F108/F116), None (F105)
Optical Magnification40X–400X (F105), 10X–400X (F108), 10X–1000X (F116)
Nosepiece Holes3 (F105), 4 (F108), 5 (F116)
Focusing SystemCoaxial coarse and fine focus
Stage TypeDouble-layer mechanical stage
CondenserPlug-in condenser
Light SourceLED bottom, side, and coaxial illumination
Input Voltage19V
HDMI OutputYes
TF Card StorageYes, rear slot
Measurement ToolsCrosshair positioning, arrow pointer, scale calibration

Use guide

  • Select model based on required magnification range and objective count (F105: up to 400X, F116: up to 1000X)
  • Choose fluorescence filter set (B/G/U) according to the excitation wavelength of the sample dye
  • Use the operational key panel to capture images or record video directly without software
  • Insert TF card into the rear slot to store images and videos offline
  • Connect HDMI to a monitor or projector for live demonstration or teaching

FAQ

What is the photo resolution for each model?
F105: 5M, F108: 8M, F116: 16M
Can I use this microscope for fluorescence imaging?
Yes. It includes Epi-illumination and three selectable fluorescence filter sets (B, G, U) for common fluorophores.
Does it support real-time video output?
Yes. It supports 1080p/30fps video and HDMI output for live display on monitors or projectors.
Can I store images and videos internally?
Yes. Use a TF card inserted into the rear slot for storage without touching internal components.
What is the input voltage?
19V. Compatible with standard power supplies and portable batteries.
