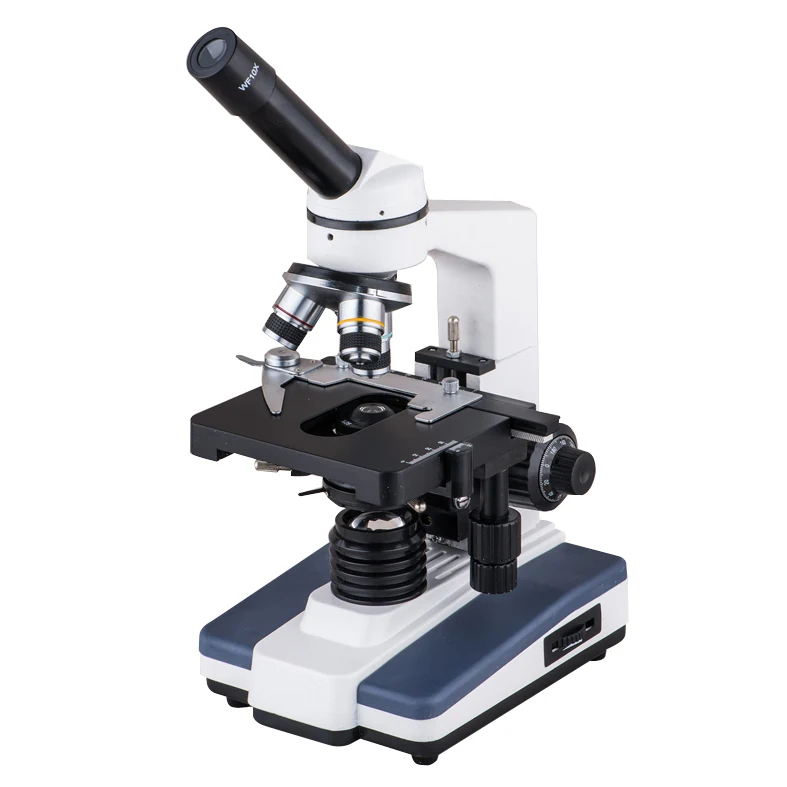

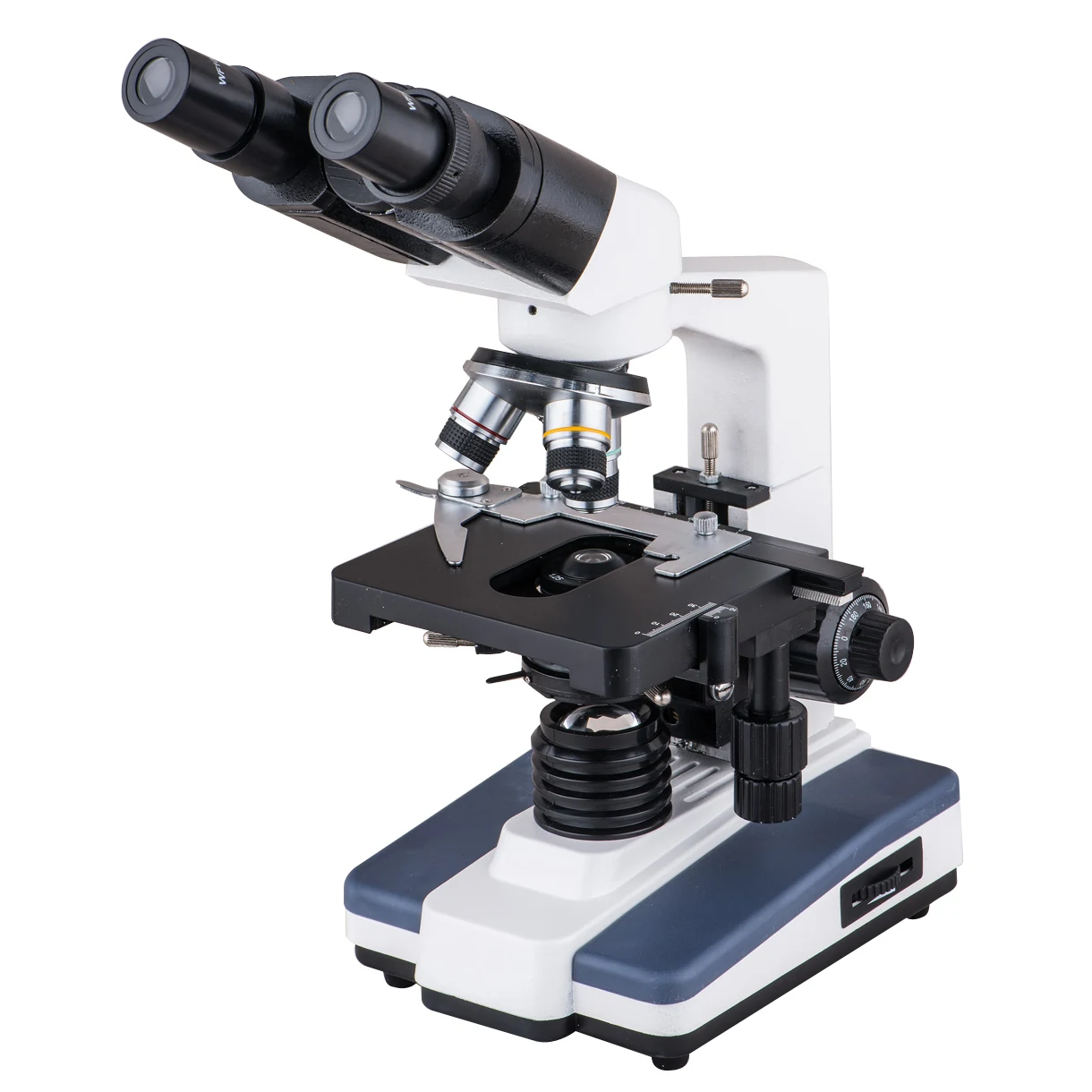

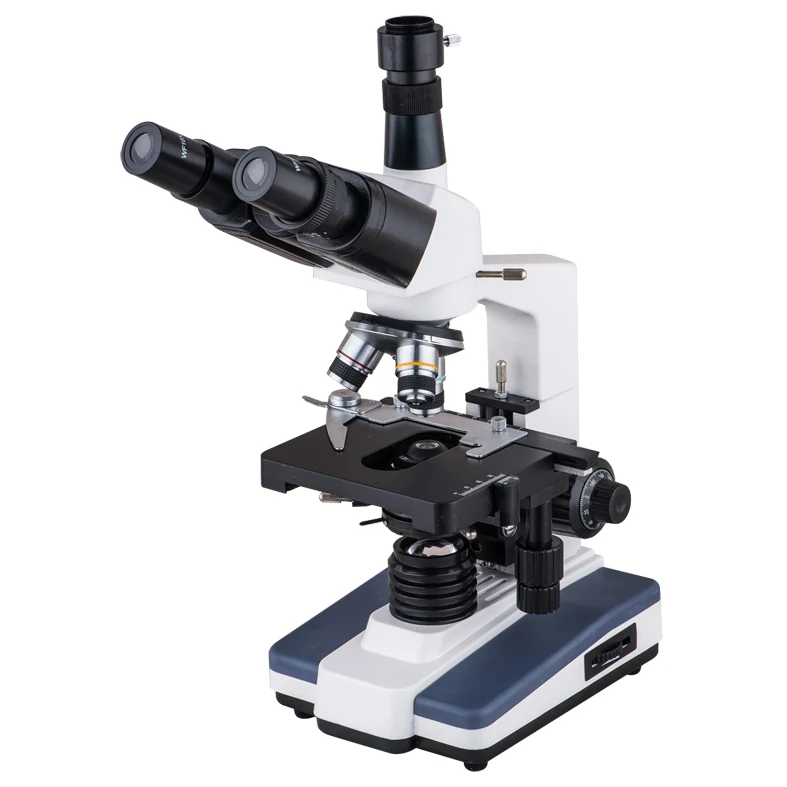

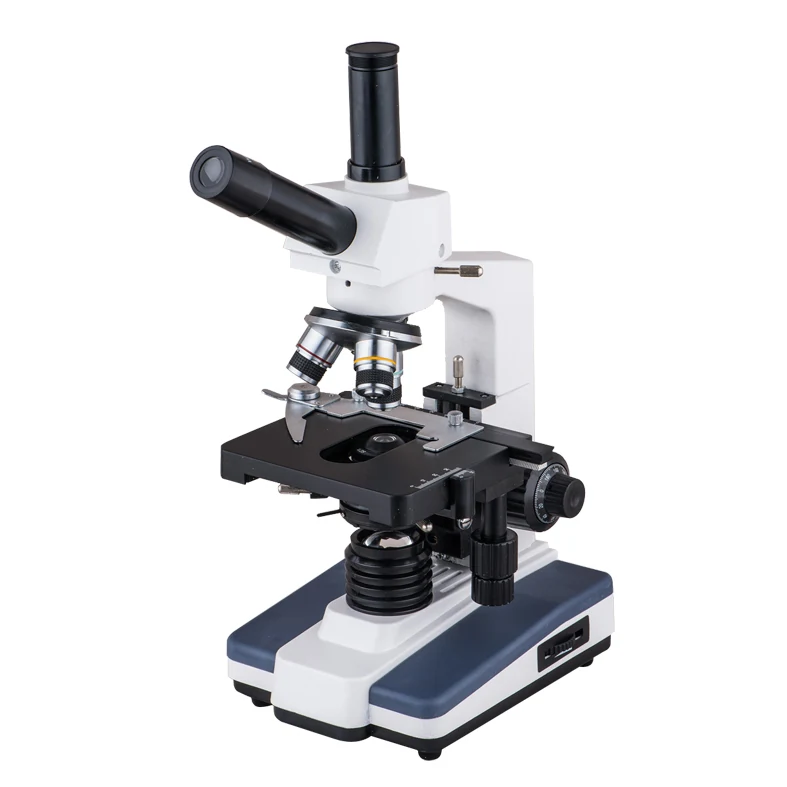

XP600 Student Chidren Biological Microscope for Laboratory Research
XP600 Student Chidren Biological Microscope for Laboratory Research
XP600 Student Chidren Biological Microscope for Laboratory Research
XP600 Student Chidren Biological Microscope for Laboratory Research
XP600 Student Chidren Biological Microscope for Laboratory Research
XP600 Student Chidren Biological Microscope for Laboratory Research

XP600 Student Chidren Biological Microscope for Laboratory Research

XP600 series student biological microscopes from Nanjing AMADA Instrument are designed for laboratory research and educational use in schools, colleges, and training labs. The series includes models XP601 to XP605 with achromatic objectives (4X, 10X, 40X(S), 100X(S,Oil)), wide field eyepieces, and multiple viewing head options including monocular, binocular, trinocular, and dual observation heads. Standard illumination uses a halogen lamp (220V/6V20W or 110V/6V20W), with LED lamp available as an option.

  • Multiple viewing head configurations allow selection based on user preference and lab setup
  • Achromatic objectives and wide field eyepieces provide clear, distortion-free imaging for student training
  • Coaxial coarse and fine focusing with 0.002mm interval ensures precise sample alignment and depth control
  • Double layer mechanical stage (125X115mm) supports stable specimen positioning during observation
  • Abbe condenser with iris diaphragm and filter enhances contrast and resolution for detailed sample analysis
Request A Quote +86-15195807515

Technical features

  • Models: XP601, XP602, XP603, XP604, XP605
  • Achromatic objectives: 4X, 10X, 40X(S), 100X(S,Oil) — standard on all models
  • Eyepieces: WF10X (standard), WF16X (optional)
  • Viewing heads: Monocular (standard), Binocular (compensation free, inclined 30°), Trinocular (standard), Dual observation head (30° inclined and vertical, 360° rotatable), Trinocular with 7'' LCD screen (optional)
  • Stage: Double layer mechanical stage, size 125X115mm — standard on all models
  • Focusing: Coaxial coarse and fine adjustment, focusing range 30mm, focusing interval 0.002mm — standard on all models
  • Condenser: Abbe NA=1.25 with iris diaphragm and filter — standard on all models
  • Illumination: Halogen lamp 220V/6V20W or 110V/6V20W — standard; LED lamp — optional

Who it is for

  • Schools and universities procuring microscopes for biology and life sciences education
  • Educational suppliers and distributors building product lines for academic markets
  • Laboratory managers setting up training stations with consistent, low-maintenance equipment

Specifications

ModelsXP601 / XP602 / XP603 / XP604 / XP605
Objectives4X, 10X, 40X(S), 100X(S,Oil)
EyepieceWF10X (standard), WF16X (optional)
Viewing HeadMonocular, Binocular (inclined 30°), Trinocular, Dual Observation (30° incline + vertical, 360° rotatable), Trinocular with 7'' LCD (optional)
StageDouble layer mechanical stage, 125X115mm
FocusingCoaxial coarse and fine adjustment, 30mm range, 0.002mm interval
CondenserAbbe NA=1.25 with iris diaphragm and filter
IlluminationHalogen 220V/6V20W or 110V/6V20W (standard), LED (optional)

Use guide

  • Select model based on required viewing head and illumination type
  • Use WF16X eyepiece for wider field of view in educational settings
  • Choose LED lamp for lower power consumption and reduced heat in long sessions
  • Use 100X(S,Oil) objective only with immersion oil and proper cleaning procedures

FAQ

What objectives are included in the standard configuration?
4X, 10X, 40X(S), and 100X(S,Oil) — all standard on XP601 to XP605.
Can I upgrade to a trinocular head with LCD screen?
Yes. The trinocular head with 7'' LCD is an optional accessory available upon request.
What is the focusing interval and range?
Coaxial coarse and fine adjustment with 30mm focusing range and 0.002mm interval.
Is the halogen lamp compatible with 110V?
Yes. The halogen lamp is available in 110V/6V20W or 220V/6V20W versions depending on regional voltage.
Can I use the microscope with immersion oil?
Yes. The 100X(S,Oil) objective is designed for use with immersion oil; clean the lens after use.
